Blackmagic design Ultimatte 12 HD Mini

574,75 Incl. btw€475,00 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere studio items in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Blackmagic design
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
1 week

Informatie

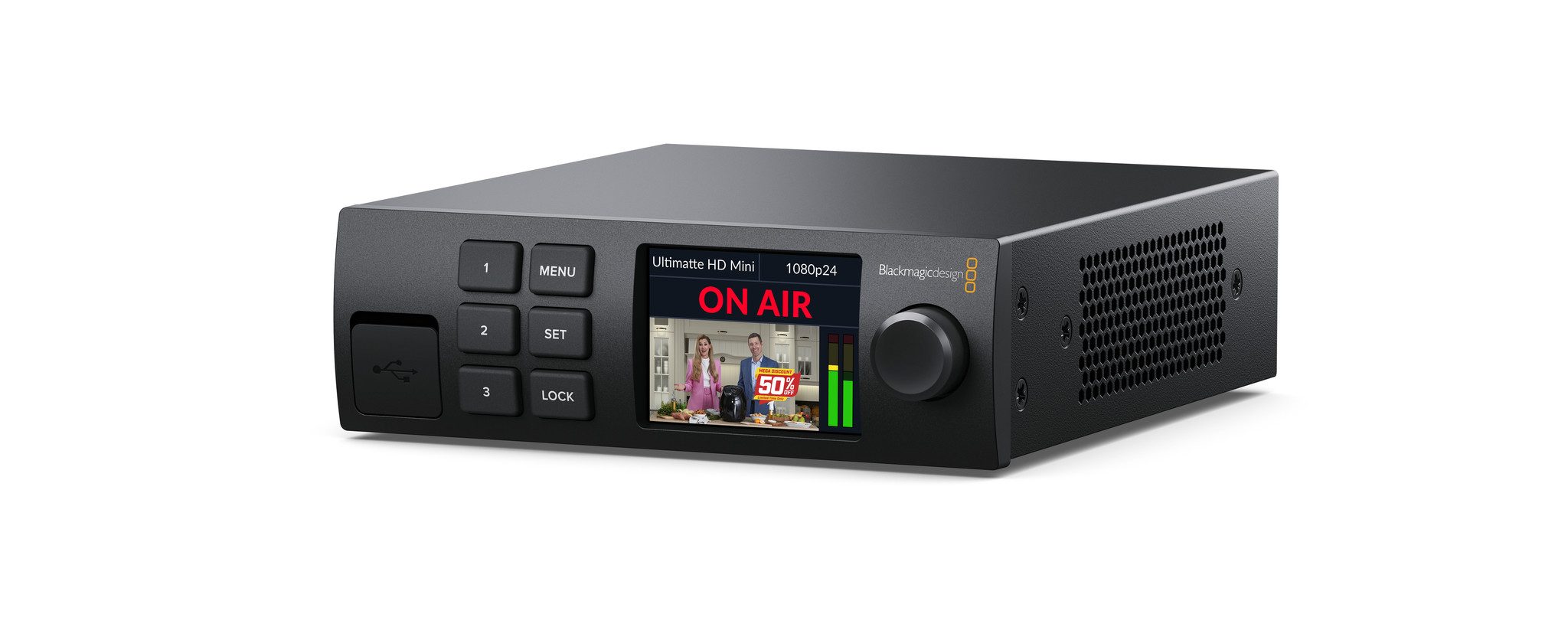

Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.

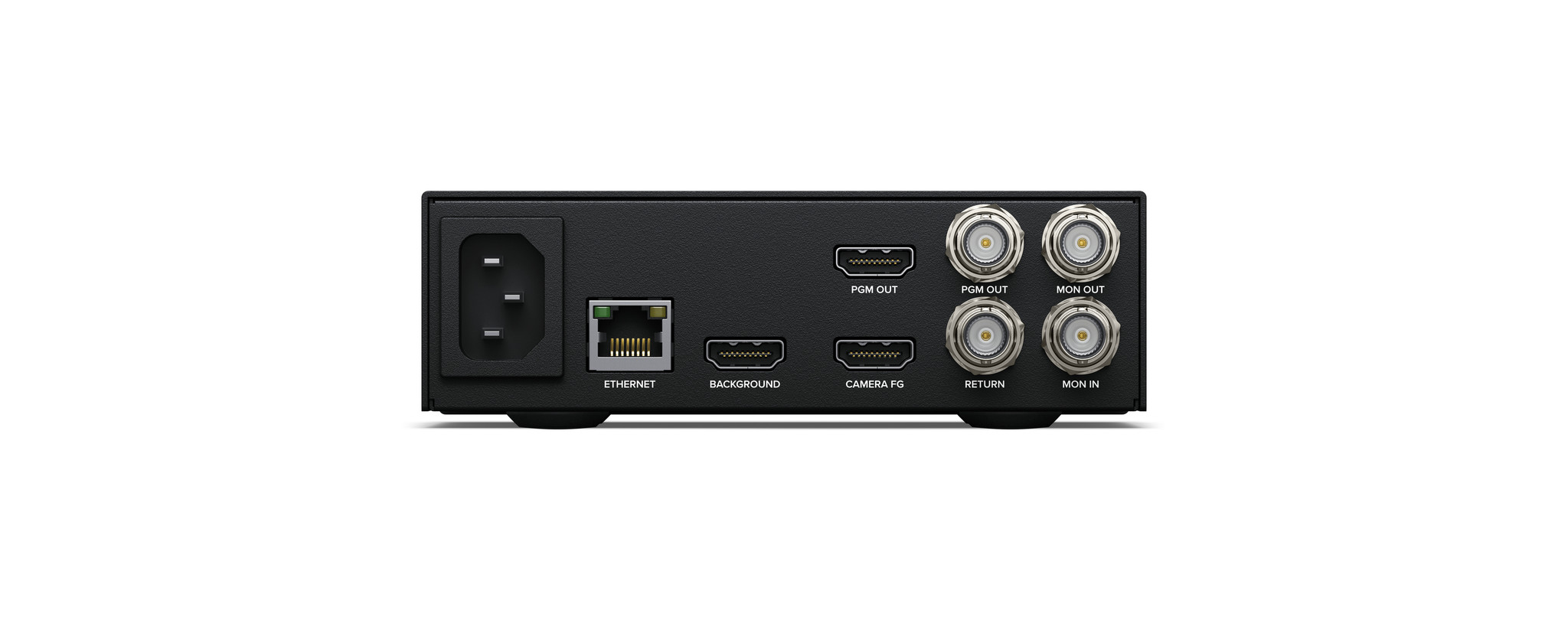

Connections

SDI Video Inputs

2

Monitor In for monitor cascade
plus Return In for camera control.

SDI Video Outputs

2

HDMI Video Inputs

2

HDMI Video Outputs

1

Video Input Re-Sync

On all inputs.

SDI Rates

270Mb, 1.5G, 3G.

Ethernet

Up to 1Gb/s for device control and loading stills into Media Pool.

Computer Interface

1 x USB-C 3.0 for device configuration and software updates.

Ultimatte 12 HD Mini

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709.

Multiple Rate Support

Auto detection of SD and HD.

Composite Sources

Foreground

1 x HDMI In

Background

1 x HDMI In

Still from Media Pool

Background Matte

Internal Window

Still from Media Pool

Garbage Matte

Internal Window

Still from Media Pool

Holdout Matte

Internal Window

Still from Media Pool

Layer

Still from Media Pool

Layer Matte

Internal Window

Still from Media Pool

Composite Outputs

Program

1 x HDMI

1 x 3G-SDI

Monitor

Monitor In

1 x 3G-SDI

for monitor cascade

Monitor Out

1 x 3G-SDI

For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.

Media Pool

Background Still Image Formats

TGA, TIFF, BMP, PNG, JPG.

Background with Alpha Still Image Formats

TGA, TIFF, BMP.

Layer Image Still Image Formats

TGA, TIFF, BMP, PNG, JPG.

Layer with Alpha Still Image Formats

TGA, TIFF, BMP.

Garbage Matte Still Image Formats

TIFF, BMP, PNG, JPG.

Holdout Matte Still Image Formats

TIFF, BMP, PNG, JPG.

Media Pool Memory

6GB non-volatile internal storage.

Displays

Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.

Control

Front Panel

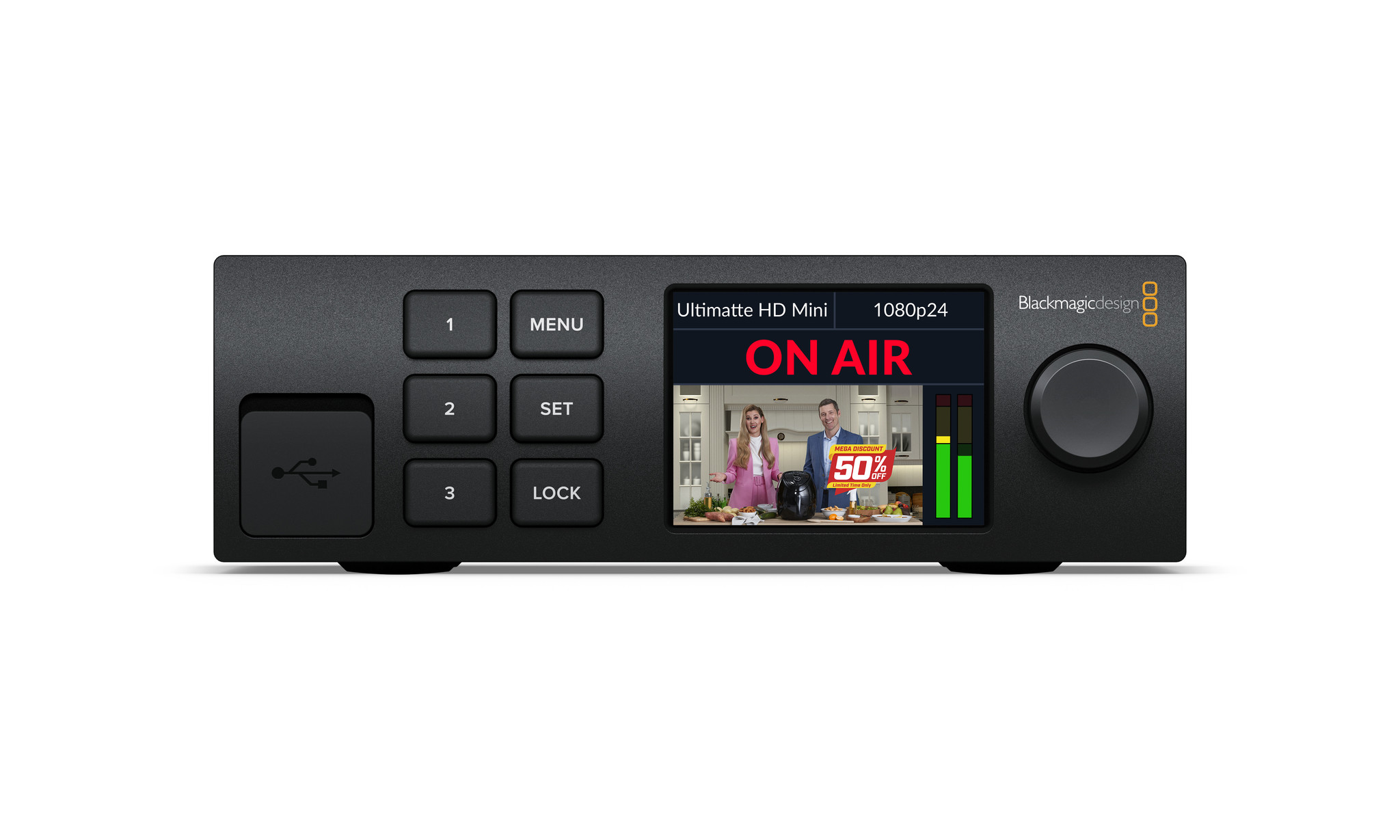

2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.

Control Connection

Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.

Software Control

Ultimatte Software Control

supported on Mac™ or Windows™ computers.

Hardware Control Panel

Ultimatte Smart Remote 4

Camera Control

Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers.

Custom Control

Ethernet protocol included in the  Ultimatte instruction manual.



Software

Software Updates

Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.

Configuration

Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

Operating Systems

Mac icon

Mac 11.0 Big Sur,
Mac 12.0 Monterey or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

1 x Internal 100-240V AC, 50/60Hz

Power Usage

12W

Accessories

Optional Accessories

Ultimatte Smart Remote 4

Physical Installation

One third rack unit width, 1 rack unit height.

Physical Specifications

Ultimatte 12 HD Mini

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing.

What's Included

Ultimatte 12 HD Mini

Welcome wallet with QR code for software download

Warranty

12 Month Limited Manufacturer's Warranty.
