Blackmagic design Ultimatte 12 8K

Informatie

Ultimatte 12 8K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 8K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance Quad Link 12G-SDI design gives you the power to work in HD, Ultra HD and incredible 8K with sub pixel processing for an amazing image.

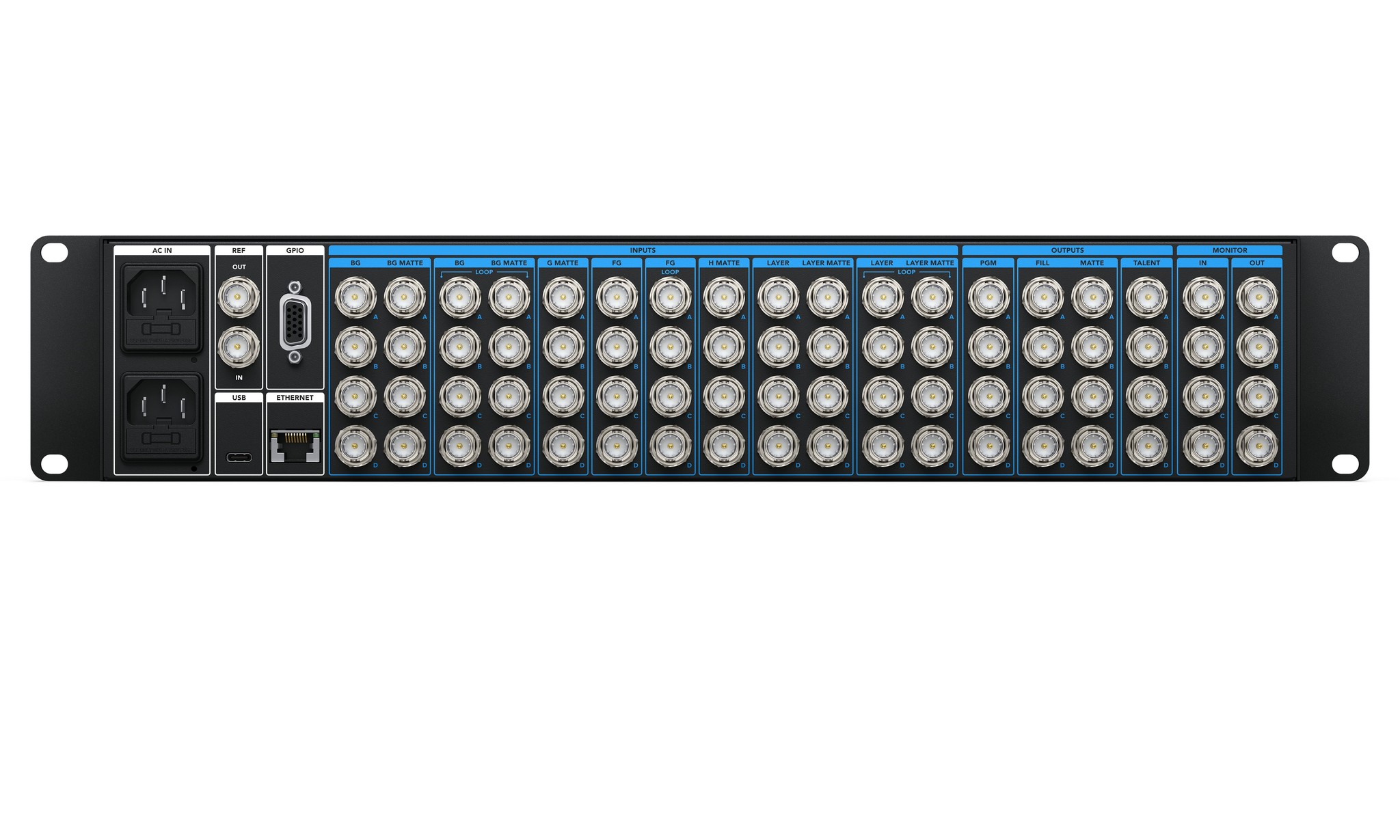

Connections

SDI Video Inputs

32

SDI Video Outputs

20

SDI Video Loop Outputs

20

reclocked SD, HD, Ultra HD, 8K for corresponding inputs.

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync

On all inputs.

Reference Connections

1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

GPIO

DE15

Ethernet

Up to 10Gb/s for device control and loading stills into Media Pool.

Computer Interface

1 x USB-C 3.0 for device configuration and software updates.

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

8K Video Standards

4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020.

Multiple Rate Support

Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI.

Composite Sources

Foreground

4 x 12G-SDI In with Loop Out

Background

4 x 12G-SDI In with Loop Out

Still from Media Pool

Background Matte

4 x 12G-SDI In with Loop Out

Internal Window

Still from Media Pool

Garbage Matte

4 x 12G-SDI In

Internal Window

Still from Media Pool

Holdout Matte

4 x 12G-SDI In

Internal Window

Still from Media Pool

Layer

4 x 12G-SDI In with Loop Out

Still from Media Pool

Layer Matte

4 x 12G-SDI In with Loop Out

Internal Window

Still from Media Pool

Composite Outputs

Fill

4 x 12G-SDI

Matte

4 x 12G-SDI

Program

4 x 12G-SDI

Talent

4 x 12G-SDI

Monitor

Monitor In

4 x 12G-SDI

for monitor cascade

Monitor Out

4 x 12G-SDI

For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.

Media Pool

Background Still Image Formats

TGA, TIFF, BMP, PNG, JPG.

Background with Alpha Still Image Formats

TGA, TIFF, BMP.

Layer Image Still Image Formats

TGA, TIFF, BMP, PNG, JPG.

Layer with Alpha Still Image Formats

TGA, TIFF, BMP.

Garbage Matte Still Image Formats

TIFF, BMP, PNG, JPG.

Holdout Matte Still Image Formats

TIFF, BMP, PNG, JPG.

Media Pool Memory

6GB non-volatile internal storage.

Displays

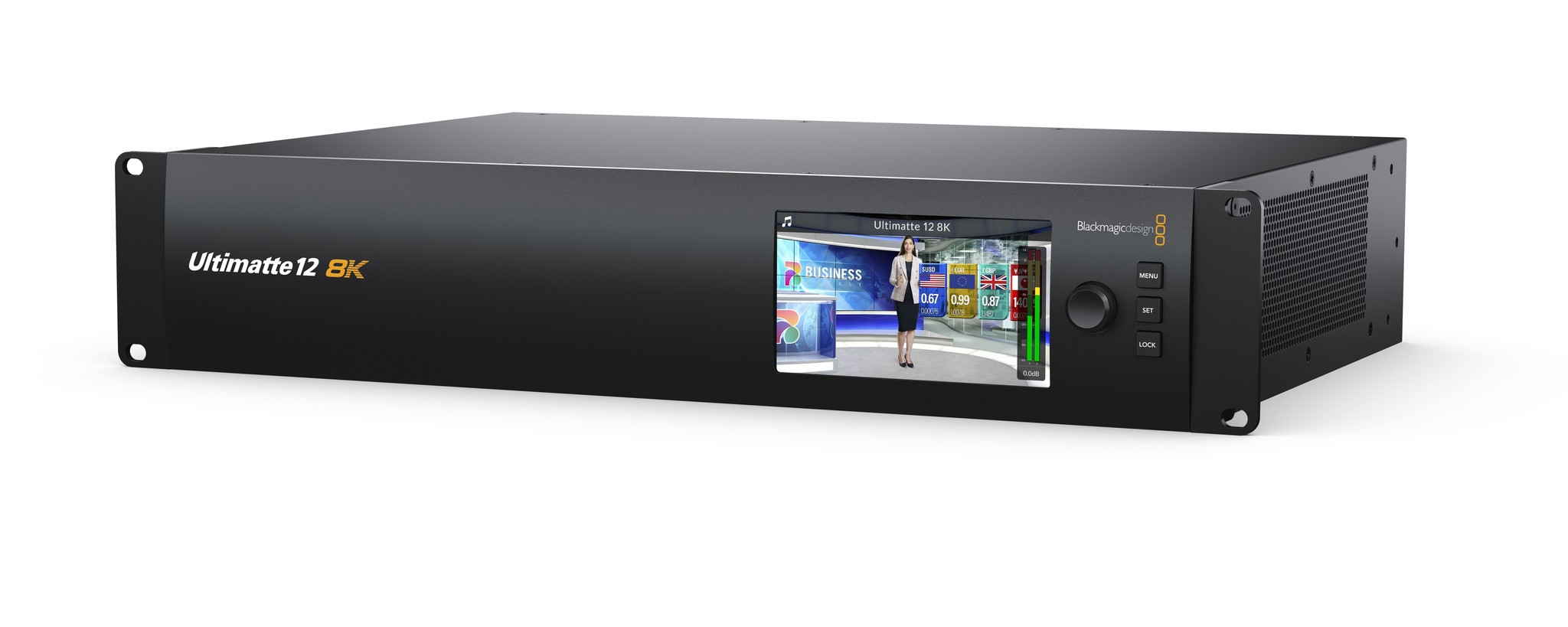

Built in 5 inch color display for device name, video preview, audio meters and menus.

Control

Front Panel

5 inch color display with 3 menu buttons and spin knob.

Control Connection

Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.

Software Control

Ultimatte Software Control

supported on Mac™ or Windows™ computers.

Hardware Control Panel

Ultimatte Smart Remote 4

Custom Control

Ethernet protocol and GPIO pin out included in the  Ultimatte instruction manual.

Software

Software Updates

Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.

Configuration

Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

Operating Systems

Mac 11.0 Big Sur,
Mac 12.0 Monterey or later.

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

2 x Internal 100-240V AC, 50/60Hz

Power Usage

218W

Accessories

Optional Accessories

Ultimatte Smart Remote 4

Physical Installation

2 rack units height.

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing.

What's Included

Ultimatte 12 8K

Welcome wallet with QR code for software download

Warranty

12 Month Limited Manufacturer's Warranty.
