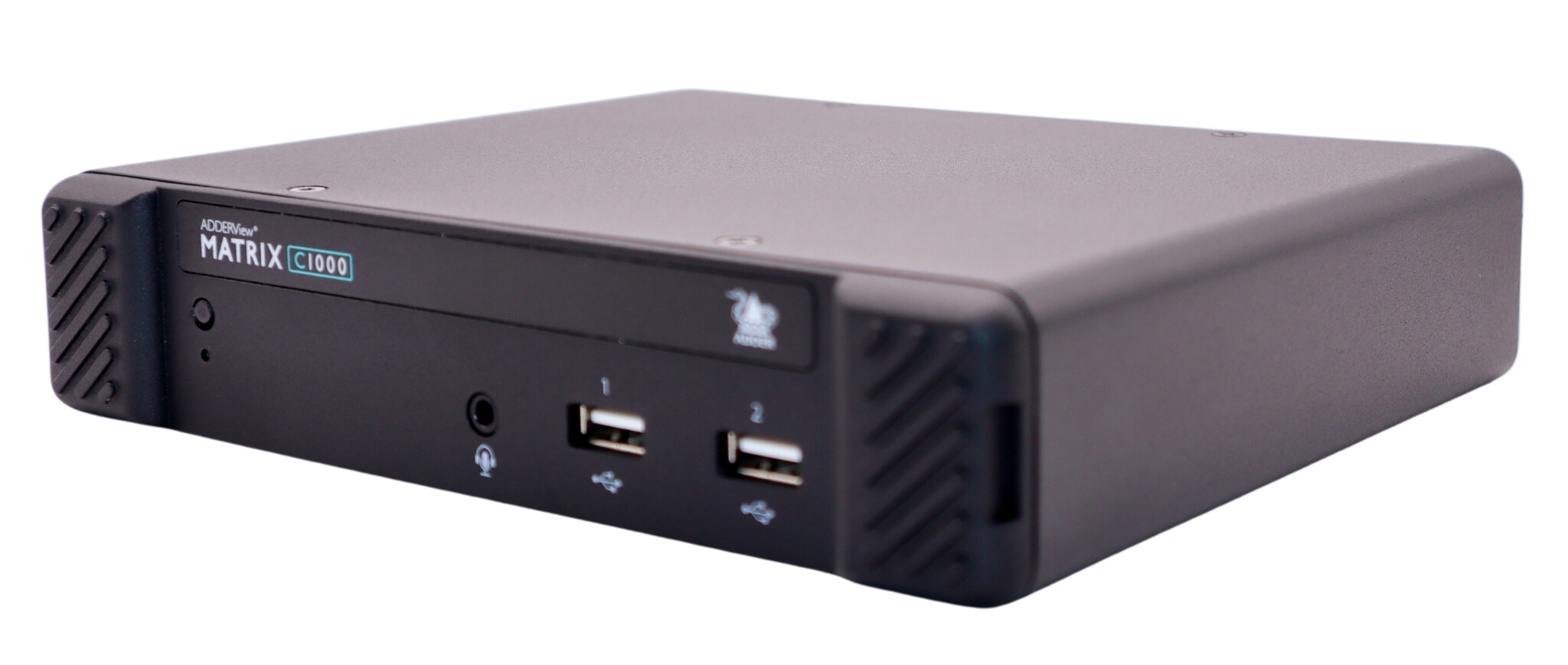

Adder AdderView Matrix C1100 User Station

Informatie

A single video head User Station (USR) for extension and matrix of video, audio and USB over a single cable.

Part of the ADDERView Matrix C1000 Series, the ADDERView Matrix C1100 USR enables the use of standard infrastructure to extend the user away from the computer equipment and infrastructure.

Flexible and Scalable

Each ADDERView Matrix C1100 USR is the master controller of its own matrix and can have up to 16 sources programmed into its target list. A Computer Access Module (CAM) can connect to up to 256 different user stations.

Fast Video and USB Switching

The switching time between computers is less than one second to provide a high quality user experience. Switching can be achieved by using an On Screen Display (OSD) or by Hotkeys from a keyboard or external device.

Unlimited Extension Distances

Extension distance is not limited to a single 100 meter cable length. If you need to extend further, the unit is fitted with an SFP cage to accept fiber optic transceivers for much greater distances.

Perfect Digital Video in Real-Time

Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

USB 2.0 with Class Control

Supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices, meaning there is no need to physically block USB ports.

Digital Audio

The system can deliver stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

Sharing and Collaboration

The system allows any user station to connect to any computer access module so different users can share a resource at the same time.

2k Resolution Support

The ADDERView Matrix C1100 supports up to 2560 x 1600@60 Hz resolutions and can also support 1920 x 1200 up to 120Hz.

EDID Management

Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one. This ensures perfect video display without additional configuration.

Plug and Play

ADDERView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Specifications

Video Information (for 1 screen)

Maximum Resolution: 2560 x 1600

Frame Rate: 60

Colour Depth: 8 bpc

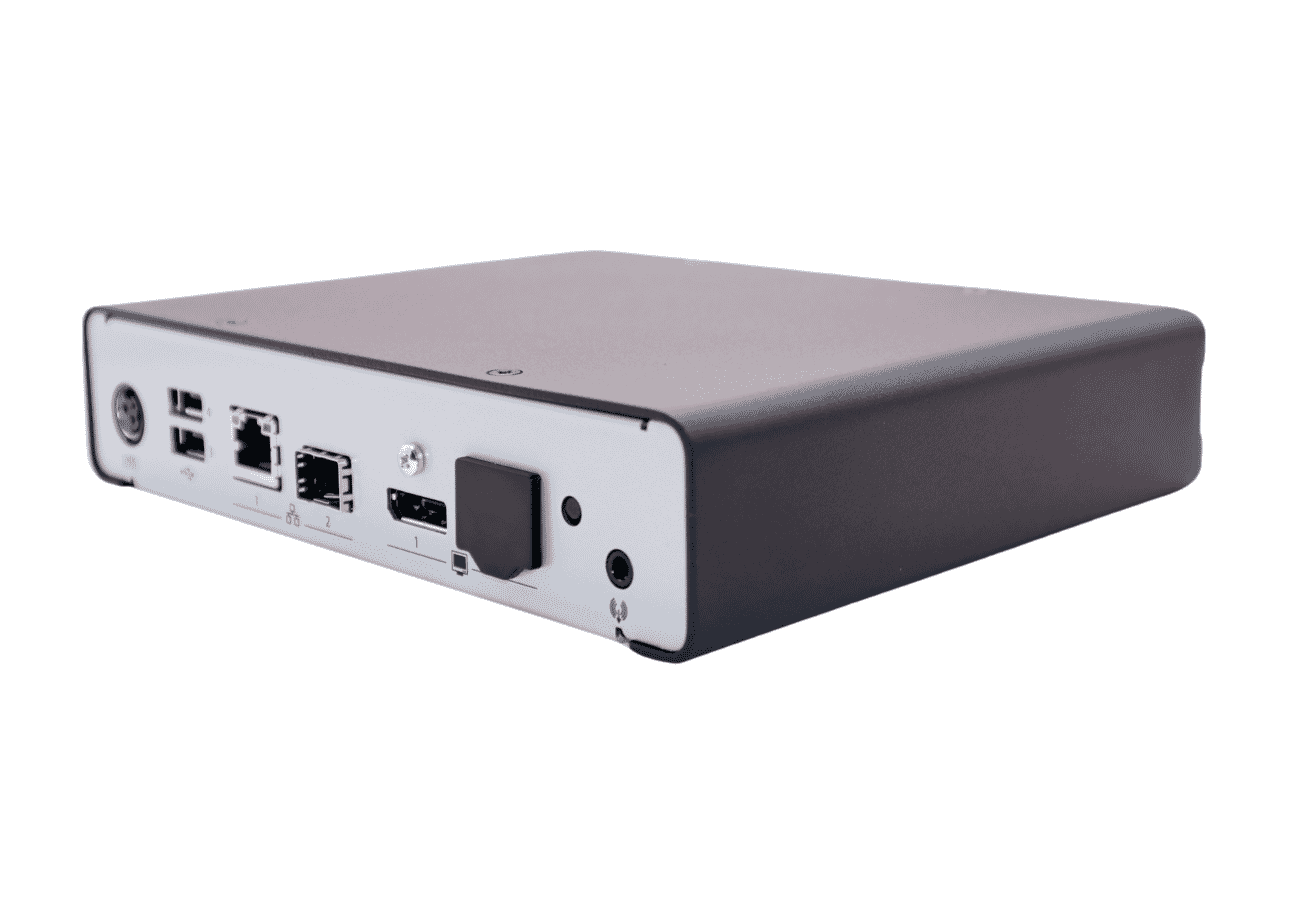

Console Connection

USB A: 4 x 2.0 True Emulation, Full Speed, Low Speed, High Speed

Full Size DisplayPort: x 1.1 (dual mode)

Link Ports

8P8C (RJ45): 1x

SFP: 1x

Audio Connections

Audio Type: Analog/Digital

Channels: 2

Audio In Ports: 1x

Audio Out Ports: 1 x 3.5mm Jack

Audio Direction: Bi-directional

Size (bit): 16

Speed (KHz): 48

Additional Information: Digital Audio 2 channels linear PCM

Cable Requirements

Recommended Cable Type: CAT5e and above

Maximum Cable Length: 100m / 328.1ft

Network Support

Bandwidth: 1GbE

10/100 Support: No

Power Source

12V 3-Pin: 1x

Input Power Supply: External Power Supply Unit (see manual)

Power Consumption

Maximum Power (Watts): 18

Typical Power (Watts): 7

Physical Design

Construction Material: Robust metal construction

U size: 1

Width: 186mm/ 7.3in

Height: 39mm/ 1.5in

Depth: 150mm/ 5.90in

Weight: 1.1kg/ 2.4 lb

What's in the box?

• 1 x ADDERView Matrix C1100 User Station
• 1 x PSU-IEC-12VDC-1.5A, Main Power Supply
• 1 x IEC PSU Cable of Country Code
