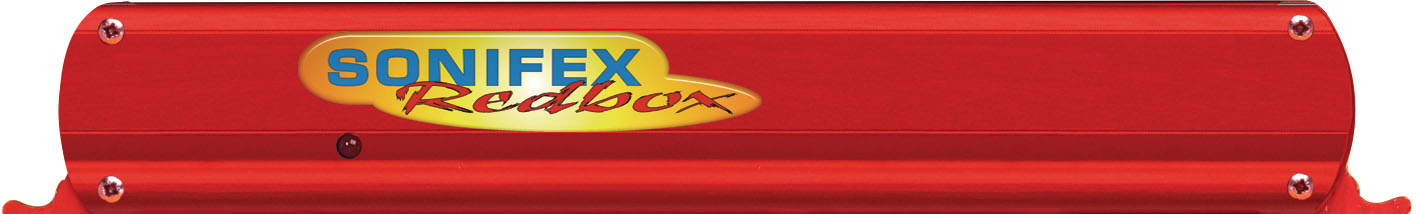

Sonifex RB-BL2 - Unbalanced to Balanced Bi-Directional Converter
The RB-BL2 is a bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice-versa.

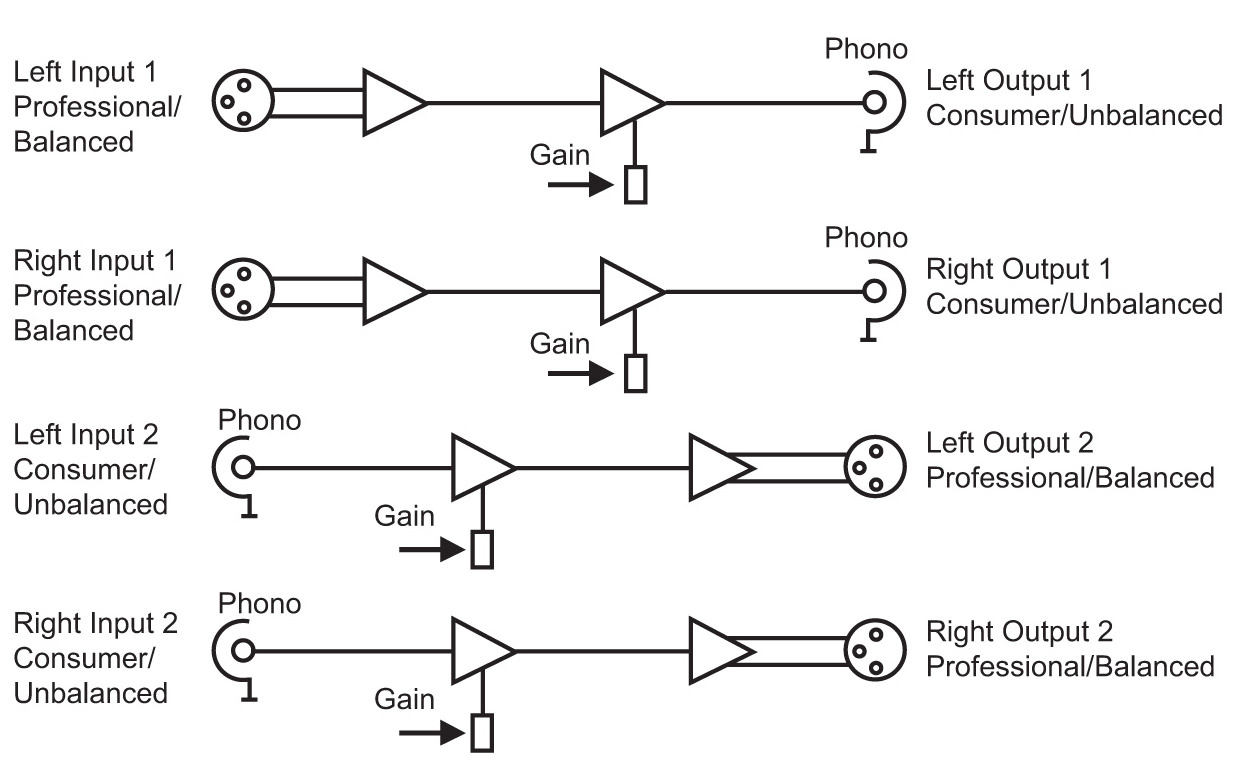

The two XLR-3 electronically balanced inputs have an impedance of 20kΩ bridging and are routed to two unbalanced RCA (phono) outputs with an output impedance of <50Ω.

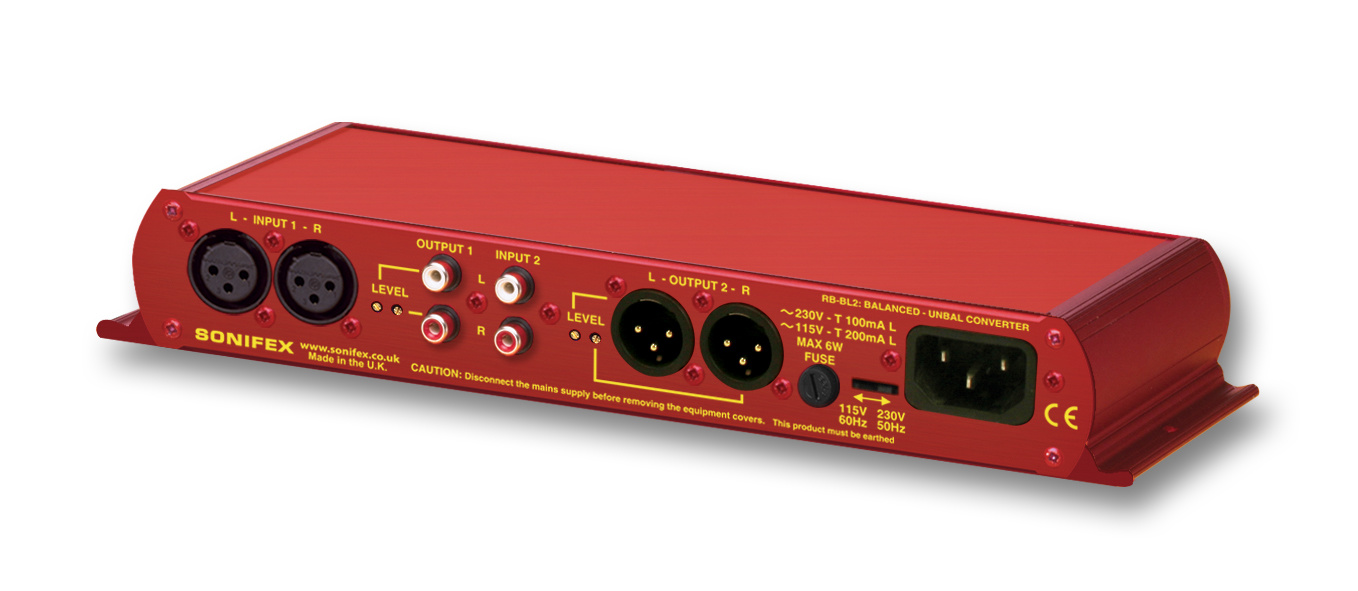

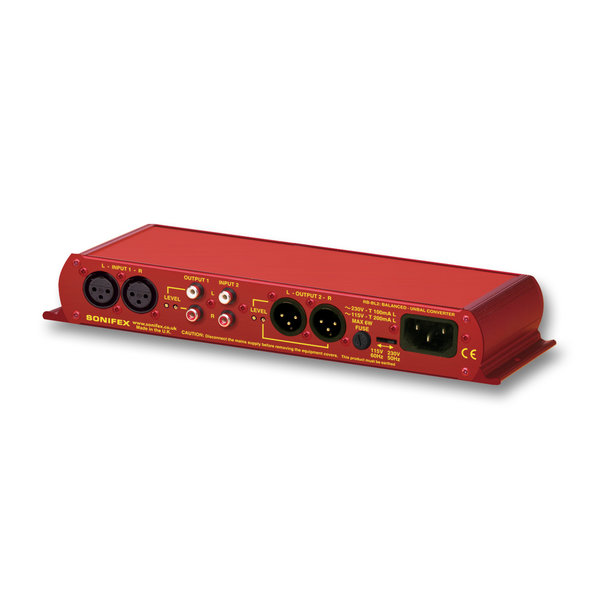

The two RCA unbalanced inputs have an impedance of 20kΩ and are routed to two balanced XLR-3 outputs with an output impedance of <50Ω. All connections are on the rear panel.
The output gain can be adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel.
