Sonifex CM-HPX1 Headphone Volume Control

Informatie

This product allows the connection of a stereo balanced line input via 2 x female XLRs and creates a headphone output, with level control.

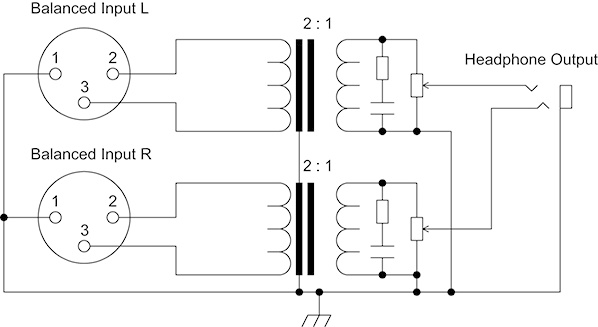

It is transformer balanced, and can be used with any headphones above 150? impedance. The transformer ratio of 2:1 ensures that any headphone load presented at the output is reflected through to the input at a 1:4 ratio (hence a 150? set of headphones looks like 600? at the input, a suitable load for most good quality line output stages).

Headphone Output

The stereo headphone output uses a stereo 6.35mm jack socket.

The headphone level will be at half the level of
the incoming signal with the volume control at 100%.

Volume Level Control

The volume level control sets the output level of the stereo headphone socket and runs logarithmically from zero to the maximum output level.

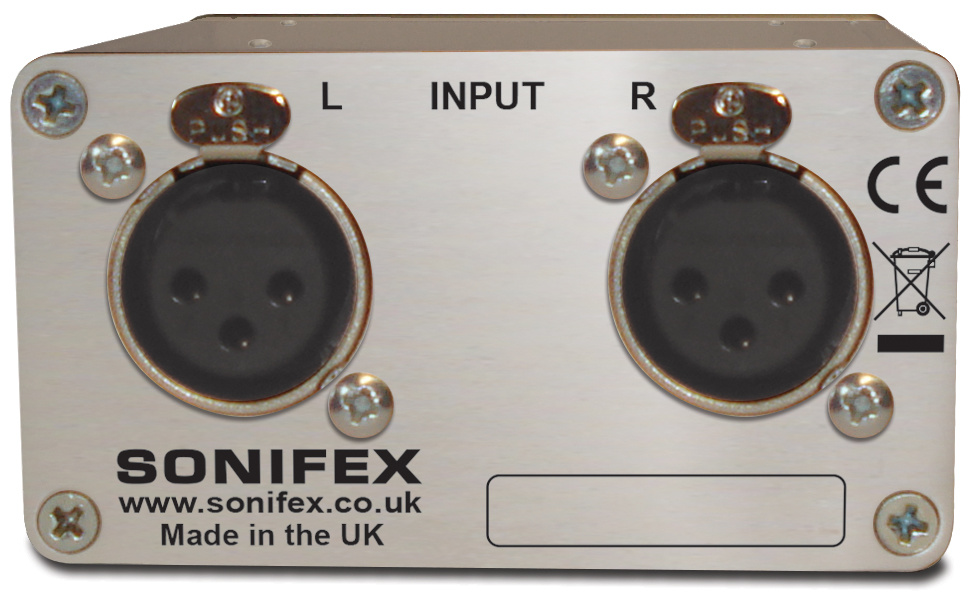

Analogue Inputs CM-HPX1

The stereo analogue input is on two female 3 pin
XLR connectors.
