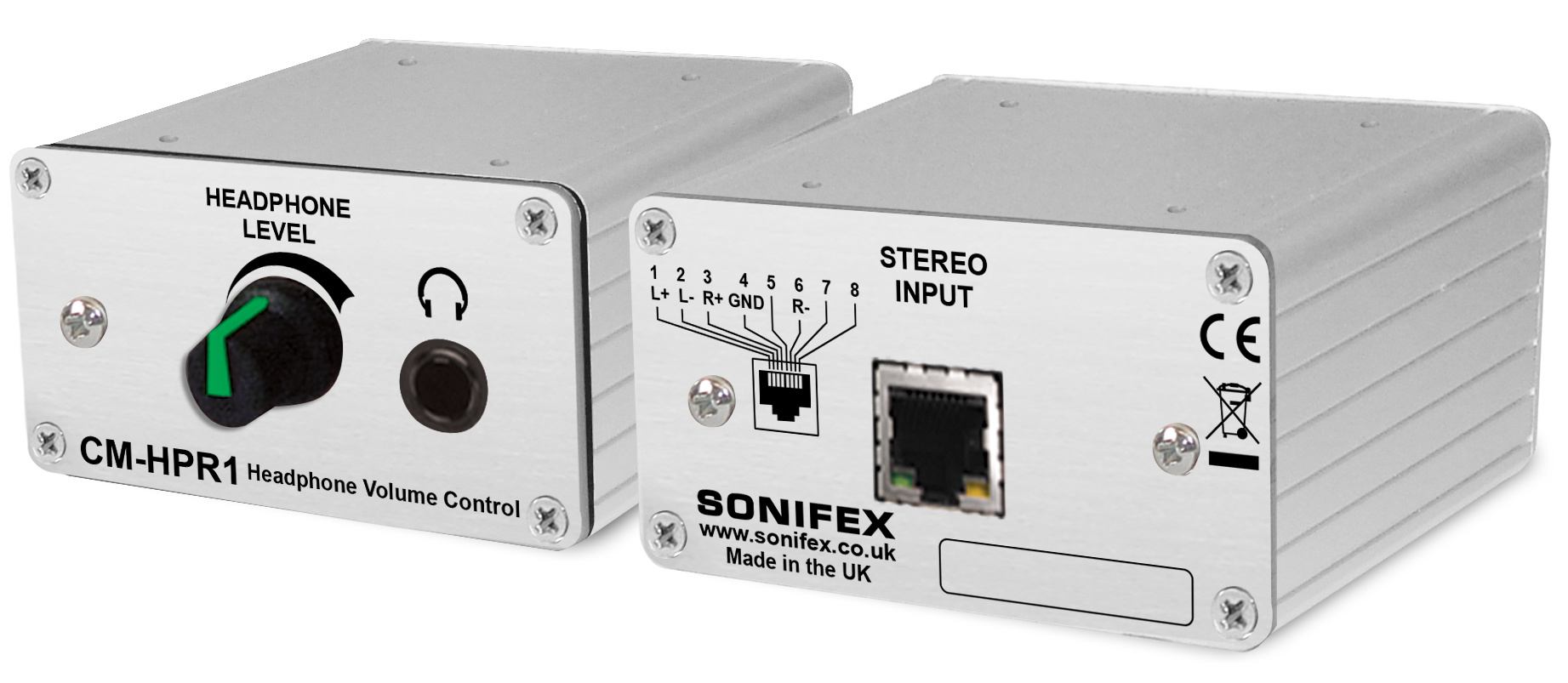

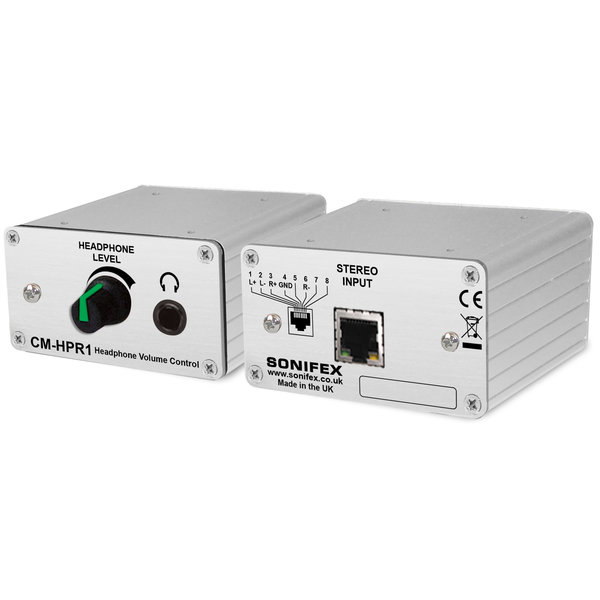

This product allows the connection of a stereo balanced line input via a RJ45 with StudioHub+™ pinout and creates a headphone output, with level control. It is transformer balanced, and can be used with any headphones above 150Ω impedance.

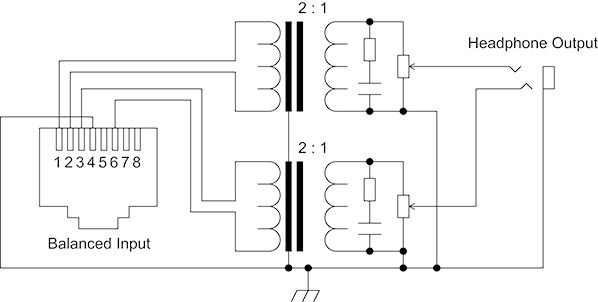

The transformer ratio of 2:1 ensures that any headphone load presented at the output is reflected through to the input at a 1:4 ratio (hence a 150Ω set of headphones looks like 600Ω at the input, a suitable load for most good quality line output stages).
Headphone Output
The stereo headphone output uses a stereo 6.35mm jack socket.
The headphone level will be at half the level of the incoming signal with the volume control at 100%.
Volume Level Control
The volume level control sets the output level of the stereo headphone socket and runs logarithmically from zero to the maximum output level.
Analogue Inputs CM-HPR1

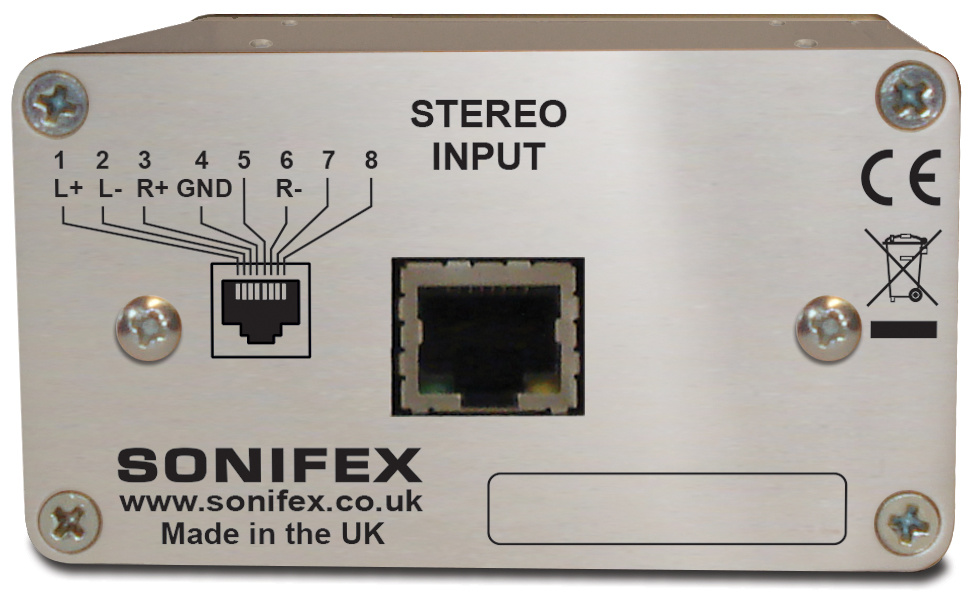

The stereo analogue input is on a female RJ45 connector.
