Science Image FLOW2 4K60 UpDownCross Convertor 12G HDSDI & HDMI in/out

1.101,10 Incl. btw€910,00 Excl. btw Op voorraad
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Science Image
Beschikbaarheid:
Op voorraad
Levertijd:
Op Voorraad (1 - 2 werkdagen)

Informatie

UpDownCross Converter with 12G-SDI & HDMI up-to 4K 60p.

FLOW2 by SCIENCE IMAGE is an UpDownCross converter with 12G-SDI & HDMI connectors supporting resolutions up-to 3840×2160 at 60p. The device will convert any signal connected by SDI or HDMI to any selected resolution or frame rate, fully adjustable by scroll wheel or web portal.

With both 12G-SDI & HDMI inputs/outputs, FLOW2 supports lossless bi-directional conversion between the two connector types.

FLOW2 takes any signal SDI or HDMI signal and converts it to any resolution or frame-rate. In addition, the 12G-SDI and HDMI inputs/outputs support lossless bi-directional conversion between the two connector types.

A handy on-device OLED screen displays the current status, including resolution of signal. Device settings are controlled over a network using any web browser. Browser-based GUI displays all settings, as well as the current status.

Connectors



Video Input

1x 12G-SDI / 1x HDMI 2.0

Video Output

1x 12G-SDI / 1x HDMI 2.0

Other

1x Ethernet, 1x SMPTE Optical Fibre In/Out, 1x USB, 1x 12V DC-In, 1x 3.5mm Line-In & 1x 3.5mm Headphone Out

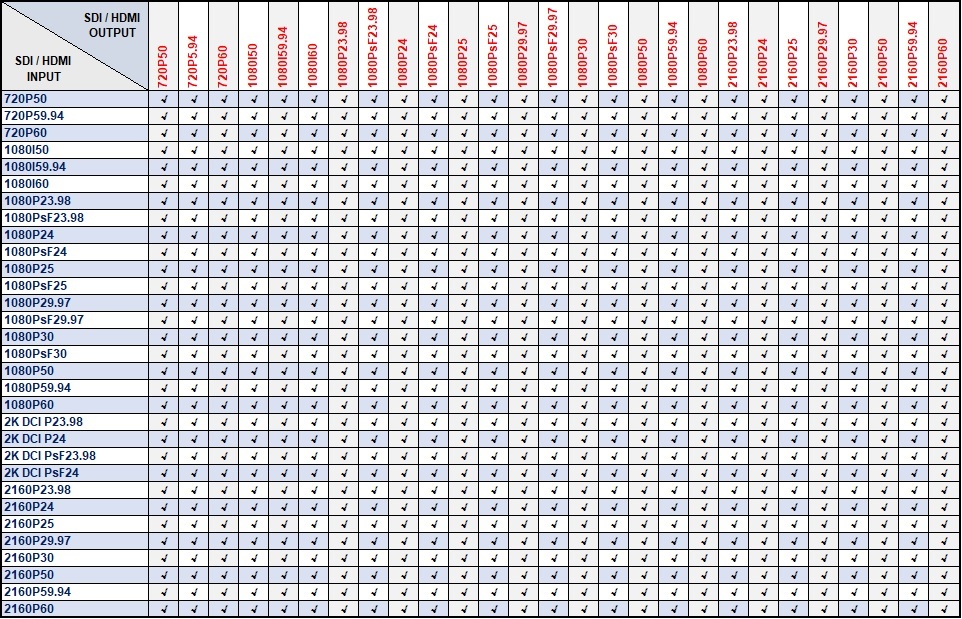

Resolution & Frame Rates



12-SDI

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

HDMI

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Power



Power Consumption

10W

Weight & Dimensions



Weight

360g

Dimensions

125mm (L) x 115mm (W) x 24mm (D)

What's in the box?

  • 1x Flow2
  • 1x Power Supply Unit (PSU)
