Plura PBM-217-4K-H 17'' Broadcast Monitor, 12G/3G, HDR Capability, Ember+

Informatie

17″ monitor supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require. The PBM-217-4K-H monitor is capable to decode and preview a wide range of signal standards in 4K, UHD, FHD and HD standards.

The Plura PBM-4K-H is a comprehensive tool for all UHD/4K, 3G broadcast systems and all other wide-range industries. The PBM-4K-H Series was designed and engineered for simple operation and future flexibility. The platform is built around FHD panel display and powerful FPGA chipset. The core of this platform is based on fully programmable architecture. Future proof expansion (i.e. additional features and functionalities can and will be implemented in the field via the Ethernet interface). The PBM-4K-H Series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

• PBM-217-4K-H, 17″ 4K – FHD Panel
• Supports up to 4096 x 2160 resolutions

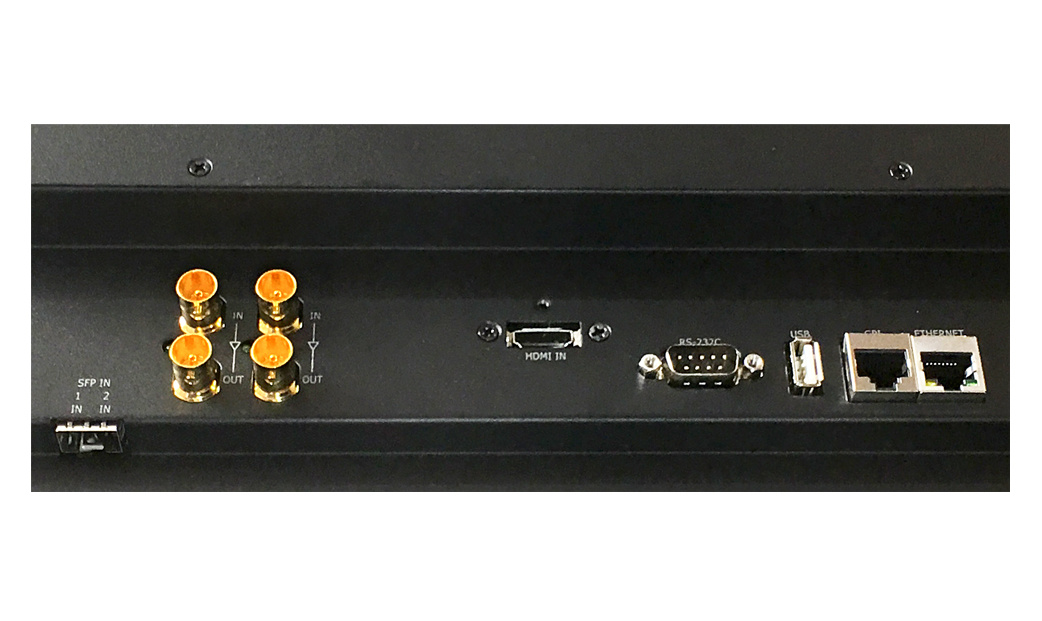

• Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
• Supports Coaxial SFP I/O connectivity
• 1 x SFP+ cages supporting 3G/1.5G SDI
• 1 x 12G/3G/1.5G input port
• 1 x 3G/1.5G input port
• 1 x 12G/3G/1.5G output port
• 1 x 3G/1.5G output port
• 1 x HDMI 1.4
• 8 bit panel color depth
• HDR (High Dynamic Range) capabilities
• PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
• RGB 12 bit Digital Signal Processing
• 178 degree Viewing Angle Display
• Gamma Selectable ( 0.8 – 3.0)
• Color Temperature – User, VAR, Adjustable (9300K TO 3200K)
• (ICAC) – Plura Intelligent Connection for Alignment & Calibration
• 3D LUT (ITU-R, BT.2020, D-Cinema, BT.709)
• Display Advanced Waveform & Vector Scope simultaneously with line select
• Various and User defined Markers Display & Safe Area
• Programmable 3 User Front Pushbutton Controls & GPI
• Closed Caption (608/708) – North American Market
• Teletext 801 & Subtitle OP-47 – Australia & N.Z. Market
• Cutting edge De-interlacing and scaling Technology
• Ember+ compliant control system capabilities
• Fast Response Time for high motion video
• Internal Monitor Display (IMD)
• Ethernet & RS232 Remote Control

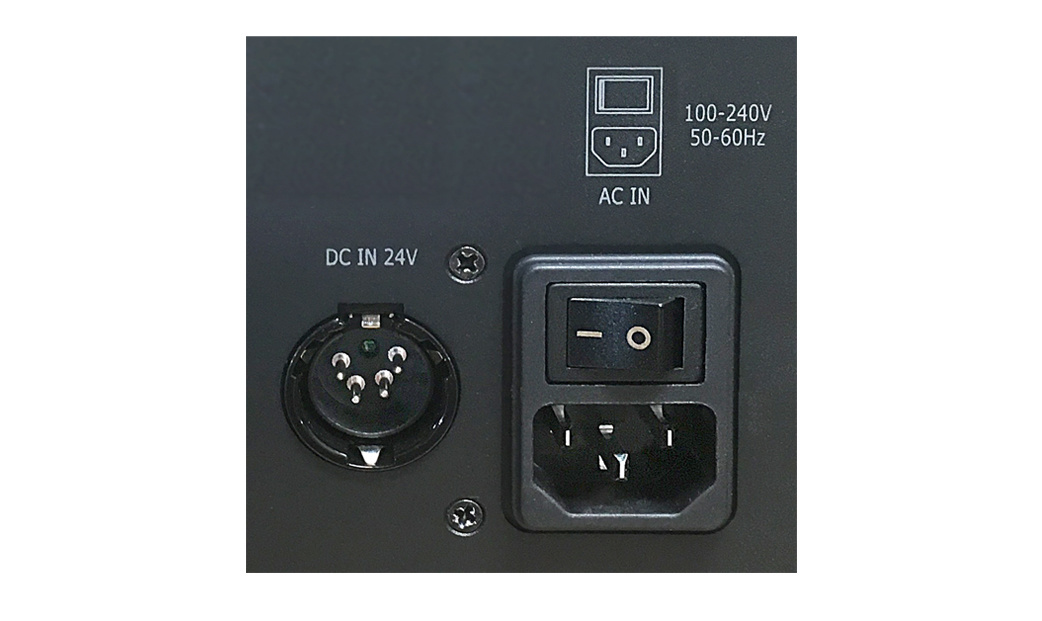

• Pixel to Pixel Mode, Tally, DC operation
• False Color and Peaking Filter / Focus Assist
• Video Range test with adjustable Y & C values
• Display LTC & DIVTC time code with line select
• Embedded Audio input, Digital Audio Decoding
• Internal Pattern Generator and Wall Control System
