Plura PBM-217-4K 17" 4K Broadcast Monitor HDR Capability, Ember+

Informatie

17″ monitor supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require.

The PBM-4K series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

PBM-4K monitor series supports ST-2082, ST-2110, ST-2022 and other earlier industry standards, 2 x 12G/3G/HD/SD-SDI or 1 x Quad 3G-SDI (2SI / SQ) inputs with active loop, 2 x SFP+ inputs & HDMI 2.0.

PBM-4K series offers HDR Display capabilities supporting PQ (ST-2084) & HGL standards. The PBM-4K series also adopts the exceptionally slim form factor that Plura customers enjoy, ensuring that even the largest 4K monitors in the portfolio demand a modest slice of real estate.

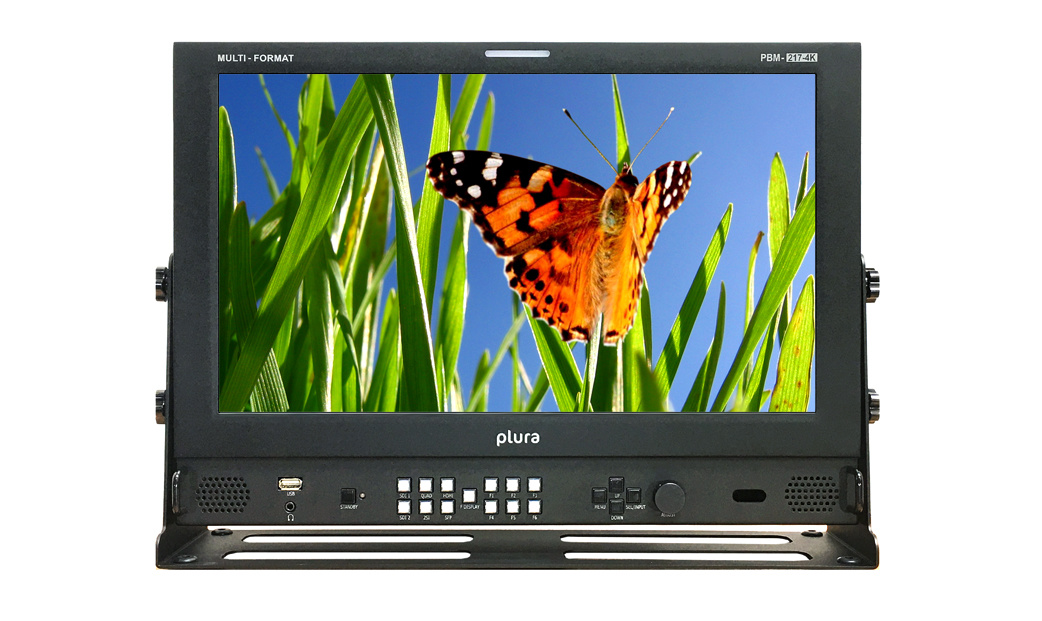

• PBM-217-4K, 17″ 4K – UHD Panel
• Decode ST-2110 and ST-2022 IP streams with “PIPM” Plura Software Stack IP Platform module

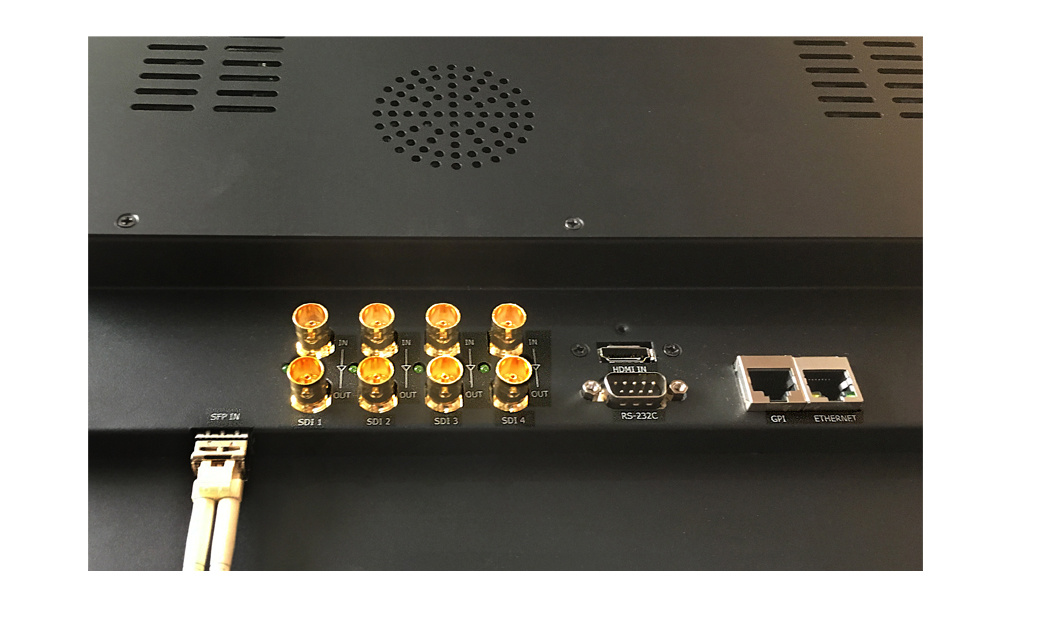

• Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
• Supports Coaxial SFP I/O connectivity
• Supports IP SFP+ over fiber decoding “ST-2110 & ST-2022” with any Third-Party H/W decoder
• 1 x SFP+ cages supporting 12G/10G/3G/1.5G SDI
• 2 x 12G/3G/1.5G or 1 x Quad 3G-SDI (2SI / SQ) input ports
• 2 x 12G/3G/1.5G or 1 x Quad 3G-SDI (2SI / SQ) output ports
• *“PIPM” Plura Software Stack IP Platform – OPTIONAL
• 1 x HDMI 2.0a
• 10 bit panel color depth
• Supports up to 4096 x 2160 resolutions
• HDR (High Dynamic Range) capabilities
• PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
• Side by side HDR / SDR Processing
• RGB 12 bit Digital Signal Processing
• 178 degree Viewing Angle Display
• Gamma Selectable ( 0.8 – 3.0)
• Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
• (ICAC) – Plura Intelligent Connection for Alignment & Calibration
• 3D LUT (ITU-R BT 2020, Native, BT.709, SMPTE-C, EBU, NTSC, D-Cinema)
• Display Advanced Waveform & Vector Scope simultaneously with line select
• Various and User defined Markers Display & Safe Area

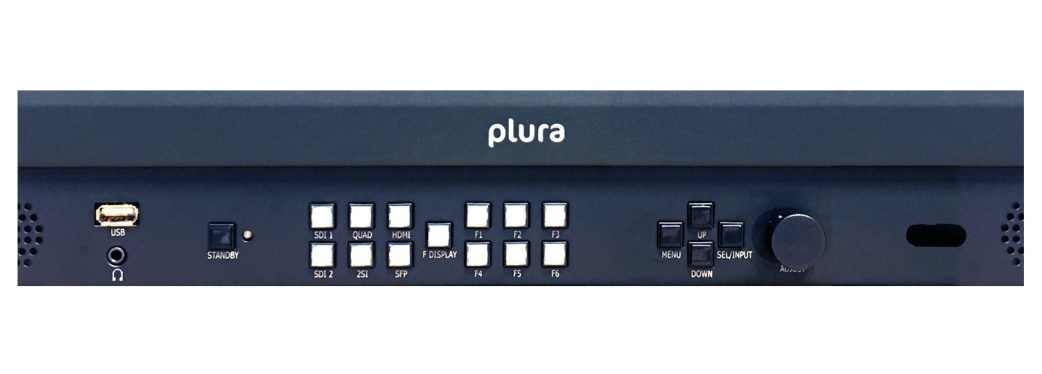

• Programmable 3 User Front Pushbutton Controls & GPI
• Closed Caption (608/708) – North American Market
• Cutting edge De-interlacing and scaling Technology
• Fast Response Time for high motion video
• Internal Monitor Display (IMD)
• Ethernet & RS232 Remote Control
• Ember+ compliant control system capabilities
• Underscan / Overscan / Normal / Zoom
• Pixel to Pixel Mode, Tally, DC operation
• False Color and Peaking Filter / Focus Assist
• Video Range test with adjustable Y & C values
• Display LTC & DIVTC time code with line select
• Embedded Audio input, Digital Audio Decoding
• Internal Pattern Generator and Wall Control System
