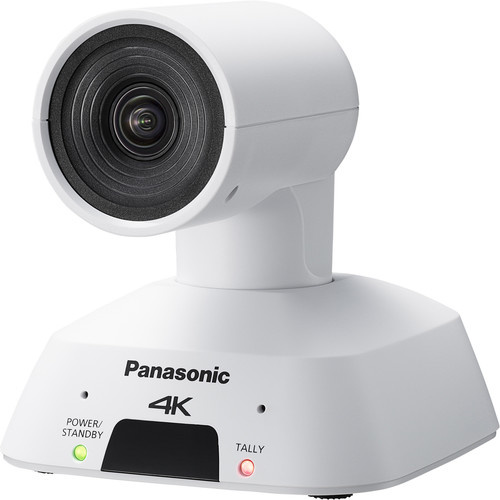

Panasonic AW-UE4 4K PTZ Camera

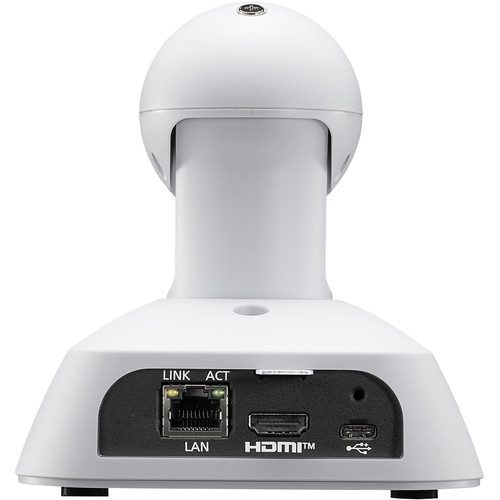

HDMI, LAN and USB output-compatible compact 4K PTZ Camera equipped with an ultra-wide-angle lens with a 111° field of view

The compact 4K PTZ Camera is equipped with an ultra-wide-angle lens with a 111°Feld of view to capture the entire scene. The unit supports PoE* supply and can be powered via USB from a computer to realize a single cable solution for video transmission, camera control and power supply. The camera is perfect for a wide range of applications including lecture captur ing, v ideo conferencing and e-Sports live streaming.

* Abbreviation of Power over Ethernet.

High-Quality 4K/30p Video Output

Supports 3840x2160/30p 4K video output and a variety of other formats for use in a wide range of environments.

* HDMI output requires PoE HUB or AC adaptor (5V/1A or more).

■Output format

4K 2160/30p, 2160/29.97p, 2160/25p

HD 1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97p, 1080/25p

720/60p, 720/59.94p, 720/50p

Ultra-Wide-Angle Lens with a 111° Field of View

Equipped with an ultra-wide-angle lens with a 111° field of view to capture every part of even the largest spaces and transmit wide-angle video in limited installation space.

■The 111° Field of View

Single Cable Solution

In addition to PoE*1 supply, power supply from a computer via USB cable is also supported to enable operation without connecting an AC adaptor, realizing a single cable solution for video transmission, camera control and power supply.

■Using PoE Supply

■Using as a USB Camera

*1: Abbreviation of Power over Ethernet.

*2: AW-RP60GJ connection support planned for the future. See the Panasonic website for more details. Use may require a software version update.

Digital Pan, Tilt and Zoom

Equipped with digital zoom for magnification up to four times to capture distant subjects clearly. Once images are zoomed in, digital pan/tilt is available, offering fiexibility to shoot from different angles.

* Images are simulated.

RTMP/RTMPS*1

Supports RTMP/RTMPS*1 for direct upload and streaming of video on services such as YouTube Live or Facebook Live. Video can be uploaded and streamed directly from the camera to live streaming services.

*1: RTMP: Real-Time Messaging Protocol, RTMPS: Real-Time Messaging Protocol Secure.

*2: A computer is required for connection to the streaming server.

*3: PoE support.

RTMP/RTMPS Connection
