Informatie

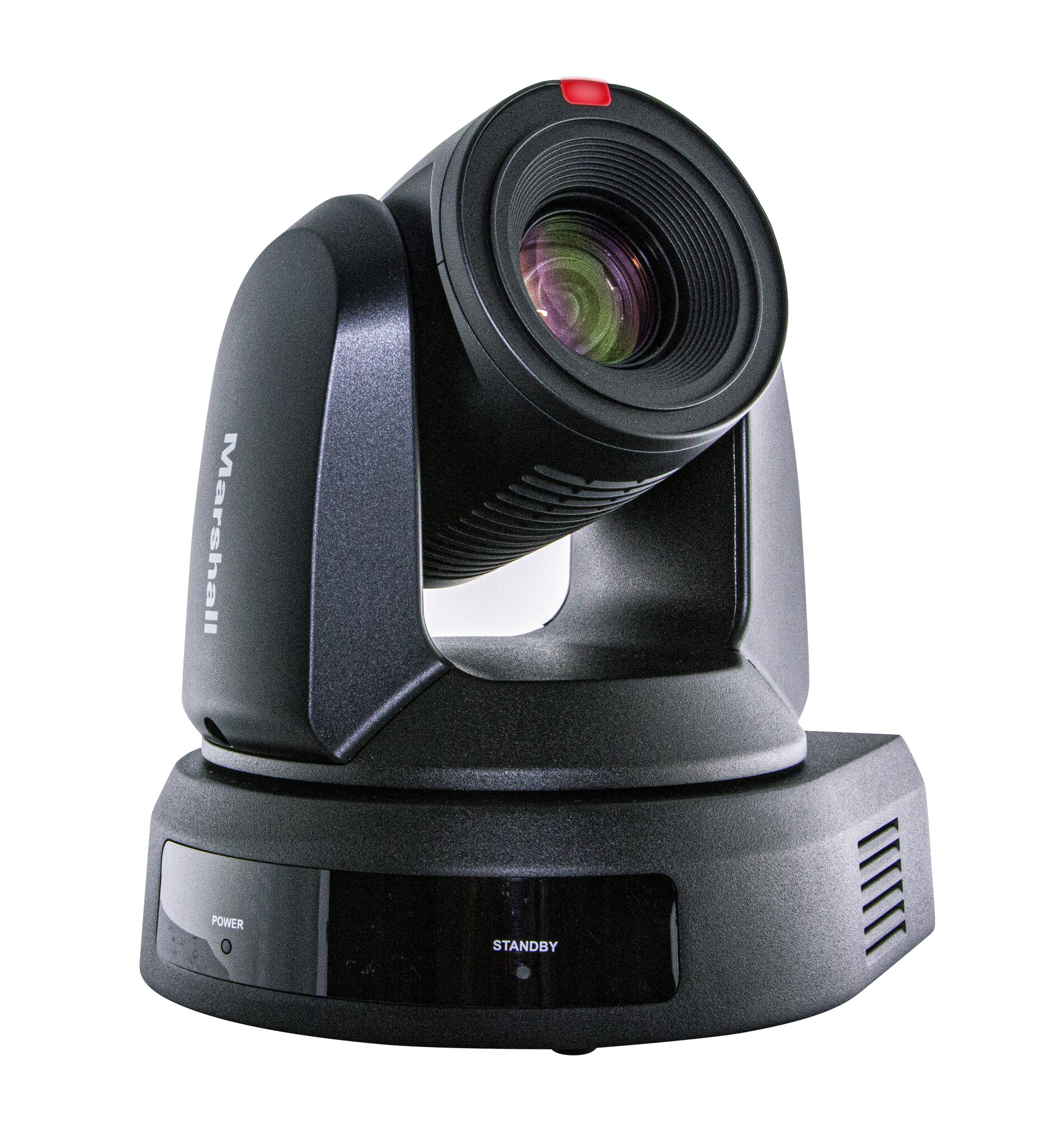

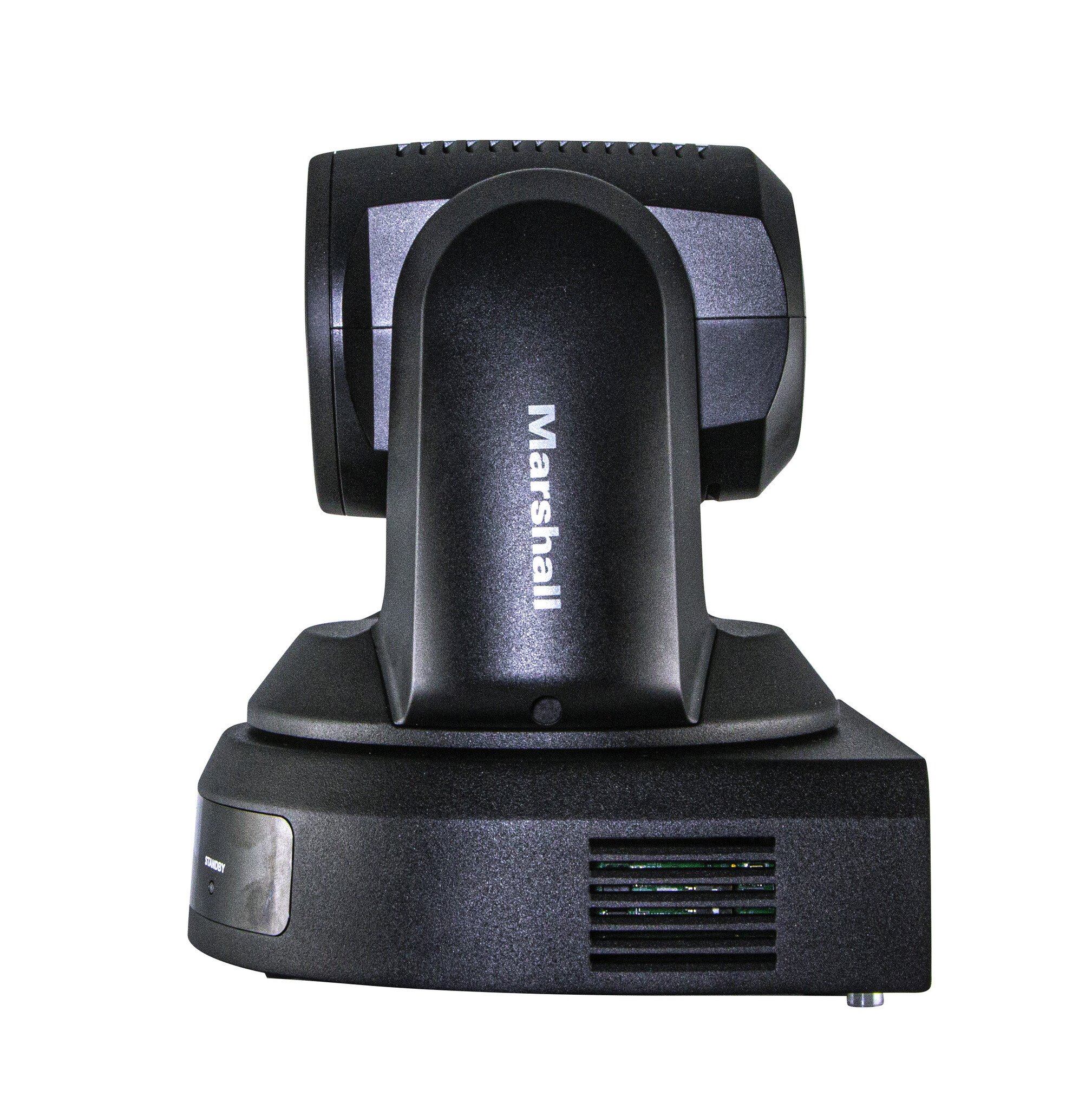

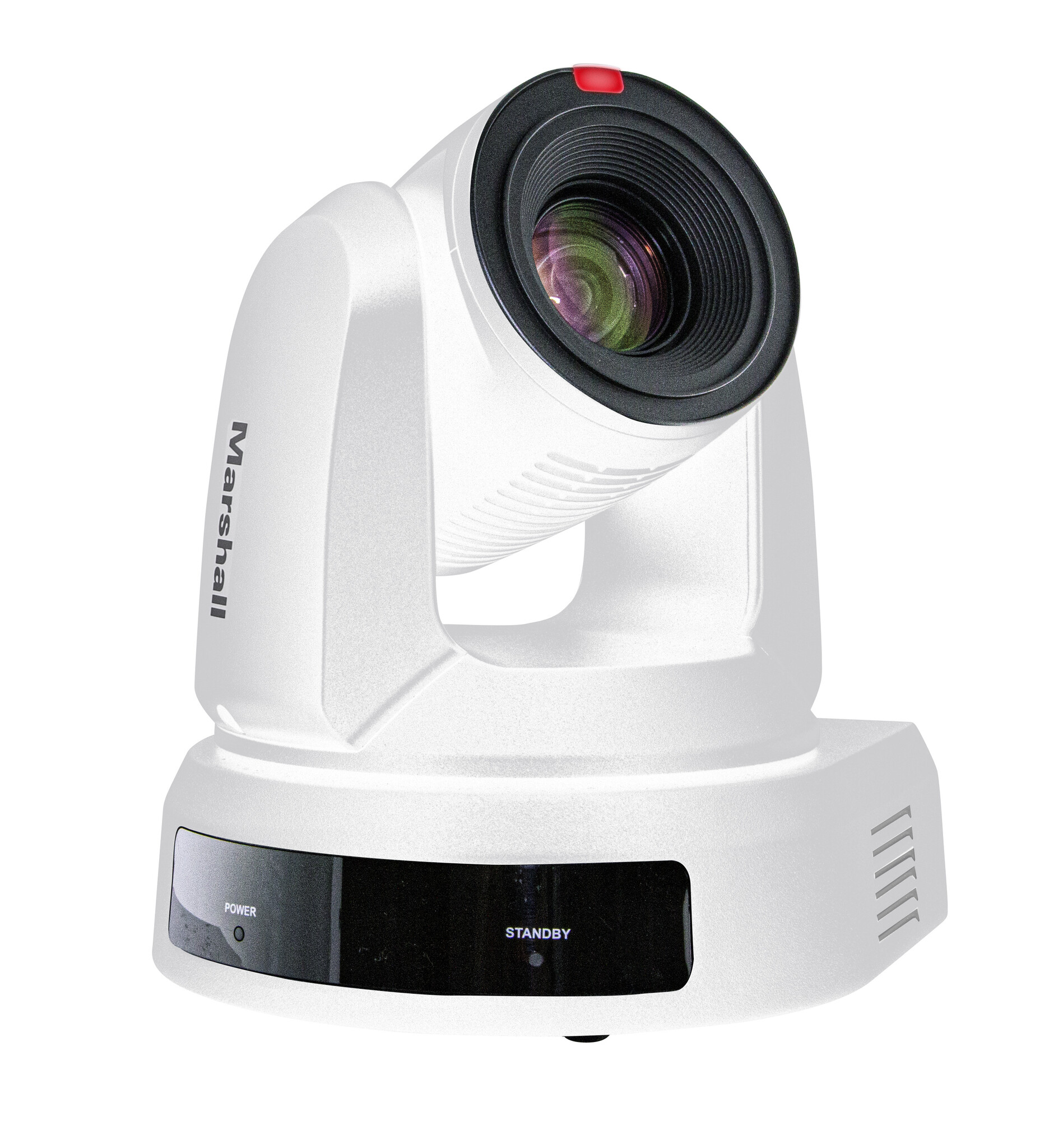

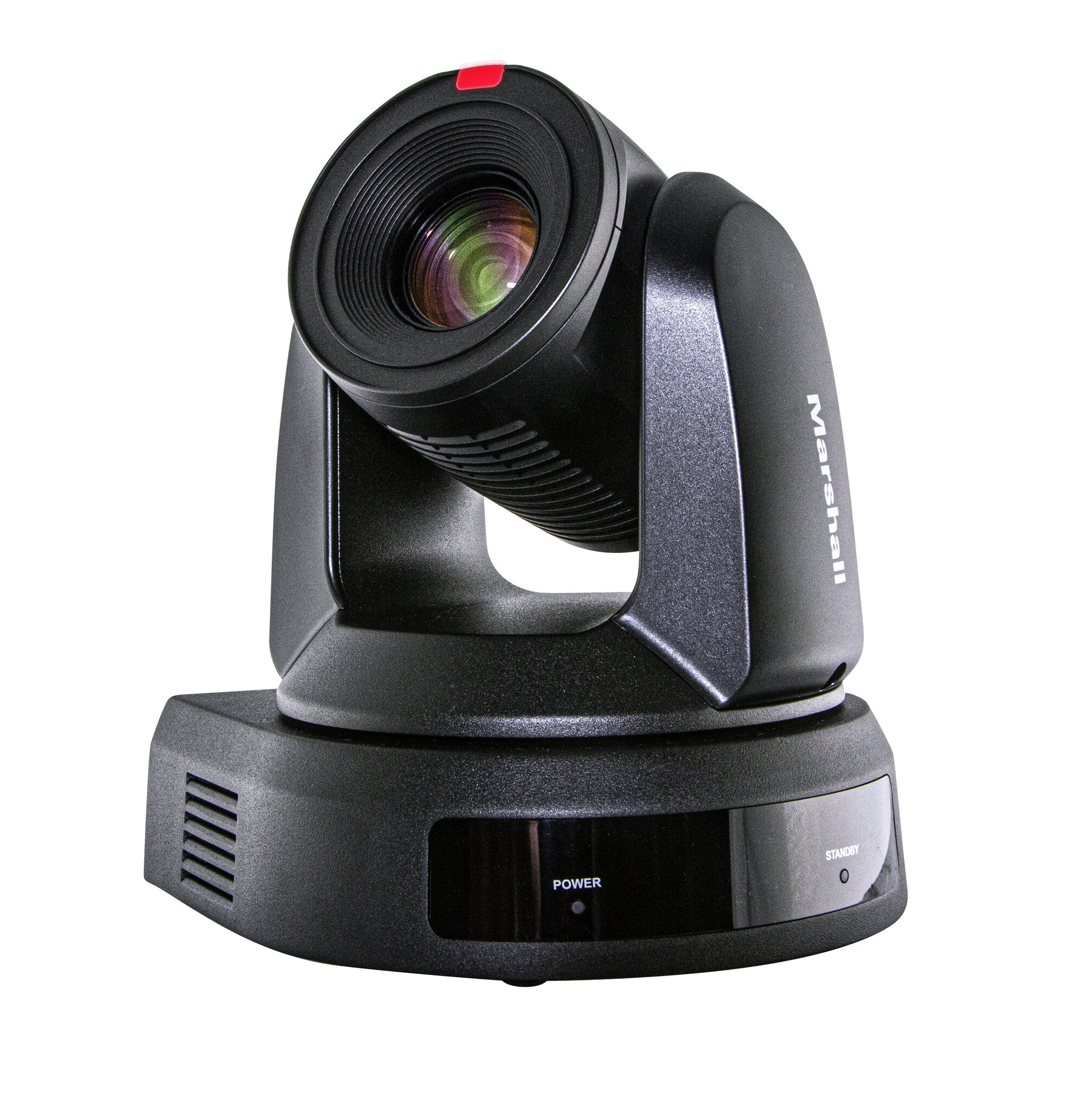

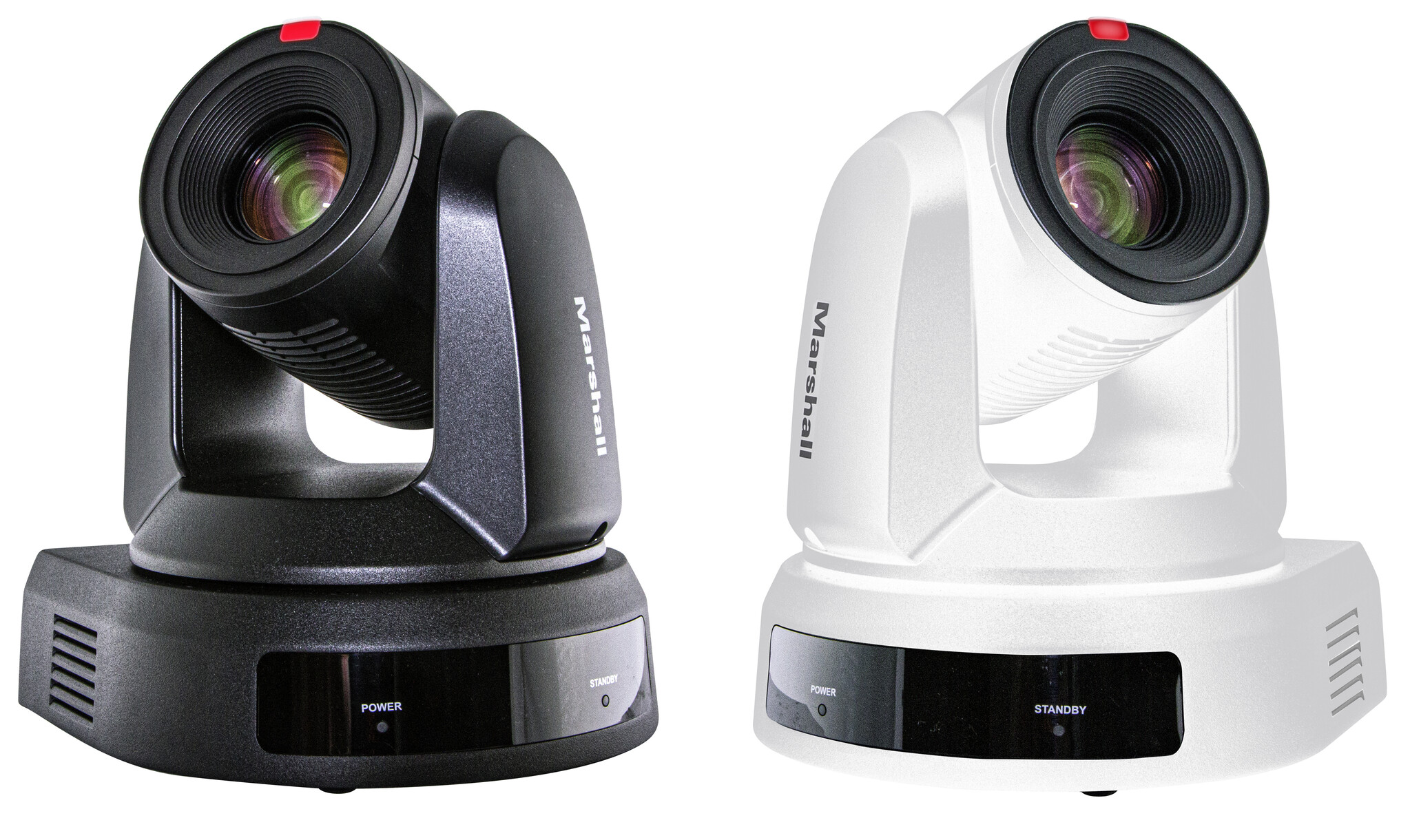

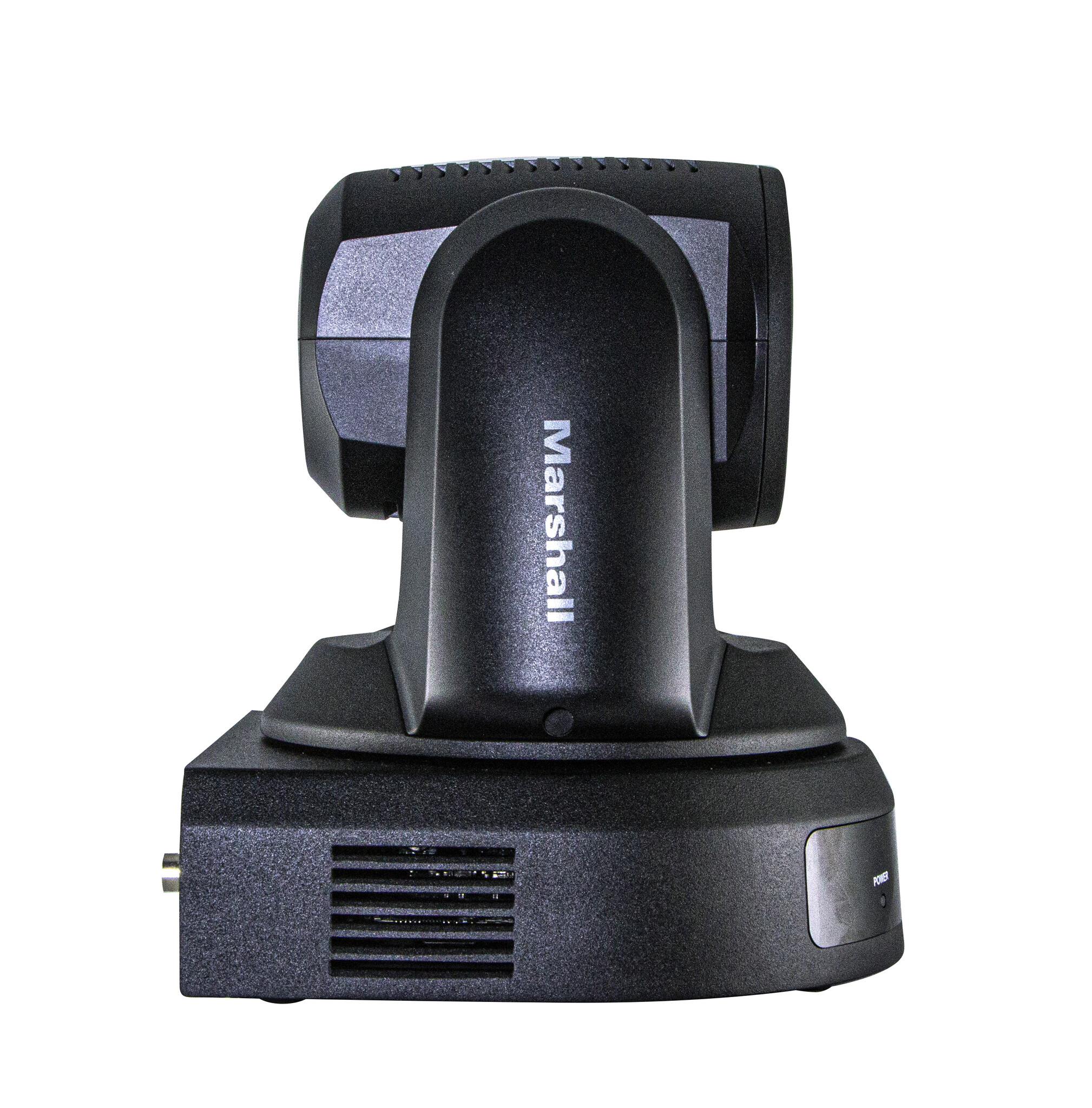

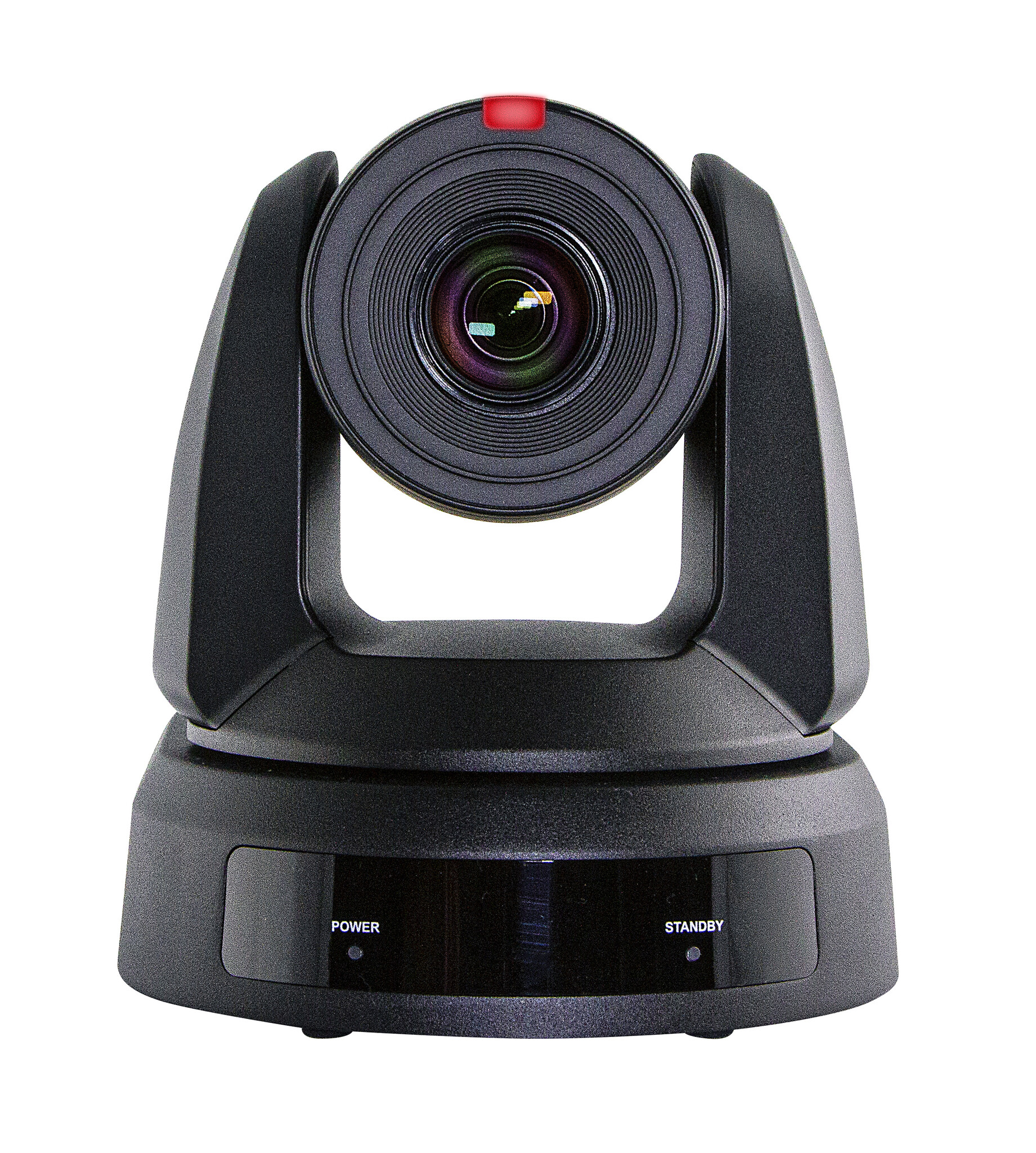

Marshall CV620-BI2/WI2 features a 20x optical zoom range and flexible IP, 3GSDI, USB, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-300 controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.
Key Features:
- 2 Megapixel Full-HD Sensor (Sony 1/2.8")
- 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
- 340° pan and 120° tilt range with various PT selectable speeds

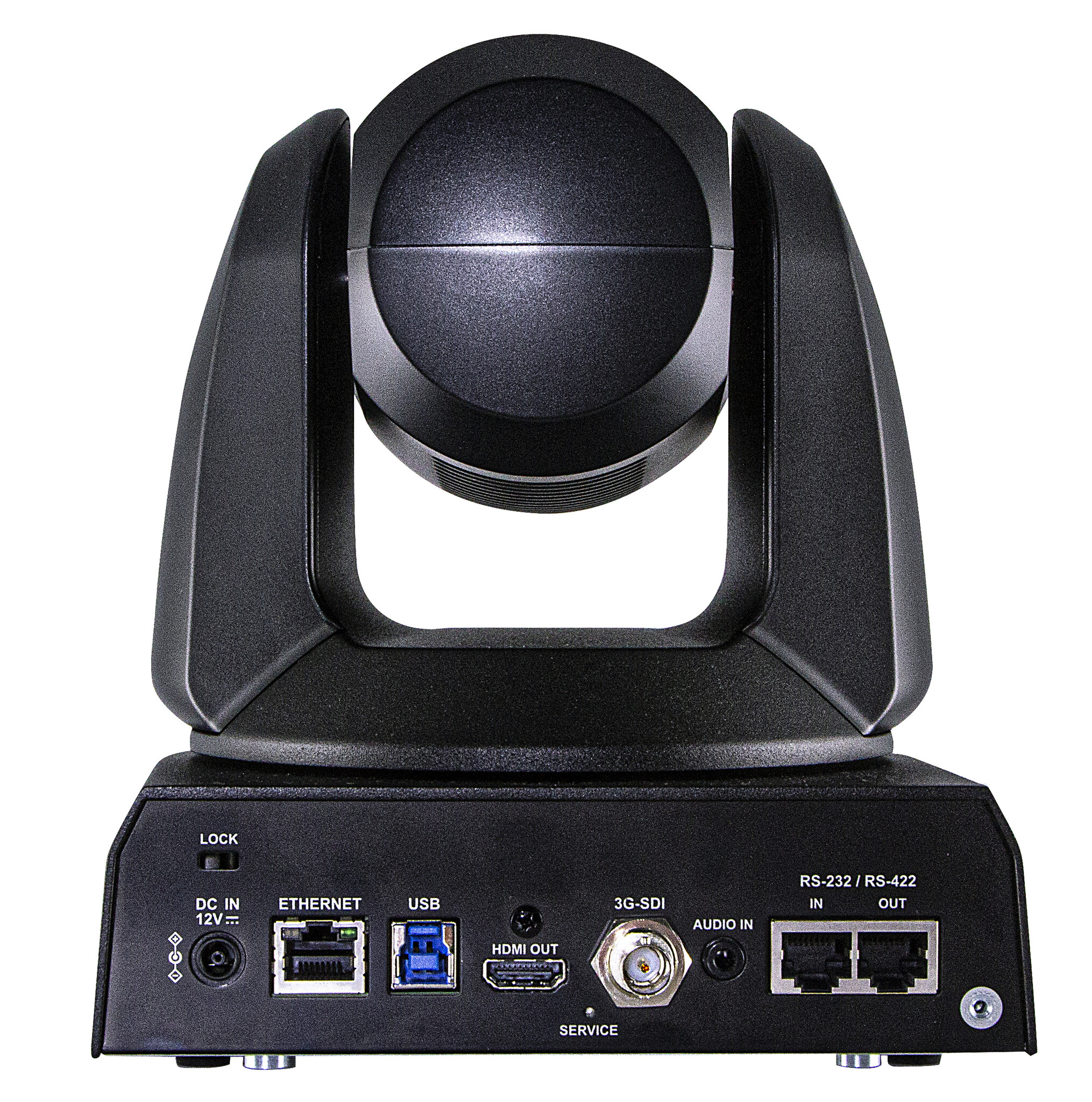

- 3GSDI, HDMI, USB, and IP (H.264) available outputs
- IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
- Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
- 60, 59.94, 50, 29.97, 25 frames per second
- 3.5mm TRS Stereo Audio (Mic/Line)
- 12V Power cable included (16W max) or PoE+ (18W max)
- Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
- Free-D protocol support and CGI protocol commands
Specifications:
|
Sensor |
SONY IMX327 |
|
Video Format |
1080p/60,1080p/30 |
|
Video Output (HD) Interface |
3G-SDI / HDMI / Ethernet/USB |
|
Optical Zoom |
20X max |
|
Horizontal Viewing Angle |
Wide 57° (+/-5%) |
|
Panning Angle |
+/-170° |
|
Panning Speed |
225°/sec |
|
Tilting Angle |
-30° to +90° |
|
Tilting Speed |
225°/sec |
|
Aperture |
Fno1.6~Fno3.8 |
|
Focal Length (lens spec) |
5.33~110 mm |
|
Shutter Speed |
1/25 to 1/10,000 s |
|
Minimum Object Distance |
~1.5m |
|
Focus System |
Auto / Manual / Smart AF(TBD) |
|
Gain Control |
Auto / Manual |
|
White Balance |
Auto / Manual |
|
Exposure Control |
Auto / Manual |
|
WDR |
Yes |
|
3D NR |
Yes |
|
Image Flip |
Yes |
|
Preset Positions |
128 |
|
Control Interface |
VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote |
|
Control Protocol |
VISCA / VISCA IP /ONVIF / UVC /HTTP CGI command/UAC |
|
Tally Light |
Yes |
|
PoE |
IEEE 802.3af(PoE) |
|
Video Stream |
DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS |
|
Video Compression |
H264: 25/30/50/60 fps 1080p/720p |
|
Audio Input |
Line in/ Mic in |
|
Audio Output |
Ethernet / SDI / HDMI/USB |
|
IR Pass-through |
No |
|
IR Receiver |
Yes |
|
IR Remote Control |
Yes |
|
Power Consumption |
DC 10W |
|
Weight |
1.9 Kg |
|
Dimensions |
181(L)x195(H)x174(W) |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-20°C ~ +60°C |
