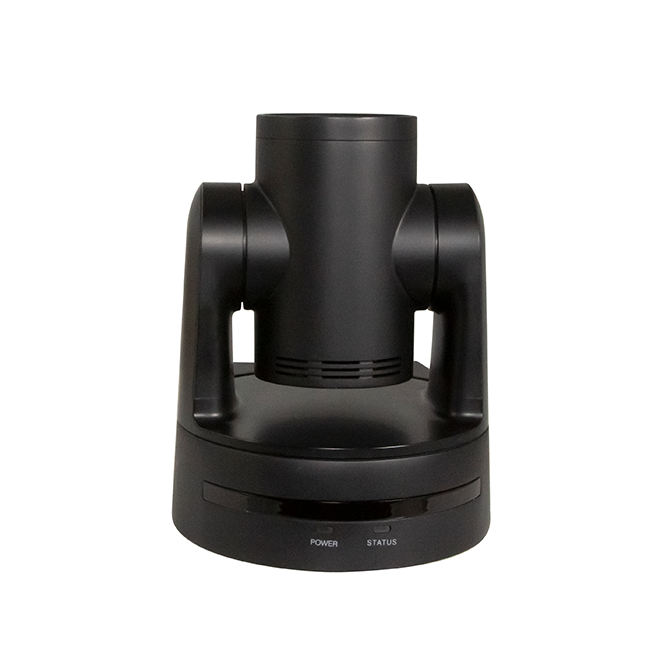

Marshall CV612-TBI Compact 12x AI Auto-Track and Framing PTZ Camera

Informatie

HDMI and SDI:
1080p 60/59.94/50/30/29.97/25 / 1080i 60/59.94/50 / 720p 60/59.94/50

To USB3.0 port on PC - YUY2:
1920*1080 @60/50/30/25fps / 1280*720 @60/50/30/25fps / 960*540 @30fps / 800*600 @30fps / 640*480 @30fps

To USB2.0 port on PC - YUY2:
960*540 @30fps / 800*600 @30fps / 720*576 @50fps / 720*480 @60fps / 640*480 @30fps

Key Features

• Accurate auto-track, follow and frame subjects using AI facial learning technology
• 2.07 Megapixel 1/2.8-inch high quality HD CMOS sensor
• Format Resolutions 1920x1080, 1280x720, 640x480
• 3GSDI, HDMI and USB3.0
• 12x optical zoom (4.1~49.2mm)
• H.AOV 6.6°- 70.3°
• Pan rotation of 170°, Tilt rotation of -90°-+90°
• Video Interfaces: USB3.0 TYPE-C, 3G-SDI, HDMI, LAN)

Product Overview
The CV612-TBI/CV612-TWI 12X optical zoom 3GSDI camera utilizes a professional-grade 2.07-megapixel sensor to capture crisp HD video starting at a Pan rotation of 170° and a tilt rotation of -90°-+90°, all in a 1920x1080p resolution. Multiple available outputs include 3GSDI, USB 3.0 and HDMI. Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of live streams, broadcast, and professional A/V applications for all your streaming applications.

AI Auto Track Technology
The CV612 models have the ability to automatically track, follow and frame presenters using AI facial learning for accurate and smooth self-adjusting maneuvers. With advanced AI tracking, the PTZ camera "learns" who is the prime subject and won"t "lose" the presenter when other persons or objects enter the shot.

Live Streaming Made Simple
It can stream HEVC directly from the camera over IP (RTSP) or USB C while simultaneously outputting via SDI and HDMI, making it an ideal solution to stream live to YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content.

Flexibility Workflow

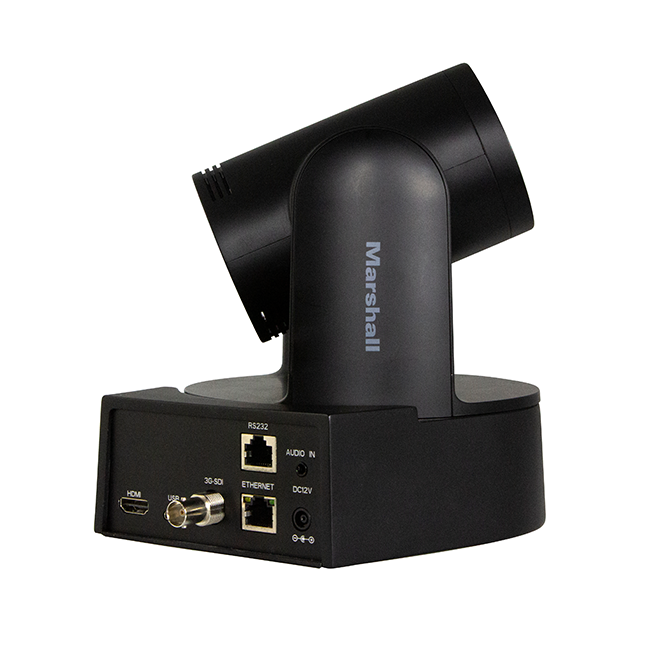

The CV612 has a flexible interface with simultaneous 3GSDI, HDMI, RTSP streaming and USB 3.0 Type C outputs for ease of connection for various applications. including live events, houses of worship, indoor, and other dynamic lighting environments.

Easy to Handle
Setup and manual control (if desired) is available via Ethernet Network, RS232 3-wire and USB C interfaces One Ethernet (CAT) cable installation with PoE+ simplifies setup and operation. The control interface includes RS232, Visca, Pelco, Visca-over-IP and Onvif protocols as well as LAN control. Also included is a handheld IR remote control.

What's in the box?

• 1x Marshall CV612-TBI PTZ Camera Body
• 1x IR Remote Control
• 1x Power Supply Unit (PSU)
• 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
• 1x RS-422 Connector
• 1x Metal Plate A
• 1x Metal Plate B
• 1x M3 Screws Set
