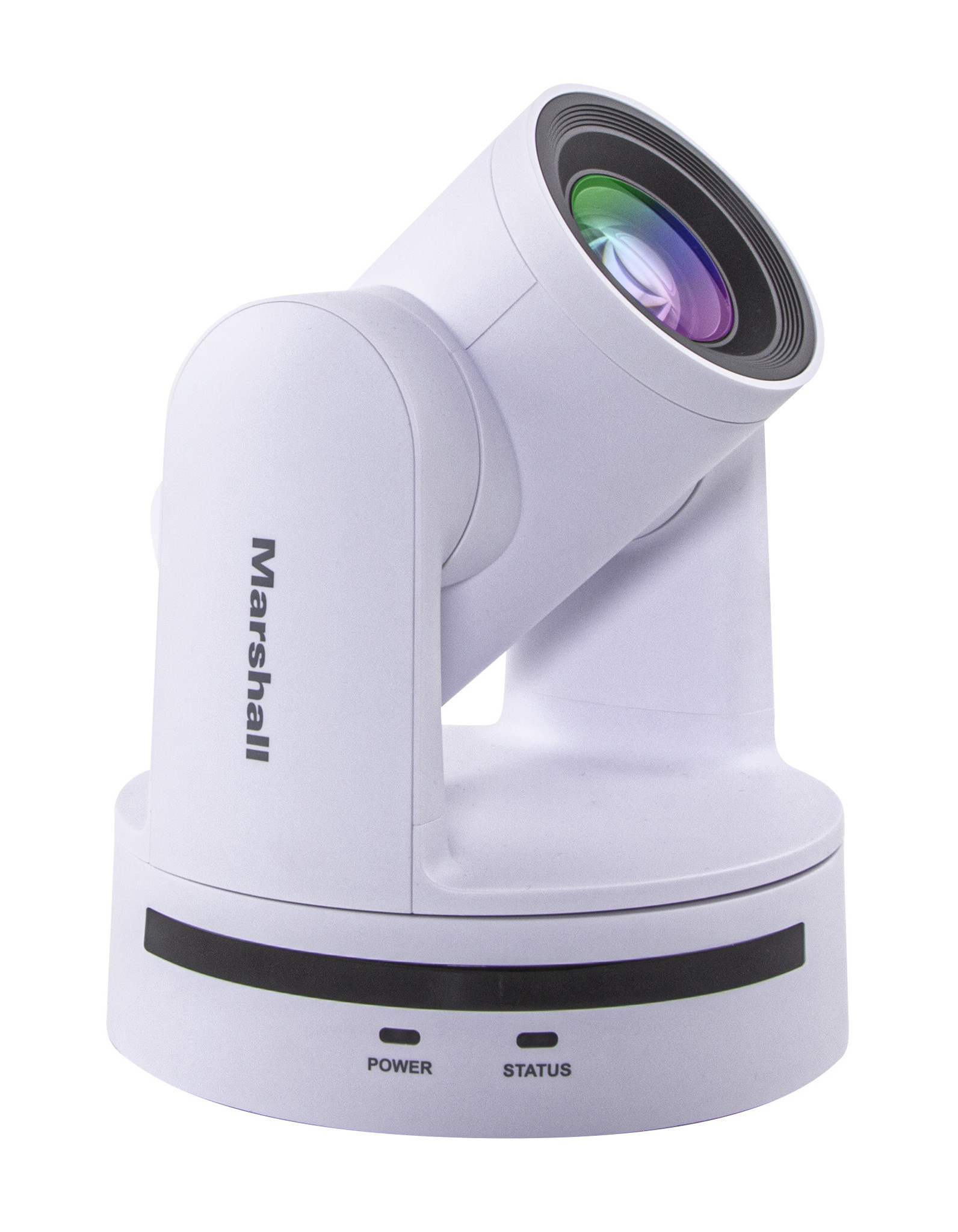

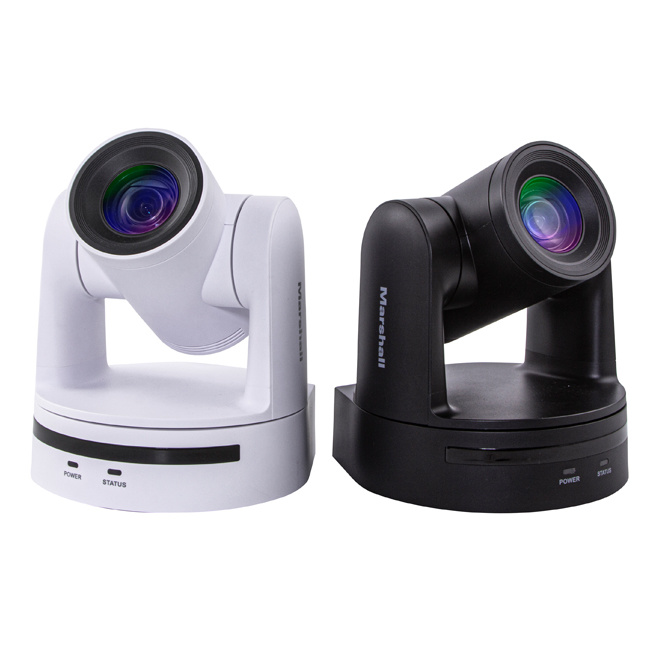

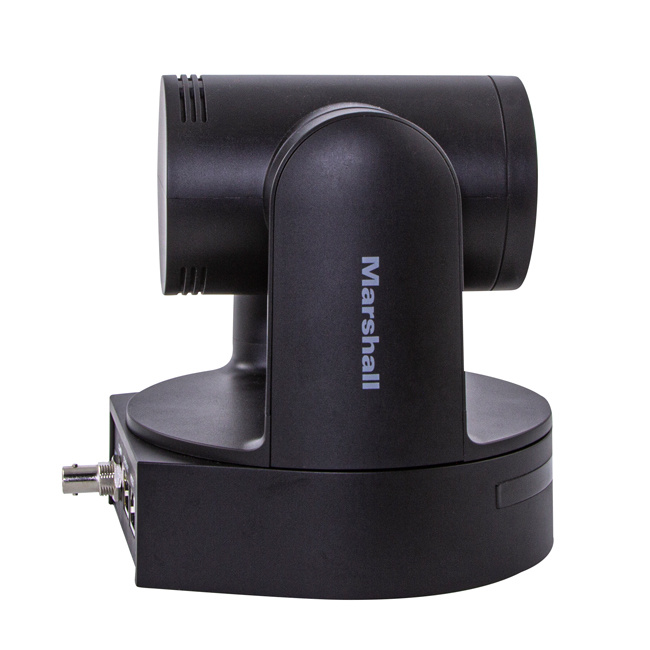

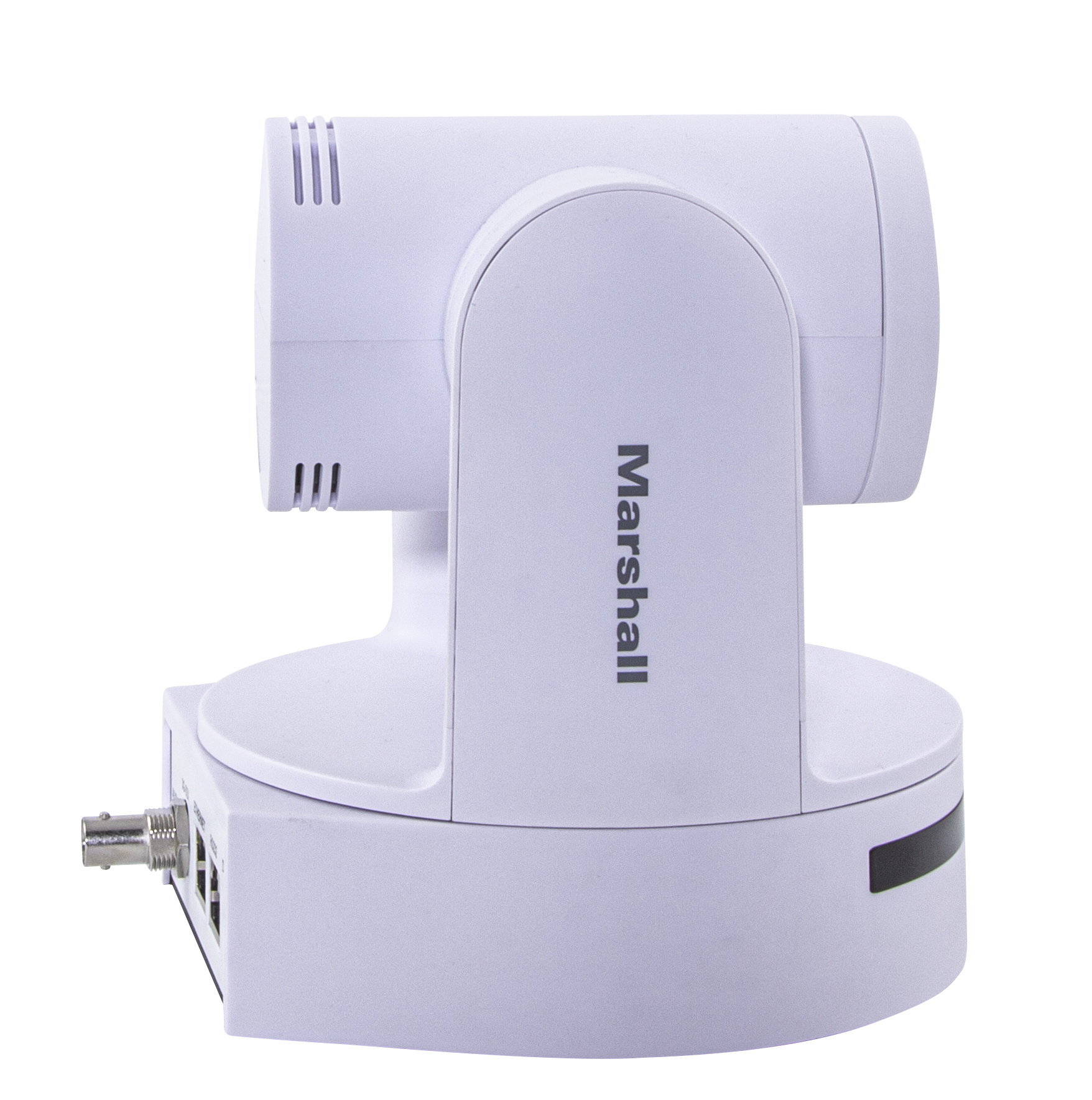

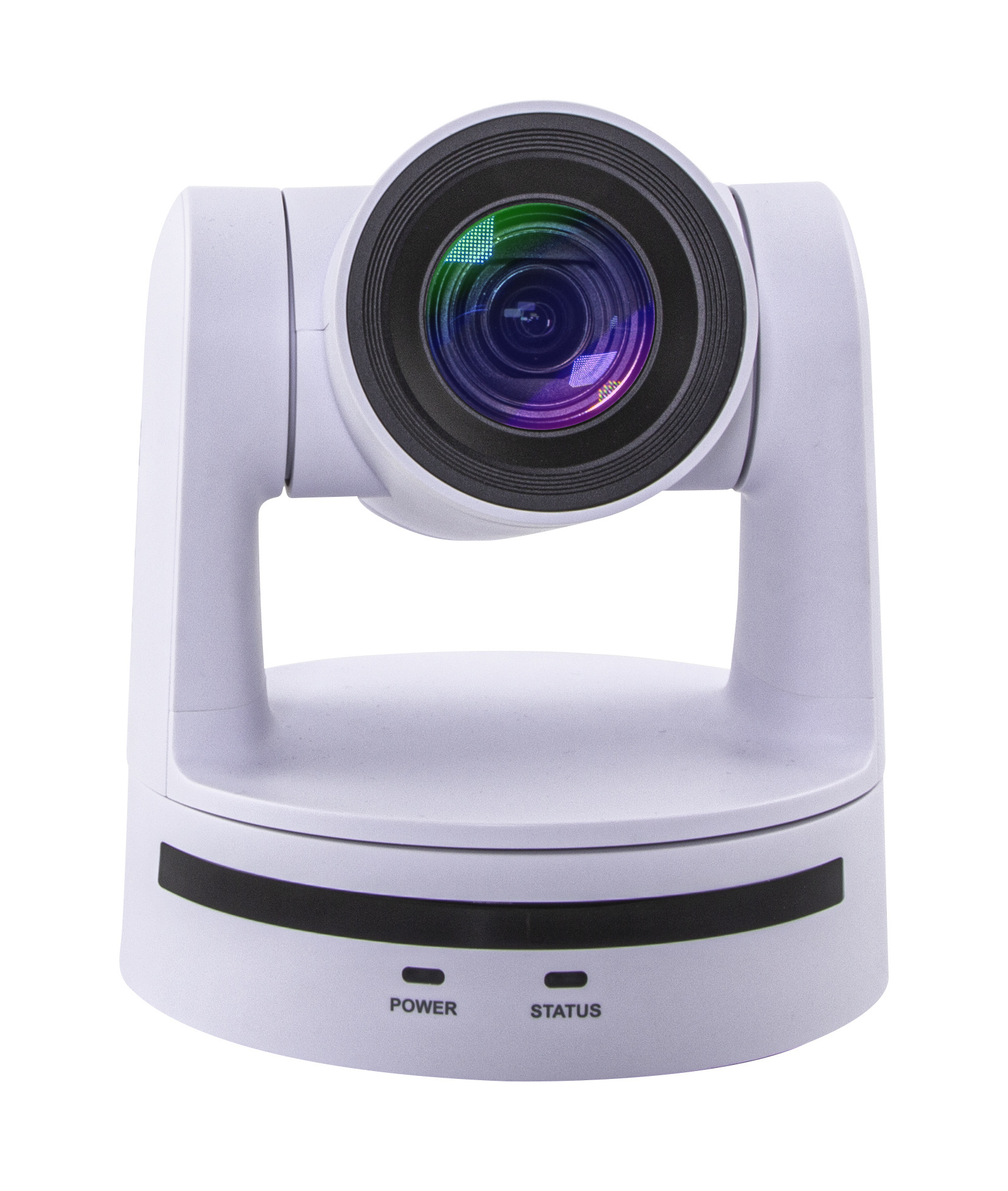

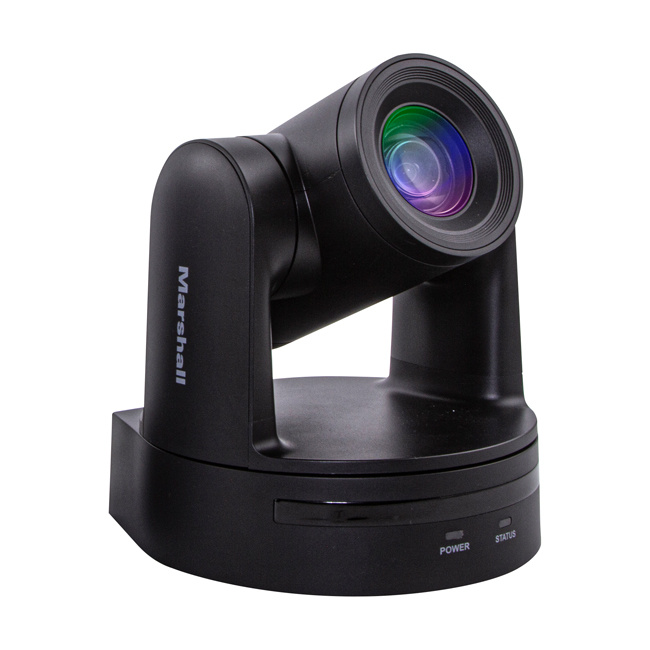

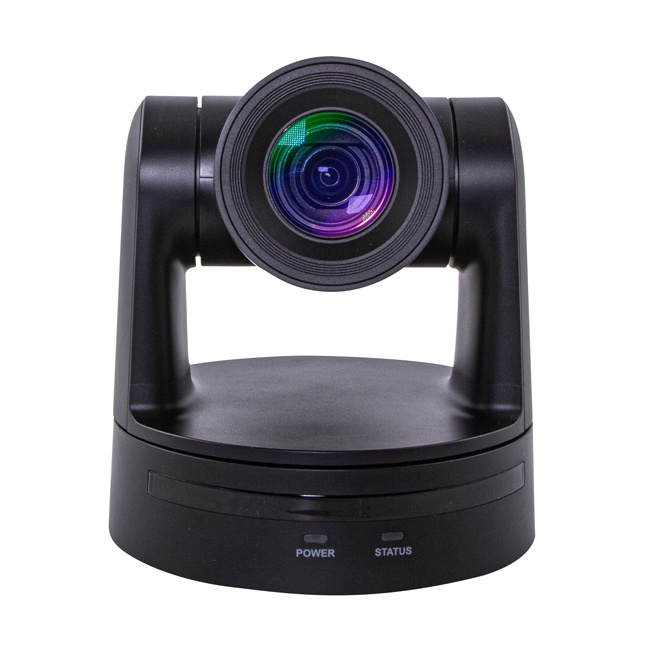

Marshall CV605 HD PTZ Camera with 3mm-15mm 5x Zoom Lens – 3G-SDI & IP/Ethernet Outputs

Informatie

CV605 is a compact PTZ camera utilising a professional-grade 2 megapixel sensor to capture crisp HD video at up-to 60p. The camera uses a 5x optical zoom lens, starting at a wide-angle 3mm (85° angle-of-view) through to 15mm (20° angle-of-view). The 3G-SDI output enables the camera to work with traditional workflows, with an IP/Ethernet output – encoded with H.264/H.265 – for use with networked setups. Marshall’s straightforward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional AV applications.

Key Features

• 1920x1080p up-to 60p
• 3G-SDI output for traditional workflows
• H.264 & H.265 over IP
• 5x optical zoom (3mm-15mm / 85° to 20°)
• Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
• 3.5mm audio input for external microphone

Ultra-Wide Lens with 5x Optical Zoom
The wide-angle optical zoom lens offers an impressive 85°(3mm) through 20°(15mm) angle-of-view with smooth transition and an additional 10x digital zoom range.

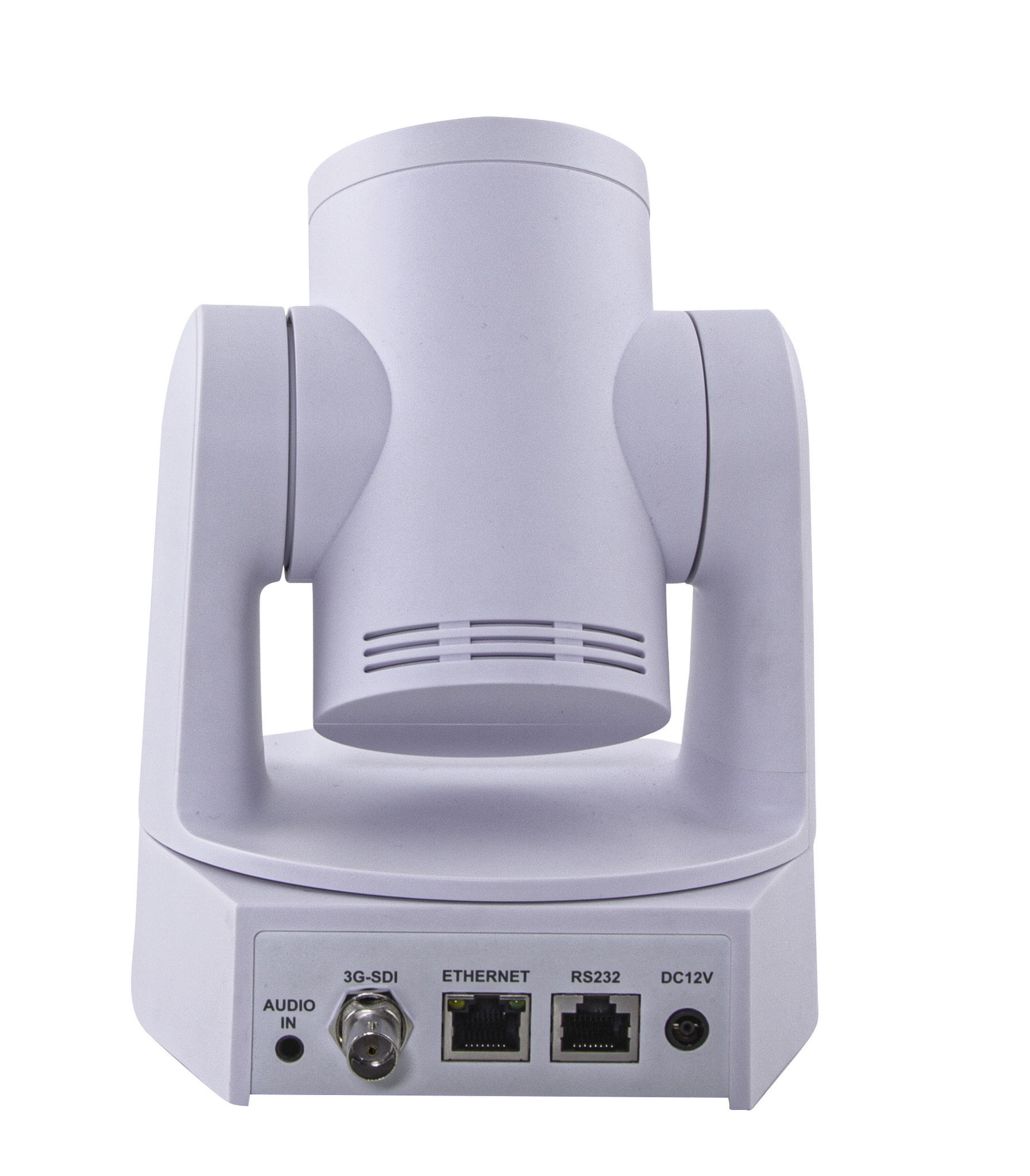

3G-SDI & IP/Ethernet Workflows

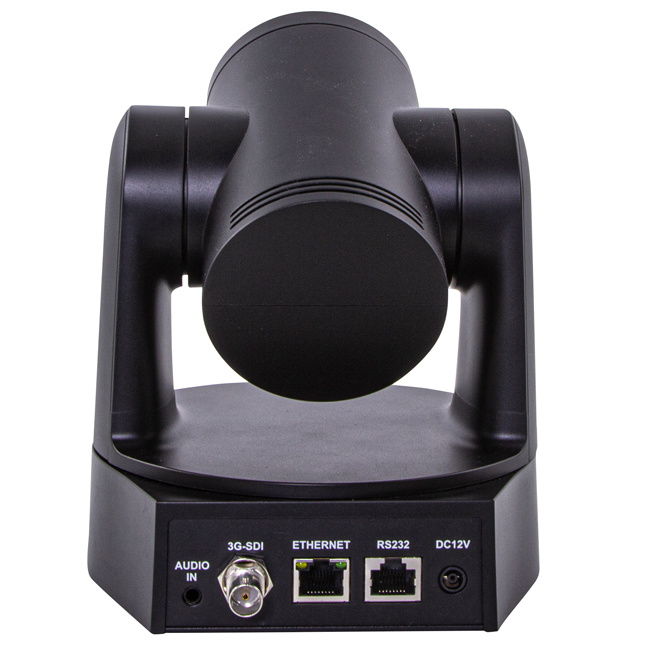

With both 3G-SDI & IP/Ethernet outputs, CV605 is compatible for use with both traditional SDI workflows and newer networked solutions. With the IP/Ethernet connector the camera can be powered with PoE, controlled using Visca over IP, as well as transmitting the camera’s audio and video signal – all over a single CAT5/6 cable.

Exceptional Low-Light Sensitivity
CV605 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions.

What's in the box?

• 1x Marshall CV605 PTZ Camera Body
• 1x IR Remote Control
• 1x Power Supply Unit (PSU)
• 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
