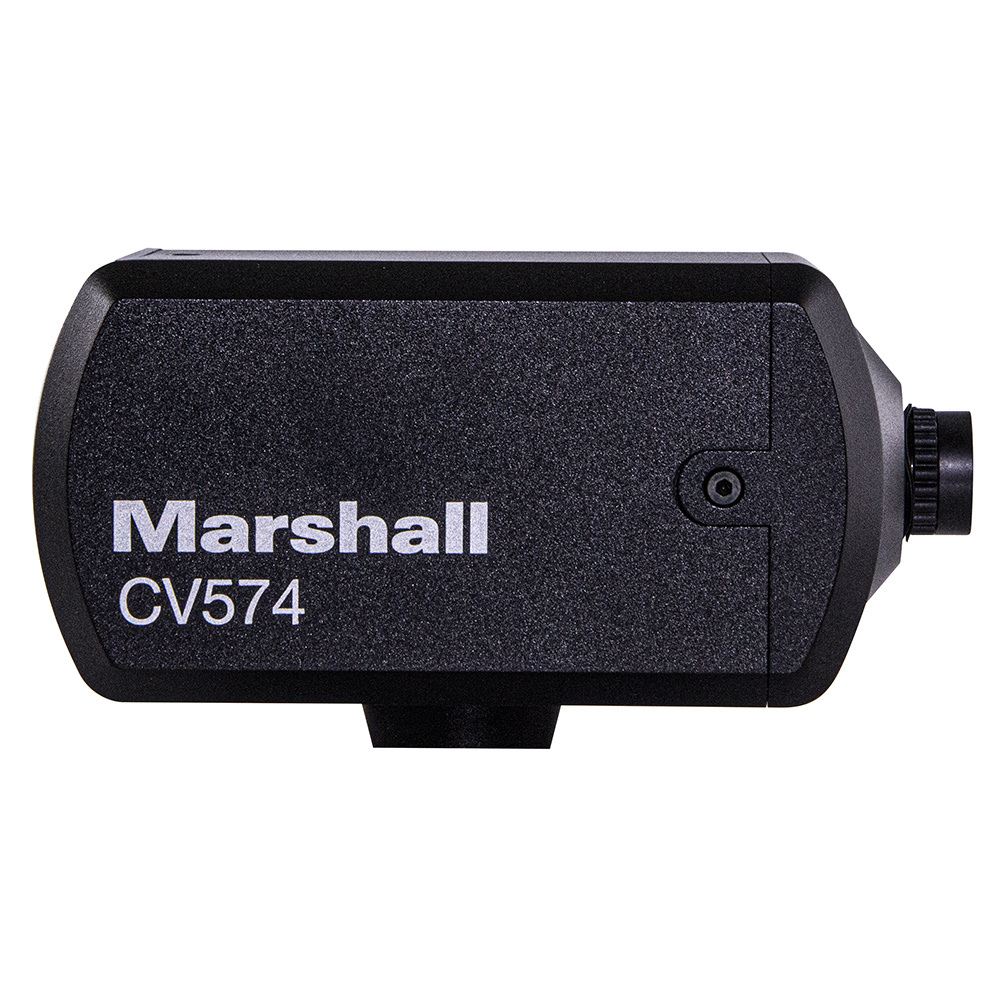

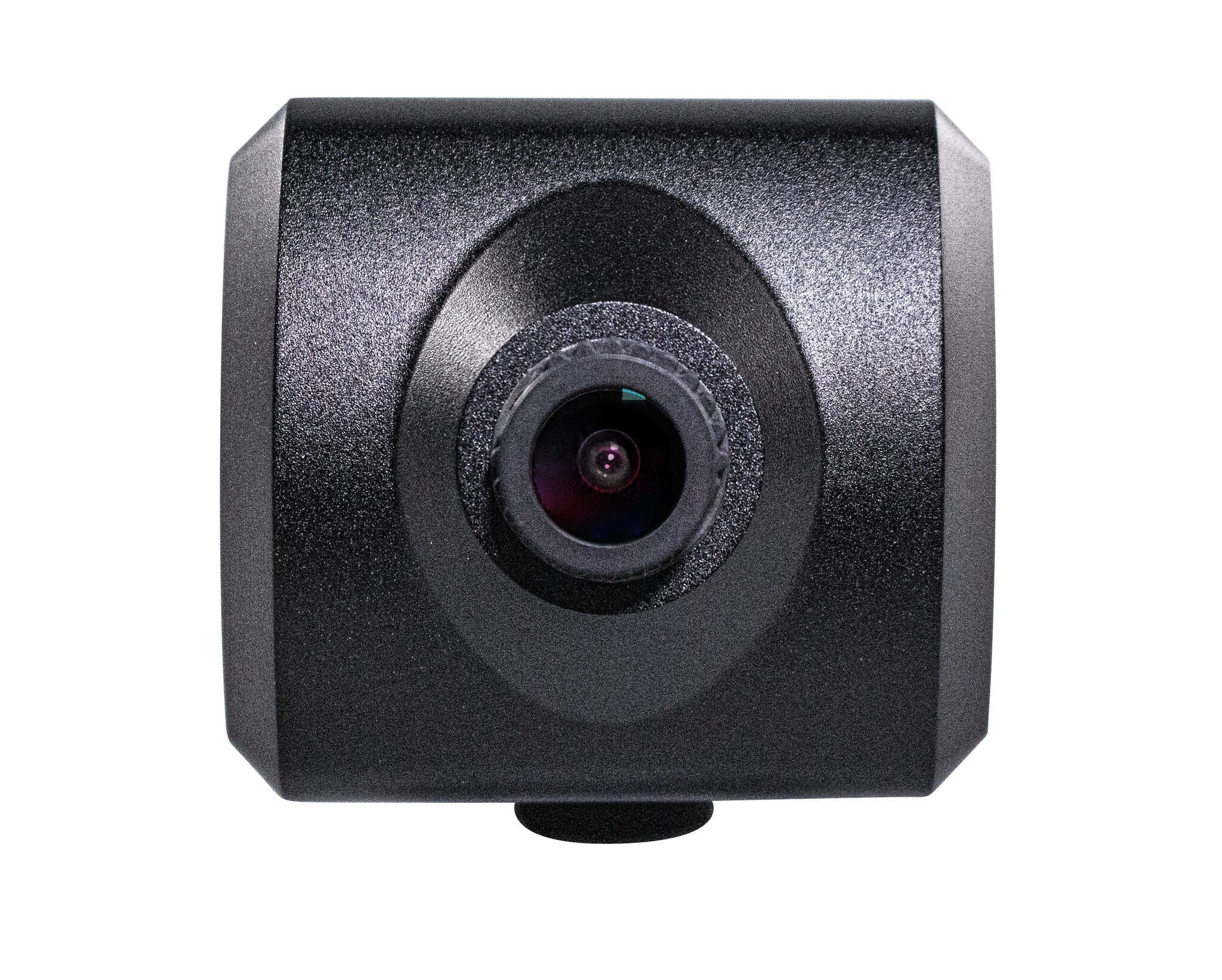

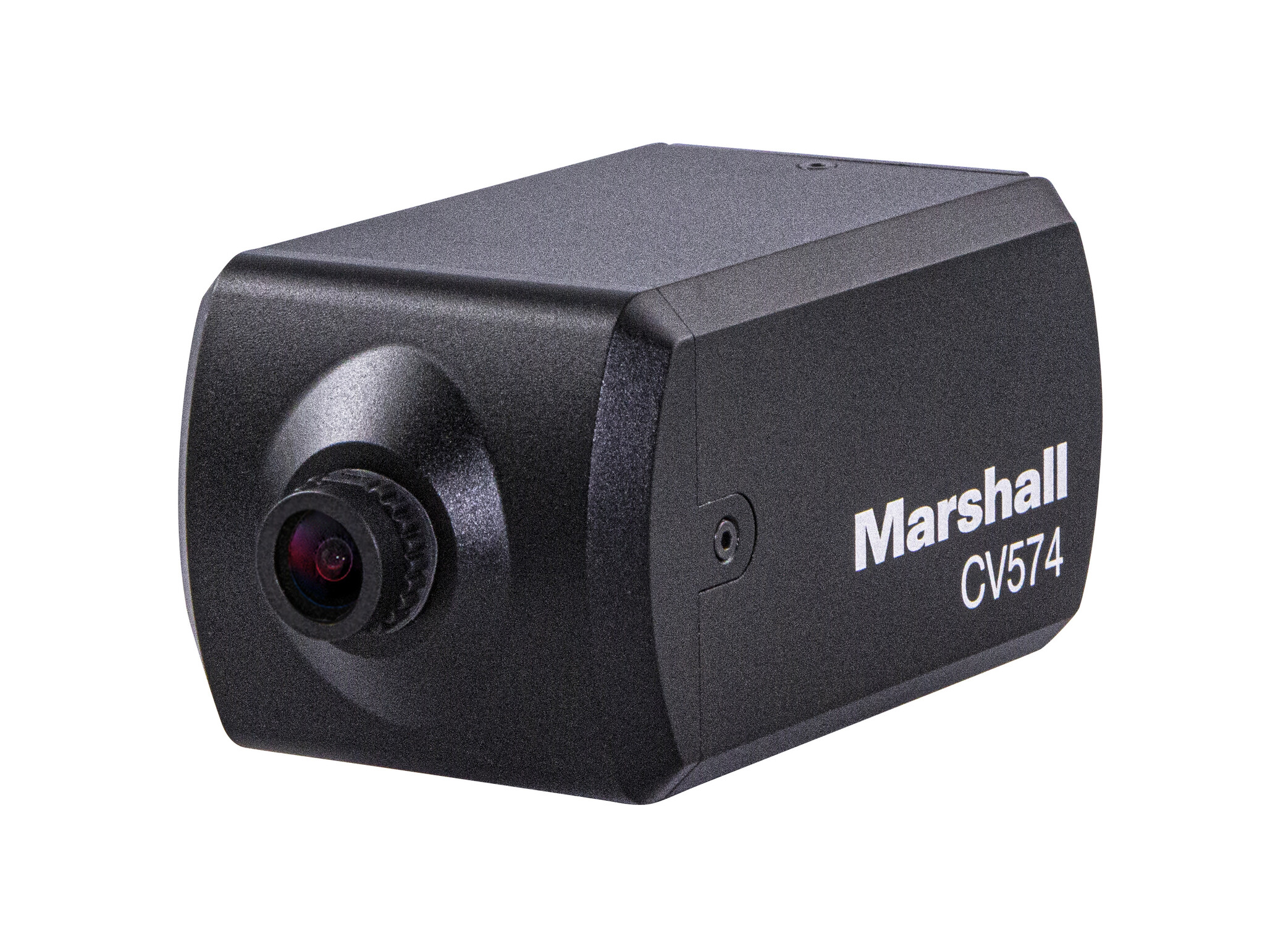

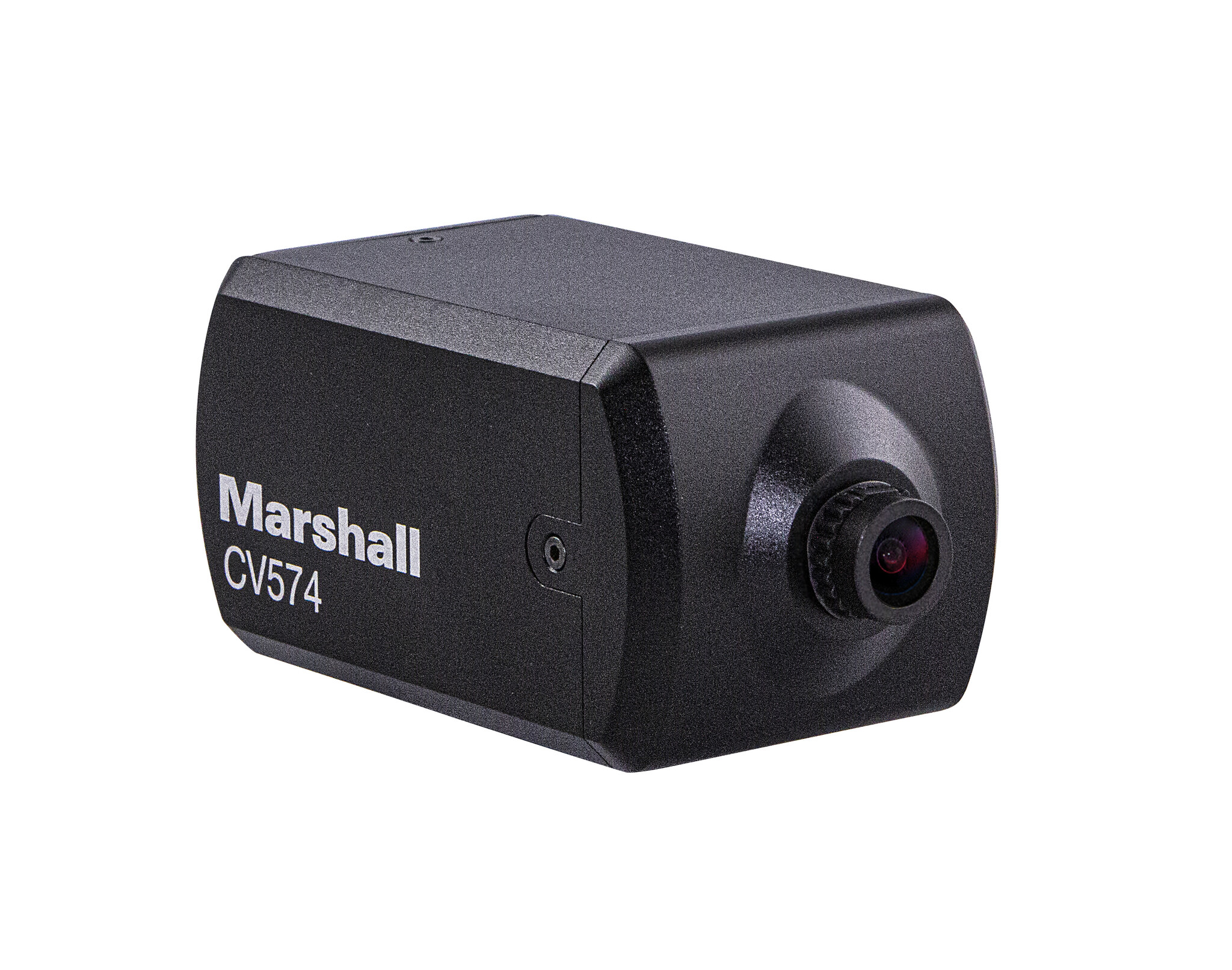

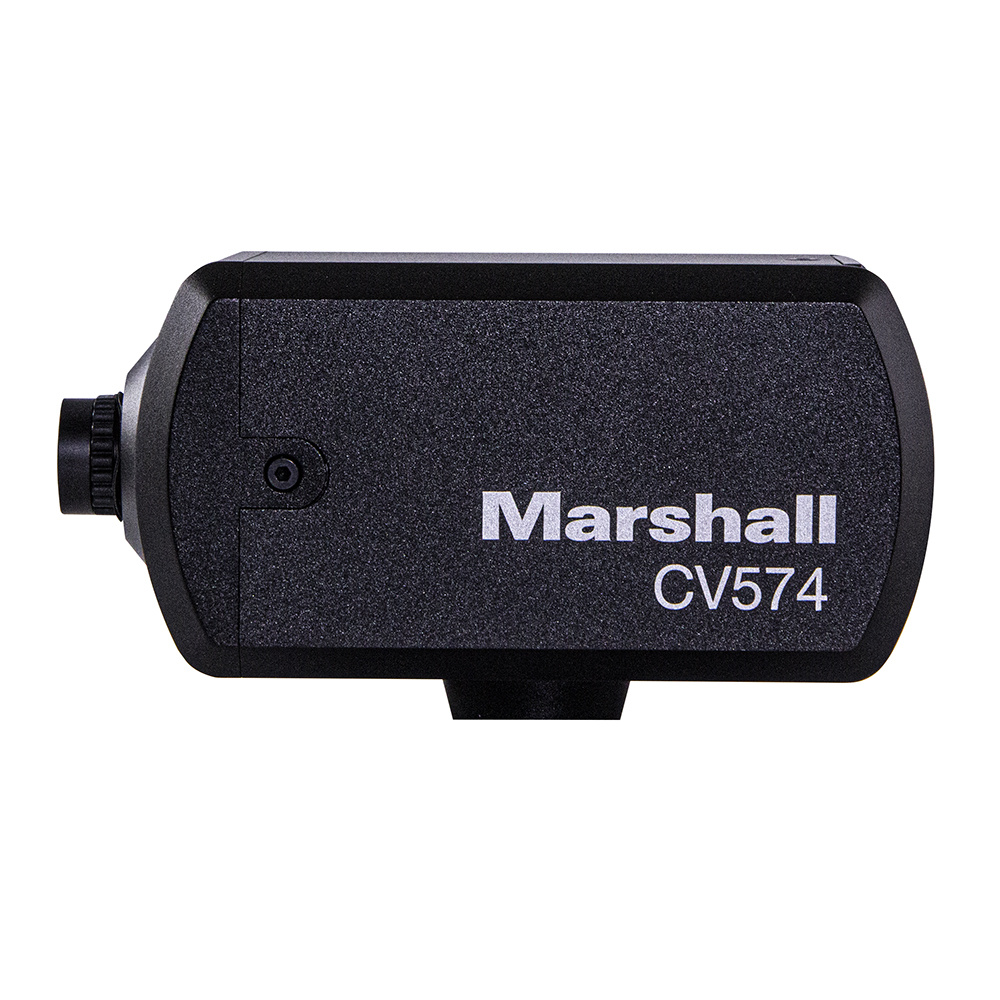

Marshall CV574 4K Networkable Mini Broadcast Camera with 4mm Interchangeable Lens

Informatie

Key Features

• 1/2.8" 8.5MP Sony sensor
• M12 interchangeable lens mount
• 4.0mm M12 lens included

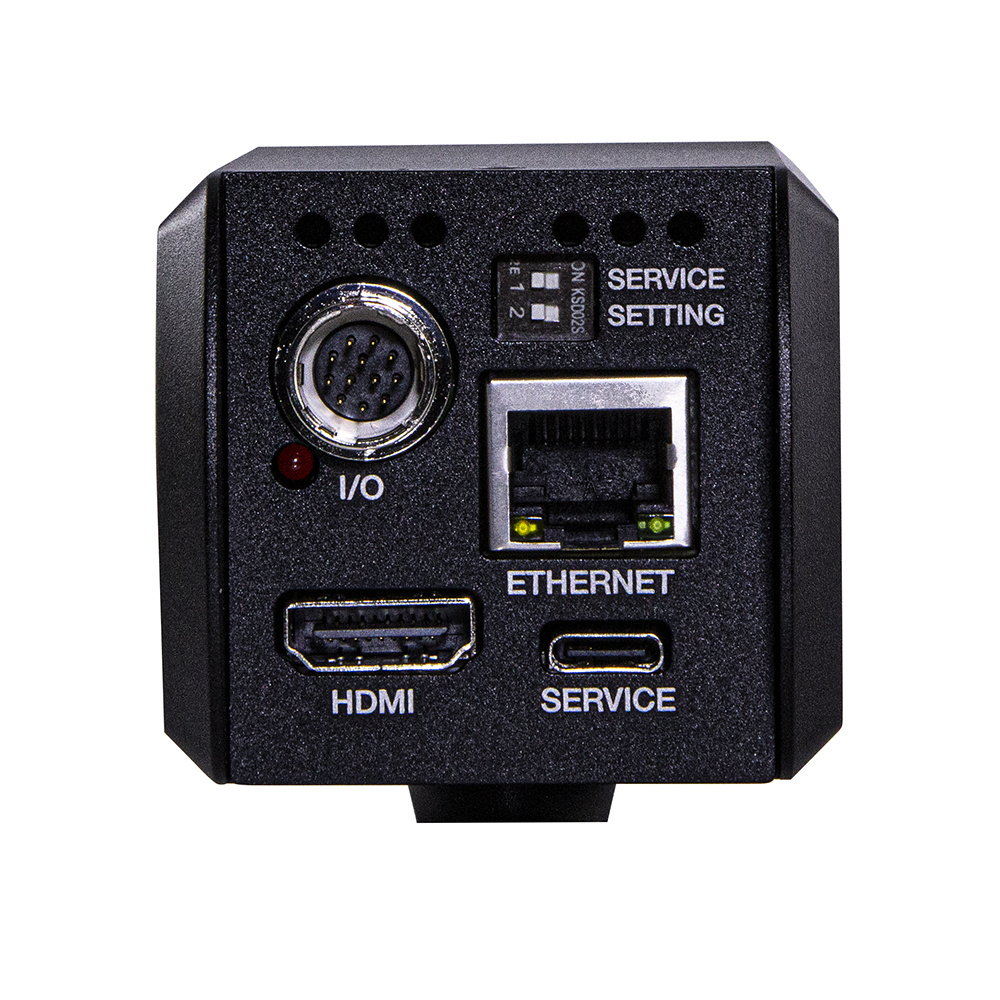

• HDMI & Ethernet video connectors
• IP (H.265), NDI|HX2 and NDI|HX3 output
• 3840x2160 up-to 60P
• I/O breakout cable with control joystick
• PoE support for 1-cable solution

Product Overview
CV574 networkable POV camera is a new addition to Marshall's miniature camera lineup. Featuring NDI|HX3, the new Sony 1/2.8" sensor and 4K UHD output, the CV574 delivers exceptional performance in any workflow.

With the NDI|HX3 codec, the CV574 can deliver low latency, high quality video with no visible compression artifacts. Simultaneous output with HDMI and other IP output options including SRT, RTSP, MPEG-TS and HEVC.

The included breakout cable enables audio input, power and control via RS-485 and the included control joystick. Alternatively, the CV574 supports PoE allowing for power, control and video over just 1 ethernet cable.

A wide selection of M12 lenses complement the included 4.0mm M12 lens, allowing users to select the perfect lens for any scenario.

CV574 is a durable and professional Mini camera with a variety of use-cases including sports broadcast, reality television & live stream events.

Compatible HD Prime Lens Options (M12):

• CV-4704.0-3MP (Included):  4.0mm F2.6 3MP M12 Mount Lens (AOV approx. 85°)
• CV-4702.3-3MP: 2.3mm F2.2 3MP M12 Mount Fisheye Lens
• CV-4702.8-3MP-IR: 2.8mm F2.0 3MP M12 Mount Fisheye Lens
• CV-4804.4-12MP: 4.4mm F2.7 12MP M12 Mount Lens
• CV-4706-3MP-IR: 6mm F2.0 3MP M12 Mount Lens
• CV-4708.0-3MP: 8mm F1.8 3MP M12 Mount Lens
• CV-4712.0-3MP: 12mm F1.8 3MP M12 Mount Lens
• CV-4716.0-2MP: 16mm F1.8 2MP M12 Mount Lens

Compatible 8MP Prime Lens Options (M12):

• CV-4804-8MP: 4.0mm F1.8 8MP M12 Mount Lens
• CV4808-8MP: 8.0mm F1.8 8MP M12 Mount Lens
• CV-4812-8MP: 12mm F1.8 8MP M12 Mount Lens

Compatible HD Varifocal Lens Options (M12):

• CV-2812-3MP: 2.8-12mm F1.4 3MP M12 Mount Varifocal Lens
• CV-0622-5MP: 6-22mm F1.6 5MP M12 Mount Varifocal Lens
