Marshall CV504 Mini Broadcast Camera with 4mm Interchangeable Lens – 3G-SDI Output (New Sensor)

Informatie

Key Features

•  Ultra-compact camera
• M12 interchangeable lens mount
• 4.0mm M12 lens included
• 3G-SDI video output connector
• New Sony 1/2.8″ 2.2 megapixel sensor
• Night mode for extreme low-light situations (0.005Lux)
• 1920×1080 up-to 60P
• I/O breakout cable with control joystick
• 3.5mm audio input

Product Overview
Built with the new Sony 1/2.8″ Solid-State sensors, the CV504 is able to provide clear HD video with 10-bit colour even in low-light conditions down to 0.01Lux. The CV504 can also compete even in complete darkness with its night mode, enabling capture of IR wavelengths to get a clear picture in environments as little as 0.005Lux.

Marshall CV504 Miniature HD Camera offers performance, flexibility, and value in a tiny form factor. The CV504 comes with a high-quality, 4mm prime lens ensuring great focus at any distance. The M12 mount also allows for changing the lens to any one of many high quality M12 prime and varifocal lenses to meet the individual needs of the production, project or application.

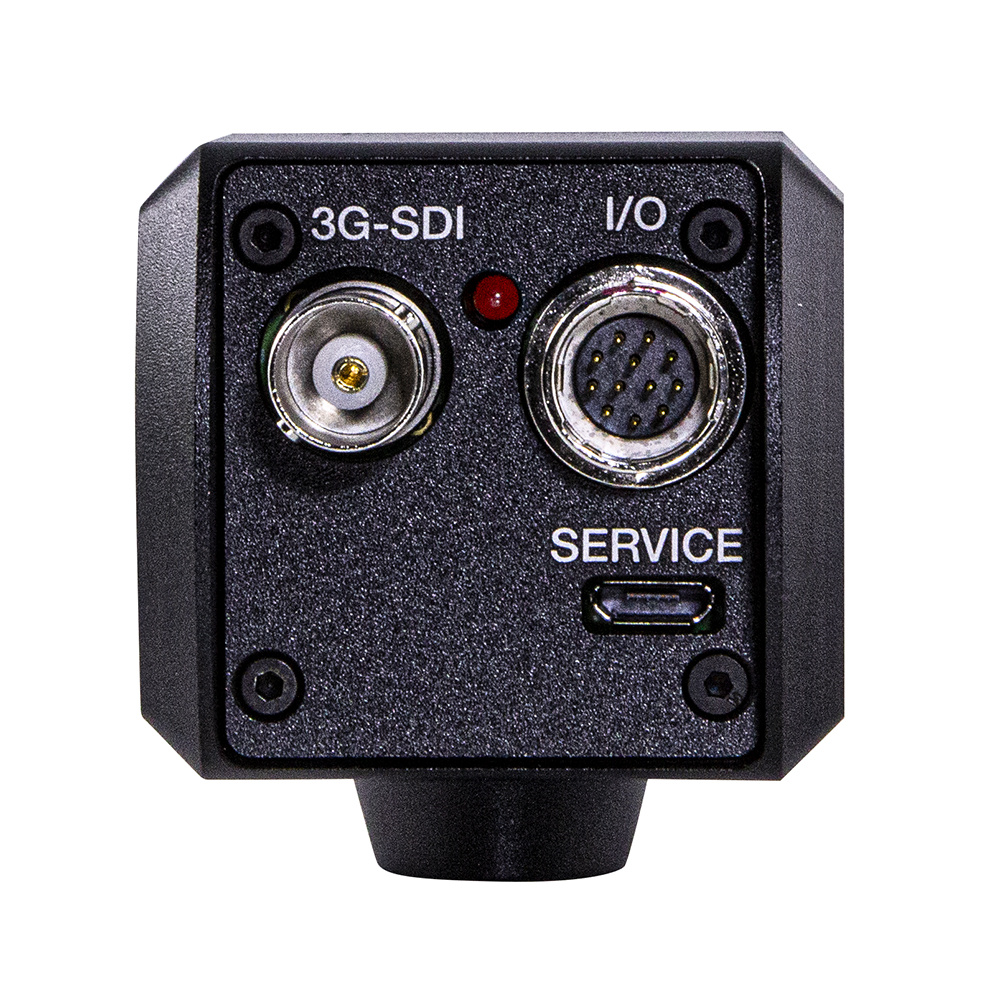

The CV504-WP utilises a full-sized BNC (3G/HDSDI) output on the rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV504’s threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV504P can capture detailed shots while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance, red/blue, exposure, gain control, pedestal (blacks), white clip, gamma and more are delivered via common RS485 (Visca) or OSD menu joystick.
