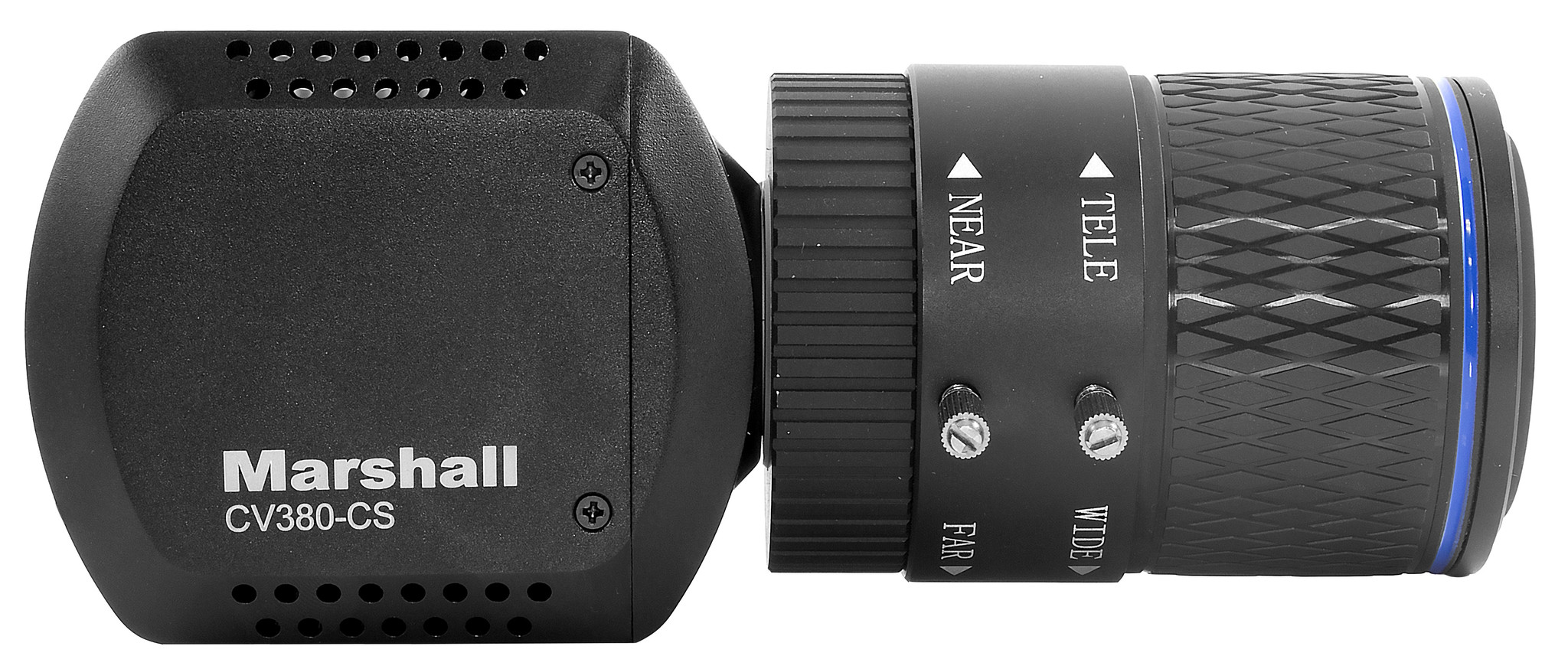

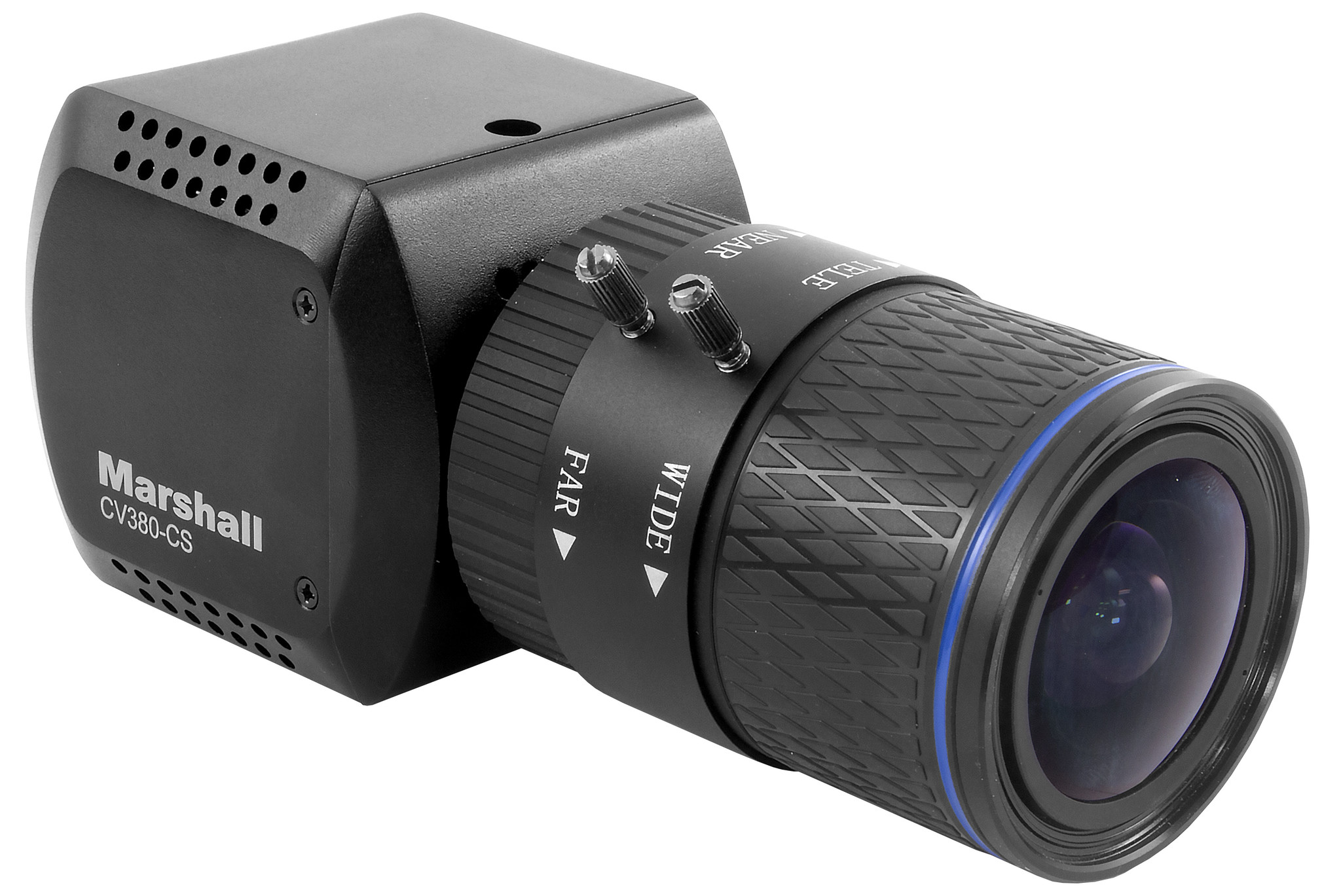

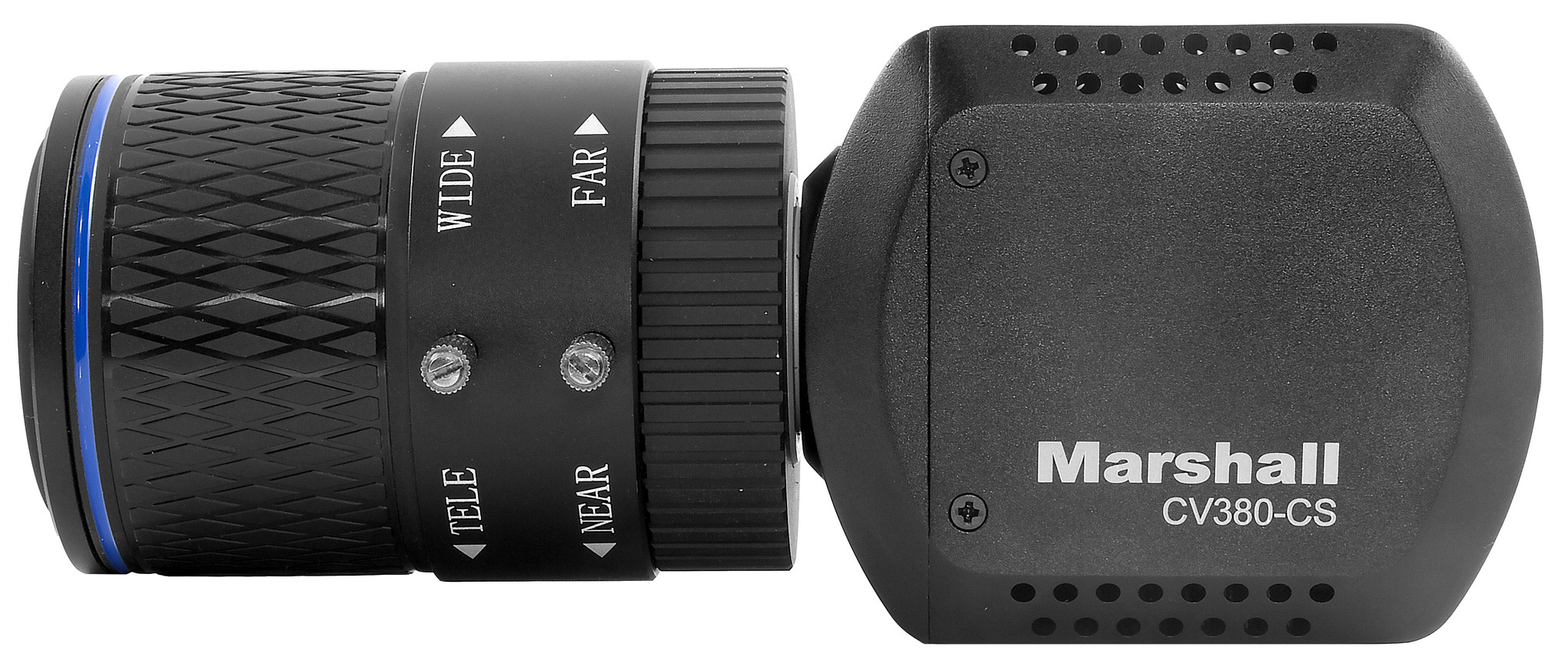

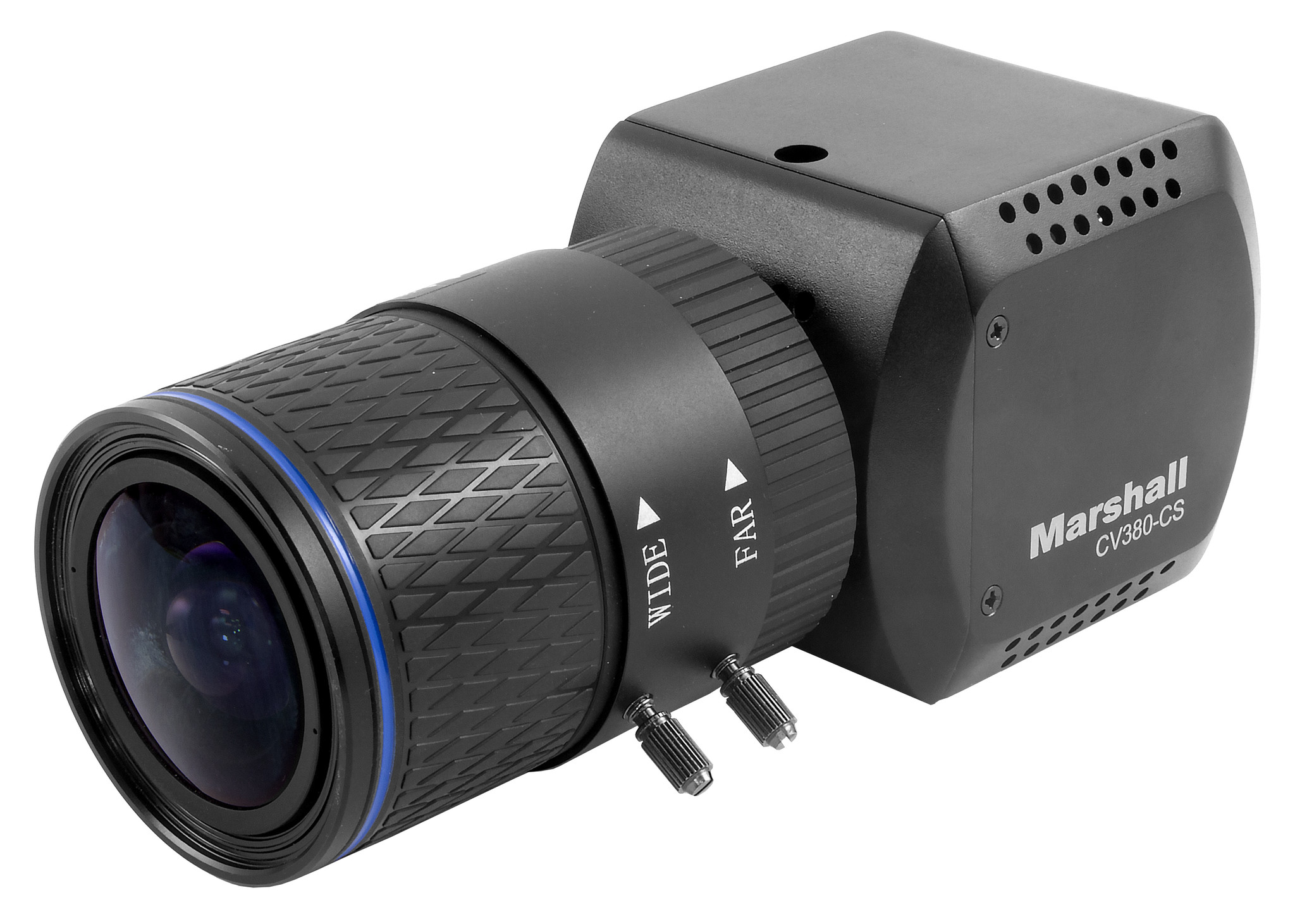

Marshall CV380-CS 4K/UHD Compact Broadcast Camera with CS Lens Mount
4K/UHD Compact Broadcast Camera with CS Lens Mount – 6G-SDI & HDMI 1.4 Output
- DCI-4K (4096×2160) & UHD at up-to 30P

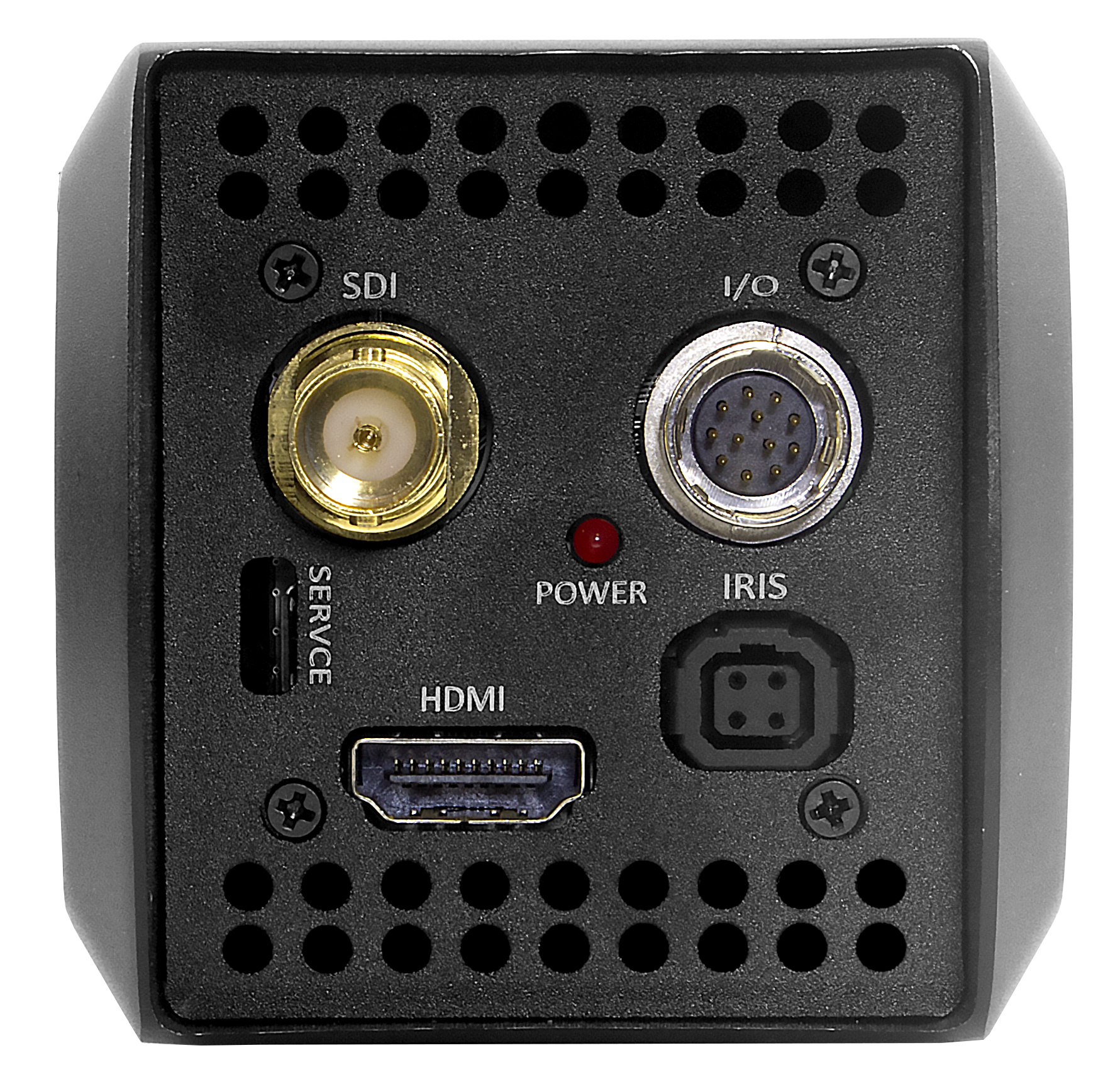

- 6G-SDI & HDMI 1.4 Outputs
- CS Mount for Broad Lens Choice
- TRS Stereo Audio Input
- Remotely Adjust Cameras Through RS485 (Visca) Protocol
The Marshall CV380-CS is a compact, true 4K camera built around an 8.5-Megapixel, 1/2.5-inch sensor delivering ultra-crisp, clear true 4K resolution in 4096x2160p. The CV380-CS contains a single 6G (BNC) output with ability of 6G/3G/HD-SDI and a simultaneous HDMI output. Flexible CS/C lens mount offers a wide variety of lens options with DC Auto-Iris plug-in capability.
CV380 is a versatile and powerful camera solution in an easy to understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma and more. The CV380-CS can capture detailed shots while maintaining a discrete presence and can be used as a fixed 4K wide shot where select HD windows can be captured and used within the frame in post.
