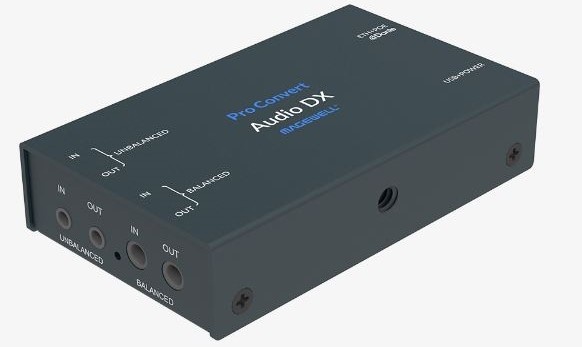

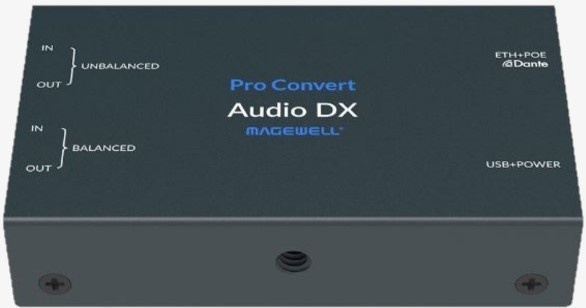

Magewell Pro Convert Audio DX

Informatie

A multi-format IP audio converter and capture device (Dante^® enabled)

• Offers a seamless bridge between analog audio, software and IP standards including Dante^®, NDI^®, SRT and more
• Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
• Enables mixed-technology local and remote production workflows and ProAV installations

Pro Convert Audio DX Specifications

Receiving/Input Features

• Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
• 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
• 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
• 1 x 4-channel 24-bit/48k USB Audio Class in
• Receiving 8-channel 24-bit Dante^® flows in unicast or multicast
• Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI^® simultaneously
• Support for PTP master/slave
• Total harmonic distortion < 0.01% @ +4dBu
• Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
• Signal to noise ratio > 100dB
• Dynamic range > 100dB
• Max signal level: unbalanced at 12dBu, balanced at 24dBu

Transmitting/Output Features

• Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
• 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
• 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
• 1 x 4-channel 24-bit/48k UAC out
• Encoding 8-channel 24-bit Dante^® flows in unicast or multicast
• Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI^® protocols simultaneously
• Support for PTP master/slave
• Total harmonic distortion < 0.01% @ +4dBu
• Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
• Dynamic range > 100dB
• Signal to noise ratio > 100dB
• Max signal level: unbalanced at 12dBu, balanced at 18dBu

Configuration Management

• Support for Dante Domain Manager and Dante Controller, providing signal routing and configuration
• Registration with Control Hub
• Remote control via WebUI and Control Hub
• Provision of comprehensive information regarding the device and signals in real-time
• Configuration of how an input is processed and codec, including volume setting, audio matrix, buffer, as well as the network connection
• Support for updating firmware
• Support for USB NET
• Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
• Provision of HTTP APIs

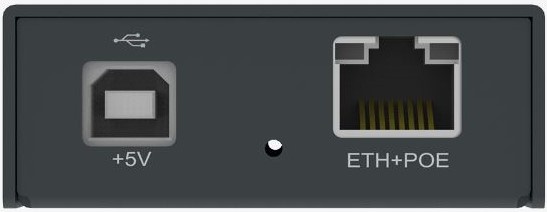

Interfaces

• 10/100/1000Mbps with PoE (IEEE 802.3af)
• USB2.0 Type B
• 5V/2.1A power supply
• USB NET

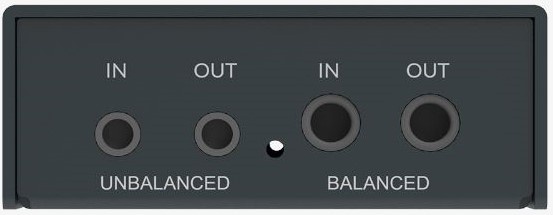

• 3.5mm TRS unbalanced IN/OUT
• 4.4mm TRRRS balanced IN/OUT

LED Indicators

• Power LED indications:
• on: power on
• off: power off
• PTP LED indications:
• on: synced
• off: not synced
• blinking: syncing

Form Factor

• 100.9mm (L) x 60.2mm (W)x 23.3mm (H)

Accessories

• 4.4mm to Dual XLR Male Cable
• 4.4mm to Dual XLR Female Cable
• USB 2.0 cable (Type A to Type B)
• Universal power adapter
• L bracket

On-board Control Buttons

• 16 Position Rotary DIP Switch: set board-index from 0 to F

Screw Mounting Hole

• ¼–20 threaded hole

Power Consumption

• 5V max current: ~ 1 A
• Max power consumption: ~ 5 W

Working Environment

• Operating temperature: 0 to 40 deg C
• Storage temperature: –20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing
