Datavideo PTR-10 Robotic Pan/Tilt head with HDBaseT

Informatie

HDBaseT Robotic Pan Tilt Head

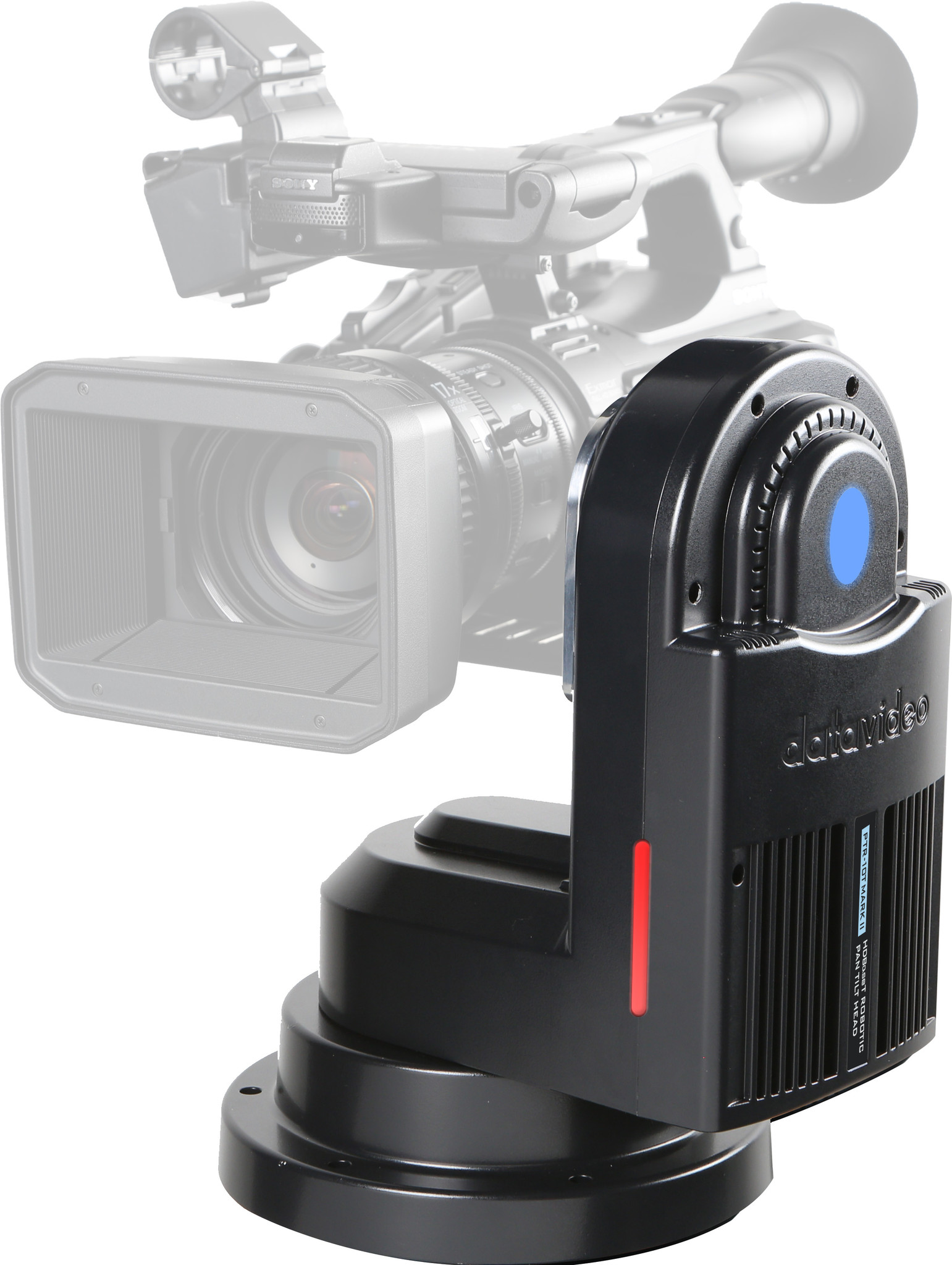

Datavideo’s brand-new PTR-10T MARK II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a roboti

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

The PTR-10T MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.

Cost-Effective

PTR-10T MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

Wide Range of Compatible Cameras Supported

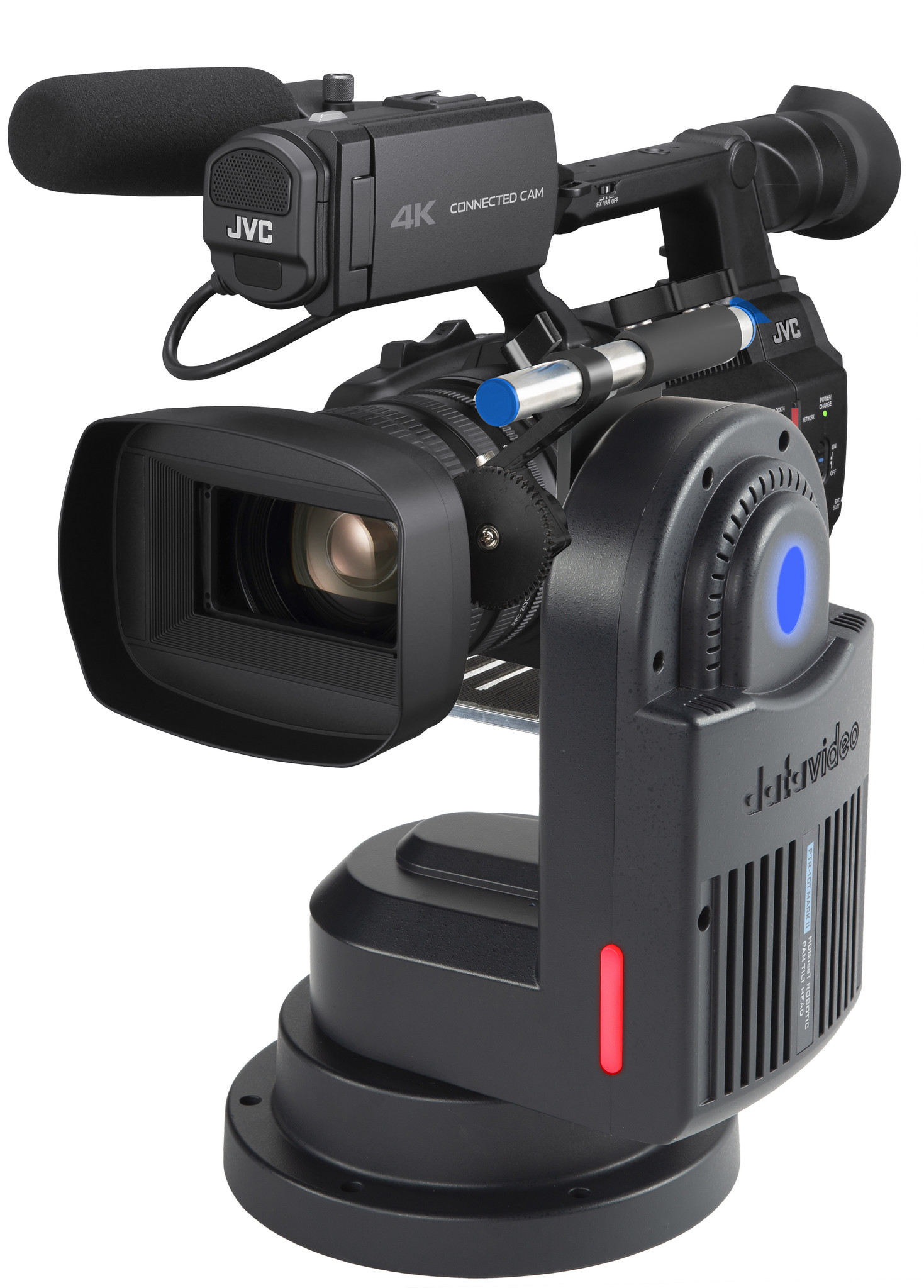

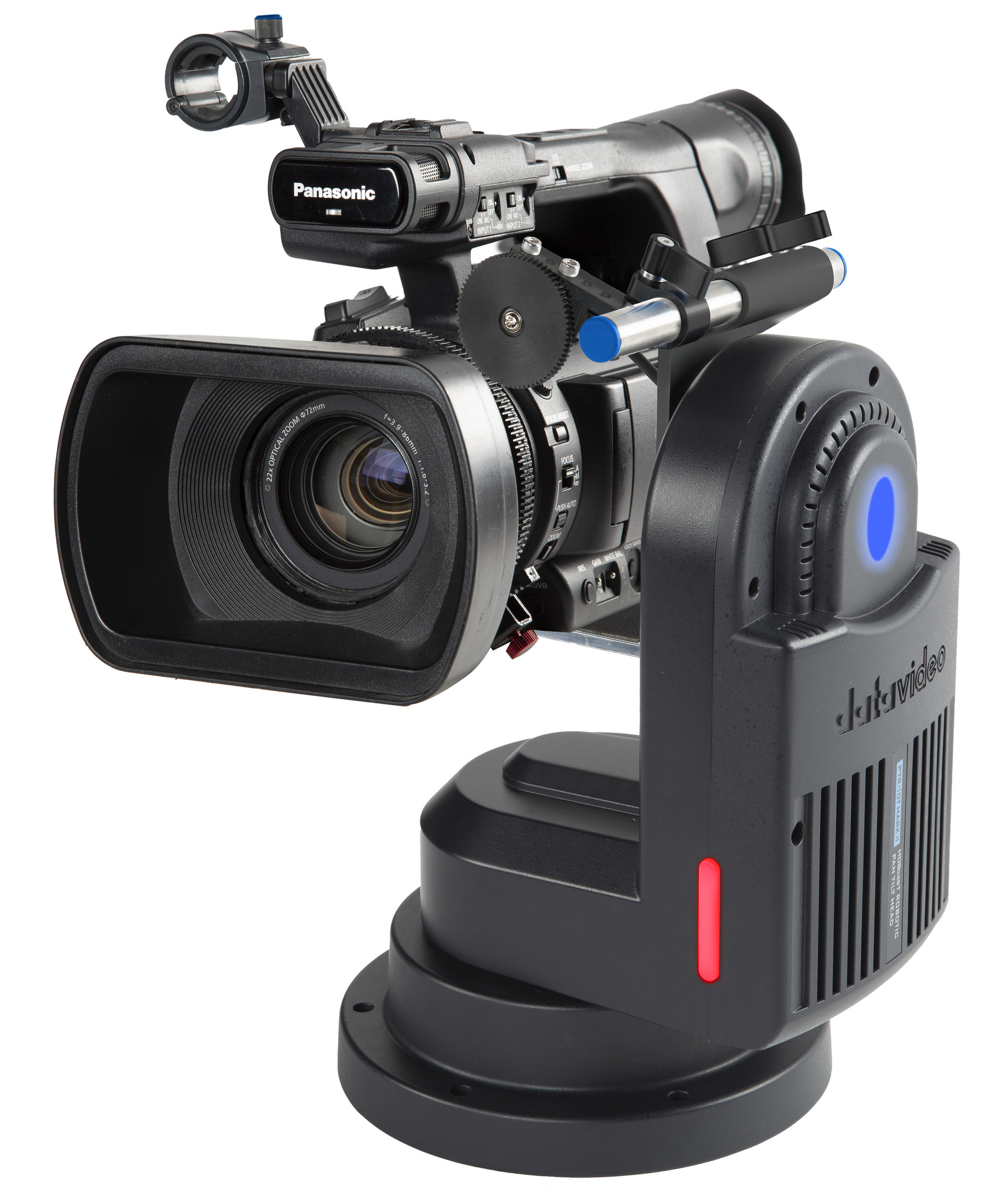

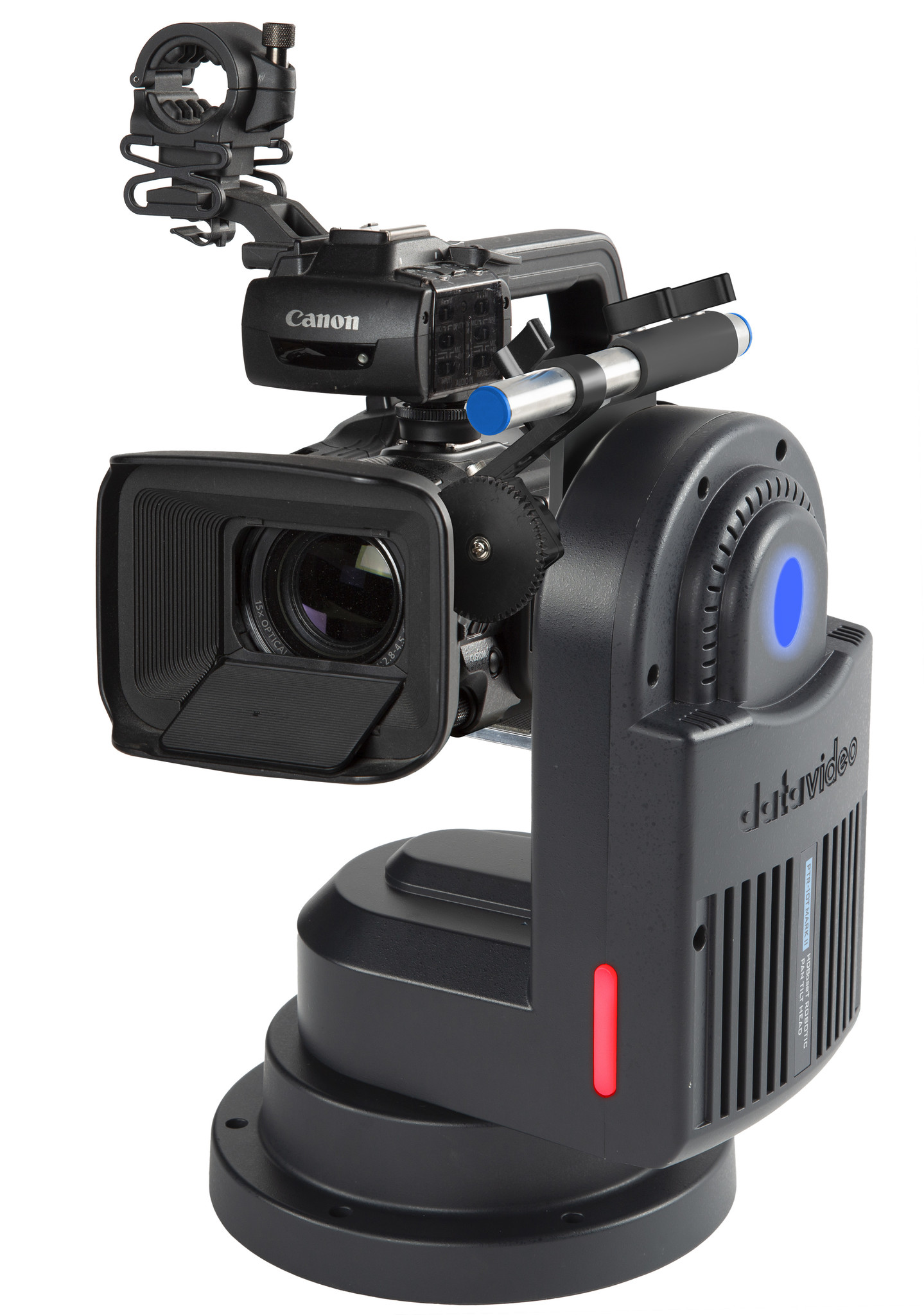

The PTR-10T Mark II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Light Weight, Strong, and Sturdy design

With a weight of 3.4 kg, PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

Diversified Controller Options

Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series will fit your need.

Built-in Tally light

With the big tally light in the front to show the status of your camera.

D-tap connector for DC output

The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power. This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.

Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )

Multiple Signal Interface

 PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.

What's in the box?

• 1 x PTR-10T Mark II Main Unit
• 1 x DC 12V power adaptor
• 1 x AC cord
• 1 x IR remote control
• 1 x DC with lock to D-Tap cable
• 1 x HDMI cable
• 1 x SDI cable
• 1 x Remote cable (2.5mm phone-jack to mini-din 8pin)
• 2 x 1/4” screw
• 1 x 1/4” to 3/8” screw adaptor

Optional Accessories: ZEK-1 Zoom Encoder Kit

ZEK-1 is the solution to your free running Zoom cameras.

PTR-10T MARK II can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position. Compatible with cameras via zoom moving ring.
