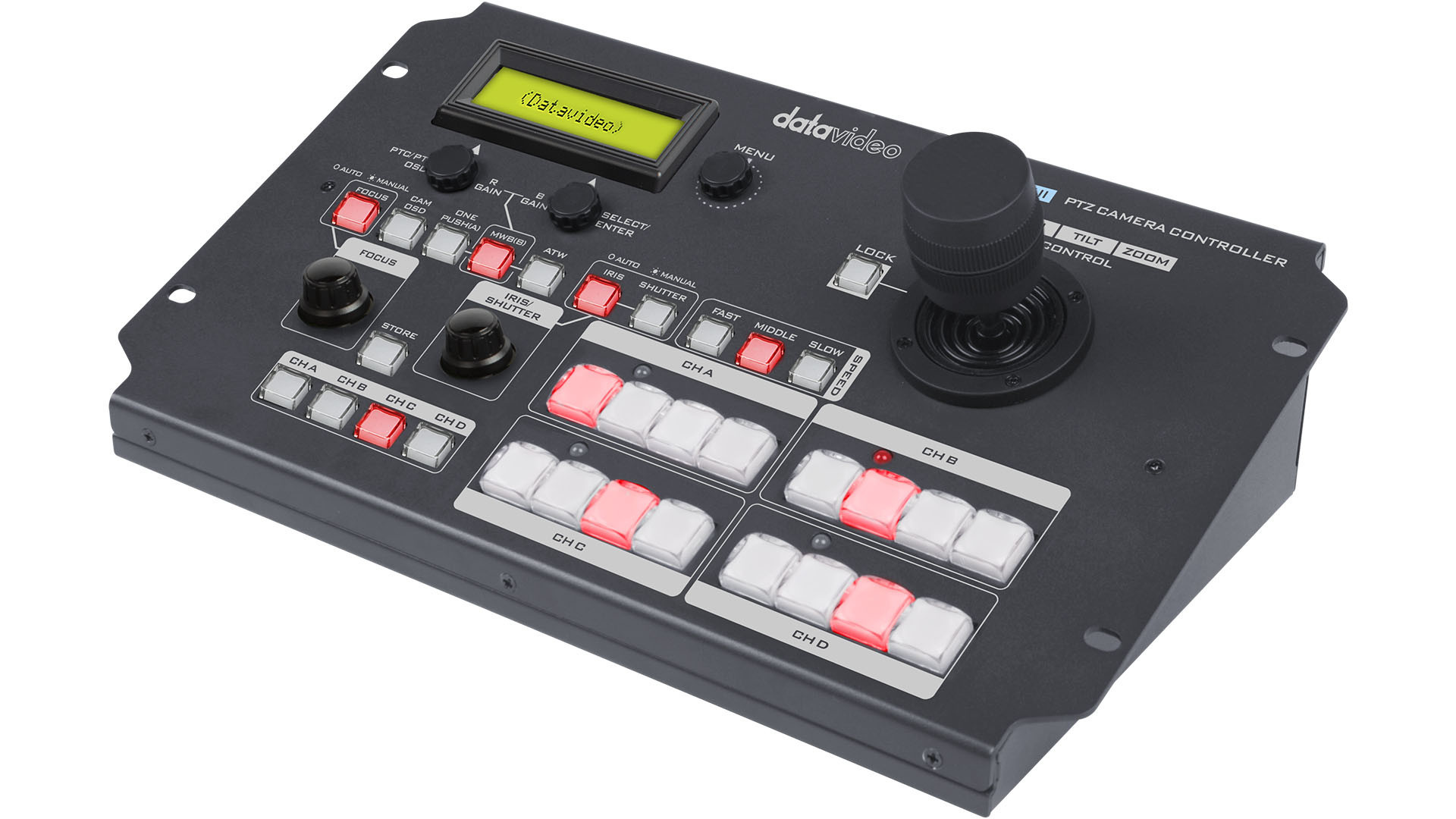

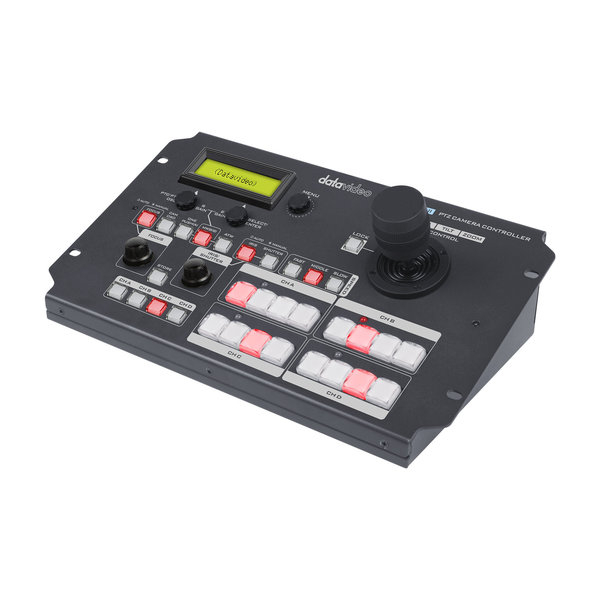

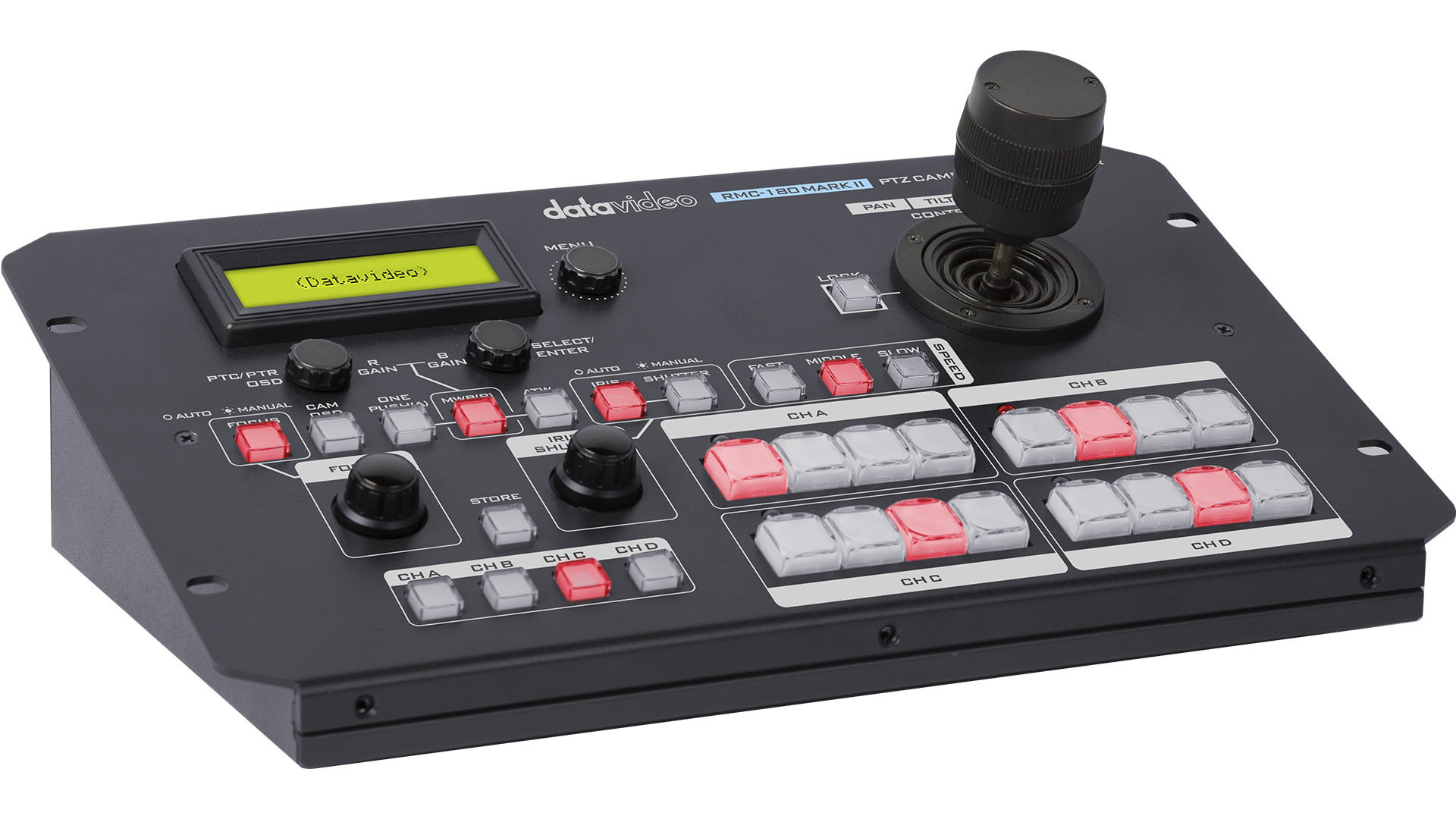

Datavideo RMC-180MKII PTZ Camera Control Unit

1.288,65 Incl. btw€1.065,00 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere camera accessories in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Datavideo
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken

Informatie

Simple Multi-Camera Control at Your Fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to four Datavideo PTZ cameras for any live video production.

Control of Pan, Tilt, and Zoom as well as Iris, Focus, Gain, and other functions. Control via CAT5/CAT6 cable with RJ45 connectors and also compatible with Datavideo's switcher tally indicators.

Just Plug and Play

Thanks to RS- 422 standard interface, four RJ-45 ports provide plug and play between RMC-180 MARK II and PTZ cameras. The interface standard is RS- 422 and uses any RJ-45 cable to connect the RMC-180 MARK II to the RS-422 port of the Block/PTZ camera.

Automatic Camera Position Presets

The RMC-180 provides shortcut keys for up to 4 position presets for each of your cameras. Easily program close-ups, wide-shots, and recall them with the touch of a button.

Manual Focus and Manual IRIS control

RMC-180 MARK II controls of Pan, Tilt, and Zoom and Iris, Focus, Gain, and other functions such as the OSD on specific models. Control via CAT5/CAT6 cable with RJ45 connectors.

Speed Mode Makes Your Camera Movement Match to the Pace of the Program

The controller can move the cameras (pan, tilt and zoom) at slow, medium, and fast speeds. It provides you with a quick option for your selecting the speed of your camera movement.

Support Datavideo's Switcher Tally Indicators

Compatible with Datavideo's switcher tally indicators. There are generally two tally LED modes, which are Tally User and Tally Input. Easy to implement in different workflow.

Controls PTR-10 with Presets

RMC-180 MARK II can control up to four PTR-10 MARK II. It can also save up to fours presets per camera and adjust focus and iris of each camera that is mounted on the PTR-10 MARK II.

Full remote control over affordable network cabling

Control of Pan, Tilt and Zoom as well as Iris, Focus, Gain, and other functions over standard CAT5/CAT6 cable with RJ45 connectors.

Maximum Camera Control

4

Present (Position)

4 for each camera

Control Protocol

Sony VISCA

Connection to Cameras

Point to point

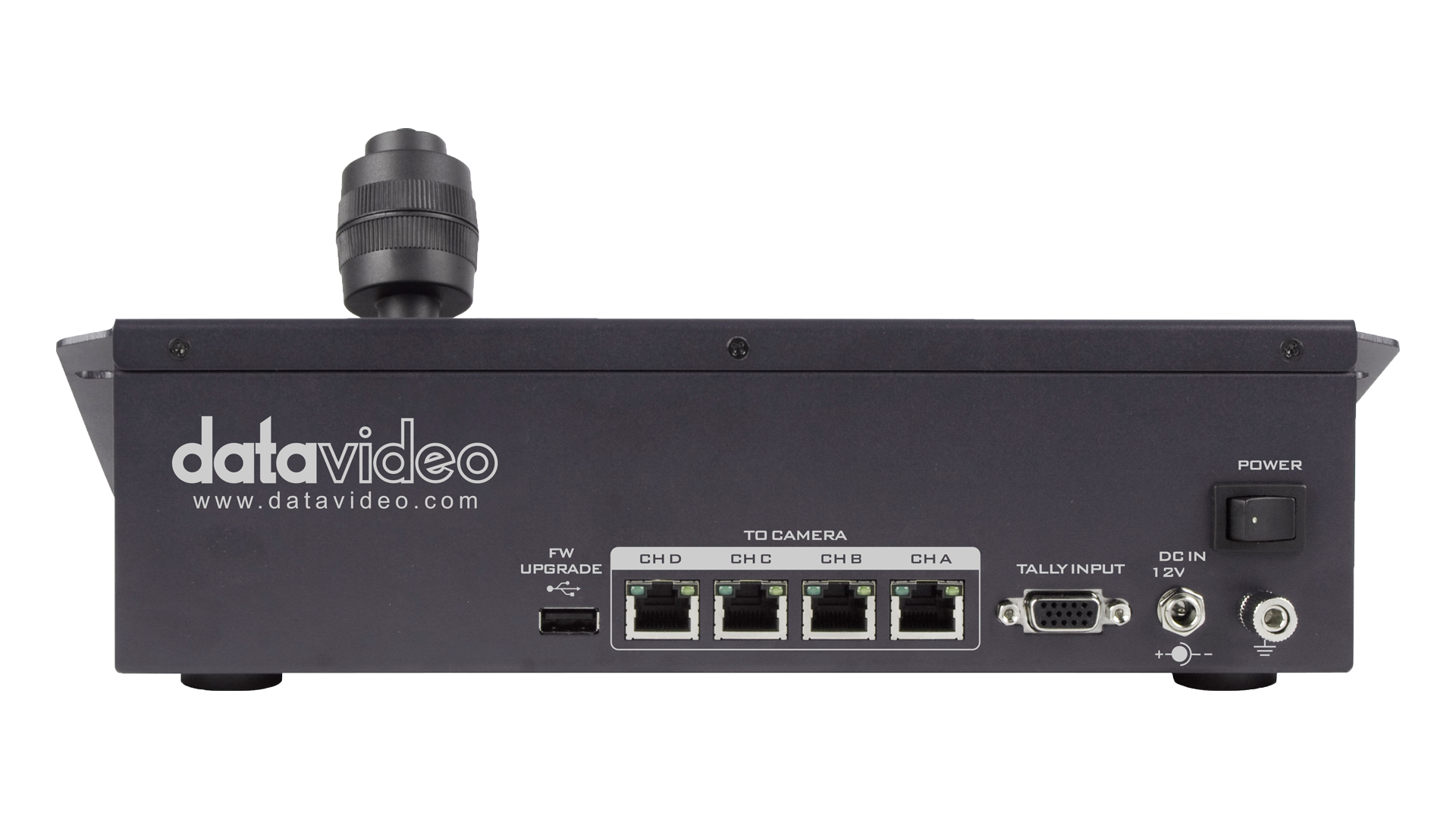

Input/Output

RS-422 (RJ-45 Connector) x 4

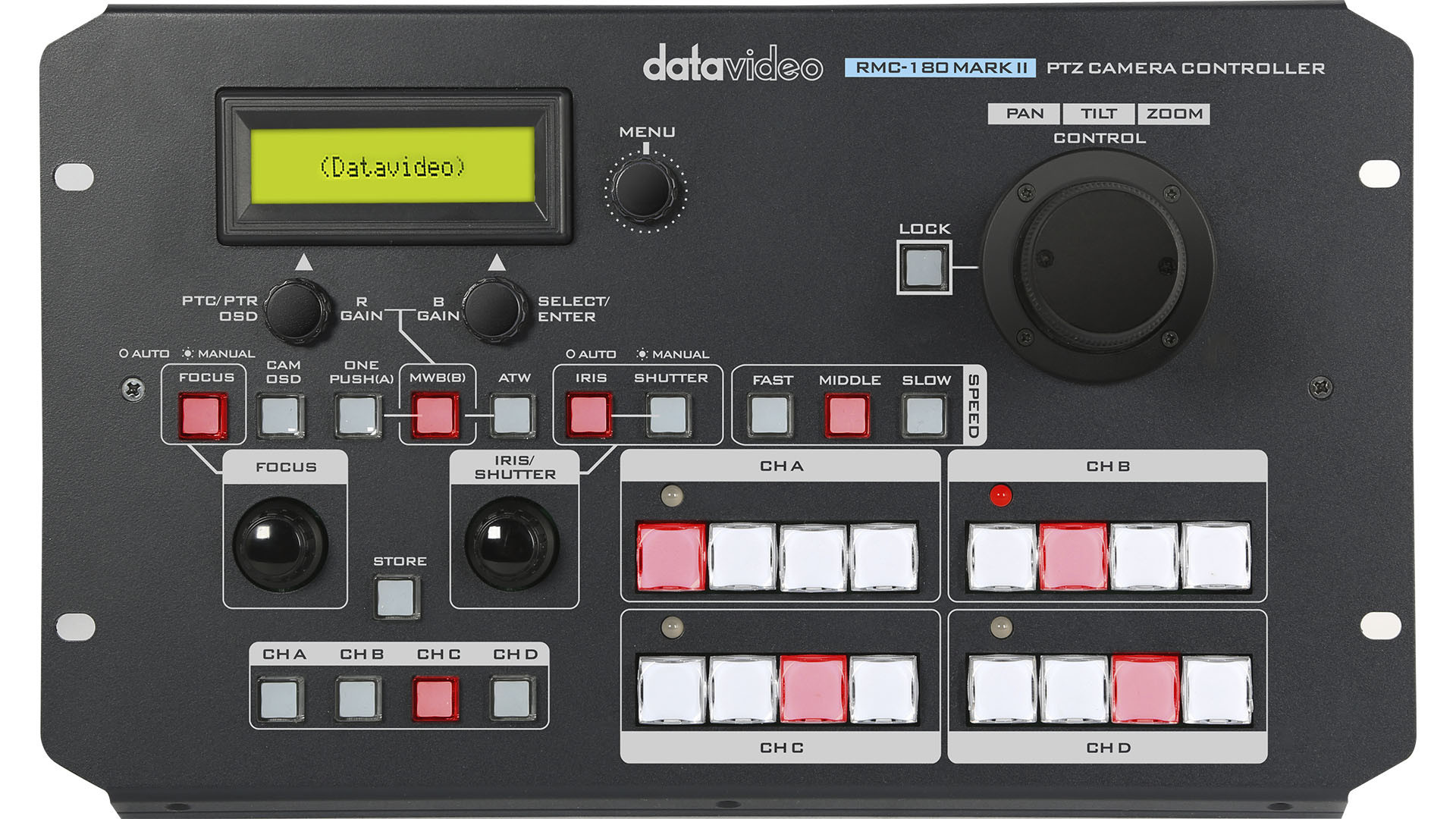

Build-in Control Panel

Monochrome display

Firmware Upgrade

Via USB

Dimension

310 x 170 x 125 mm

Weight

1.53kg

Operating Temp. Range

0°C ~ 40°C

Storage Temperature

-40°C ~ 60°C

Power

DC 12V 1A

What's in the Box

1 X RMC-180 Mark II item
1 X Adaptor
1 X Accessory List
1 X USB Type A to Type A cable
