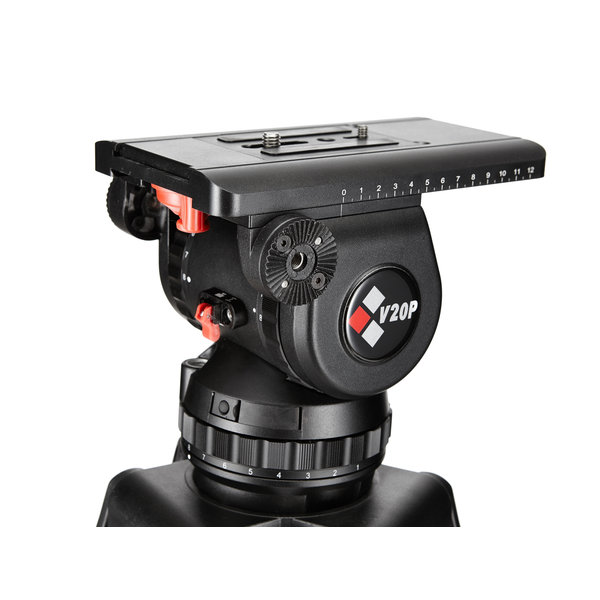

Camgear V20P EFP Fluid Head (100mm Bowl)

Informatie

Fluid Head incl. Wedge Plate WP-4, Bowl Clamp BC-2 & 2x Telescopic Pan Bar PB-2 (Left & Right)

• Real professional drag performance, selectable 8 positions pan & tilt drag including zero position, offer operators silky smooth movement and precise motion tracking.
• Selectable 9 position counterbalance for ENG cameras. Thanks to zero position, it can support the lightweight ENG camera and offer fine adjustment to reach the perfect balance.
• With self-illuminating levelling bubble.
• Perfect solution for ENG/EFP and field-based HD production and small studio configuration and it supports most portable broadcast cameras and camcorders.
• Equipped with mini Euro plate quick-release system, which enables faster set-up of camera.

Specifications:

• Maximum Payload 25 kg/55.1 lbs
• Counterbalance Range 0-24 kg/0-52.9 lbs (at C.O.G 125 mm)
• Camera Platform Type Mini Euro plate (Camgear WP-4)
• Sliding Range 120 mm/4.72 in
• Camera Plate 1/4”, 3/8” screw
• Counterbalance System 9 steps (1-8 & 2 Adjusting levers)
• Pan & Tilt Drag 8 steps (1-8)
• Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
• Temperature Range -40°C to +60°C / -40 to +140°F
• Levelling Bubble Illuminated Levelling Bubble
• Weight 4.78 kg/10.5 lbs
• Bowl Diameter 100 mm
