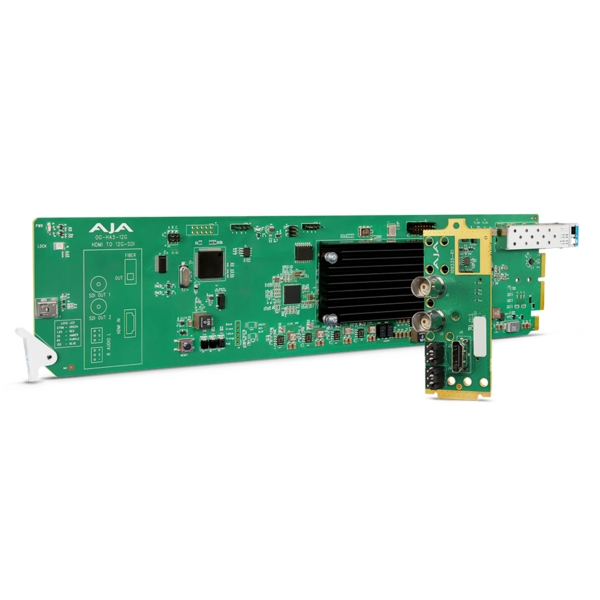

AJA OG-Ha5-12G-T HDMI 2.0 to 12G-SDI conversion, with LC fiber transmitter

Informatie

AJA’s OG-HA5-12G-T converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. OG-HA5-12G-T includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source, and an Fiber LC transmitter SFP.

OG-HA5-12G-T also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

OG-HA5-12G-T fiber SFP equipped models is a single channel transmitter capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC Fiber link. The model ships with SFPs installed and includes all functionality of the OG-HA5-12G, with the added benefit of extending audio and video signals further.

Features:

• Convert HDMI 2.0 to 4K 60p to 12G-SDI with a second mirrored output
• Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
• OG-HA5-12G-T ships with FiberLC-1T-12G  SFP installed
• Support for up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 12-bit workflows
• EDID LFR & HFR Emulation up to UltraHD 60p
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
• Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Monitor and control via Ross DashBoard software
• Five year warranty
