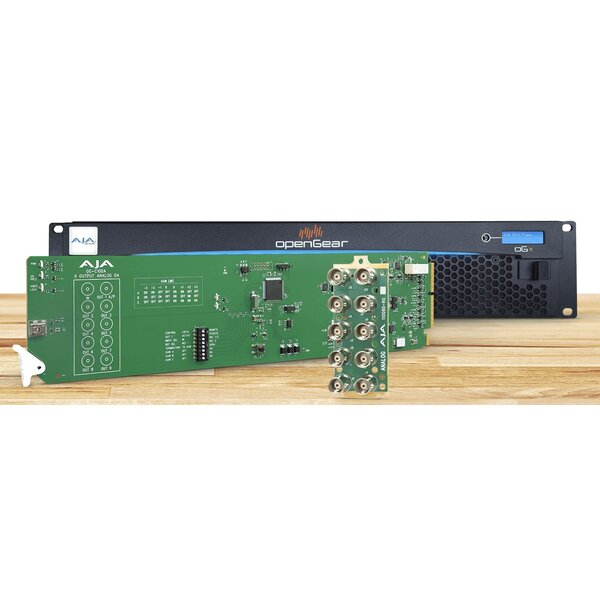

AJA-OG-C10DA Analog Video 1x9 OpenGear Distribution Amplifier

Informatie

The OG-C10DA is an openGear 1x9 analog distribution amplifier with support for NTSC and PAL, offering the ability to distribute multiple copies of the incoming signal or extend composite video content with gain adjustment to compensate for long cable runs.

The OG-C10DA can also be used to distribute tri-level sync in an HD facility when a sync signal is fed externally into the Video Input.

Features

• 1x9 analog distribution amplifier, (1x loop out option)
• Supports analog NTSC, PAL, blackburst, or tri-level sync
• Supports AES3-id (digital unbalanced audio) and LTC
• Selectable input - external BNC, frame input Ref 1 or frame input Ref 2
• Monitor and control via Ross DashBoard software
• DIP switches for local control (Loop, Ref In, Termination, and Gain)
• Input Present LED
• Power: 6.75 watts max per card
• Hot-swappable
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Five year warranty
