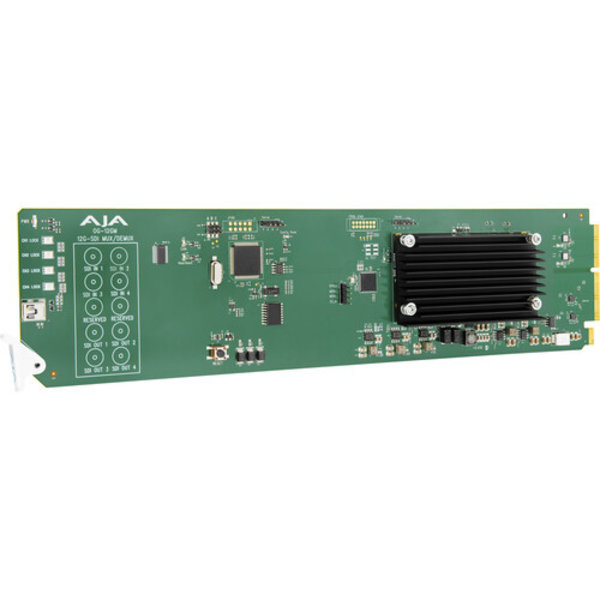

AJA OG-12GM 12G-SDI to/from SDI Muxer/DeMuxer

€1.540,87 Incl. btw€1.273,45 Excl. btw Niet op voorraad, check levertijd

Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere converters in onze webshop. Lees meer

ECO friendly webshop
Persoonlijk advies
25 jaar ervaring
Meer dan 4.000 producten
Secure payment
Registreer en ontdek je voordelen

Specificaties

Merk:

AJA

Beschikbaarheid:

Niet op voorraad, check levertijd

Levertijd:

2 - 3 weken

Informatie

OG-12GM is a compact SDI transport openGear card that enables 12G-SDI to quad-link 3G-SDI and quad-link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.

Features

openGear compatible card
Single 12G-SDI to/from Quad 3G-SDI Level A
Single 12G-SDI to/from Quad 3G-SDI Level B-DL
Single 6G-SDI to/from Quad 1.5G-SDI
Quad 3G-SDI Level A to/from Quad 3G-SDI Level B-DL
Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping, 3G
Pass through of Single Link 3G, 1.5G and 270M SDI video
Distribution Amplifier support (1x4)
Input signal diagnostics and timing analyzer for quad-link signals
Automatic or manual control
Detailed timing analysis for validating alignment of quad-link SDI inputs
Passes SDI embedded audio, 24-bit, up to 16-Channels
Recognizes and transmits High Dynamic Range (HDR) and Wide Color Gamut (WCG) signaling on VPID
Power: 12 watts
Hot-swappable
Remote Ethernet configuration through Ross DashBoard software
Rear I/O card included
Two slots required for each card
Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Five year warranty
