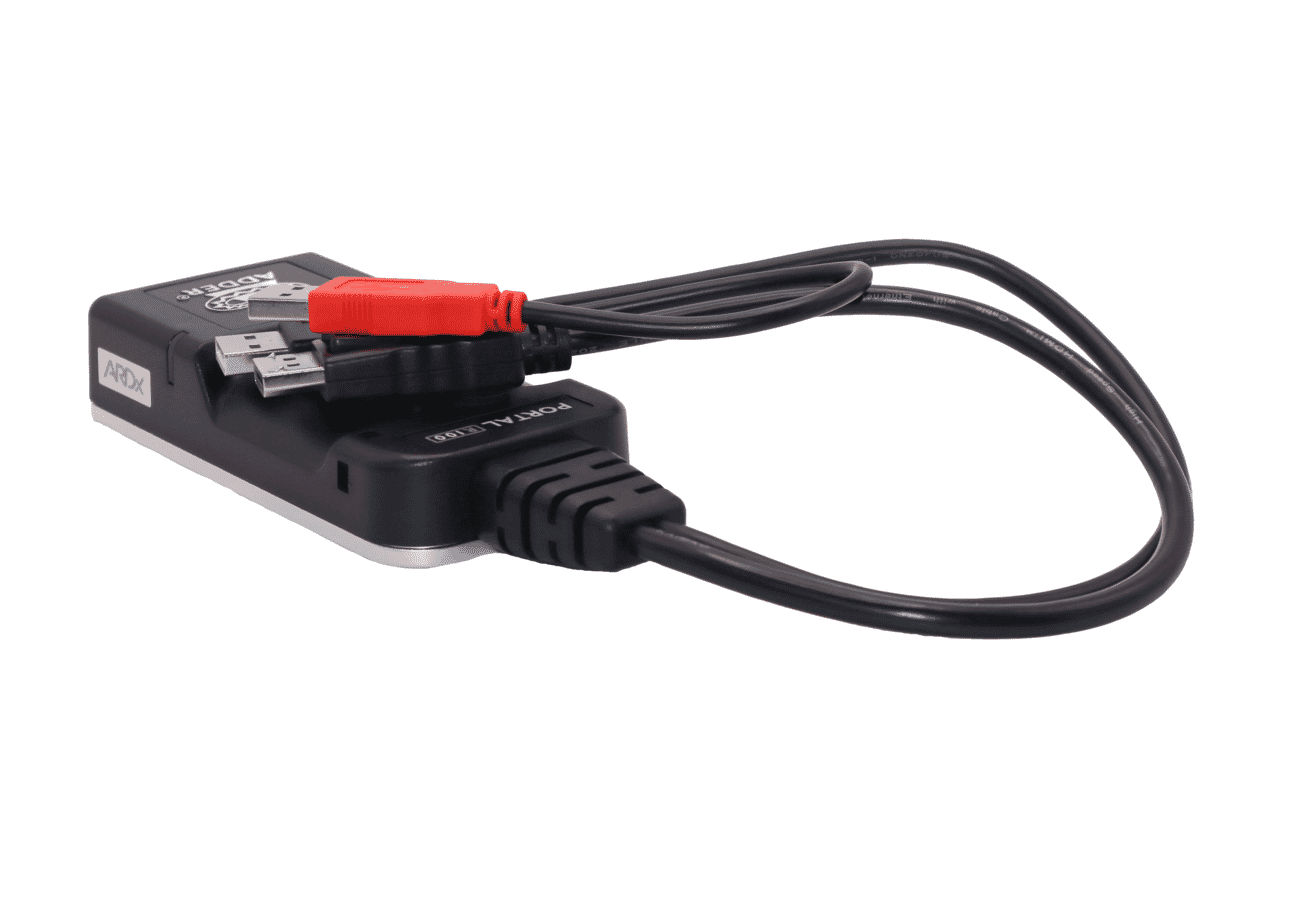

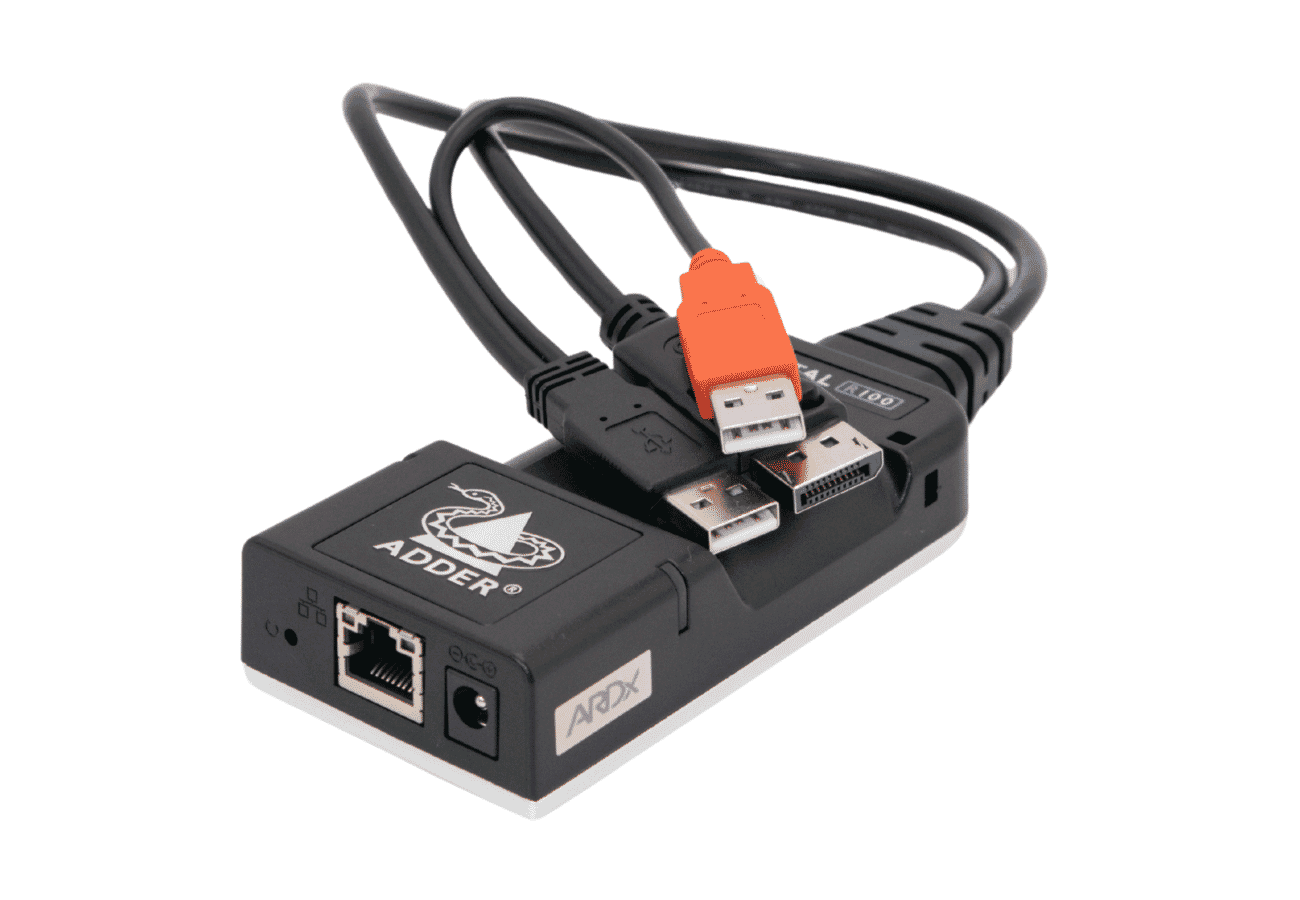

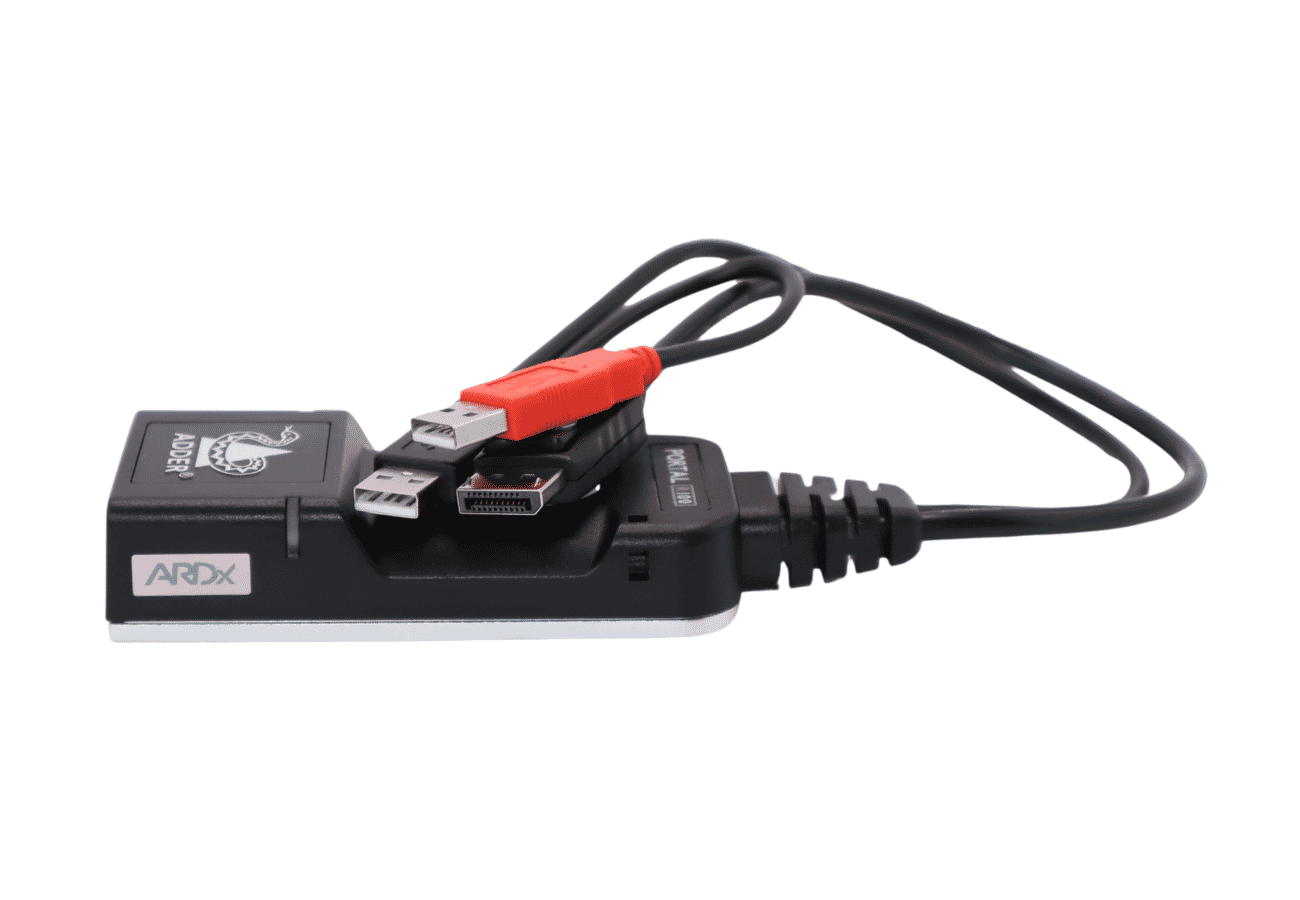

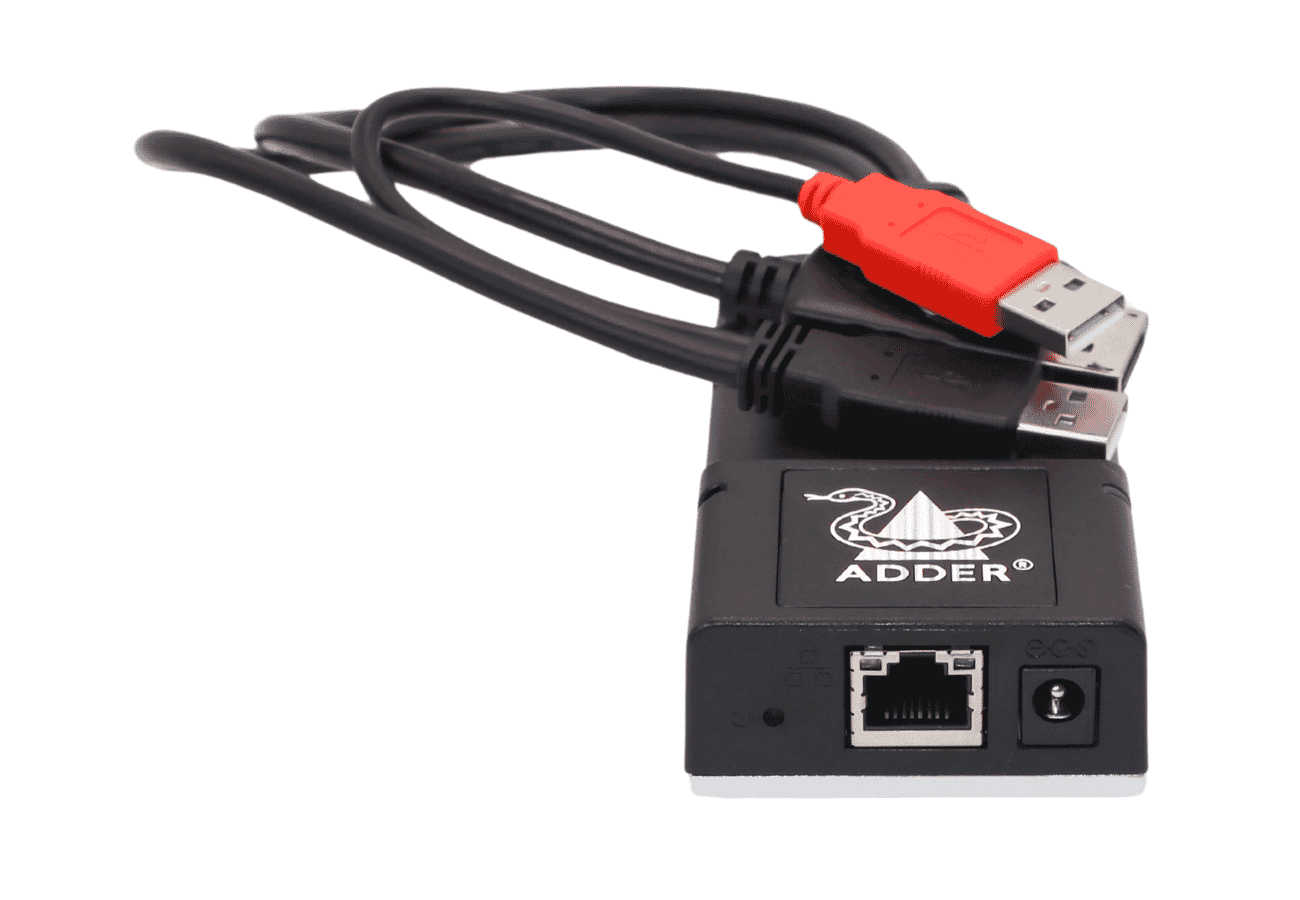

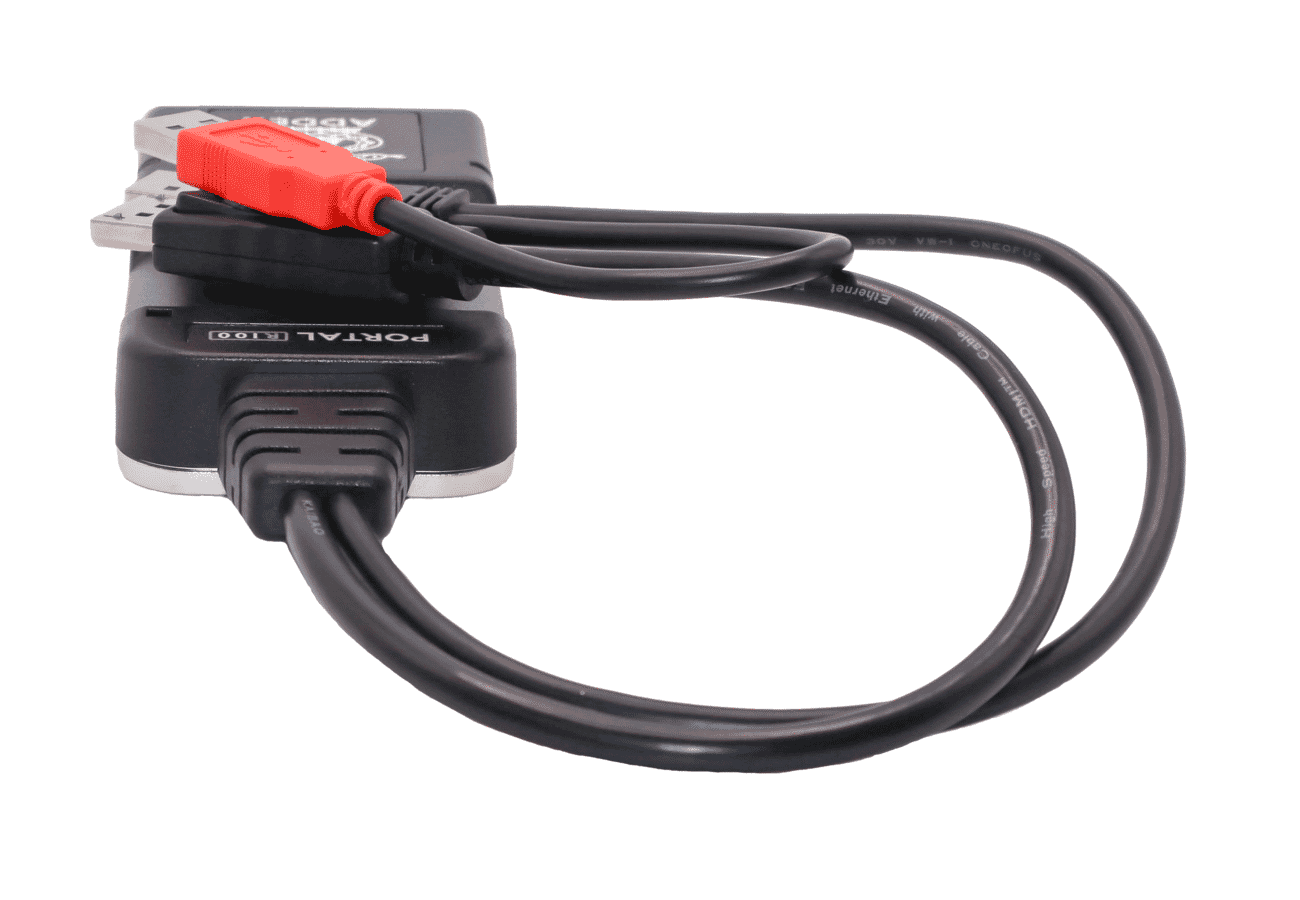

Adder AdderLink Portal R110 (DisplayPort)

Informatie

KVM over IP that delivers seamless, secure remote PC access and control, and features both high-quality video and audio.

Designed for image critical applications, ADDERLink Portal R110 is an ARDx™ technology enabled, ZeroU™ transmitter that provides secure, low-latency keyboard, video, mouse and audio connectivity via the Internet or a local network.

Hardware remote KVM

With DisplayPort video and USB2.0 for keyboard, mouse and other HID devices. Unlike remote access software it operates out-of-band, enabling BIOS control of the target PC during boot and securely separating remote users from the local network.

ARDx Enabled

ADDERLink Portal is ARDx enabled and therefore requires ARDx Viewer (download from the ARDx Viewer product page), which provides a seamless user experience and powerful admin tools for managing connections and users.

High quality audio and video

Experience exceptional media streaming with HD 1920x1080 resolution at ultra-smooth 60Hz frame rates, 4:4:4 accurate color and 16-bit 44.1kHz PCM stereo audio. Fluid motion, pure color and clear text reproduction for image critical applications.

Seamless User Experience

Inherently low latency provides precision control as though you are operating the host PC directly. On a network with suitable capacity, up to eight users can access concurrently without performance degradation.

Highly Secure

Enterprise-grade security ensures your connection is safe. AES-256 encryption and RSA-2048 authentication offer the highest level of protection, trusted by security agencies and financial institutions worldwide.

Network Capability

For critical performance applications, ADDERLink Portal is optimized for use over a Local Area Network (LAN). Wide Area Network (WAN) connectivity for remote internet access can be achieved through a firewall port or Virtual Private Network (VPN).

Simple Installation

The Zero U™ dongle form factor requires no rack space. USB power from the host PC means no bulky power supply or spare wall socket is required although an external supply can be used.

Target any OS

Unlike remote access via software, the ADDERLink Portal can control any PC with a KVM connection, regardless of the Operating System. Advantageous for installations where the OS may be considered legacy, or configuration change is prohibited.

Specifications:

Video Information (for 1 Screen):

• Maximum Resolution: 1920 x 1080
• Frame Rate: 60
• Colour Depth: 8 bpc
• Additional Information: HD@60Hz 4:4:4 chroma with dynamic frame-rate back-off under limited bandwidth conditions

Computer Connections

• USB A: 1 x 2.0 True Emulation (HID Only)
• Full Size Displayport: 1 x 1.2

Link Ports

• 8p8c (RJ45): 1x

Audio Connections

• Audio Type: Digital
• Channels: 2
• Audio In Ports: 1x USB
• Audio Direction: Output Only
• Size (bit): 16
• Speed (KHz): 44.1
• Additional Information: PCM

Cable Requirements

• Recommended Cable Type: CAT5e and above
• Maximum Cable Length: 100m/328.1 ft

Network Support

• Bandwidth: 1GbE
• 10/100 Support: No

Power Source

• USB Powered: 2x
• 5V: 1x
• Power Additional Information: USB power: 2x USB A (2x 500mA @5V) 5W, External Power 5VDC,1A (LPS)

Power Consumption

• Maximum Power (Watts): 5
• Typical Power (Watts): 3
• Maximum Power (Current): 1
• BTU (BTU/hr): 10.2

Physical Design

• Width: 55mm/2.2in
• Height: 25mm/1in
• Depth: 110mm/4.30in
• Flying Lead Length: 300mm
• Weight: 0.2kg/0.4lb

Compatibility

• OS Compatibility: All known operating systems

What's in the box?

• 1 x AdderLink Portal Unit with DP Connector
• 1 x Quick Start Guide
