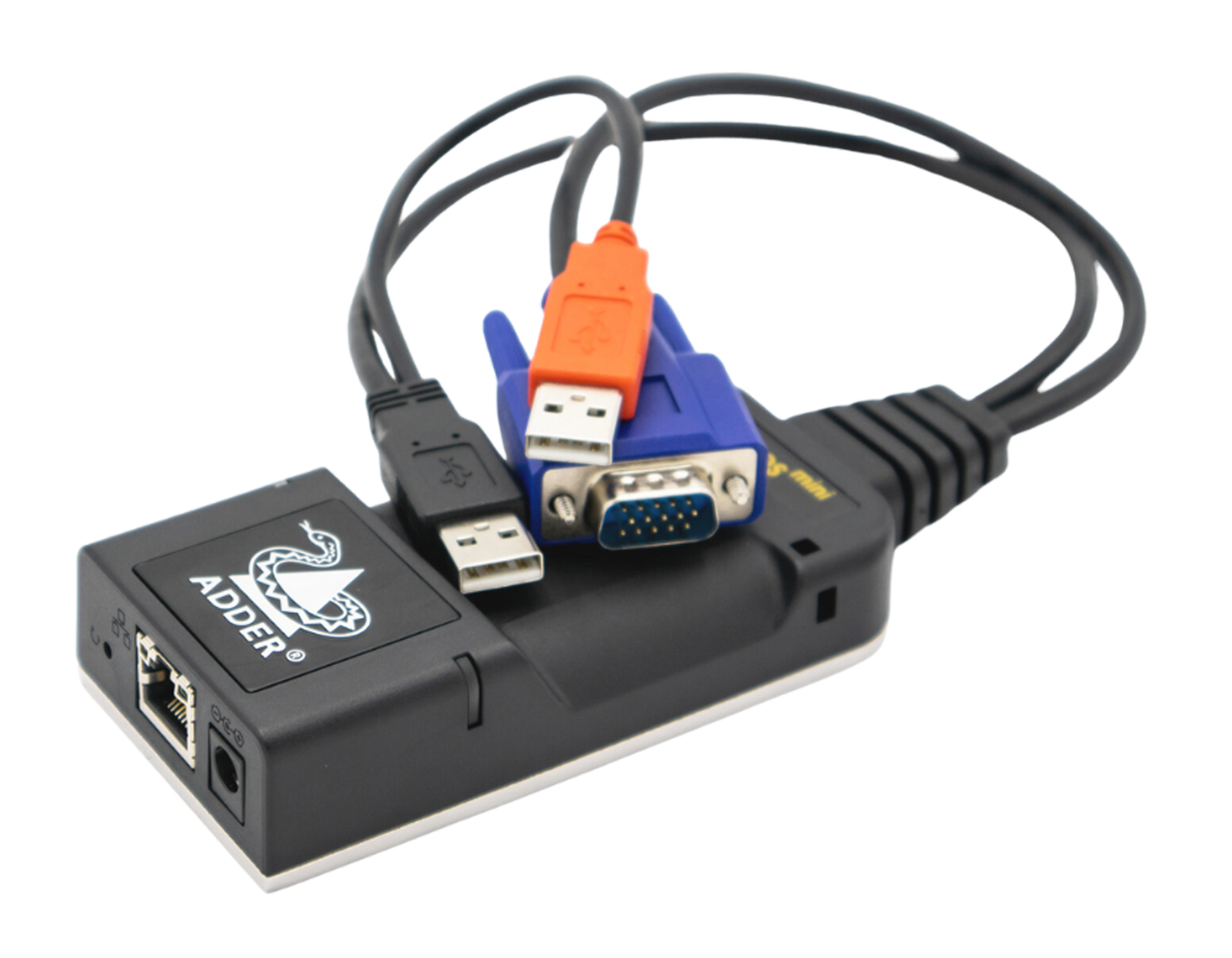

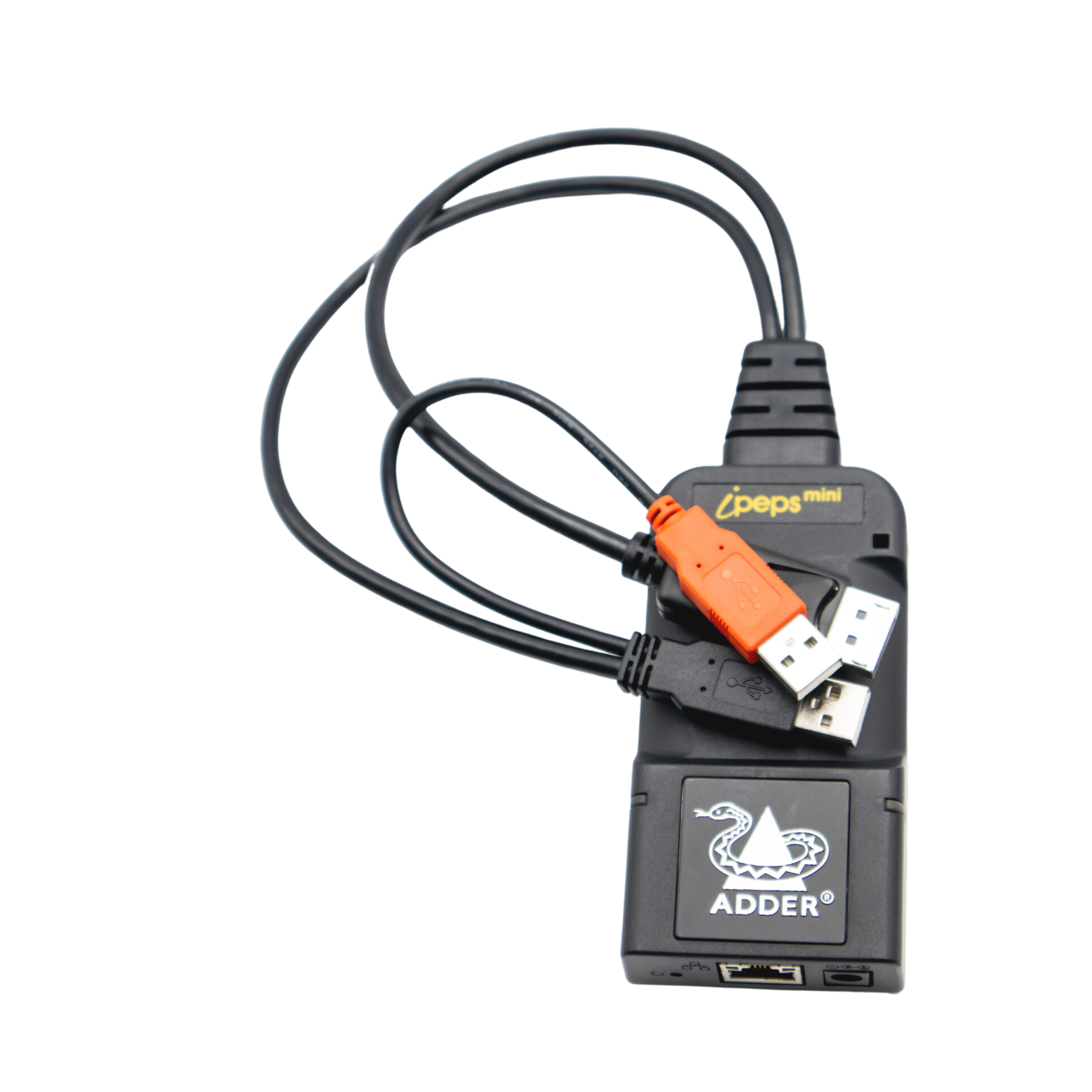

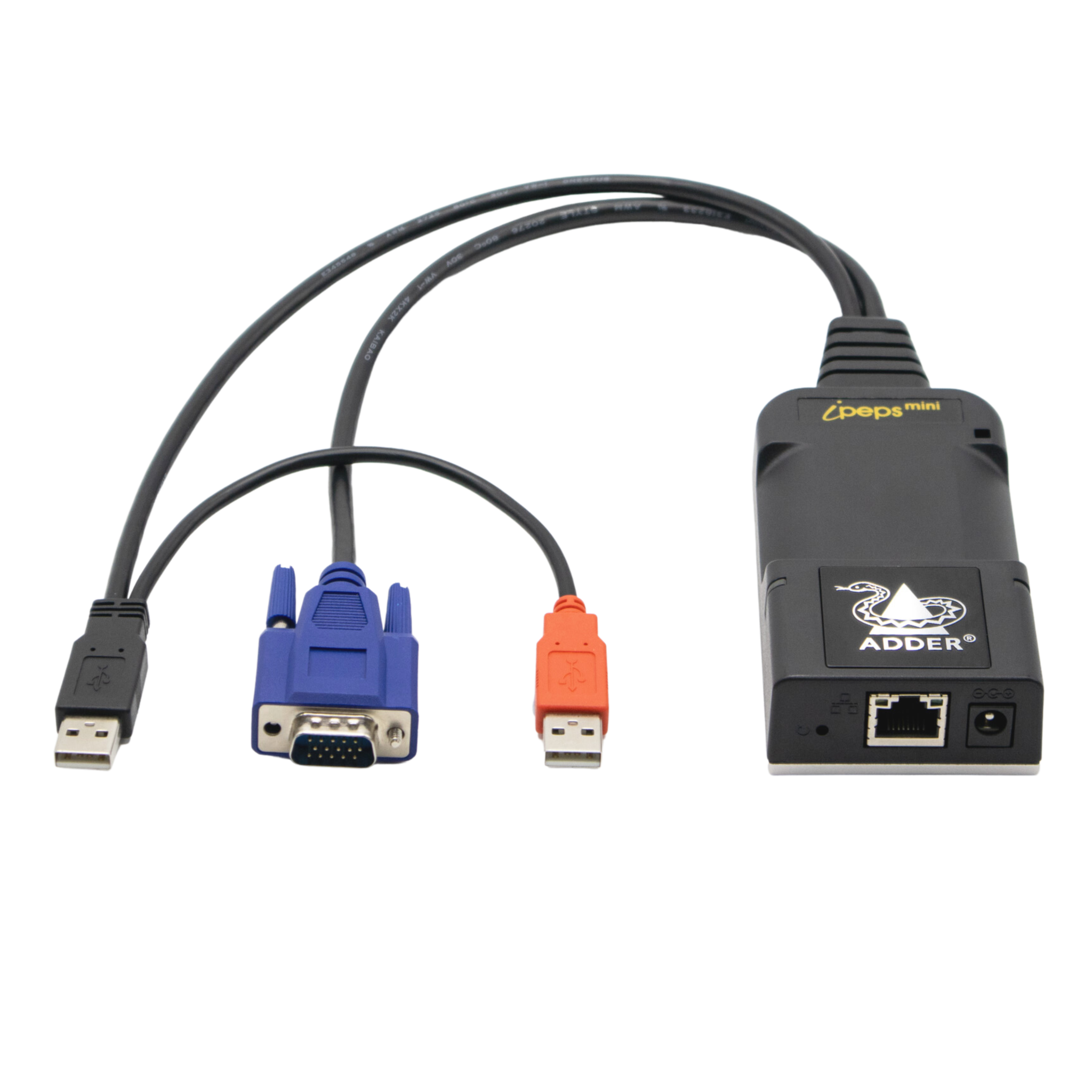

Adder AdderLink iPEPS Mini. Stand Alone KVM Over IP Unit (VGA)

Informatie

High performance KVM over IP that delivers a complete, secure, non-blocking approach to Remote Server management.

A powerful and flexible KVM over IP product contained within a compact unit, the ADDERLink® ipeps mini enables computer access from anywhere in the world, securely and remotely via the Internet or a corporate network.

The ipeps mini uses RealVNC™ client software that is specifically designed for secure, high performance KVM over IP applications.

• ZeroU™ form factor
• High performance video streaming up to 1920x1200 resolution
• Non-blocking access for up to 8 remote users
• Low latency mouse control
• AES 256-bit encrypted link
• BIOS (UEFI) access
• USB powered

Product Features

Independent Operation
Gives full control even during boot up, BIOS level or computer crash states. The ADDERLink ® ipeps mini will work even if the controlled device is not operational.

High Video Performance
The ipeps mini accepts a VGA input up to 1920x1200 resolution. It incorporates VNC™ Viewer from RealVNC®, providing high streaming performance, subject to network bandwidth and content.

Highly Secure
Enterprise grade security (using AES 128 or 256-bit encryption and RSA 2048-bit public key authentication) is employed as standard. This is further enhanced by VNC, which allows the creation of ciphered user communications.

User Management
The ipeps mini can create up to 16 user profiles with defined access rights. Up to 8 remote users may access the unit simultaneously.

EDID Management
The ipeps mini has intelligent EDID management allowing the user to specify the video modes generated by the controlled device.

Remote Gateway
The ipeps mini may be used as a remote gateway into the ADDERLink® INFINITY, DDX and XDIP matrix systems, plus the ADDERView® 4 PRO Switch. This will allow remote users to access any computer connected to the switch.

Specification

Video Information (for 1 screen)

Maximum Resolution: The system supports resolutions up to 1920 x 1200

Colour Depth: 8 bpc

Computer Connections

USB A: 2 x 1.1 True Emulation, Full Speed, Low Speed,

VGA: 1

Link Ports

8p8c (RJ45): 1x

Network Support

Bandwidth: 1GbE

10/100 Support: No

Environmental

Operating Temperatures: 0-50 °C / 32 - 122 °F

Storage Temperatures: -10 -60 °C / 14 -140 °F

Operating Humidity (%): 10%- 90% (non-condensing)

Storage Humidity (%): 10%- 90% (non-condensing)

Altitude: 2000m/ 6561.7ft

Mean Time Between Failure (MTBF): 2000000h

Warranty: 2y

Power Source

USB Powered: 2x

5V: 1x

Power Additional Information: USB Power: 2 x USB2.0 (2x 500mA @5V) 5W

                                            External Power: 5VDC, 1A, (LPS)

Power Consumption

Maximum Power (Watts): 5

Maximum Power (Volts): 3

Maximum Power (Current): 1

BTU (BTU/hr): 10.2

Physical Design

Construction Material: ABS and aluminium Construction

U size: 0

Width: 55 mm/ 2.2 in

Height: 25 mm/ 1 in

Depth: 110 mm/ 4.30 in

Flying Lead Length: 300mm

Weight: 0.2 kg/ 0.4lb

Compatibility

OS Compatibility: All known operating systems

Approvals and Standards

Approvals: CE, cULus, E476334, ICES, UKCA

Standards: ANSI 63.4, EN55032/CISPR 32, EN55035/CISPR35, EN63000, FCC pt15B, ICES003

Other: Cal Prop 65, China ROHS, EU REACH, UK REACH

What's in the box?

• 1 x IPEPS MINI Unit with VGA Connector
