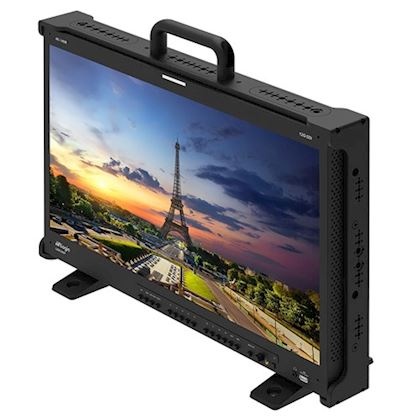

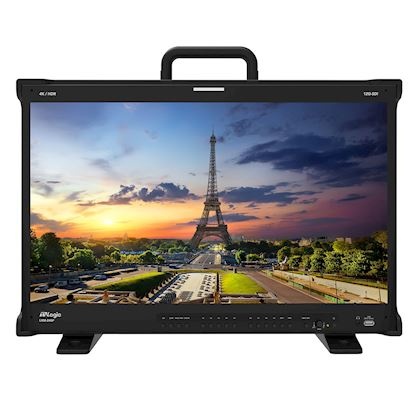

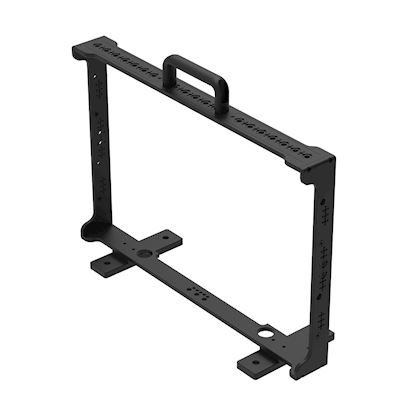

TVLogic LXM-240P-FM 24" 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage

Informatie

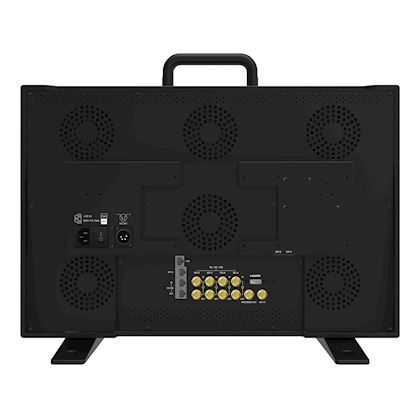

Incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output. Size 18.4”, Resolution 3840 x 2160 (16:9), Pixel Pitch 0.035(H) x 0.1065(V) mm, Color Depth 1.07B Colors.

Key Features:

• HDR EOTF (PQ, HLG)
• Custom 3D LUT Import by USB Flash Drive
• Quad-View, Picture-by-Picture Display
• Various Conversion Output
• Quad Link 12G Input to Single Link 12G Output
• Auto Detection of SDI Payload ID
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Phase Meter
• Image Capture & Overlay
• Closed Caption (CC-608, CC-708, OP47)
• Timecode Display
• Marker
• Focus Assist
• Blue/Mono Only
• H Flip, V Flip
• Scan / User Aspect
• Dynamic UMD
• Tally
