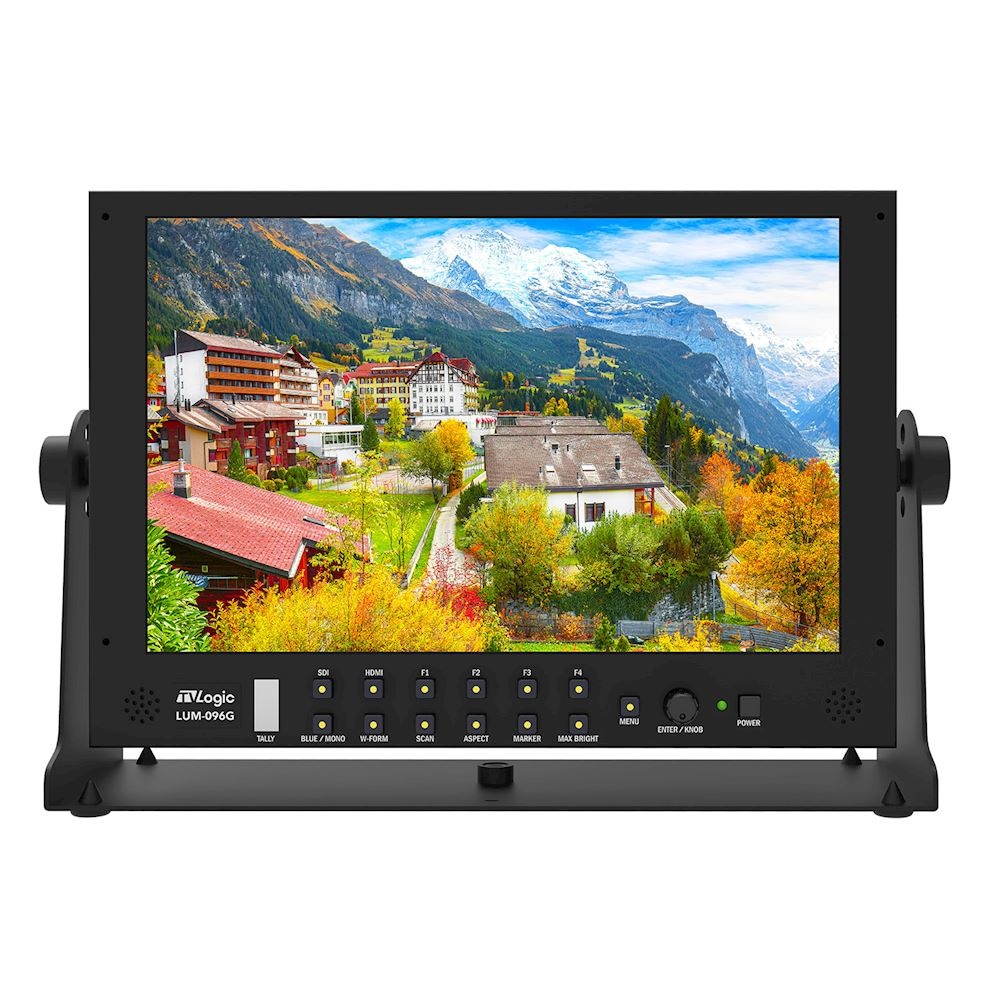

TVLogic LUM-096G 10" FHD Multi-Purpose Monitor

Informatie

10" FHD Multi-Purpose Monitor, Full HD Resolution (1920x1200), Waveform / Vectorscope, 16ch Audio Level Meter, Focus Assist, Marker, Timecode display

Product Highlights

• 10", Full HD Resolution (1920x1200)
• Max Luminance 1000nits
• DCI-P3 Coverage 95%
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• HDR (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• Dynamic UMD
• Blue/Mono Only
• H Flip & V Flip (Auto & Manual)
• Various Aspect
• Luma(Y') Zone Check

LCD Panel

• Size: 10.1"
• Resolution: 1920 x 1200 (16:10)
• Pixel Pitch: 0.1128(H) x 0.1128(V) mm
• Color Depth: 16.7M Colors (8 bit)
• Viewing Angle: 170°(H) / 170°(V)
• Brightness: 1000 cd/m2 / 1000 nits
• Contrast Ratio: 1000 : 1
• Display Area: 216.58 (H) x 135.36 (V) mm

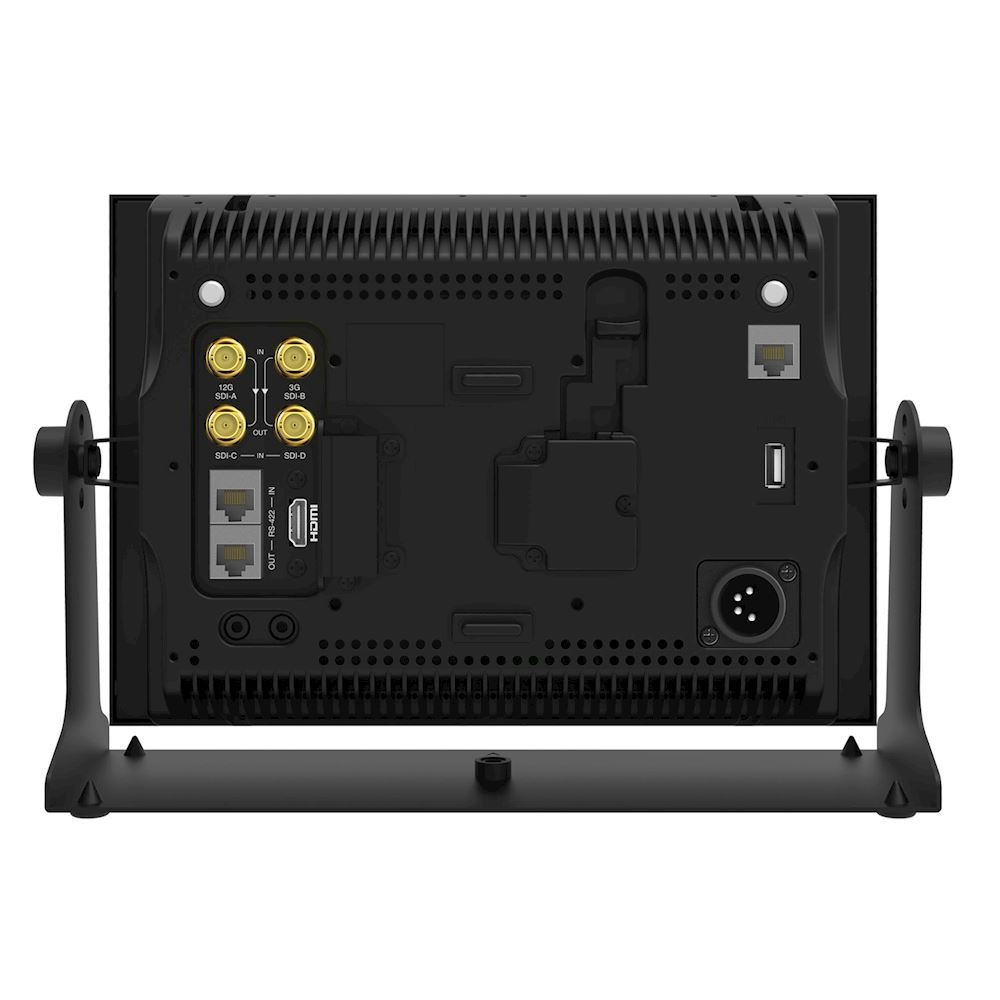

Input

• 1 x 12G-SDI A Input
• 1 x 3G-SDI B Input
• 1 x JG-SDI CInput (for Quad Input)
• 1 x JG-SDI Dlnput (for Quad Input)
• 1 x HDMI 2.0 Input

Output

• 1 x llG·SDIOutput (shared withInput)
• 1 x JG-SDIOutput (shared with Input)
