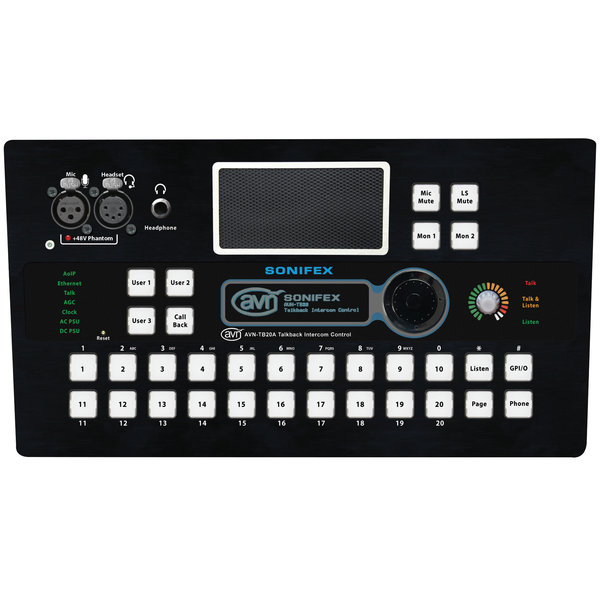

Sonifex AVN-TB20AD / 20 Button Talkback Intercom Advanced, Desktop

4.083,75 Incl. btw€3.375,00 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint is exclusieve distributeur van Sonifex voor België en Luxemburg. Bekijk ook andere audio over ip items in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Sonifex
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
1 week

Informatie

The AVN-TB20AD is a desktop version of the rackmount AVN-TB20AR intercom with a smaller form factor and an elegant sloped front. It has the same feature set and connectivity *.

* Except for an additional headset connector on the rear of the AVN-TB20AR.

Features:

  • 20 illuminated key-cap Talk buttons plus Listen & Page buttons.
  • Phone button for remote dialling and control of an external telephone hybrid.
  • Page button and Group Talk facilities.
  • Callback button with callback source display.
  • Three user definable buttons.
  • Speaker & microphone mute buttons.
  • Mic & headset inputs, headphone & speaker outputs.
  • Front panel volume control which operates on speaker/headphone outputs and incoming source levels.
  • +48V phantom power for the mic inputs.
  • Ethernet webserver and front panel control & configuration.
  • Front panel display providing source & destination information.
  • Sources from AoIP, 1 x balanced, 2 x unbalanced or S/PDIF digital inputs.
  • Destinations to AoIP or rear panel balanced & unbalanced outputs.
  • Advanced echo cancellation & mic AGC to prevent acoustic feedback.
  • Dual 1Gb lan ports & 1Gb SFP fibre port.
  • 10 user assignable GPIO ports.
  • GPIO button for triggering external events, via physical GPIO or network commands.
  • Front panel LEDs for network audio presence, Talk activity, AGC activity, clock sync and power supply activity.
  • Two front panel monitor buttons for routing audio directly to the speaker e.g. to take an IFB feed or off-air transmission signal.
  • Ducking or mixing of inputs to speaker/headphones.
  • Dual AC & DC power supply inputs.
