Sonifex AVN-PX8X4C / 8 X 4 Channel Mix Engine, 24 Inputs, 16 Outputs

Informatie

The presenter mixer system allows on-air presenters to adjust the audio levels fed to their radio or wired IEM systems, whilst also allowing Sound Control Room operators to adjust the levels remotely. The system consists of 3 types of unit all connected on a common Ravenna Audio over IP (AoIP) network with added audio sources derived from Ravenna based AoIP mixers or input portals. Setup and control can be provided via webpages and/or 3rd party applications. The system uses mono audio throughout.

The 3 units are:

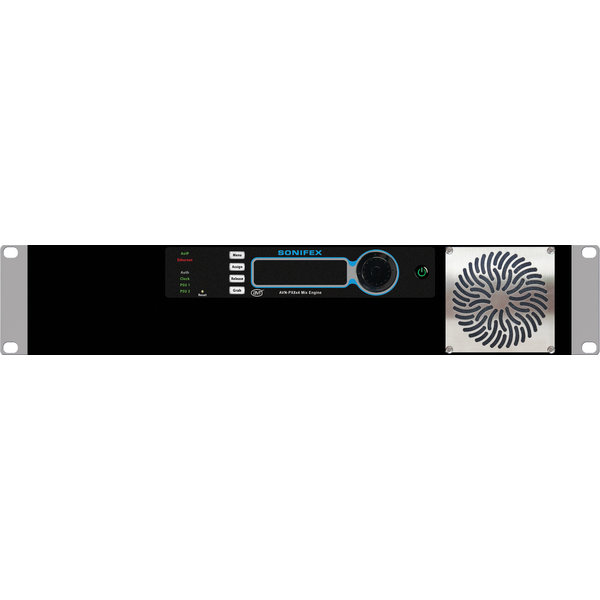

AVN-PX8x4C - a 2U rack mounted Mix Engine Rack.
AVN-MPPR - a small desk, or microphone stand, mounted Presenters’ Remote Unit.
AVN-MPTR - a 1U rack mounted Technicians’ Remote Unit.

Features:

• 8 virtual mixers, each with 4 mono channel inputs to one mono output.
• Virtual mixers controlled by connected technician and presenter remote controls.
• Sophisticated configuration via webserver.
• 24 analogue inputs and 16 analogue outputs on D-type connectors.
• 32 logical inputs & 10 logical outputs using AoIP.
• Dual hot-swappable AC power supplies.
• 2 x 1Gb Ethernet ports & 1 x SFP port.
• Status LEDs and OLED display.
• 20 x configurable GPIO ports.
