Skaarhoj ETH-B4 Link
€845,79 Incl. btw€699,00 Excl. btw
Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere controllers in onze webshop. Lees meer
- ECO friendly webshop
- Persoonlijk advies
- 25 jaar ervaring
- Meer dan 4.000 producten
- Secure payment
- Registreer en ontdek je voordelen
Specificaties
Merk:
Skaarhoj
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken
Informatie

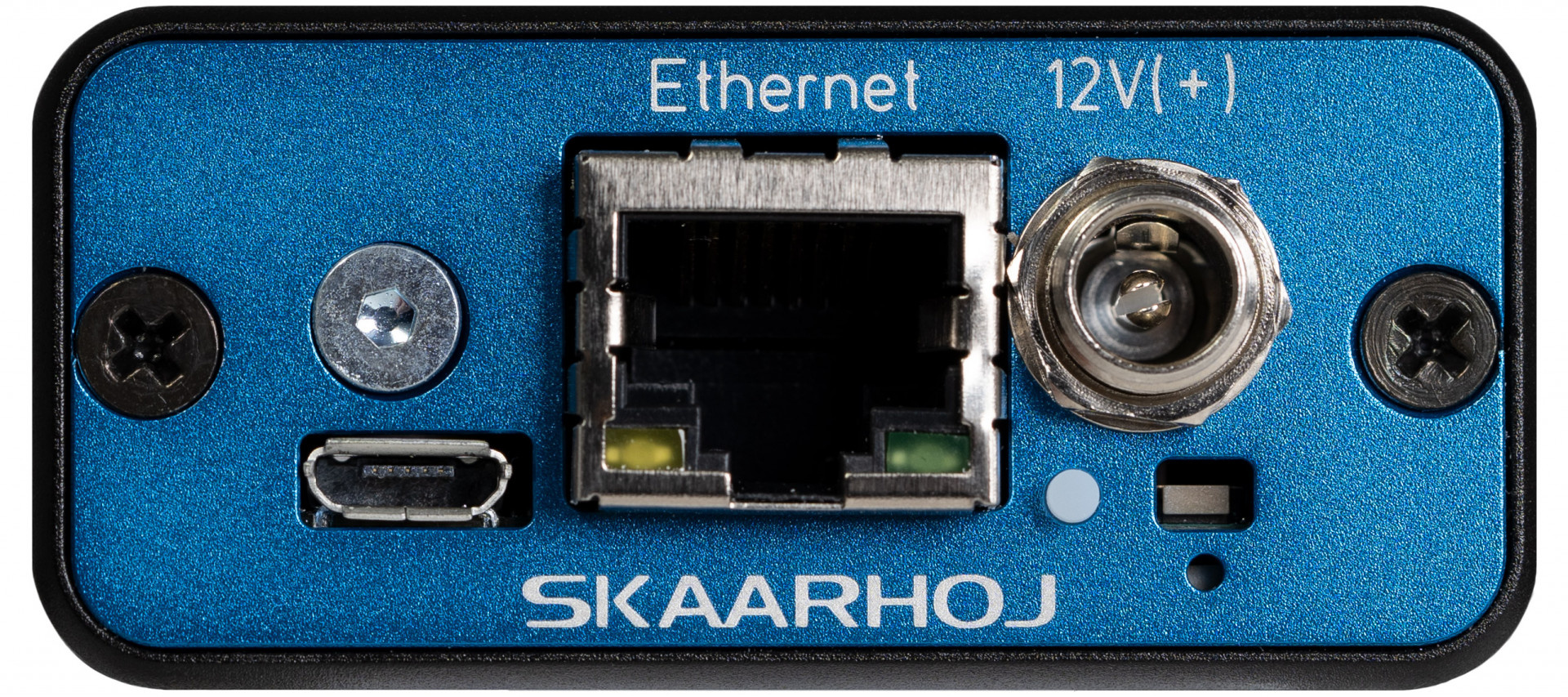

The ETH-B4 Link is similar to the SDI-B4 Link but the data input is via network instead of SDI. The protocol is also Blackmagic Camera Control, but over UDP (“UDP Camera Control”) and typically served by a SKAARHOJ controller. Has an incredibly light and compact form factor.

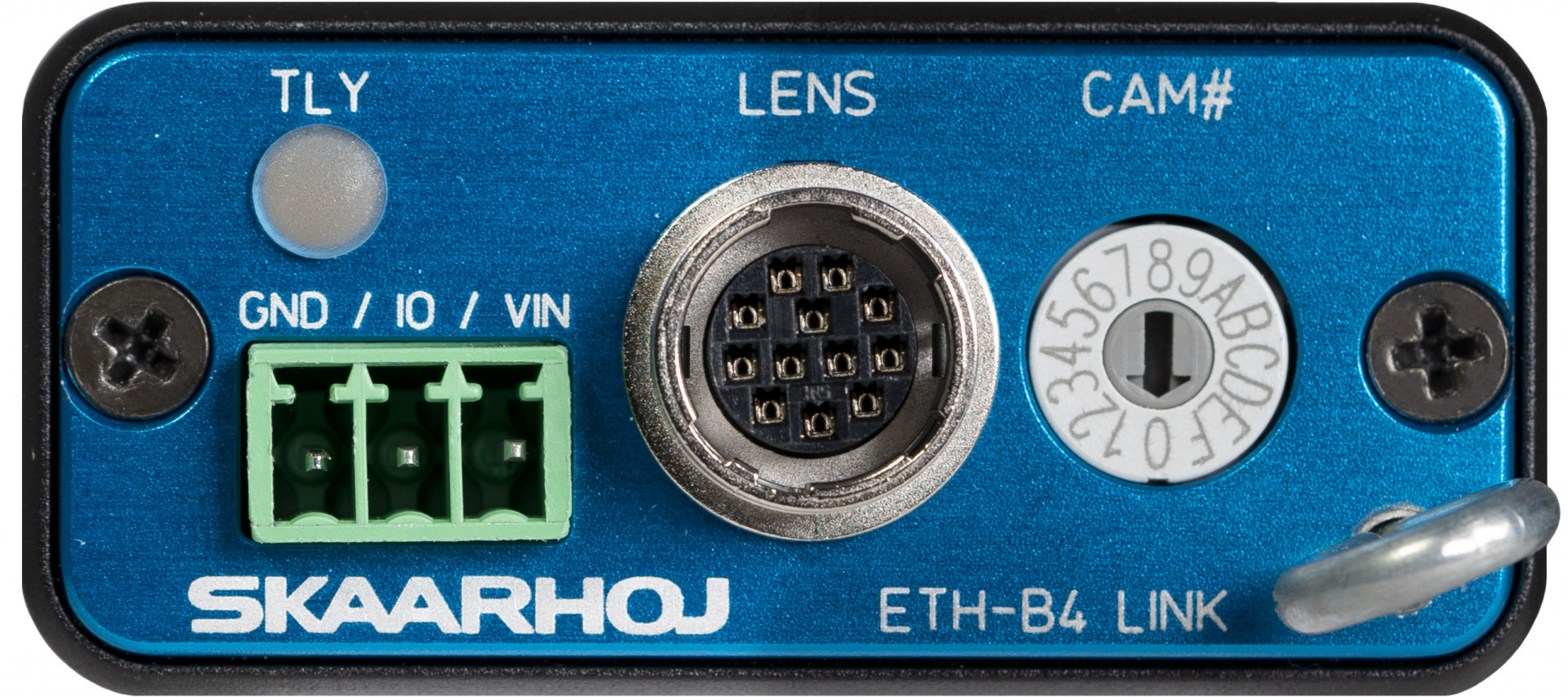

With the SKAARHOJ ETH-B4 Link the iris control data is sent separately from the camera control data over ethernet instead of over SDI. The ETH-B4 Link has a camera selector switch that sets it’s camera ID filter as well as its IP address and the iris data it receives is output on the Hirose-12 connector. It also features a tally lamp (red/green) and a relay output (PGM tally out).
Features:
- Hirose 12-pin connector
- Preview/program tally on small LED
- Set camera number via selector switch
- Program tally from 3-pin phoenix connector: Ground, IO, 12V (VIN)
What's in the box?
- 12V Power Supply Output: 12V/1.25A Cable Length: 1.5m
- USB Programming Cable Type: USB 2.0 A-Micro B Length: 1m
- Networking Cable Type: Cat 5e, UTP Length: 2m
