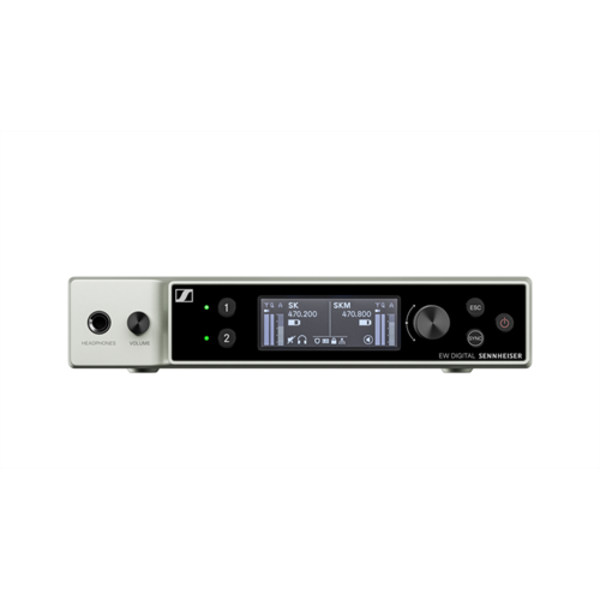

Sennheiser EW-DX EM 2 DANTE 2 channel half-rack receiver 9,5"

Informatie

2 channel half rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters

• Two-channel digital half rack (9.5") in rugged metal housing
• Up to 88 MHz switching bandwidth
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
• Power over Ethernet (PoE IEEE 802.3af Class 3)
• Ethernet connectivity (IPv4 and IPv6)
• Secure transmission of confidential content using AES 256 encryption
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
• Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
• Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
• Selective headphone output with volume control on front panel
• Extended menu settings such as custom frequency list, selectable sync parameter and walk test
• External PSU 12V/1A
• Worldwide usage (specific frequencies subject to local RF regulations)

Frequency variants:

• Q1-9: 470.2 - 550 MHz
• R1-9: 520 - 607.8 MHz
• S2-10: 614.2 - 693.8 MHz
• U1/5:823.2 - 831.8 MHz & 863.2 - 864.8 MHz
• Y1-3: 1785.2 - 1799.8 MHz
