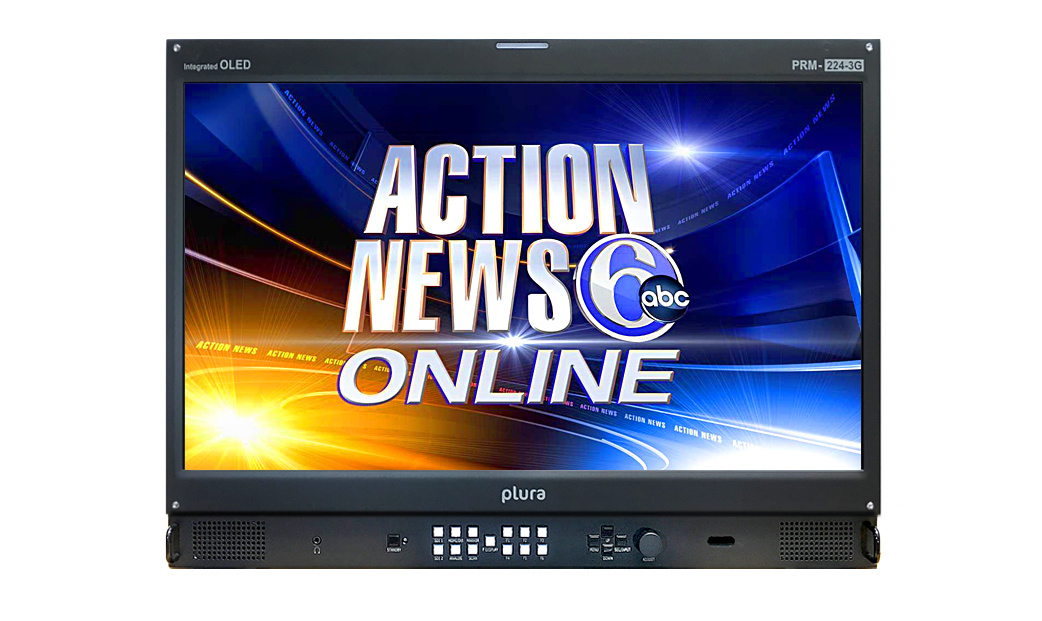

Plura PRM-224-3G-O 24" OLED Reference Monitor
PRM-224-3G-O, 24″ OLED Reference Monitor offers an elegant slim design integrated with Grade A – 10 BIT OLED 24.5″ panel and delivers outstanding BLACK performance, HDR (High Dynamic Range) capabilities, very fast response time for smooth video with virtually NO motion blur, High contrast of 5000:1, wide viewing angle, accurate color reproduction and quality picture consistency that meets all your HD & SD Monitoring application.
PRM Plura Precision Broadcast LCD Series supports 3 Gbps – 1080P/60P input capability as well as all other types of digital video formats HD & SD-SDI and analog video formats like RGB, Component and Composite signals.

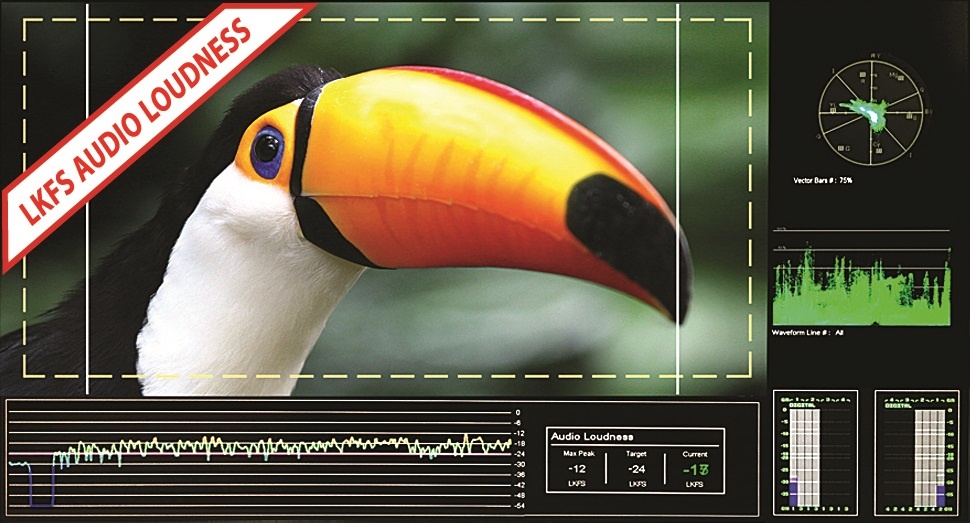

- LKFS AUDIO Measurement – Digital Loudness Audio Metering with selected channel measurement in LFKS scale.

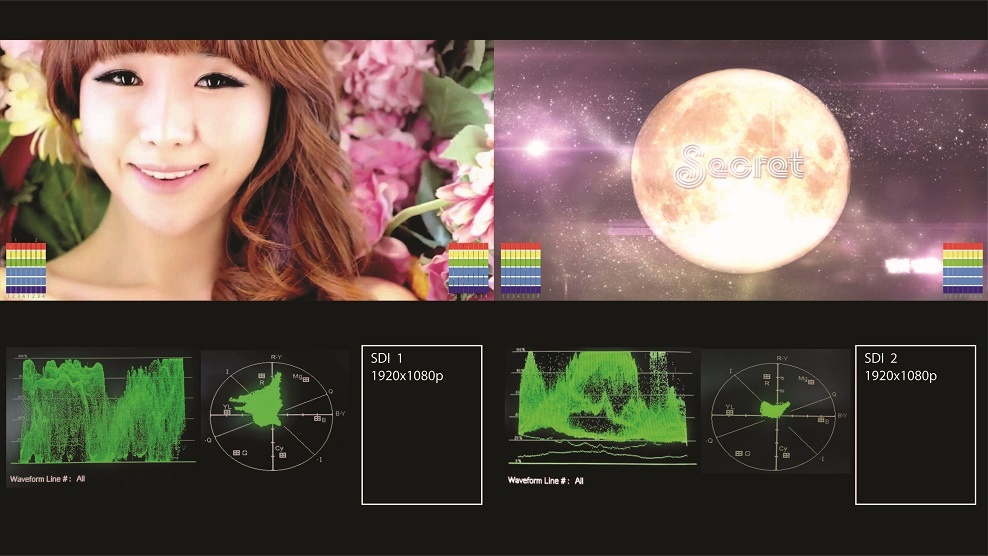

- Dual Display with Dual Waveform / Vector measurement.
- Intelligent connection for Calibration & Alignment and Adjustable Colormetry and Gamma Correction.
- As an optional feature the PRM-3G series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.
- PRM-224-3G-O, 24″ OLED Reference Monitor
- LKFS Audio Measurement – Digital Loudness Audio metering in LKFS scale
- HDR (High Dynamic Range) capabilities
- PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
- 10 BIT Color Depth 24.5″ integrated OLED Panel, 3D LUT, Dual display modes with dual Wfrm & Vect

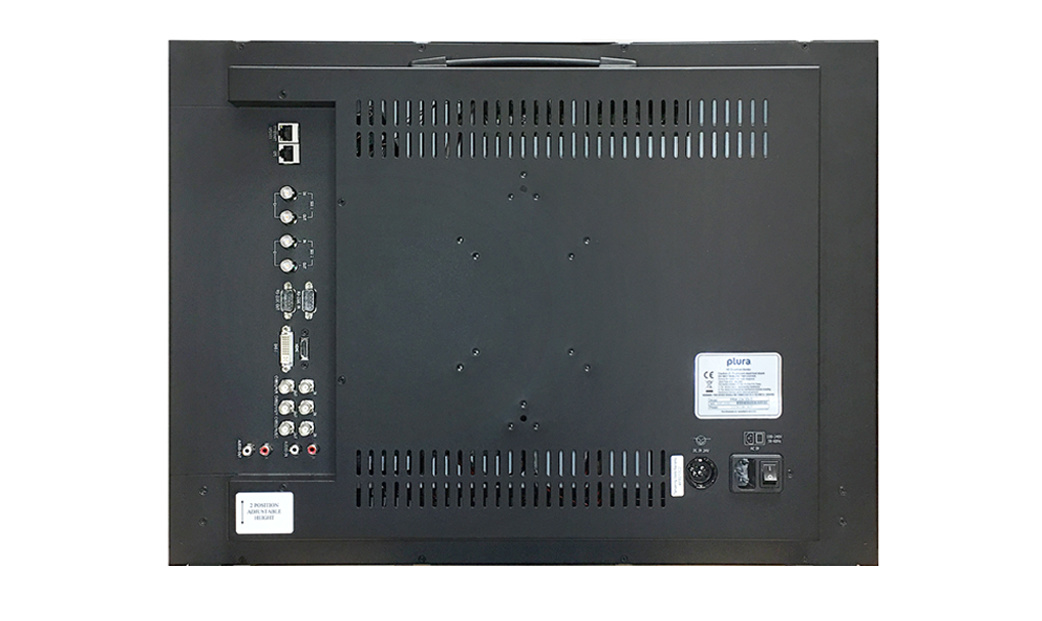

- 2 x Auto-detect HD-SDI, SDI with active loops (3 Gb/s / 1.485Gb/s / 270Mb/s)
- 3 x Composite inputs with active loops, 1 x DVI/VGA and 1 x HDMI
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- 3D LUT & Wide range of Gamma selection
- Closed Caption (608/708) – Teletext 801 & Subtitle OP-47

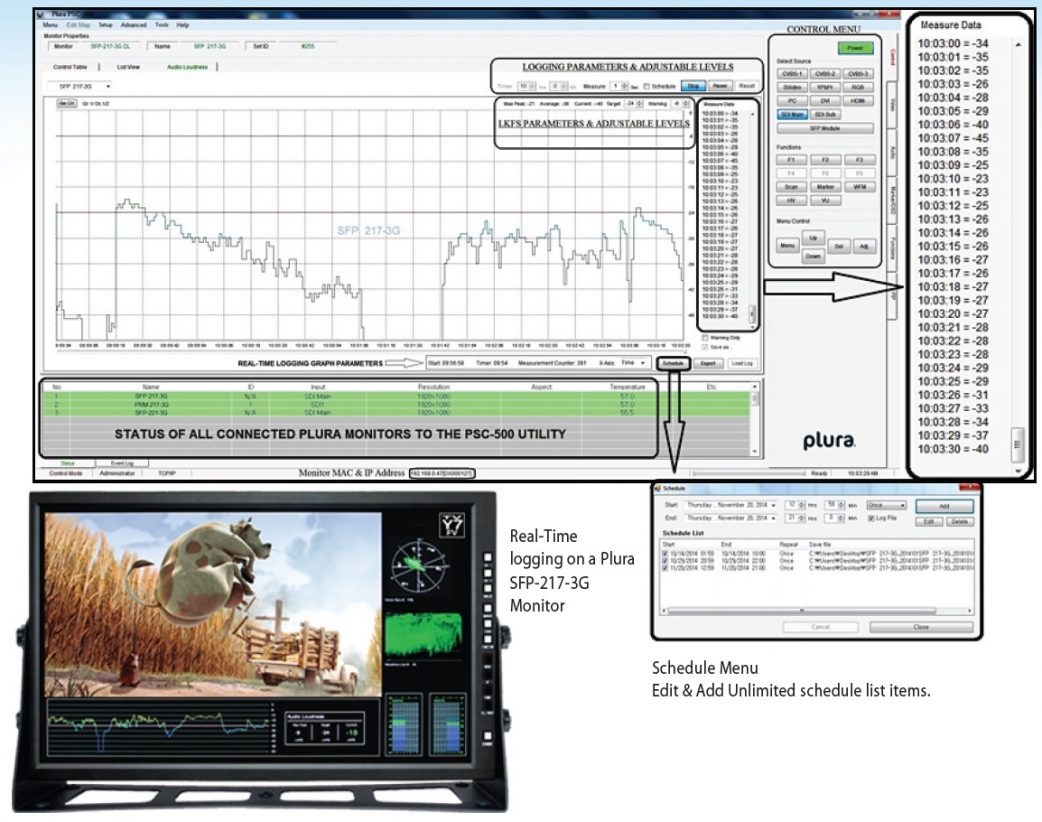

- Ethernet control, Advanced audio metering
- Ember+ compliant control system capabilities – OPTIONAL
- RGB 12 Bit Digital Signal Processing
- Internal Monitor Display (IMD)
- 5000:1 Contrast Ratio
- Pixel to Pixel Mode, Tally, DC Operation
- Display LTC & DVITC time code with line select
- Internal Pattern Generator and Wall Control System
- Built In Stereo Speaker, 16 CH Audio Metering Display
- Analog & Embedded Audio Input, Digital Audio Decoding
- Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
- Various and User defined Markers Display, Safe Area in HD & SD
- Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
- Display Advanced Waveform & Vector Scope simultaneously with line select
- Programmable 6 User Front Pushbutton Controls, GPI & RS232 Remote Control
- OPTION: Battery Mount, Rack mount, Wall mount, Carry Case
