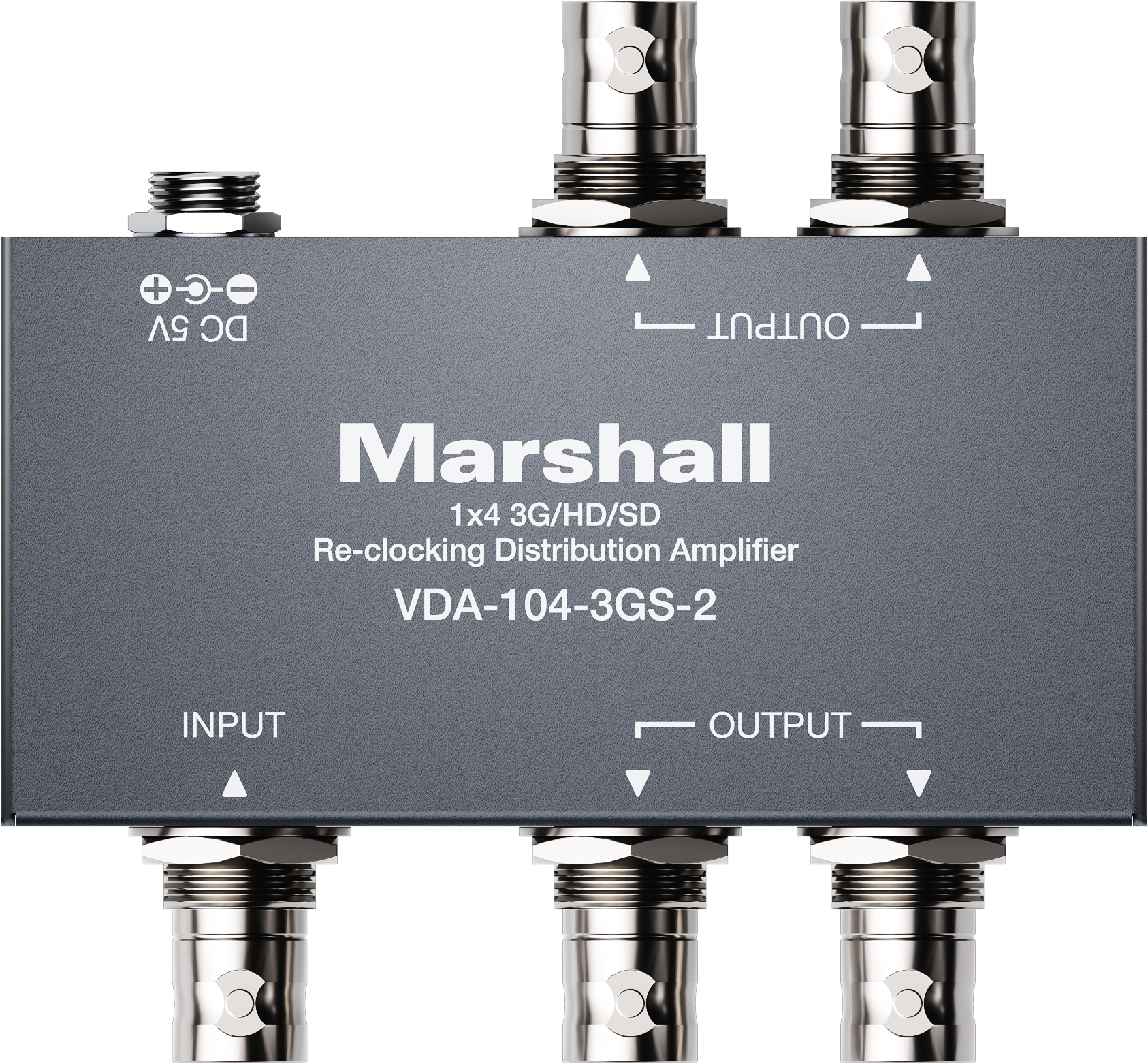

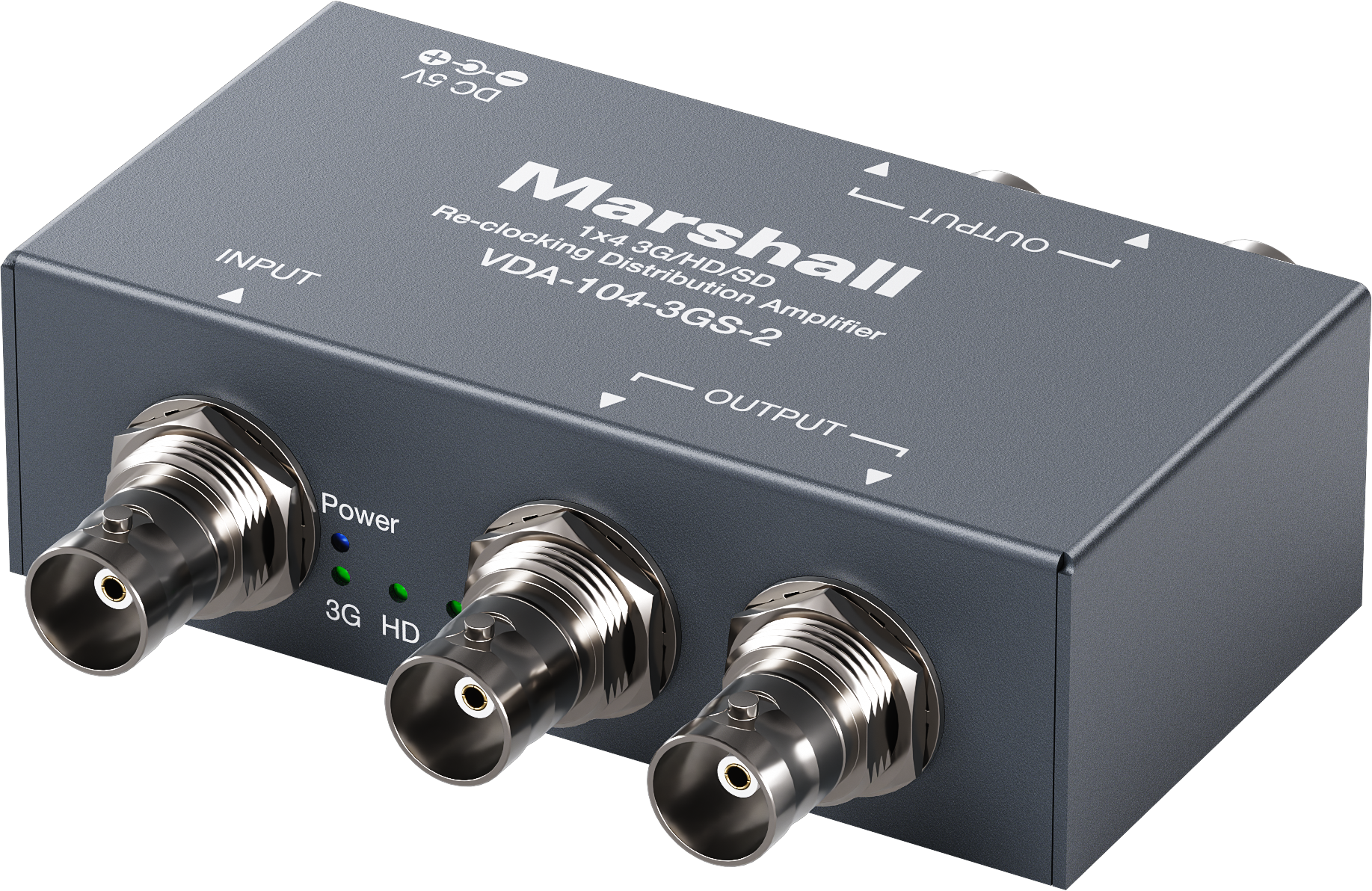

Marshall VDA-104-3GS-2 1x4 3G-SDI Distribution Amplifier
€252,89 Incl. btw€209,00 Excl. btw
Niet op voorraad, contacteer ons
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Lees meer
- ECO friendly webshop
- Persoonlijk advies
- 30 jaar ervaring
- Meer dan 4.000 producten
- Secure payment
- Registreer en ontdek je voordelen
Specificaties
Merk:
Marshall
SKU:
VDA-104-3GS-2
Beschikbaarheid:
Niet op voorraad, contacteer ons
Verwachte levertijd:
7 werkdagen
Gerelateerde producten
Marshall 1x8 3G/HD/SD-SDI Re-Clocking Distribution Amplifier
€284,35 Incl. btw
€235,00 Excl. btw
€235,00 Excl. btw
Informatie
The VDA-104-3GS provides reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.
- Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates
- Supported video formats:
- SD: 480i59.94 "NTSC", 576i50 "PAL"
- HD: 720p24, 25, 30, 50, 59.94, and 60
- 1080i50, 59.94, and 60
- 1080p24, 25, and 30
- 3G: 1080p50, 59.94 and 60. Supports Level A and B
- 2K: 2048x1080p24 and 30
- Passes all ancillary data
- Reclocking function reshapes the signal to improve transmission distance

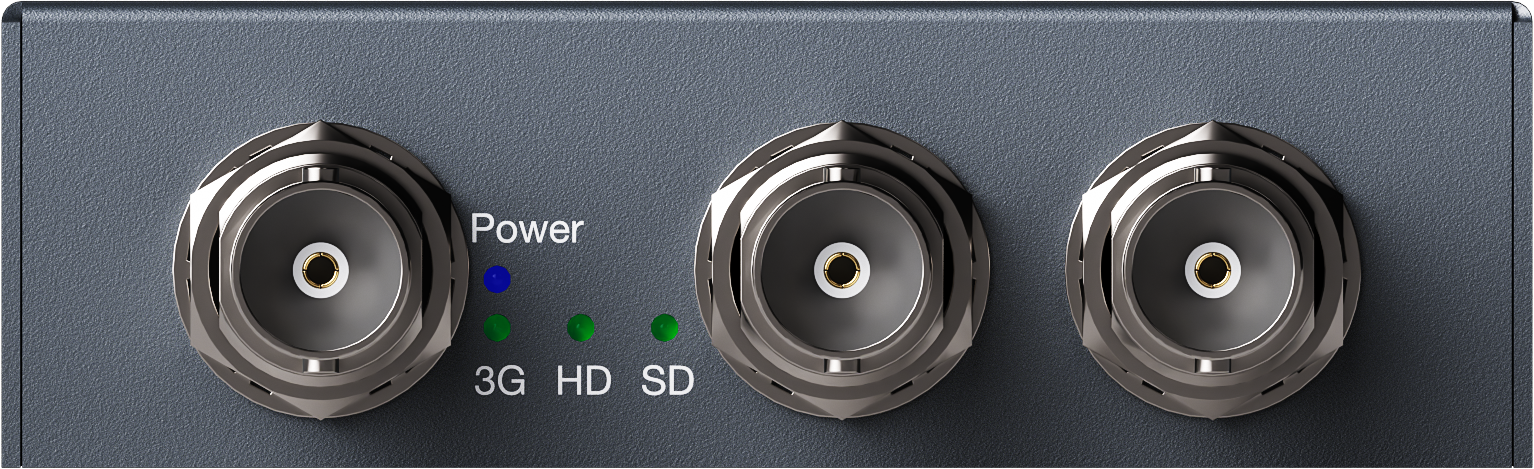

- Video format LED indication
- Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G
- Reclocking function reshapes the signal to improve transmission distance
- Compact metal housing
