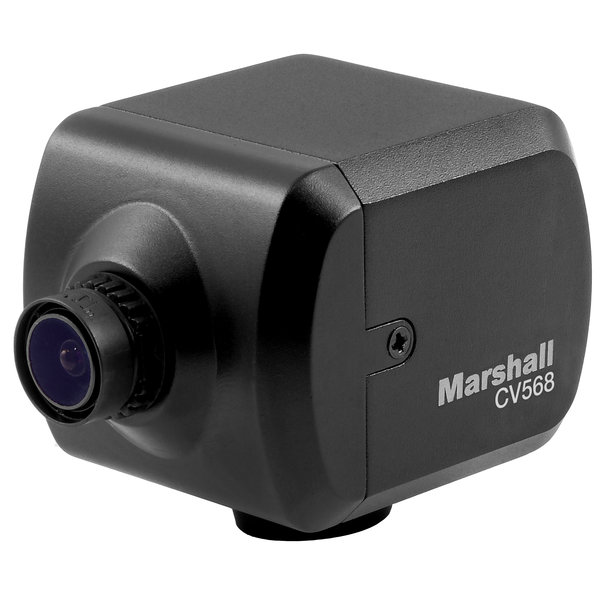

Marshall CV568 Mini Broadcast Camera

Informatie

1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

Key Features

• Global shutter 1.1/8″ Sony sensor with 25% larger pixels
• Genlock tri-level sync for broadcast integration
• M12 interchangeable lens mount
• 4.4mm M12 lens included
• 3G-SDI & HDMI video output connectors
• 1920×1080 up-to 60P
• I/O breakout cable with control joystick
• 3.5mm audio input

Product Overview
CV568 is Marshall’s premier Mini camera, featuring a Sony global shutter sensor and Genlock tri-level sync. These features allow CV568 to integrate directly with broadcast workflows and provide the highest-quality images from any Marshall Mini camera.

The 1/1.8″ global shutter sensor from Sony delivers perfect, anomaly-free images – with the camera capturing every single frame across the entire sensor simultaneously. In addition, CV568’s sensor features 25% larger pixels – to deliver cleaner images, especially in low-light.

Genlock tri-level sync enables CV568 to integrate with broadcast environments, allowing multiple cameras of any brand to synchronise together seamlessly.

Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p images at up-to 60 frames per second. Further camera inputs & outputs are available through the included breakout cable, including external 3.5mm microphone input.

A wide selection of M12 lenses complement the included 4.4mm M12 lens, allowing users to select the perfect lens for any scenario.

CV568 is a durable and professional Mini camera with use-cases including sports broadcast, reality television & live stream events.
