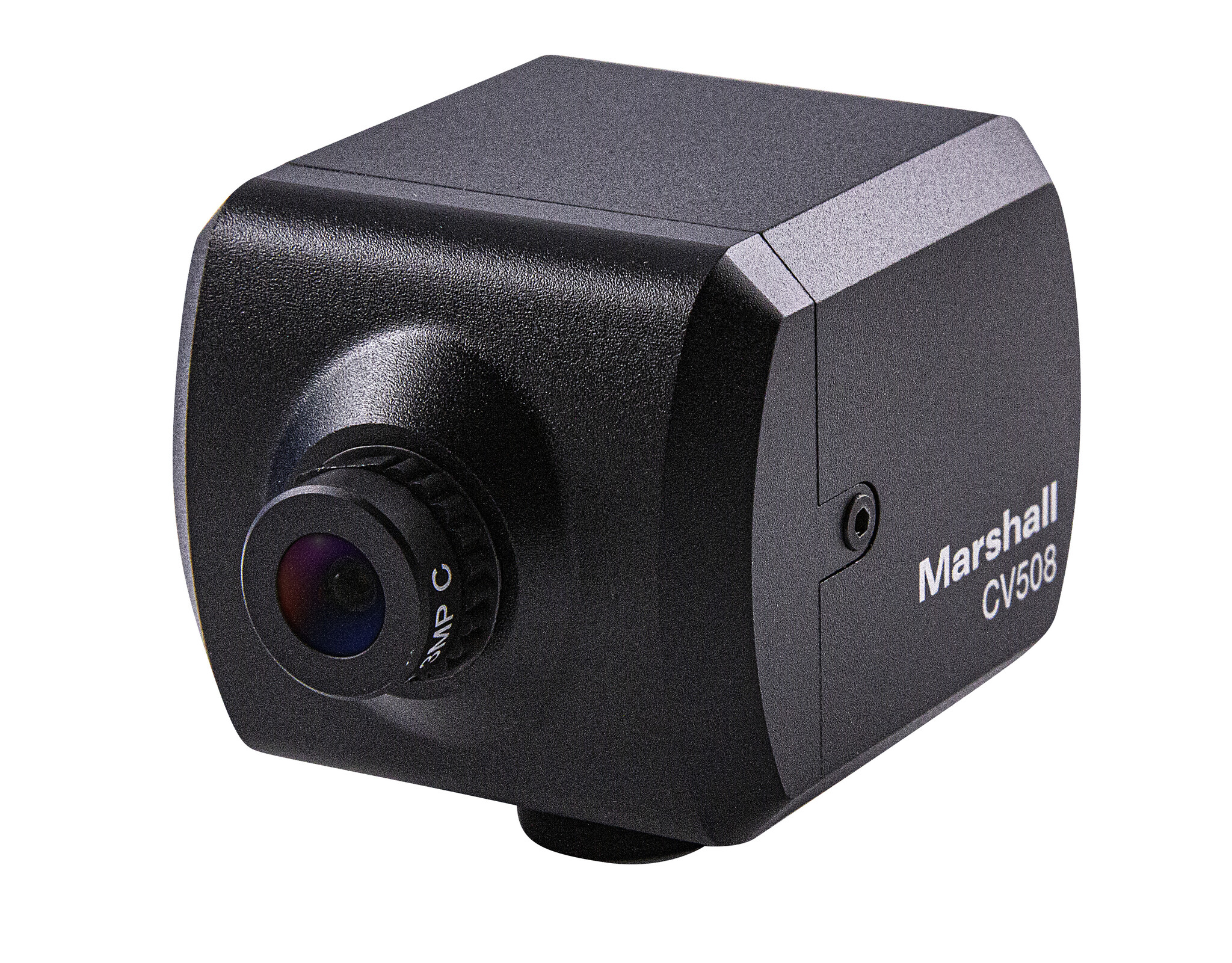

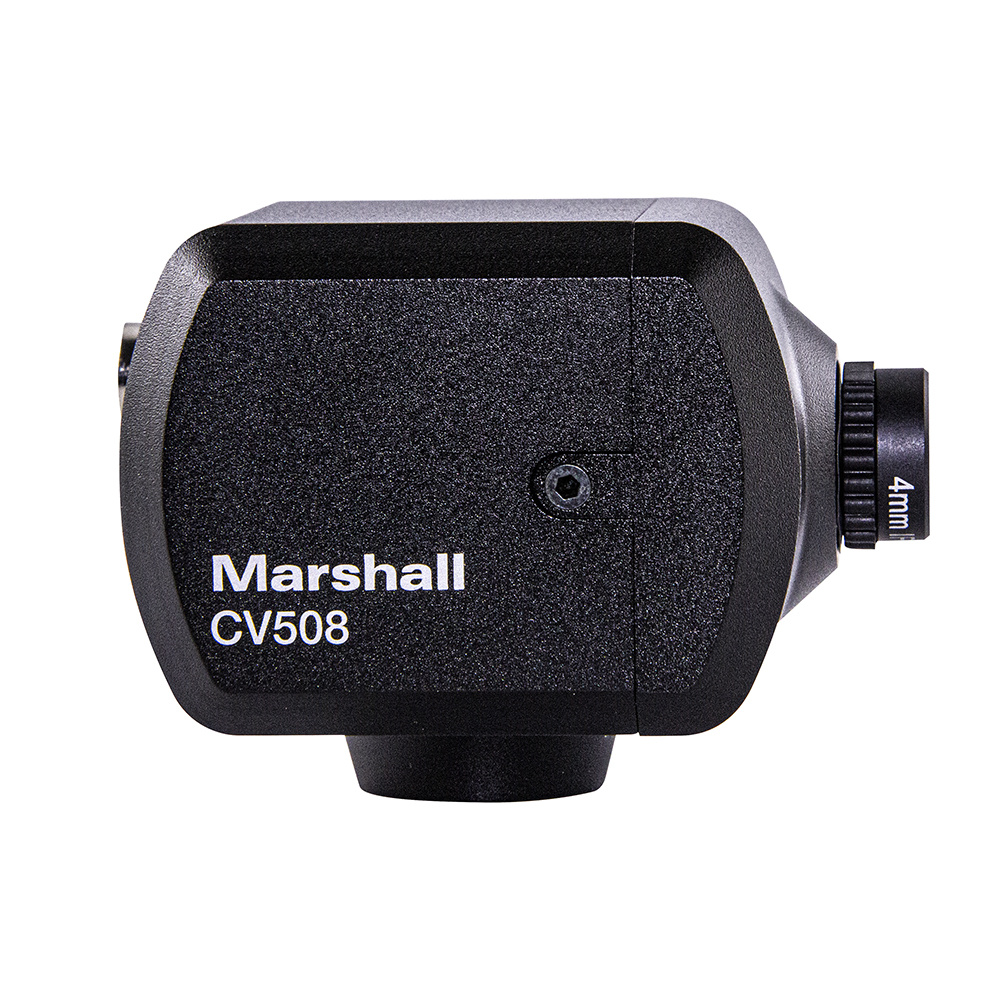

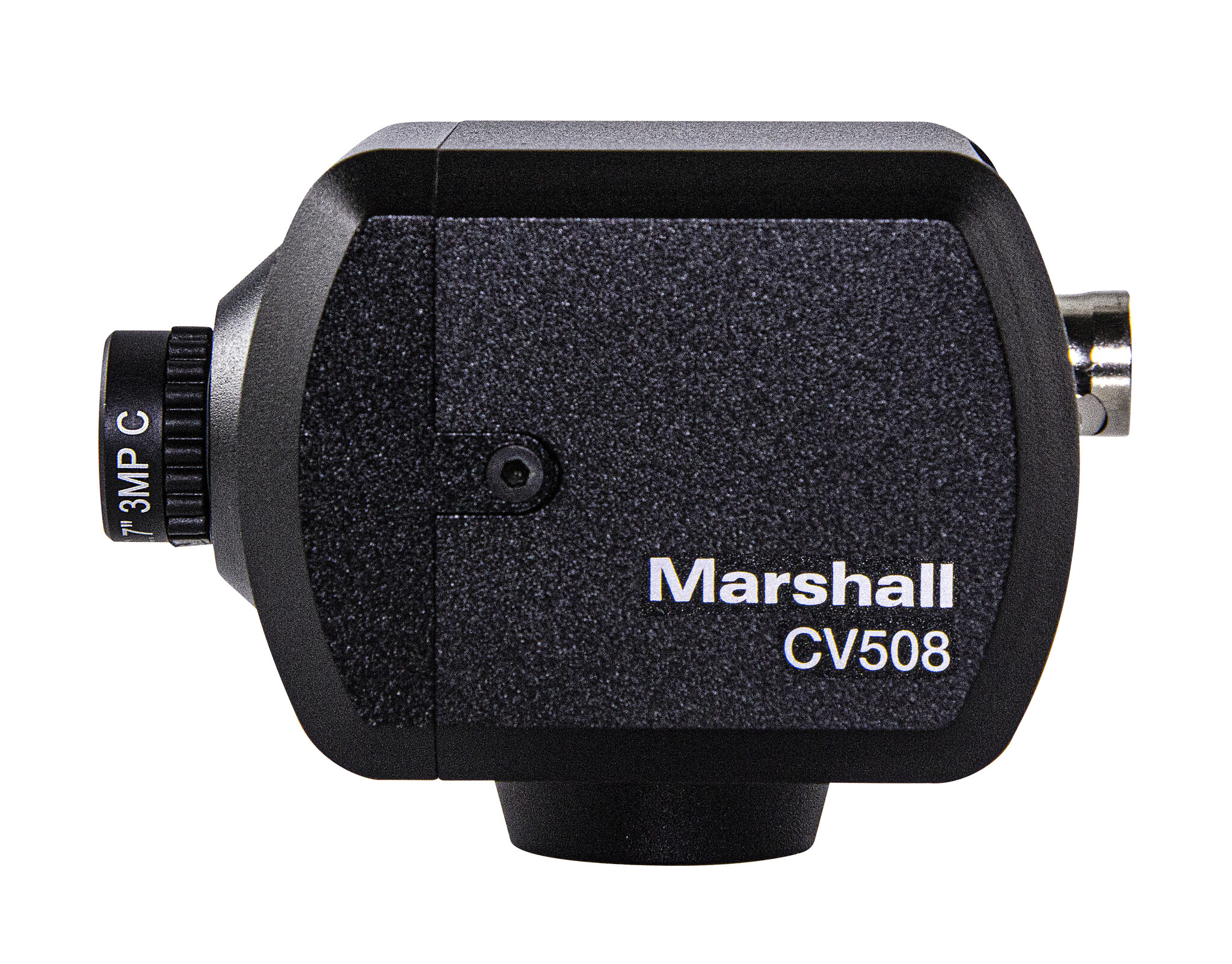

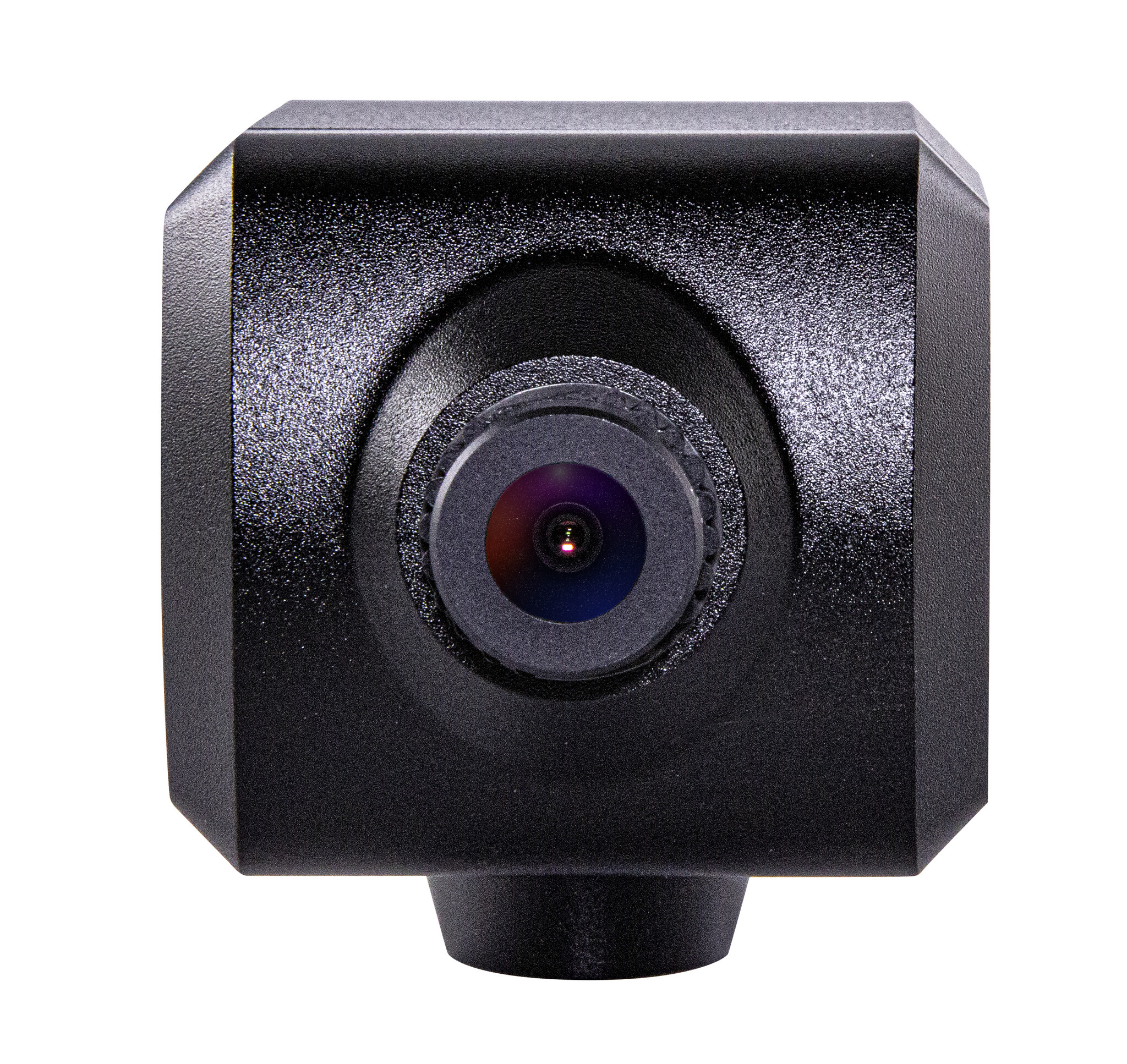

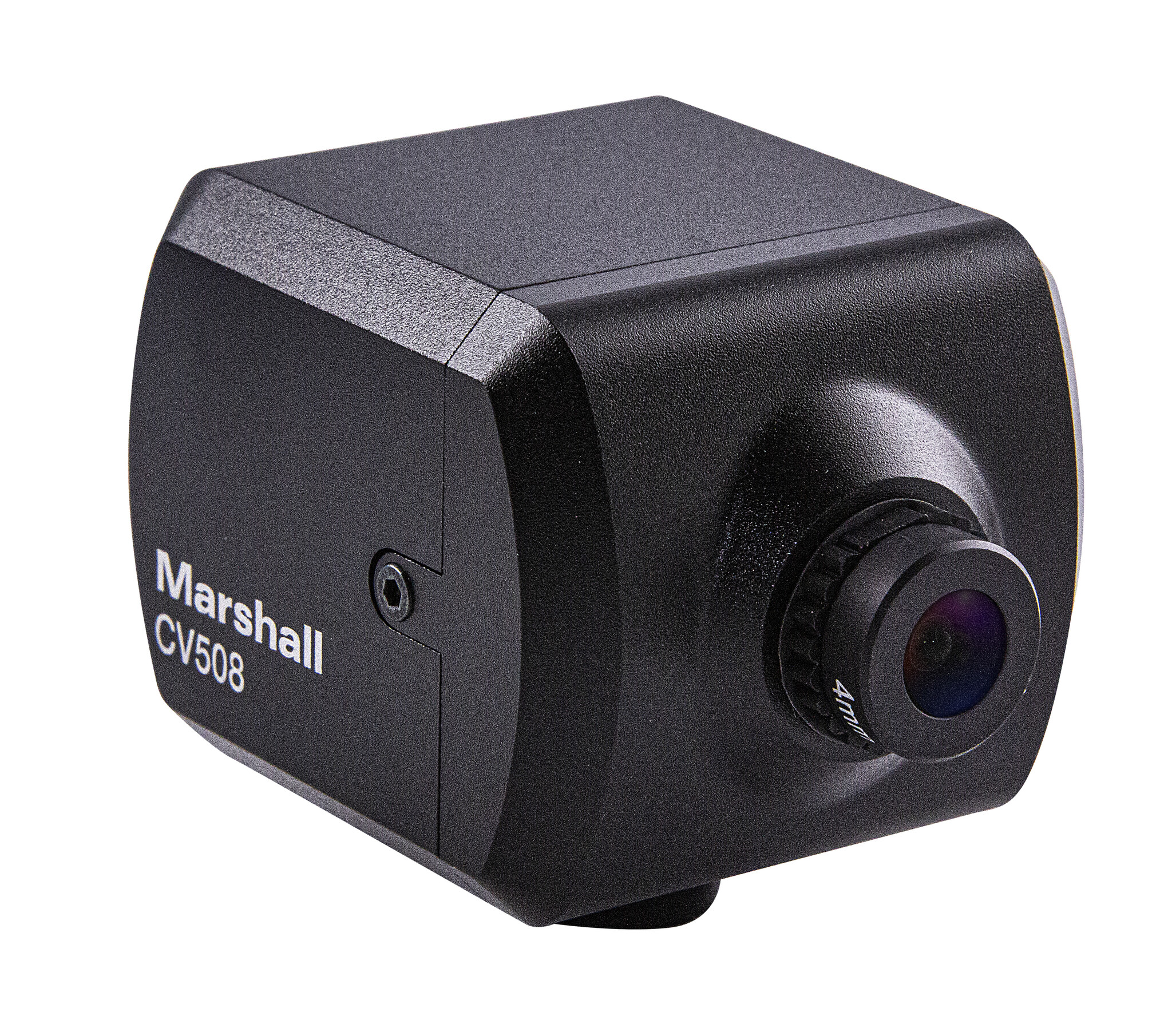

Marshall CV508 Mini Broadcast Camera with 4.0mm Interchangeable Lens

Informatie

CV508
1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

Key Features

• Ultra-compact camera measuring just 40mm x 44mm x 45mm
• M12 interchangeable lens mount
• 4.0mm M12 lens included
• 3G-SDI & HDMI video output connectors
• 1/2.8" 2.2 megapixel sensor
• 1920x1080 up-to 60P
• I/O breakout cable with control joystick
• 3.5mm audio input

Product Overview
The Marshall CV508 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.2-Megapixel, 1/2.8-inch sensor, the CV508 delivers ultra-crisp, clear, Full-HD video in both interlaced and progressive modes at up to 60/59/50fps.

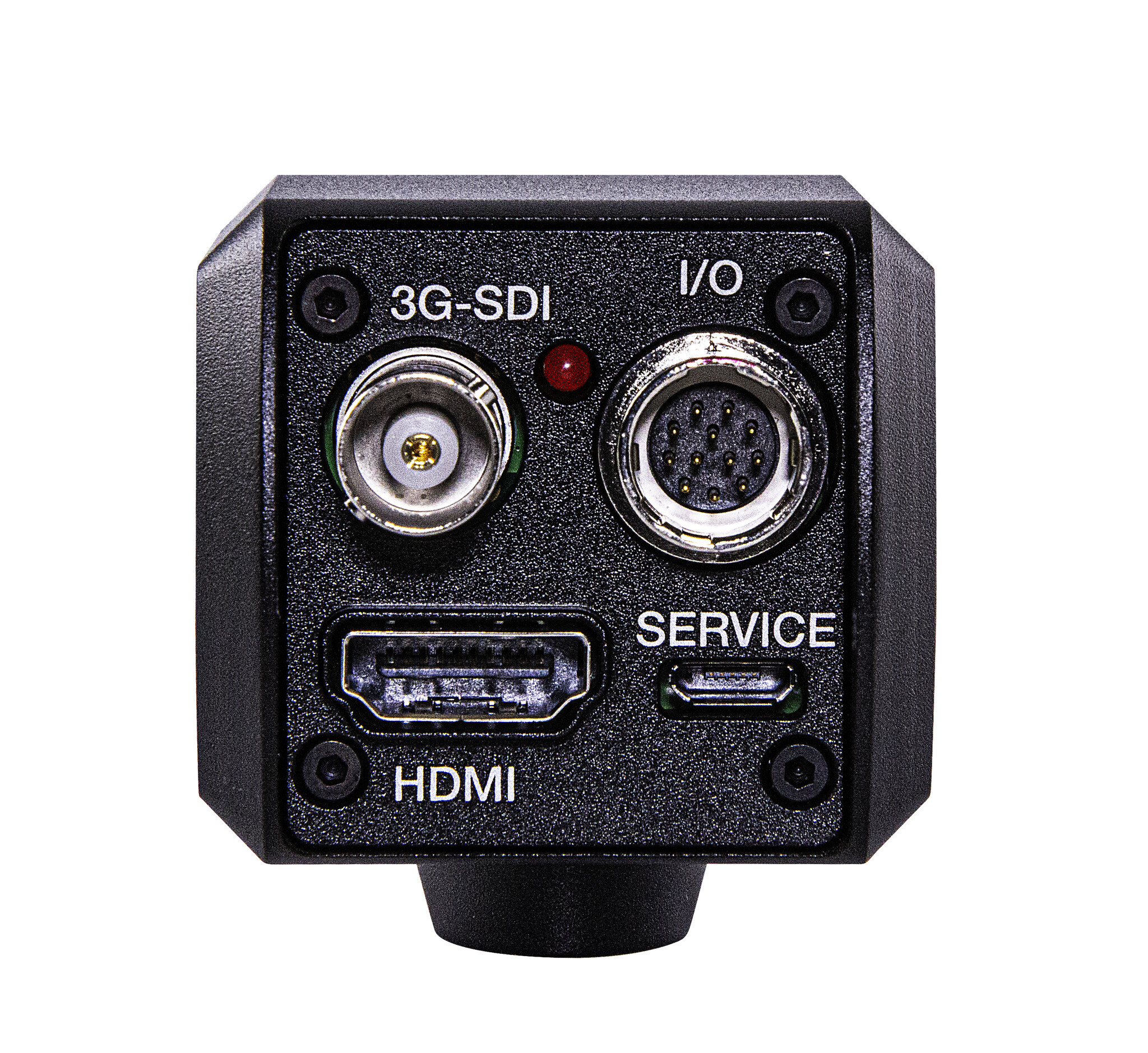

The CV508 utilises full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV508's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV508 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

What's in the box?

• 1 x CV508 camera body
• 1 x Camera Breakout Cable
• 1 x 4.0mm M12 Lens
• 1 x Power Supply Unit (PSU)

Compatible HD Prime Lens Options (M12):

• CV-4704.0-3MP (Included):  4.0mm F2.6 3MP M12 Mount Lens (AOV approx. 85°)
• CV-4702.3-3MP: 2.3mm F2.2 3MP M12 Mount Fisheye Lens
• CV-4702.8-3MP-IR: 2.8mm F2.0 3MP M12 Mount Fisheye Lens
• CV-4804.4-12MP: 4.4mm F2.7 12MP M12 Mount Lens
• CV-4706-3MP-IR: 6mm F2.0 3MP M12 Mount Lens
• CV-4708.0-3MP: 8mm F1.8 3MP M12 Mount Lens
• CV-4712.0-3MP: 12mm F1.8 3MP M12 Mount Lens
• CV-4716.0-2MP: 16mm F1.8 2MP M12 Mount Lens

Compatible 8MP Prime Lens Options (M12):

• CV-4804-8MP: 4.0mm F1.8 8MP M12 Mount Lens
• CV4808-8MP: 8.0mm F1.8 8MP M12 Mount Lens
• CV-4812-8MP: 12mm F1.8 8MP M12 Mount Lens

Compatible HD Varifocal Lens Options (M12):

• CV-2812-3MP: 2.8-12mm F1.4 3MP M12 Mount Varifocal Lens
• CV-0622-5MP: 6-22mm F1.6 5MP M12 Mount Varifocal Lens
