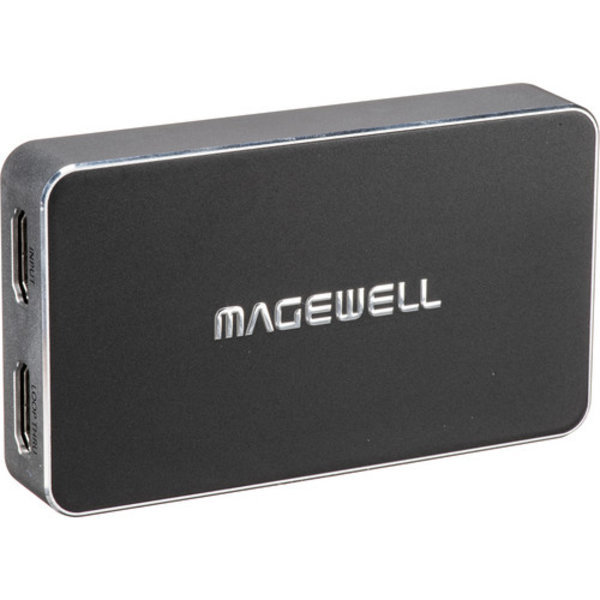

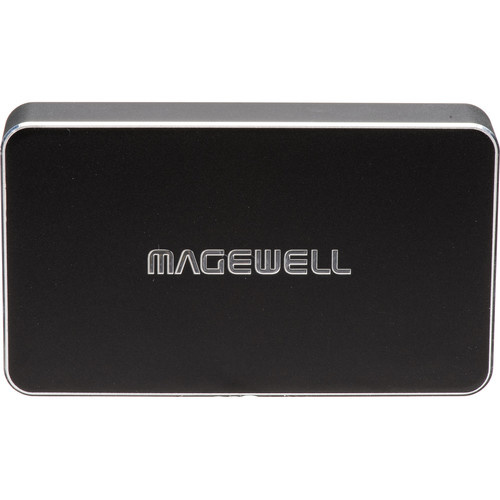

Magewell USB Capture HDMI Plus

Informatie

One-channel 2K capture device

• Capture HDMI + embedded audio
• Loop-through HDMI signal

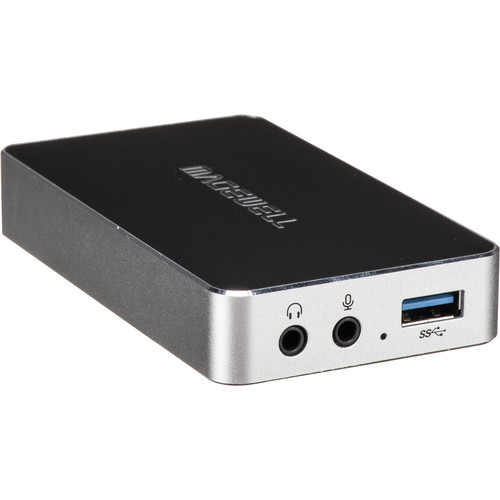

• Audio input via mic
• Extract HDMI embedded audio output via headphones
• Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

Interface

Input Features

• 297MHz HDMI receiver, max input & loop through video:
• 4096x2160 30fps 4:4:4/4:2:2
• 4096x2160 60fps 4:2:0
• Custom EDID
• Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
• Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
• 2-channel IEC60958 audio streams via 3.5mm microphone interface
• HDMI interfaces: HDMI 1.4, DVI-D

Process and Capture Features

• Video processing pipelines with ~160M pixels/s processing bandwidth
• Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
• 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
• 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
• 720x576p25
• 720x480p30
• Output YUYV/UYVY/RGB24/RGB32 videos
• Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
• Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
• Up to 2-channel IEC60958 audio streams

Included Software

• USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

• The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
• Windows DirectShow/Wave API/DirectSound/WASAPI
• Linux V4L2/ALSA
• macOS AVCaptureSession/AudioUnit

Output Interface

• USB 3.0
• compatible with USB 2.0
• compatible with USB 3.1 Gen 1

Compatible Software

• Zoom Rooms
• Microsoft Teams
• Skype for Business
• Google Hangouts
• GoToMeeting
• Gstreamer
• VLC
• OBS Studio
• XSplit
• QuickTime Player
• Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS

• Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
• Linux x86, x64 & ARM architecture, with 2.6.35 and above
• Mac OS X 10.9/macOS 10.12 and above
• Chrome OS

LED Indicator

• Status LEDs indicate the working state of the device:
• Pulsing slowly: input signal unlocked
• On: input signal locked
• Double blinks: memory abnormal or FPGA configuration failed
• Off: firmware or power supply abnormal

Form Factor

• 3.86 inch (L) x 2.24 inch (W) x 0.67 inch (H) (98.1mm x 56.8mm x 17mm)

Accessories

• 1 × USB 3.0 cable

Power Consumption

• 5V max current: ~900 mA
• Max power consumption: ~4.5 W

Working Environment

• Operating temperature: 0 to 45 deg C
• Storage temperature: -20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
