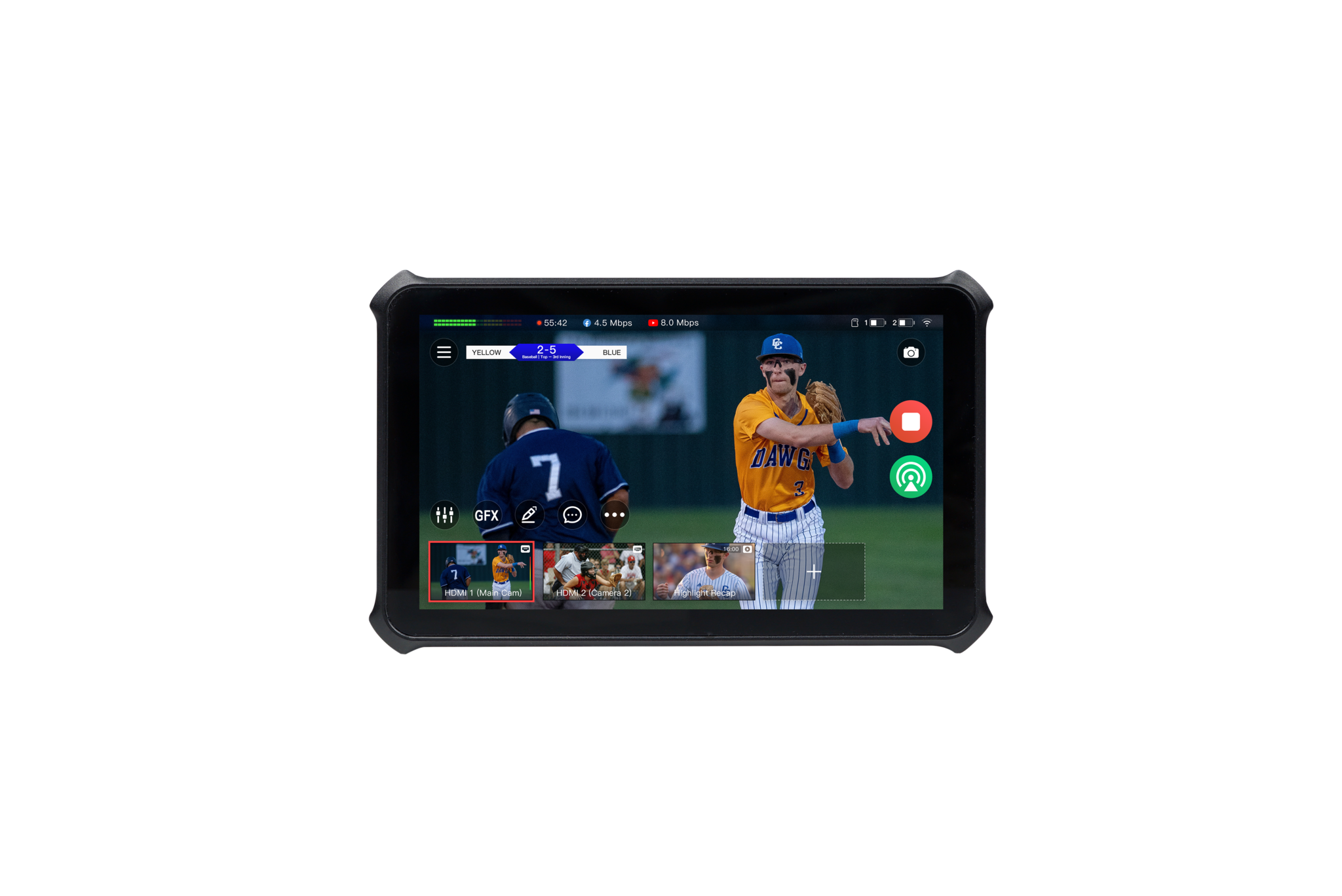

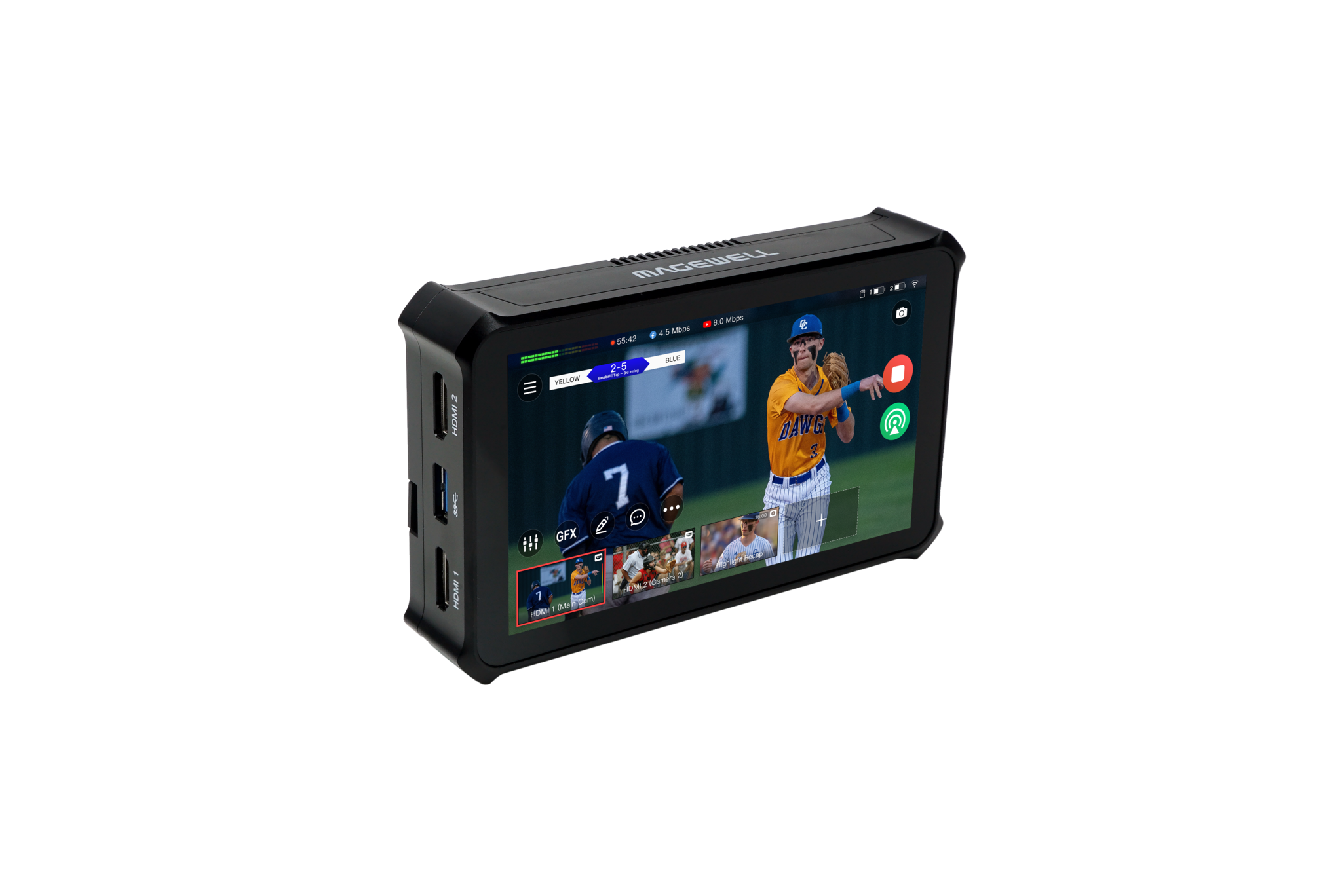

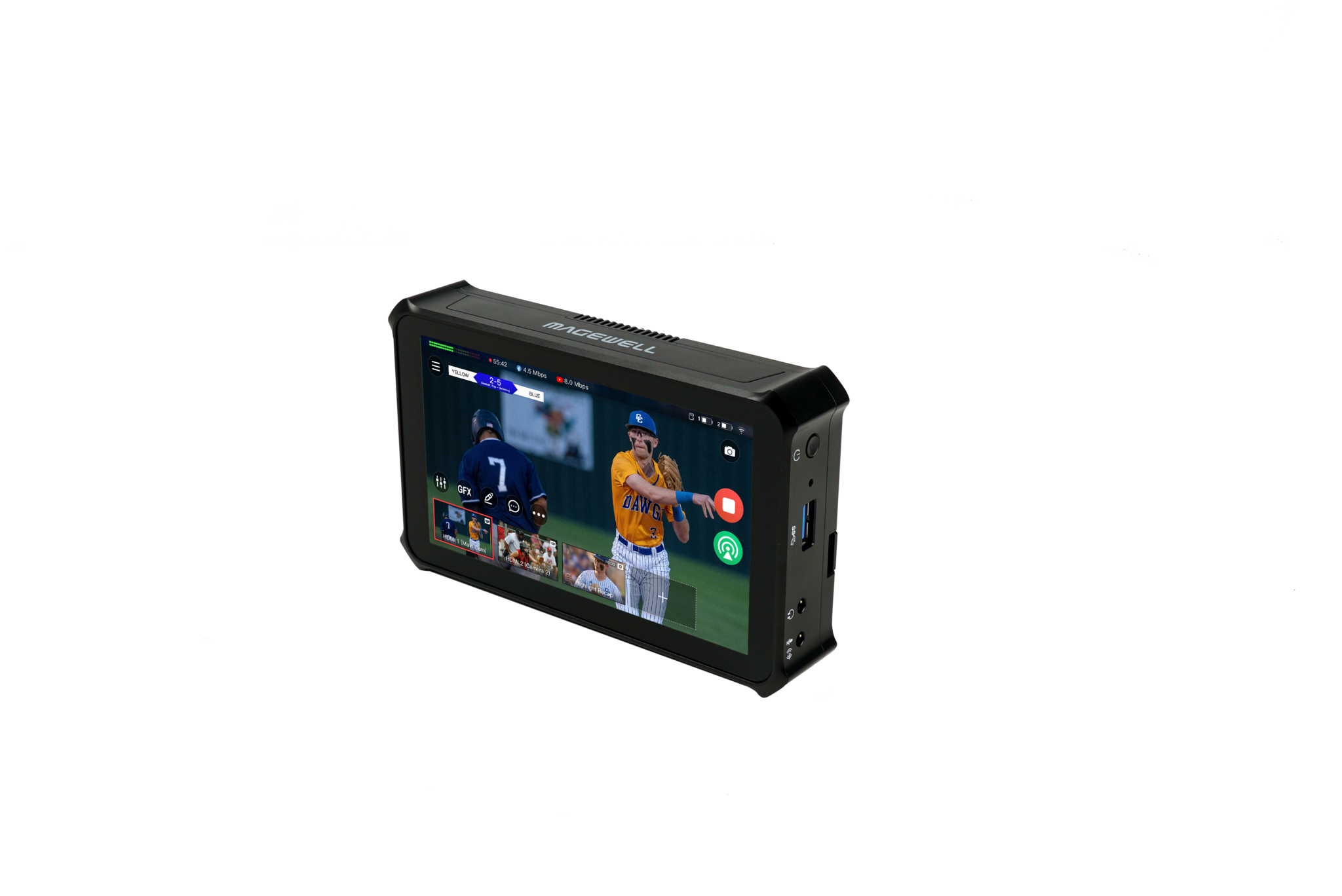

Magewell Director Mini

€1.511,29 Incl. btw€1.249,00 Excl. btw Niet op voorraad, check levertijd

Magewell Lees meer

ECO friendly webshop
Persoonlijk advies
25 jaar ervaring
Meer dan 4.000 producten
Secure payment
Registreer en ontdek je voordelen

Specificaties

Merk:

Magewell

Beschikbaarheid:

Niet op voorraad, check levertijd

Levertijd:

2 - 3 weken

Informatie

A portable device that does multi-input switching, graphics, streaming, recording and monitoring

Supports flexible input sources ranging from AV and IP streams to media files
Intuitive user interface and companion app for scene editing and creating shows
Rich output possibilities including RTMP and SRT streams, NDI^® HX3 and local displays

Interface

Director Mini Specifications

Video Input

HDMI

Port: 2x HDMI 2.0 Type-A port
Typical resolution/frame rate:

4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 25/29.97/30
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p 50/100
720x576i 25/50
720x480p 59.94/60
720x480i 29.97/30

Color depth: 8/10/12-bit
Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

Port: 2x USB 3.0 Type-A port
Resolution/frame rate: Up to 1920x1080p, 60fps
Format: YUYV, MJPG, NV12

Phone Camera

Connection mode: LAN
Resolution/frame rate: Up to 1080p, 60fps

SRT stream

Codec: H.264, H.265
Resolution/frame rate: Up to 1080p, 60fps

RTMP stream

Codec: H.264, H.265
Resolution/frame rate: Up to 1080p, 60fps

NDI stream

NDI^® HX2 or NDI^® HX3
Codec: H.264, H.265
Resolution/frame rate: Up to 1080p, 60fps

Video

Resolution: Up to 4K
Codec: H.264, H.265
Format: MOV/MP4


Format: JPEG/PNG/BMP

Audio Input

Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
Audio input from USB port: 2-channel (only microphone supported)
Audio input from Bluetooth device: 2-channel, 48 KHz, 16-bit
Audio input from phone microphone
Audio from SRT stream
Audio from RTMP stream
Audio from NDI stream
Audio embedded in video files
Background music (BGM): MP3, M4A, WAV files

Video Output

Streaming and recording

Codec: H.264, H.265
Resolution: 1080p, 720p, 540p, 360p (only for NDI)
Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
Bitrate:

NDI^® HX3: up to 62.0Mbps, down to 1.5Mbps
Others: up to 30.0Mbps, down to 256kpbs

Key frame interval: customizable
Profile: High profile, Main profile, Baseline profile
Bitrate mode: VBR, CBR

USB-C

Port: 1* USB 3.0 Type-C port
Output mode：DP-OUT, UVC/UAC
Resolution: 1920x1080
Frame rate: 60fps, 50fps
Sampling format: RGB 4:4:4

Audio Output

Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
Audio output via USB-C port: 2-channel, 48 KHz, 16-bit
Audio output via USB-A port: 2-channel, 48 KHz, 16-bit

Features of USB-A Port

Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
Connect to a USB modem
Connect to a USB flash drive

To transfer video, picture, audio and other media files, firmware update files, log files, etc.
Supported system format: FAT32, exFAT and NTFS

Features of USB-C OUT Port

Connect to an external screen

Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
A/V display mode options: Clean Program, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
Image rotation: Rotate 90° to left, or rotate 90° to right
Supports using an external touchscreen to control the device in the Duplicate Screen mode

Connect to a computer

MTP mode: Transfer video, picture, audio and other media files, firmware update files, log files, etc.
UVC/UAC mode^*: Output audio and video to streaming software

^* To transfer video at full frame rate, please use a USB 3.0 cable to connect the USB 3.0 port of your computer.

Network

Supports Ethernet, WiFi and Cellular

Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
WiFi: 2.4G/5G, Station and Hotspot modes supported
Cellular: USB modem supported (not supplied)

Supports Bluetooth for audio input or output with Bluetooth devices

Bluetooth: BT 5.0

Features

Show

Supports creating multiple shows in landscape (16:9) or portrait (9:16) mode, and manage them
Supports creating a shows at 60/59.94/50/30/29.97/25/24/23.98 fps

Scenes

Supports creating multiple scenes in a show, and managing them
Supports adding various sources, including HDMI, WEBCAM, video, picture, RTMP stream, SRT stream, phone camera, NDI stream, text and color
Supports multi-view composition in one scene
Provides lots of editing tools, including chromakey, crop, transition, etc.
Supports switch scenes directly or preview at first and then switch
Supports switching scenes with an instant cut or fade effect.

Audio

Supports displaying level and peak through audio meter
Supports adjusting the level of each input audio, output and monitor audio
Supports global or scene-based settings for audio input sources
Supports AFV (Audio-follow-video)
Supports solo monitor
Supports switching monitor device

Supports multiple GFX types, including title, lower third, animated text, digital clock, analog clock, bullet list, social media, logo, scoreboard, timer, stopwatch, custom picture and text
Supports displaying multiple GFXs, and managing them
Supports controlling scoreboard, timer and stopwatch in real time

Supports adding BGM for each scene and controlling in real time

Annotates on the screen in real time

PTZ control

Supports controlling PTZ camera via the network, supporting Visca UDP, supported sources including HDMI, WEBCAM (UVC camera), SRT stream, RTMP stream, and NDI stream

Phone Camera control

Control the phone camera to zoom or focus

Live stream

Natively supports streaming to YouTube, Twitch and Facebook Live
Supports selecting RTMP or HLS protocol for streaming to YouTube
Supports streaming via SRT, RTMP and RTMPS protocols
Supports two NDI^® HX3 outputs, supporting NDI Tally lights
Supports customizing encoding parameters and selecting the encoding source (Program, HDMI, WEBCAM) for ISO streaming
Supports streaming to two destinations simultaneously
Supports showing live comments when streaming to social media

Record

Supports customizing encoding parameters
Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source, and supported sources include Program, HDMI, WEBCAM and NDI stream
Supports saving recording files in MP4 or MOV format to local storage or SD card
Supports saving screenshot files in PNG format to local or SD card
Supports splitting recording files by time or size, up to 4 hours or 16G
Supports exporting or downloading files through computer, SD card, USB flash drive, App, or Web UI

Director Utility App

OS version: iOS 11 and later, Android 7.0 and later
Phone Camera: Use a phone as a camera

Stream images taken by the phone to Director device
Stream images taken by the phone to a destination via SRT

Remote Assistant: Control Director device remotely

Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera and phone camera
Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
Control audio, including adjusting audio level, switch monitor device, mute audio and monitor audio exclusively
Start/stop recording, take screenshots, and manage album files
Set streaming servers, start/stop streaming, view streaming status, and view live comments
Control and manage BGM
Execute shortcuts functions
View input information
View real-time device status
Power off the device remotely

Web UI

Set and manage device, view input information, configure networks, update firmware
Preview and monitor the show, switch and manage shows, scenes, GFXs, control audio, set shortcuts, etc.
Set encoding parameters
Set streaming servers, start/stop streaming, view streaming status, and view live comments
Start/stop recording, take screenshots and manage album files
Control and manage BGM
Manage media files
View real-time device status
Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management

API
