IS-mini 4K

2.534,95 Incl. btw€2.095,00 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere 0 items in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
TVlogic
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken

Informatie

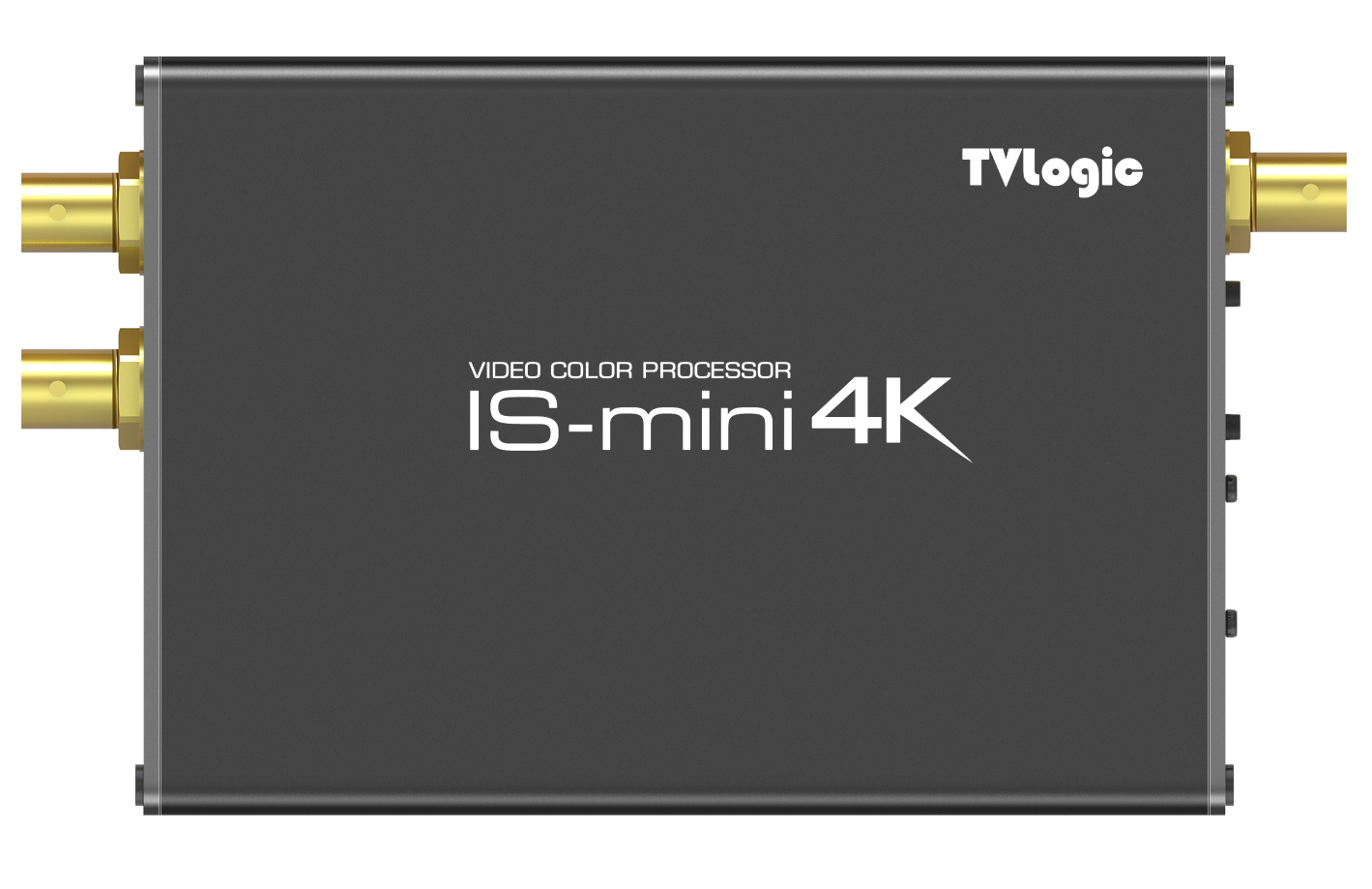

IS-mini 4K is the 4K/UHD version of popular IS-miniX. It supports 12G/6G/3G/1.5G-SDI signals to process LUTs up to 4K resolution image. Image quality and performance is exactly the same as IS-miniX, which means, IS-mini 4K is usable for not only previewing but also creating main contents or live broadcasting. WonderLookPro V4.1 or later supports IS-mini 4K. This state-of-the-art real-time LUT creation software is provided for free to all IS-mini series users.

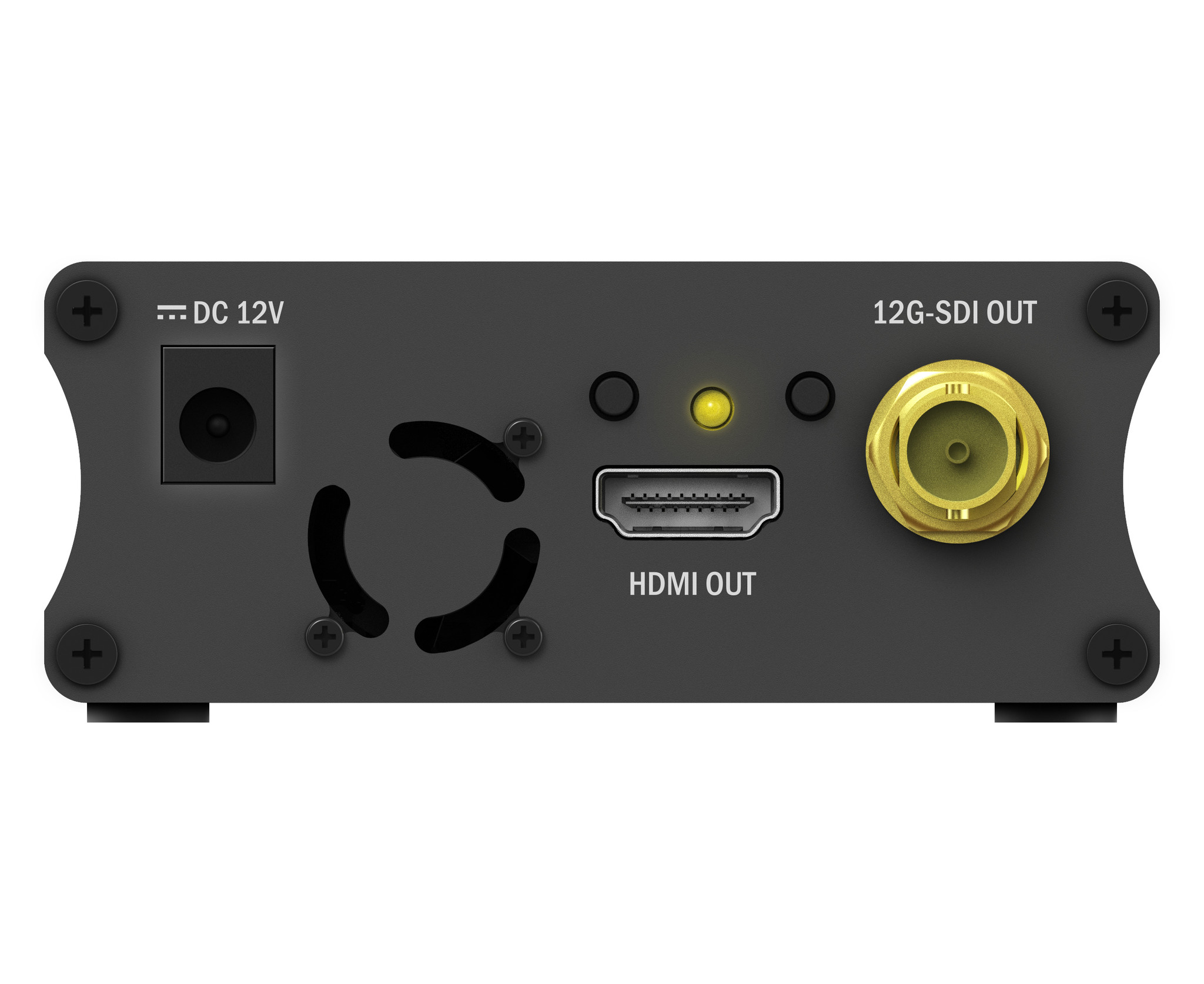

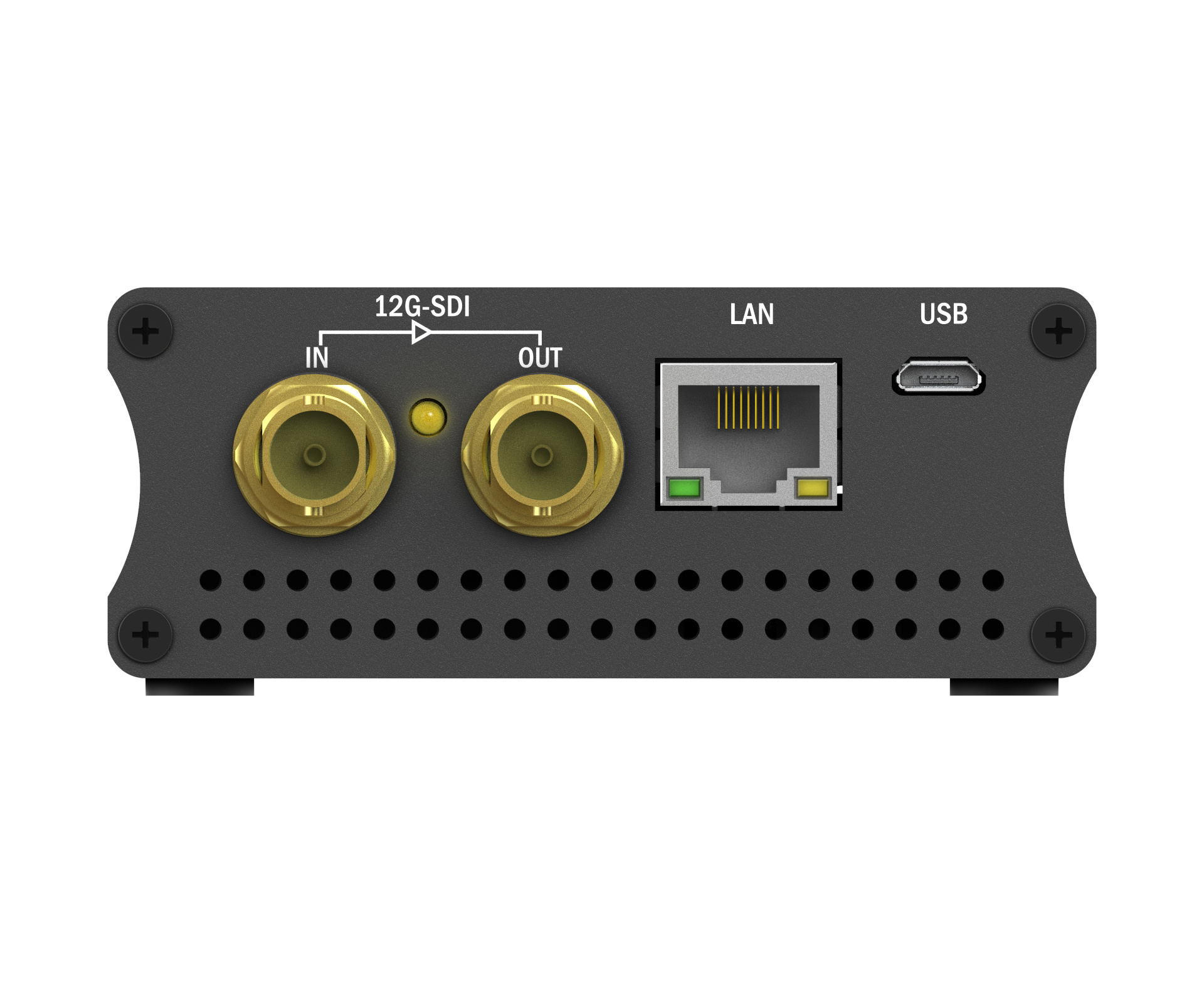

IS-mini 4K also supports HDMI 2.0 output, which means you can use consumer 4K TV sets to monitor the conversion output. Is-mini 4K also has 12G-SDI bypass output which is a passive loop thru function that outputs clean signal without color conversion. This is useful when you have to monitor before and after the color conversion simultaneously. Aid of monitor calibration function of WonderLookPro, you can use it very close reproduction of 4K HDR mastering monitor.

Supported signals

Interface

Video Standard

Sampling Structure

/ Bit Depth

Frame

Line

samples

Frame Rate( Hz)

HD-SDI



SMPTE 292

SMPTE 274

4:2:2 Y’ Cb’ Cr’ 10-bit

1080p

1920

23.98, 24, 25, 29.97, 30

1080i

50, 59.94, 60

1080PsF

23.98, 24, 25, 29.97, 30

SMPTE 2048-2

4:2:2 Y’ Cb’ Cr’ 10-bit

1080p

2048

23.98, 24, 25, 29.97, 30

3G-SDI Level a



SMPTE 425-A

SMPTE 274

4:2:2 Y’ Cb’ Cr’ 10-bit

1080p

1920

50, 59.94, 60

4:4:4 Y’ Cb’ Cr’ 10-bit

1080p

23.98, 24, 25, 29.97, 30

1080i

23.98, 24, 25, 29.97, 30

1080PsF

50, 59.94, 60

RGB 10bit

1080p

23.98, 24, 25, 29.97, 30

1080i

50, 59.94, 60

1080PsF

23.98, 24, 25, 29.97, 30

SMPTE 2048-2

4:2:2 Y’ Cb’ Cr’ 10-bit

1080p

2048

47.95, 48, 50, 59.94, 60

4:4:4 Y’ Cb’ Cr’ 10-bit or RGB 10bit

1080p

23.98, 24, 25, 29.97, 30

1080Ps

23.98, 24, 25, 29.97, 30

3G-SDI Level B-DL



SMPTE 425 B-DL

SMPTE 274

4:4:4 Y’ Cb’ Cr’ 10-bit

1080p

1920

23.98, 24, 25, 29.97, 30

1080i

50, 59.94, 60

1080PsF

23.98, 24, 25, 29.97, 30

SMPTE 2048-2

4:2:2 Y’ Cb’ Cr’ 10-bit

1080p

2048

47.95, 48, 50, 59.94, 60

4:4:4 Y’ Cb’ Cr’ 10-bit or RGB 10bit

1080p

23.98, 24, 25, 29.97, 30

1080PsF

23.98, 24, 25, 29.97, 30

6G-SDI

SMPTE 2081 / 4:2:2

Y’ Cb’ Cr’ 10-bit

2160p

3840 / 4096

23.98, 24, 25, 29.97, 30

12G-SDI

SMPTE 2082 / 4:2:2

Y’ Cb’ Cr’ 10-bit

2160p

3840 / 4096

47.95, 48, 50, 59.94, 60
