Hedbox UNIX-URSA - V-lock Plate for URSA

Informatie

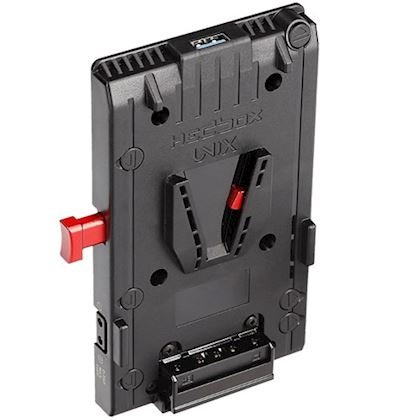

Hedbox UNIX-URSA V-Lock Mount Professional Cine Battery Plate with 1 x USB (5.1V/2.1A) + 3x D-Tap (14.8V/10A) and 1x Breakaway 50cm Cable with 15cm (length) / Unregulated 12-Pin MOLEX.

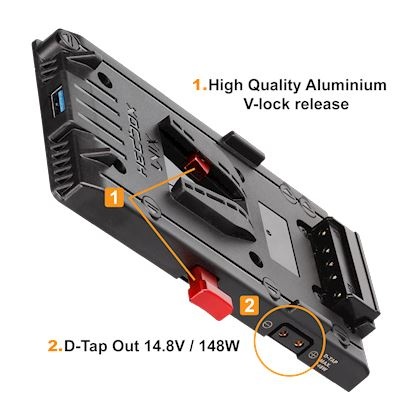

UNIX Professional Cine Battery V-Mount Plate enables the use of V-Lock battery packs on cameras and/ornumerous professional peripherals simultaneously. Featuring a high-quality aluminiumv-lock release, Hedbox UNIX plates are designed and tested for up to 10,000 battery cycles.

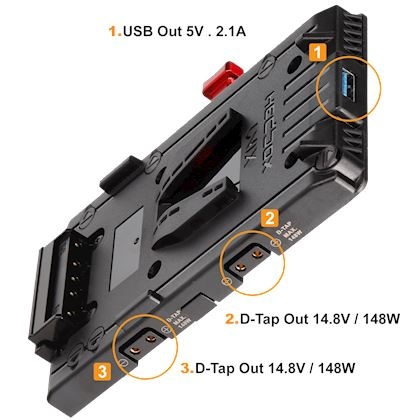

Three (3) D-Tap DC Power Outputs provide 14.8V/10A for extra devices and peripherals such as on-board recorders, LED lights, monitors, remote follow focus, wireless transmitters etc.

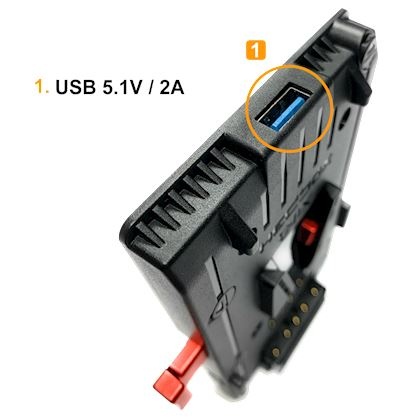

A built-in USB 5V / 2.1A Power Output is located on the top of the UNIX plate.

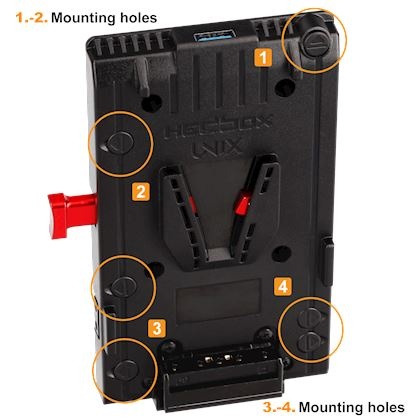

Designed with versatility in mind UNIX plates have multiple mounting holes to provide universal camera

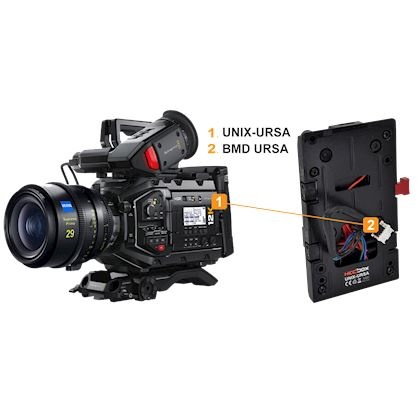

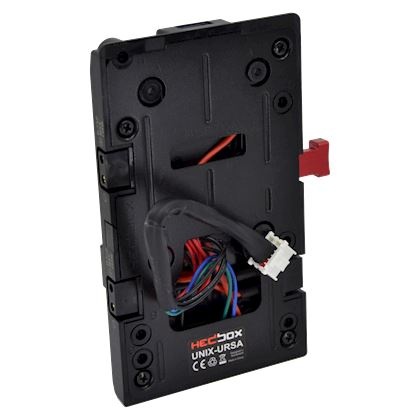

connection or peripheral mounting - 4x M3x12 screws are included with UNIX to mount the plate as required. The UNIX-URSA includes a hard-wired power cable with 15cm (length) / Unregulated 12-Pin MOLEX that can be used to power BM URSA Cameras.

What's in the box?

• 1 x UNIX-ZE2 V-lock Power Adaptor Plate
• 1 x Screw Set (4 x M3x12 screw)
• 1 x User Manual (English)
