Informatie
Relatively small and lightweight, the DZOFilm VESPID Lens is well suited for independent and high-end full-frame cinematography. The lens has an 80mm front diameter, allowing it to work with virtually any cine-style matte box. The small size makes this lens an attractive option when working with drones and gimbals, as well as when shooting handheld or run-and-gun. The interchangeable PL mount allows you to use the fully manual lens on a variety of modern and vintage cine cameras, while the full-frame coverage supports sensors that have an image circle up to 46.5mm for use on cameras with sensors up to full-frame without vignetting.
The 16-blade iris, which is consistent throughout the VESPID prime lens lineup, creates round out-of-focus highlights that have a more natural appearance and contribute to the lens's natural-looking bokeh. The focus ring features 270° of rotation for precise focus pulls, and the iris ring a generous 64° of rotation. Cine-style gear rings on the focus and iris rings make the lens compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The lens has a magnetically attached rear filter for ND filters.

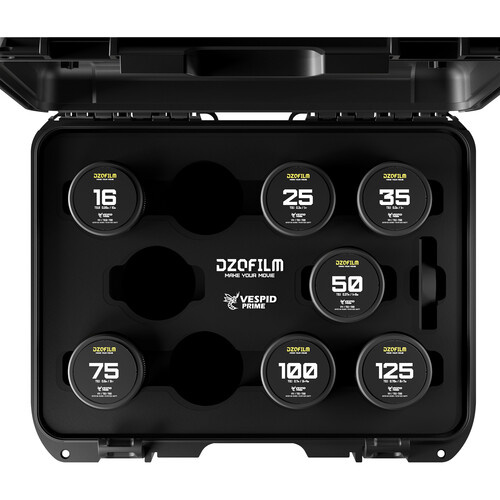

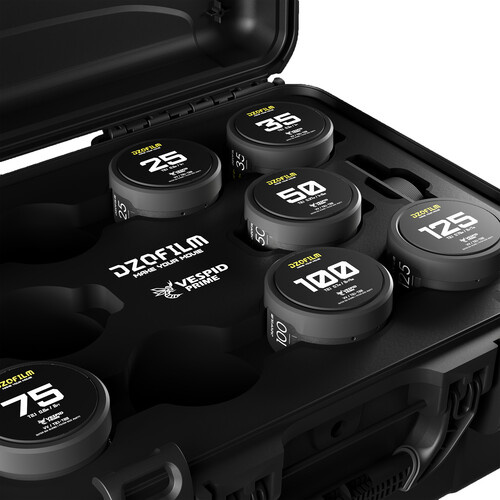

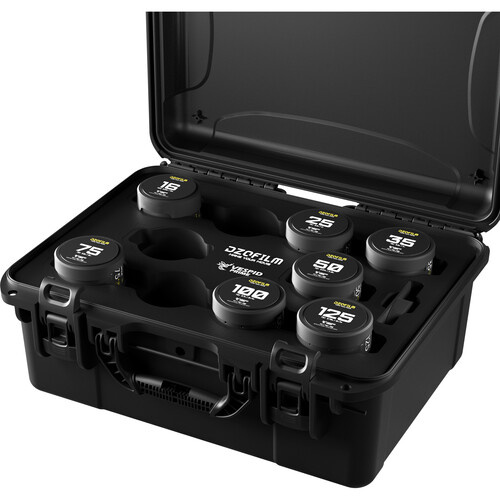

What's in the Box?
- DZOFilm VESPID 16mm T2.8, 25,35,50,75,100,125mm T2.1 Lens (PL Mount)
- 7 x Front Lens Cap
- 7 x Rear Lens Cap
- Limited 1-Year Warranty
Specs
| Focal Length | 16 mm | 25 mm | 35 mm | 50 mm | 75 mm | 100 mm | 125 mm |
| colour | Black | ||||||
| Mount | ARRI PL | PL/EF | PL/EF | PL/EF | PL/EF | PL/EF | |
| Aperture | T2.8- T22 | T2.1-T22 | T2.1-T22 | T2.1-T22 | T2.1-T22 | T2.1-T22 | T2.1-T22 |
| image circle | φ46.5mm(VV/FF) | ||||||
| Construction of Optics | 12 Elements in 11 Groups | 11 Elements in 9 Groups | 9 Elements in 7 Groups | 9 Elements in 7 Groups | 9 Elements in 7 Groups | 10 Elements in 8 Groups | |
| Flange Distance | 52mm(PL)/44mm(EF) | ||||||
| Close Focus (from sensor plane) |
0.25m/ 9.84" | 0.3m/1ft | 0.3m/1ft | 0.46m/1.6ft6in | 0.6m/2ft | 0.7m/2ft4in | 0.79m/2ft7in |
| Max.Mag. Ratio | / | / | / | / | / | / | / |
| Iris control | Manual (50°) | Manual (68°) | Manual (63°) | Manual (58°) | Manual (68°) | Manual (83°) | Manual (84°) |
| Focus control | Manual (270°) | ||||||
| front Dia. | ∮80mm/3.15" | ||||||
| Length (from lens front to flange plane) |
87mm/3.4" | 100mm/3.94" | 87mm/3.43" | 87mm/3.43" | 87mm/3.43" | 100mm/3.94" | 100mm/3.94" |
| Iris Blade | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Filter Size | M77 | M77 | M77 | M77 | M77 | M77 | M77 |
| Gear Pitch | 0.8 Mod | ||||||
| material | Aluminum Alloy | ||||||
| Weight (Product) | ≈930g | ≈1021g | ≈962g | ≈857g | ≈887g | ≈945g | ≈981g |
