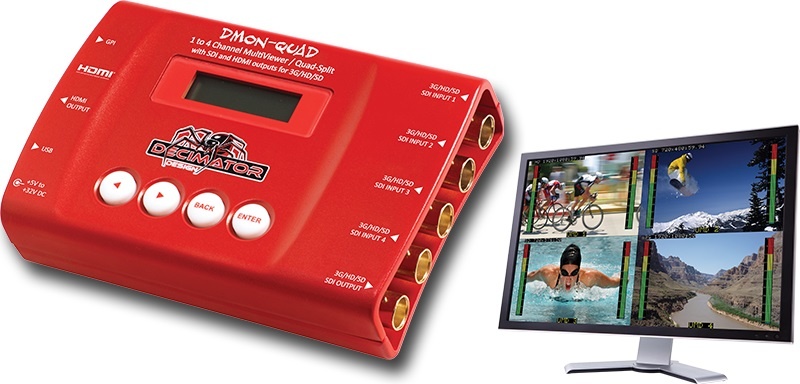

Decimator DMON-QUAD 4 x (3G/HD/SD)-SDI to HDMI

290,00 Incl. btw€290,00 Excl. btw Op voorraad
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 2.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Decimator
Beschikbaarheid:
Op voorraad
Levertijd:
Op Voorraad (3 - 7 werkdagen)

Informatie

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters

Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B

Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer

Custom Layouts with various standard layouts

16 Character UMD overlay per window with individual enables, custom positioning and size

8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

Horizontal and/or Vertical image flipping per window

Audio ID overlay

Tallies can be applied to either Tally Boxes (Default) or Border

Tally boxes allows for up to 4 Tallies per window

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

Linked (3G/HD/SD)-SDI and HDMI outputs

4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

GPI on RJ-45 connector for Tallies and Remote Switching

RS422/485 on RJ-45 connector for Dynamic UMD and Tallies

USB port for control and firmware updates

Robust Aluminium box

Metal Thread Locking DC Power Socket

Power Supply, HDMI Cable and USB Cable
