Decimator DMON-4S
€665,50 Incl. btw€550,00 Excl. btw
Niet op voorraad, contacteer ons
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Lees meer
- ECO friendly webshop
- Persoonlijk advies
- 30 jaar ervaring
- Meer dan 4.000 producten
- Secure payment
- Registreer en ontdek je voordelen
Specificaties
Merk:
Decimator
SKU:
DMON-4S
Beschikbaarheid:
Niet op voorraad, contacteer ons
Verwachte levertijd:
Levertijd op aanvraag
Informatie

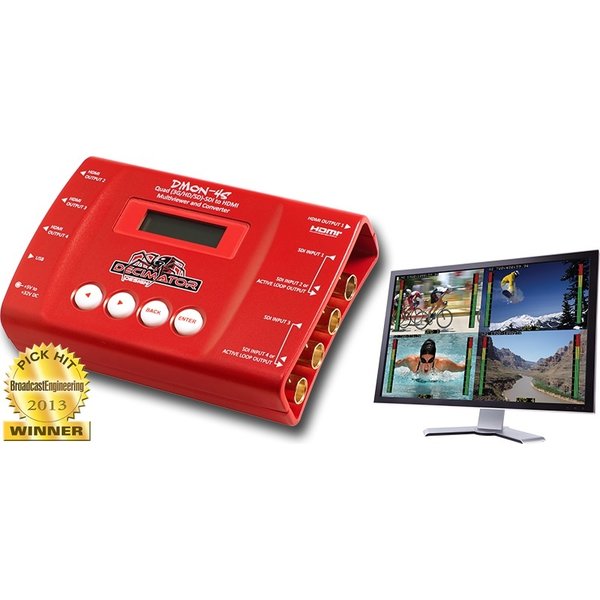

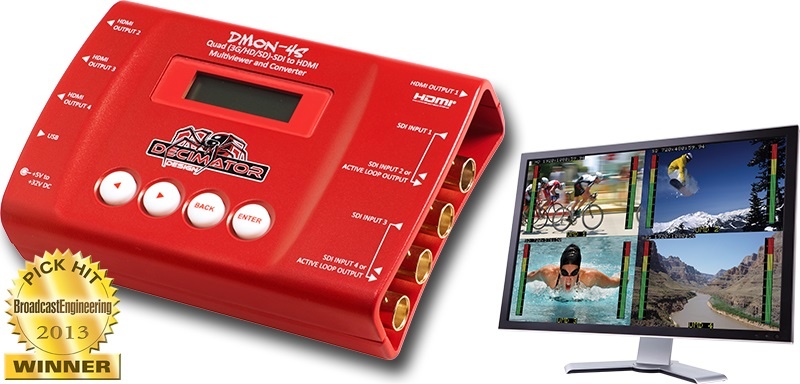

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters
Multi-View mode now includes 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Support for both 3G level A and B on the inputs.
Horizontal and/or Vertical image flipping per window
Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them. For example you could use the unit to have:
4 independent SDI to HDMI converters
3 independent SDI to HDMI converters with a quad-split output
2 independent SDI to 2 x HDMI converters with loop through
A single SDI or Multi-View to 4 x HDMI outputs
Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.
Multi-View mode offers:
- Custom Layouts with various standard layouts
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selection of audio from any input
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- Low latency buffering for each input allowing non-synchronous inputs
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
The DMON-4S is a truly portable converter, that incorporates our new
easy to use LCD and button control system.This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
