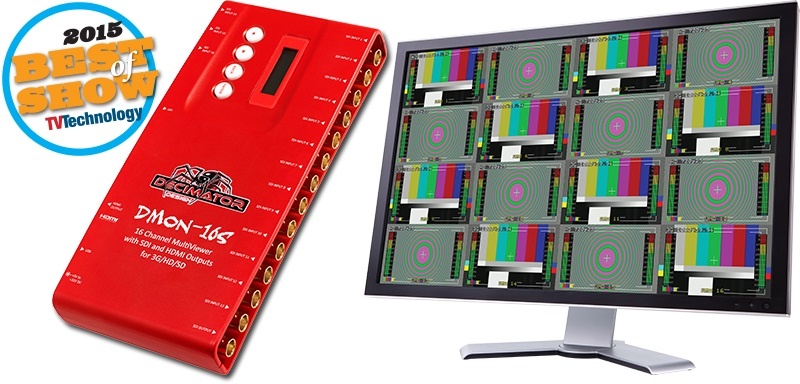

Decimator DMON-16S SDI and HDMI outputs for 3G/HD/SD

1.450,00 Incl. btw€1.450,00 Excl. btw Op voorraad
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 2.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Decimator
Beschikbaarheid:
Op voorraad
Levertijd:
Op Voorraad (3 - 7 werkdagen)

Informatie

1 to 16 Channel MultiViewer
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts

Support for both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.

Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or 16 to 1 input multiplexer

Custom Layouts with various standard layouts

16 Character UMD overlay per window with individual enables, custom positioning and size

8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

Safe Action and Safe Title overlay per window with individual enables and adjustment

Centre Cross overlay per window with individual enable

Audio ID overlay

Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border

Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)

Load and restore Custom Layouts

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen and Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

Linked (3G/HD/SD)-SDI and HDMI outputs

16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching

RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol

USB port for control and firmware updates

Heavy duty metal box

Metal Thread Locking DC Power Socket

Power Supply, HDMI Cable and USB Cable
