Datavideo TLM-170KR 4K Scopeview monitor UHD (UHDPanel)

Informatie

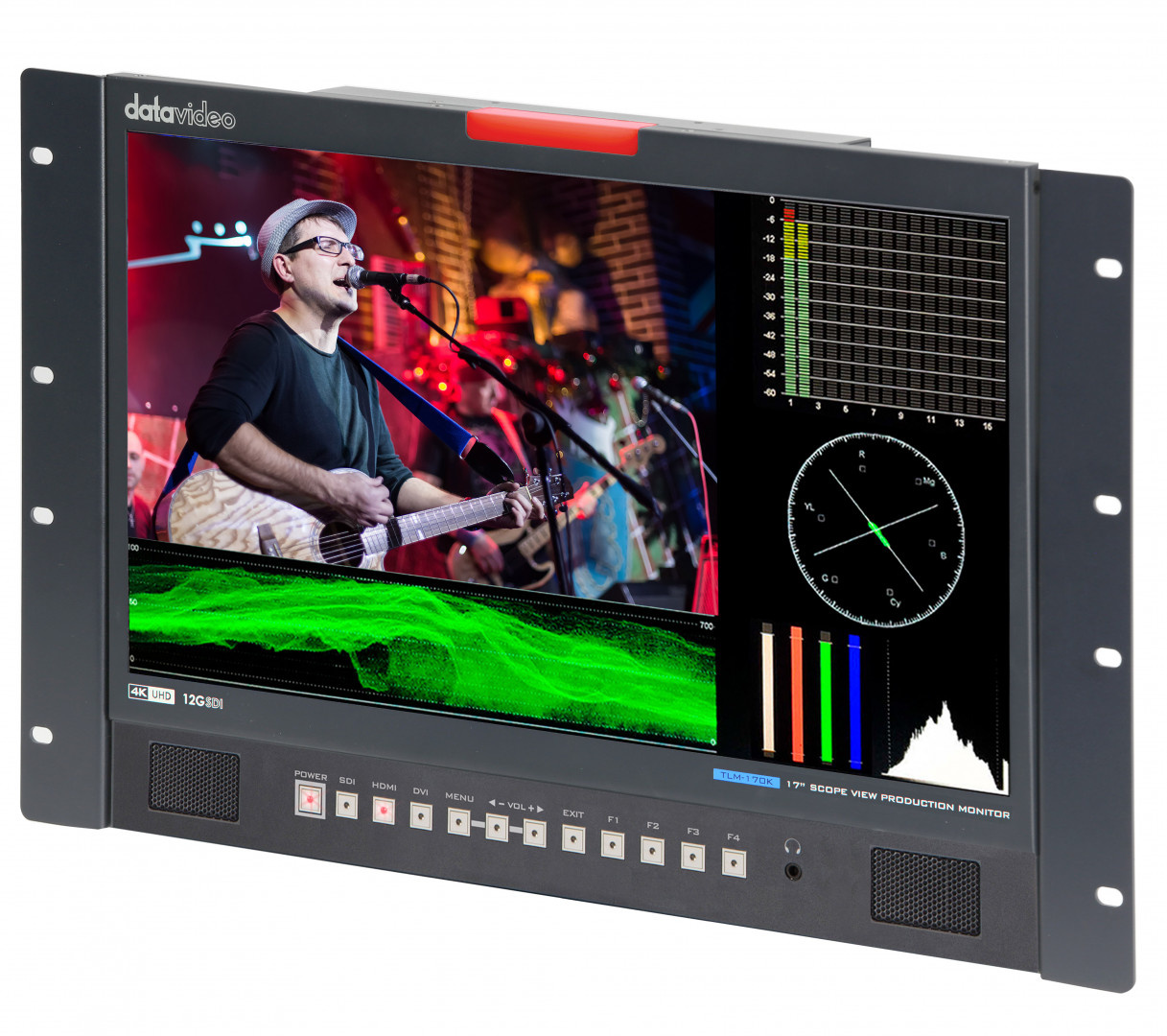

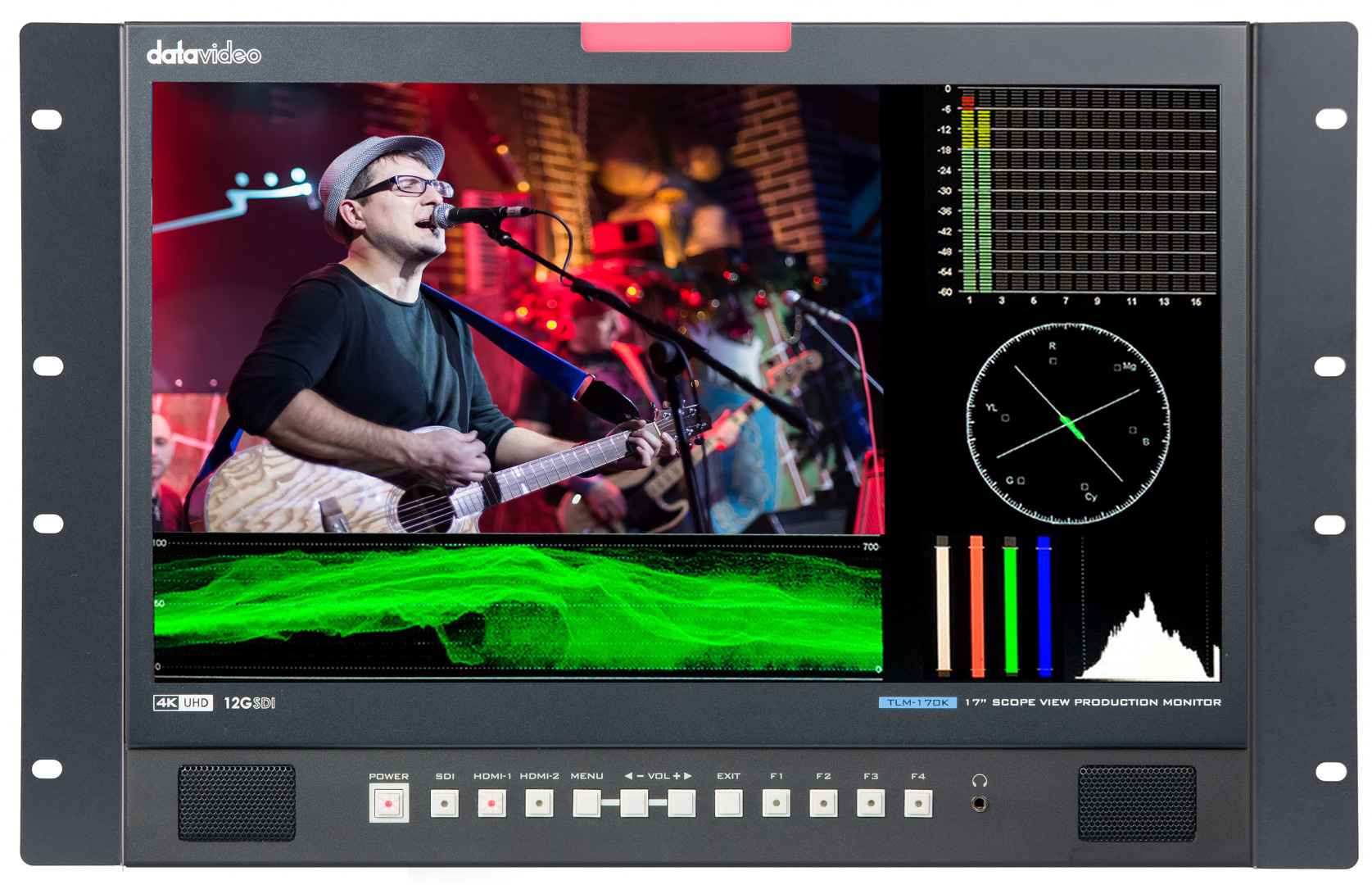

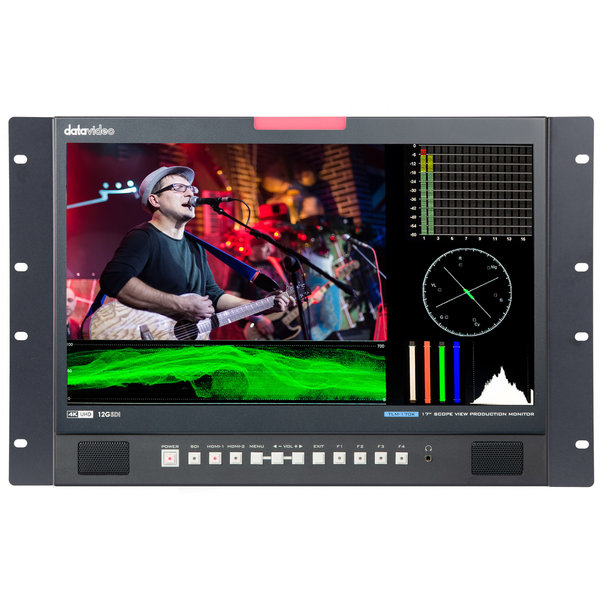

TLM-170KR 17” ScopeView Production Monitor-Rack Mount

The TLM-170KR is a rack mount 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel.  The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio.  The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

 The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more.  Moreover,  it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3.  The TLM-170K series are ideal for broadcast and live production applications.

17.3'' 4K UHD Rack Mount Monitor

Supports DCI P3 color space 4K/60p and UHD 4K/60p video input and output

Spectacular 4K Resolution High Brightness and Contrast

The TLM-170KR series apply superior Ultra HD 3840 x 2160px IPS panel.  The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HD panel.

The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.

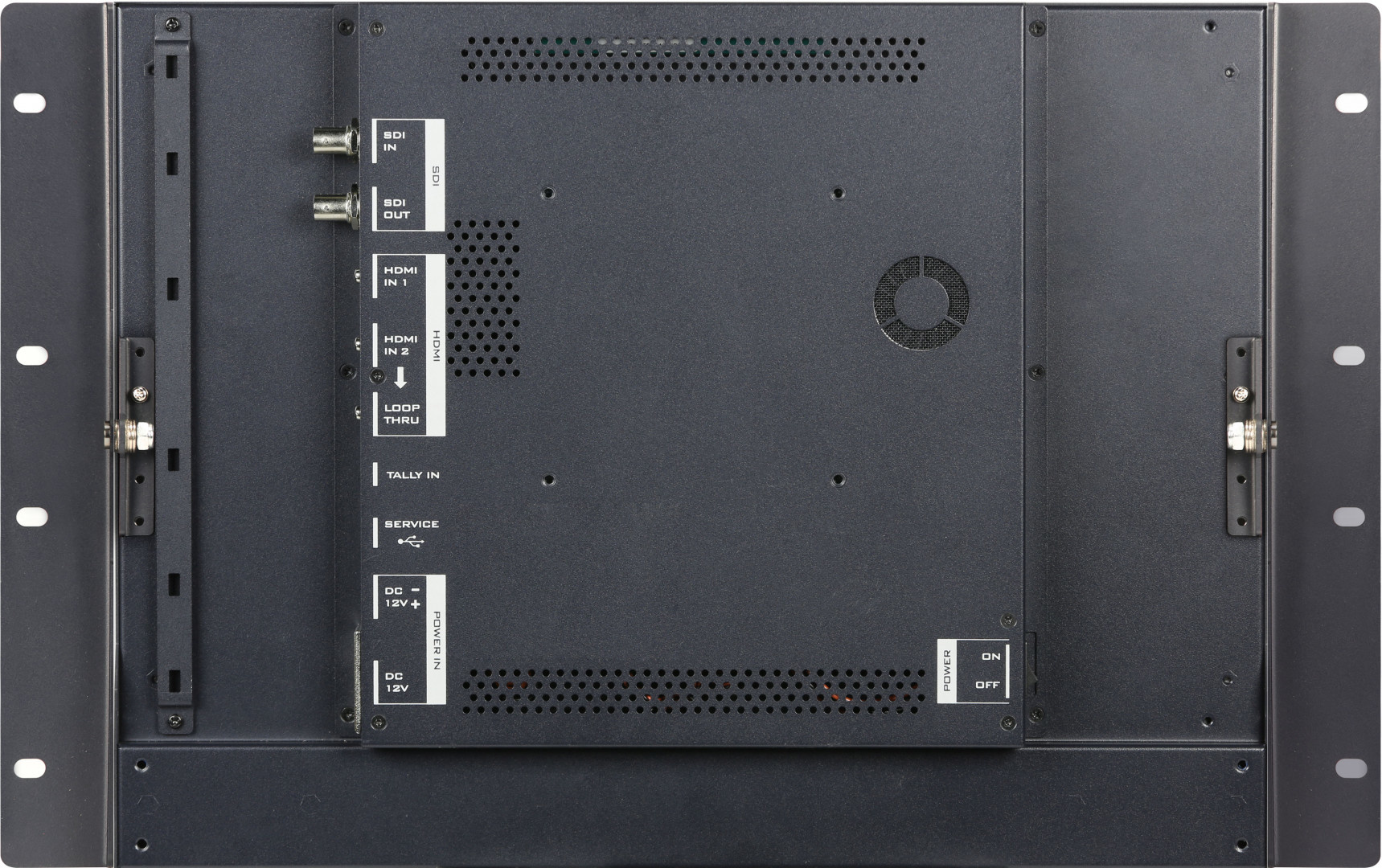

Supports Multiple Input and Output Configurations

1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;

1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through

Various Built-In Functions

Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Tally Light

Tally light included. Best use for live production.

What's in the Box?

• 1 x TLM-170KR product
• 1 x AD Switch DC 12V
• 1 x Monitor Stand
• 2 x Velcro
