Datavideo DVK-400 4K Real-time chroma keyer

Informatie

Datavideo DVK-400 4K Chromakey

DVK-400 is a professional broadcast grade live chromakey processor that works with resolutions up to 2160p60. This real-time chromakey processor provides 4:4:4 10-bit internal processing for the best results.

Chromakeying with the DVK-400 can be done on standard green and blue backgrounds, however with the addition of special features such as Open Angle and an impressive Automatic chromakey mode you can even use colours that divert from the standard.

The DVK-400 is able to chromakey very hard subjects, such as water, smoke, blonde hairs and shadows.

DVK-400 4K Chromakey Supports 4:4:4 10-bit Internal Processing

DVK-400 is compatible with the 3840 x 2160 4K signal to provide a professional real-time chromakey effect.

The DVK-400 can handle the most difficult chromakey scenes including blonde hair, a glass of water / a bottle of water, smoke, and reflective shadow simply for showing delicate and real chromakey effect.

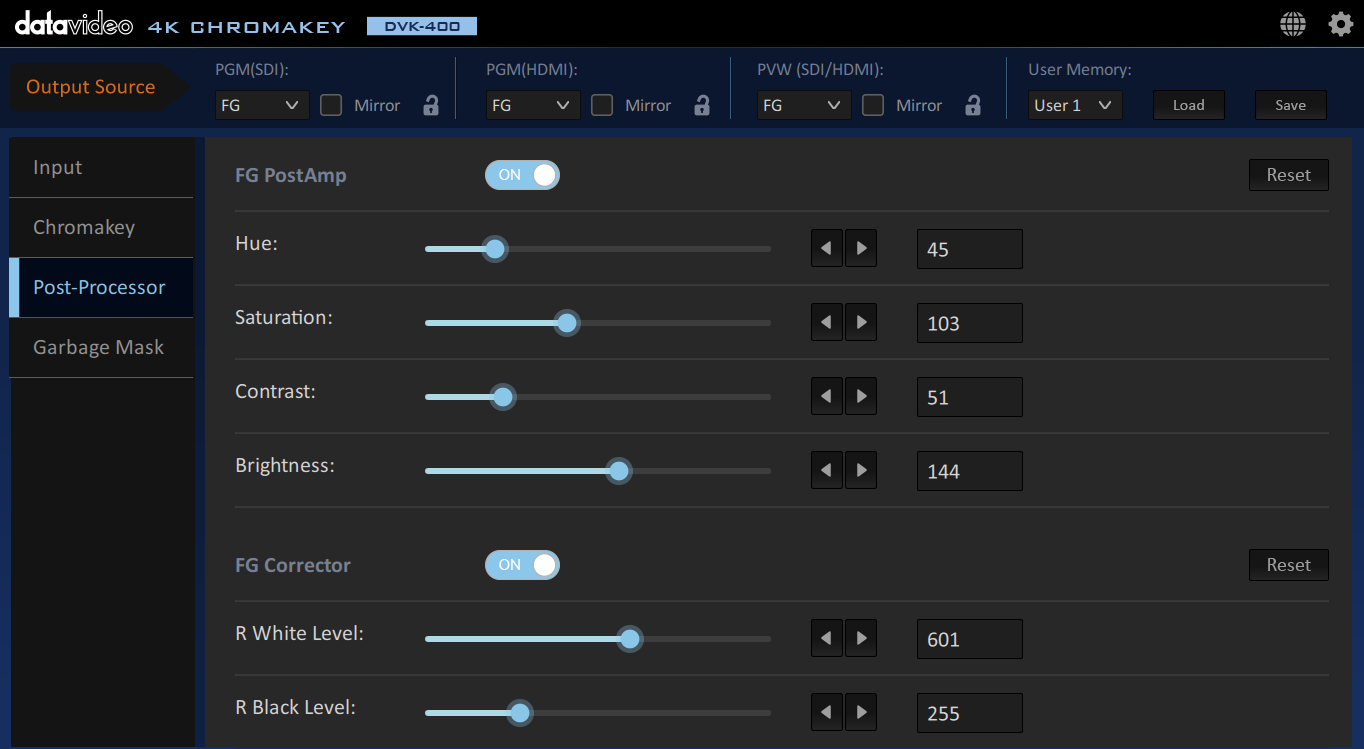

Post-Processor

After setting all the chromakey parameters, you can still adjust each video parameter like brightness, contracts, color, and saturation to combine the foreground and the background perfectly.

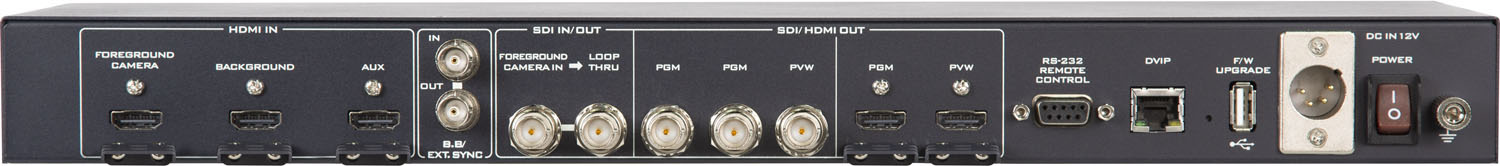

Supports 12G-SDI 60P Video

Supports up to 2160p60 over 12G-SDI or HDMI 2.0.

Switch Virtual Background Just One-Touch Needed

Using the professional intelligent touch interactive control panel TPC-700 in the DVK-400 together, it can be triggered by button to display AR objects. One operator can complete various mode by one TPC-700.

Independent and fast touch operation panel, you can preset the presentation effect of the button, without the need for complex professional technology. It's efficient and professional for chromakey video production.

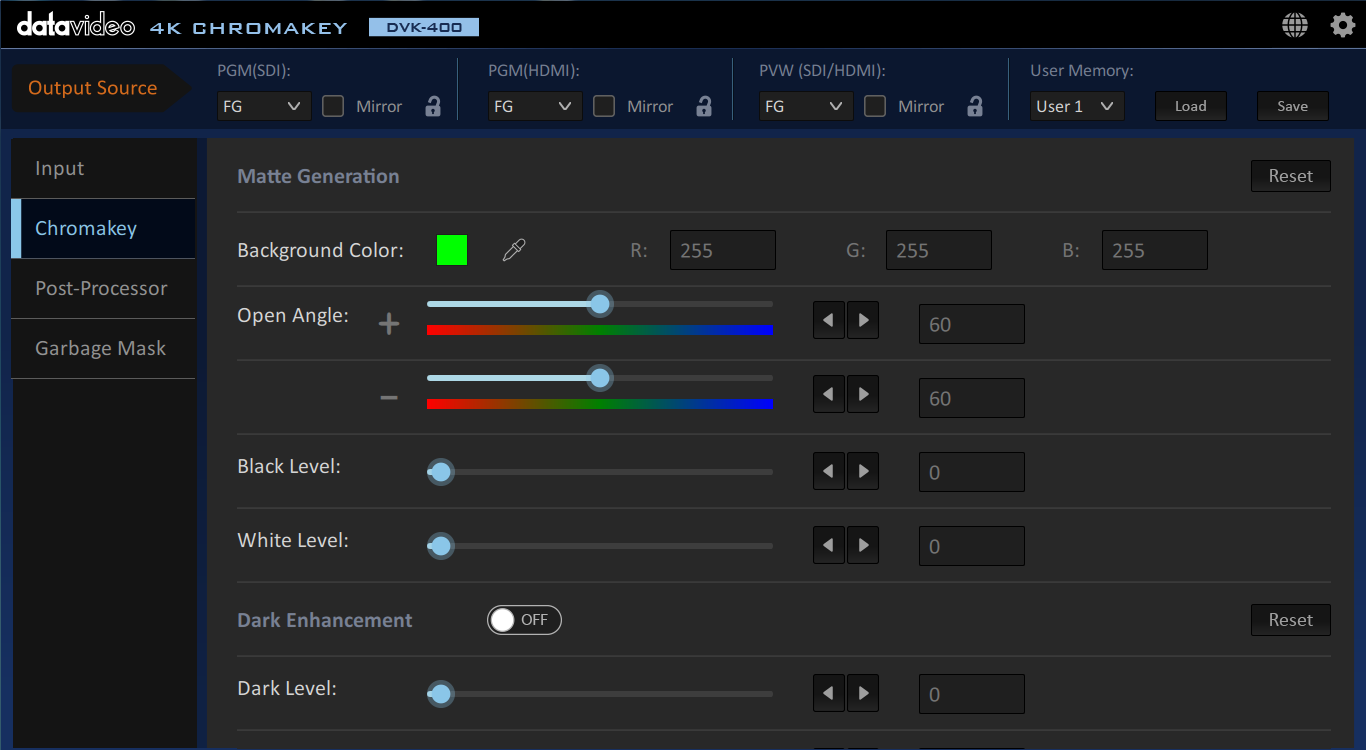

Intelligent Matte Control and Auto Spill Adjusting

The Matte precision chromakey setting allows you to adjust the profile of the object easily. The automatic spill adjusting function allows you to eliminate the reflective background color from the foreground object easily.

Preview Output for the Mirroring

The DVK-400 provides preview output for the mirroring for the subject to see the real-time composite picture to prevent the frame-out from happening. Moreover, it allows the subject to act more naturally according to the background.

Auto Chromakey by Pressing One Button without Complicated Adjusting.

The Auto key function helps you achieve professional chromakey effects, without any complicated settings, even when you don’t have the standard green or blue background.

Aux Lumakey and Layer Swapping

Producing logo by the lumakey function. The talent can naturally move in front of the animation or behind the virtual objects, presenting the perspective effect like real.

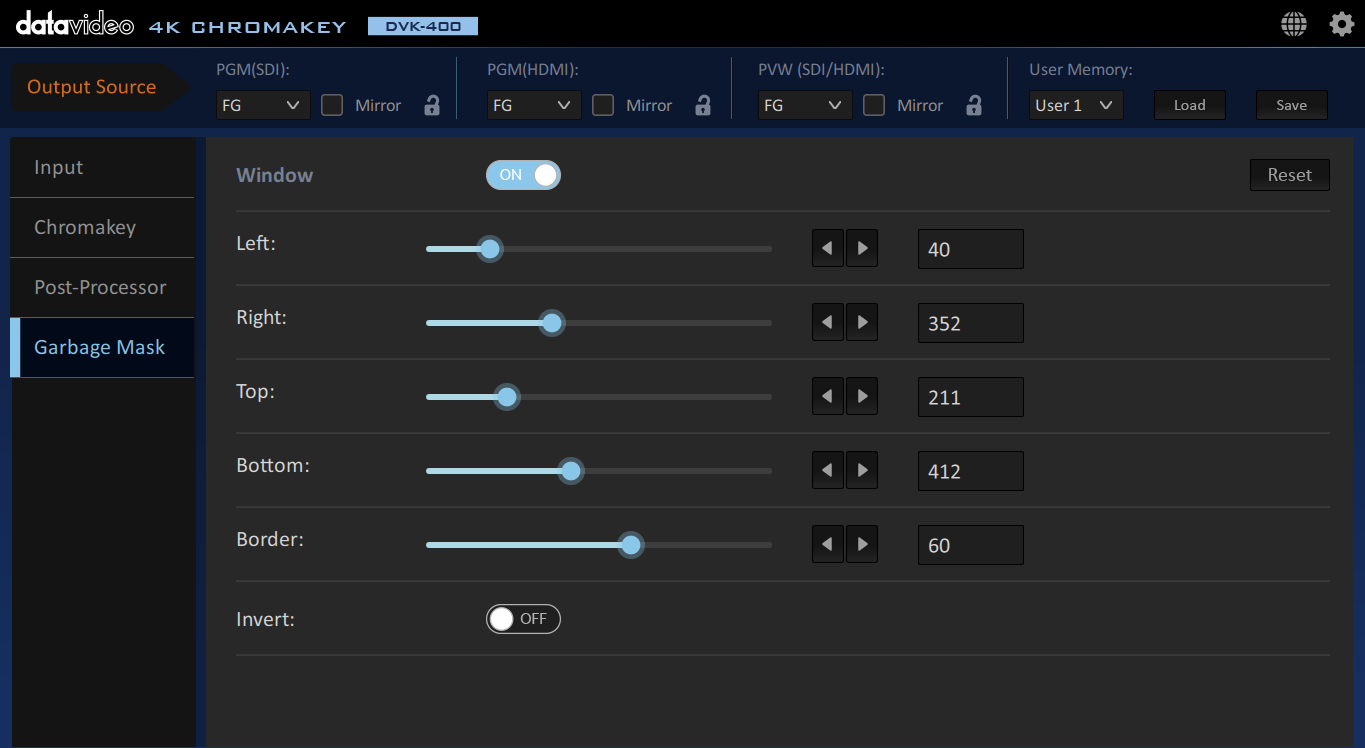

Holdout Mask

User can easily specify area of the image that wouldn't be keyed. Such as the green color on the TV screen.

Simple UI Design and Easy to Use

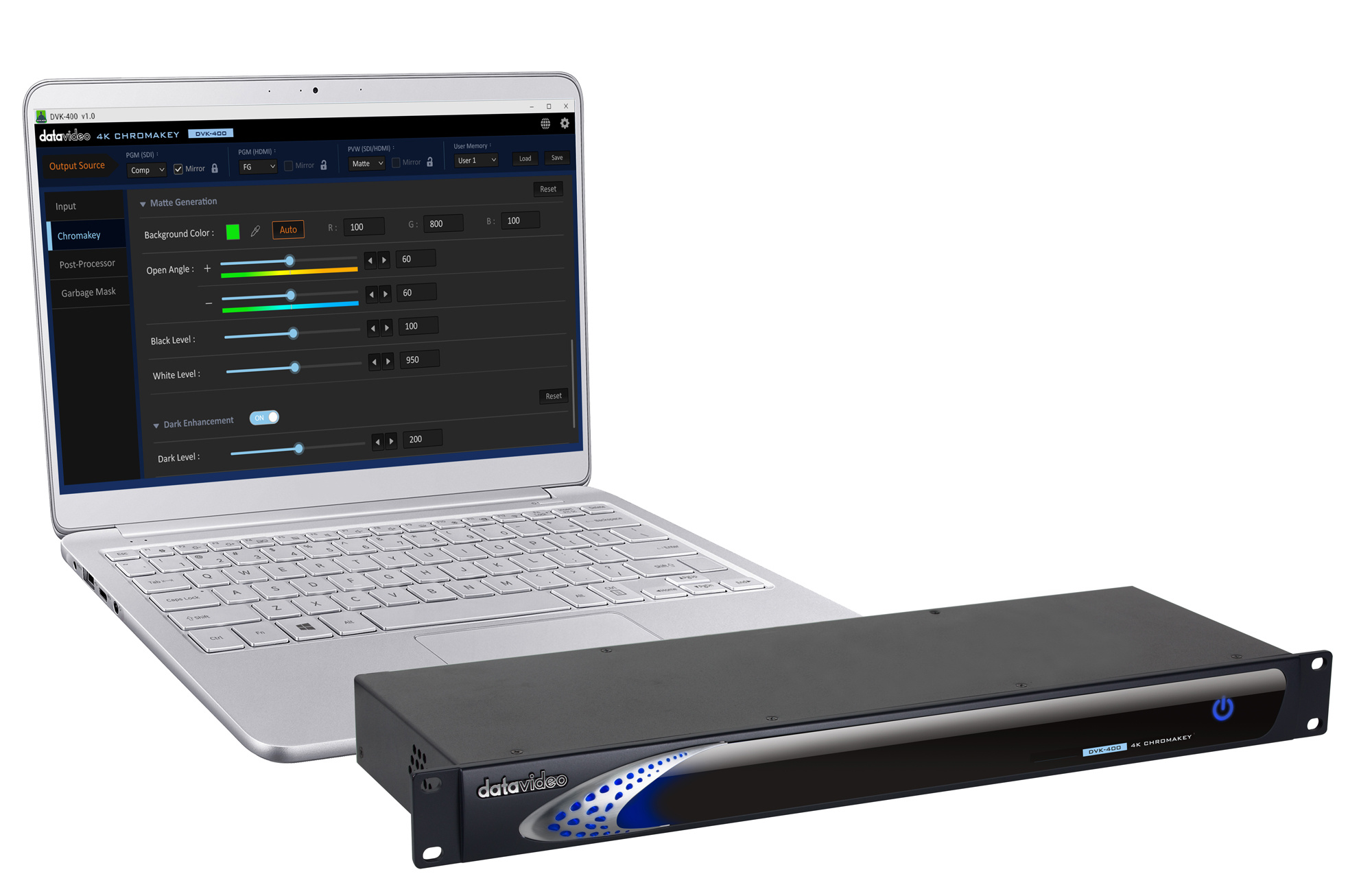

Easy to use the DVK-400 control app works on Windows computers. Connecting the DVK- 400 goes with a regular network connection and then you can set the chromakey related parameters and recall the pre-saved chromakey parameter file by connecting the DVK-400 to the Notebook PC through the IP connection.

What's in the box?

• 1 x DVK-400 Product
• 1 x Adaptor + AC Cord
• 4 x M5 screws
