Datavideo DAC-45 4K Up/Down Cross Converter

Informatie

4K up conversion

With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.

Wide range conversion for great compatibility

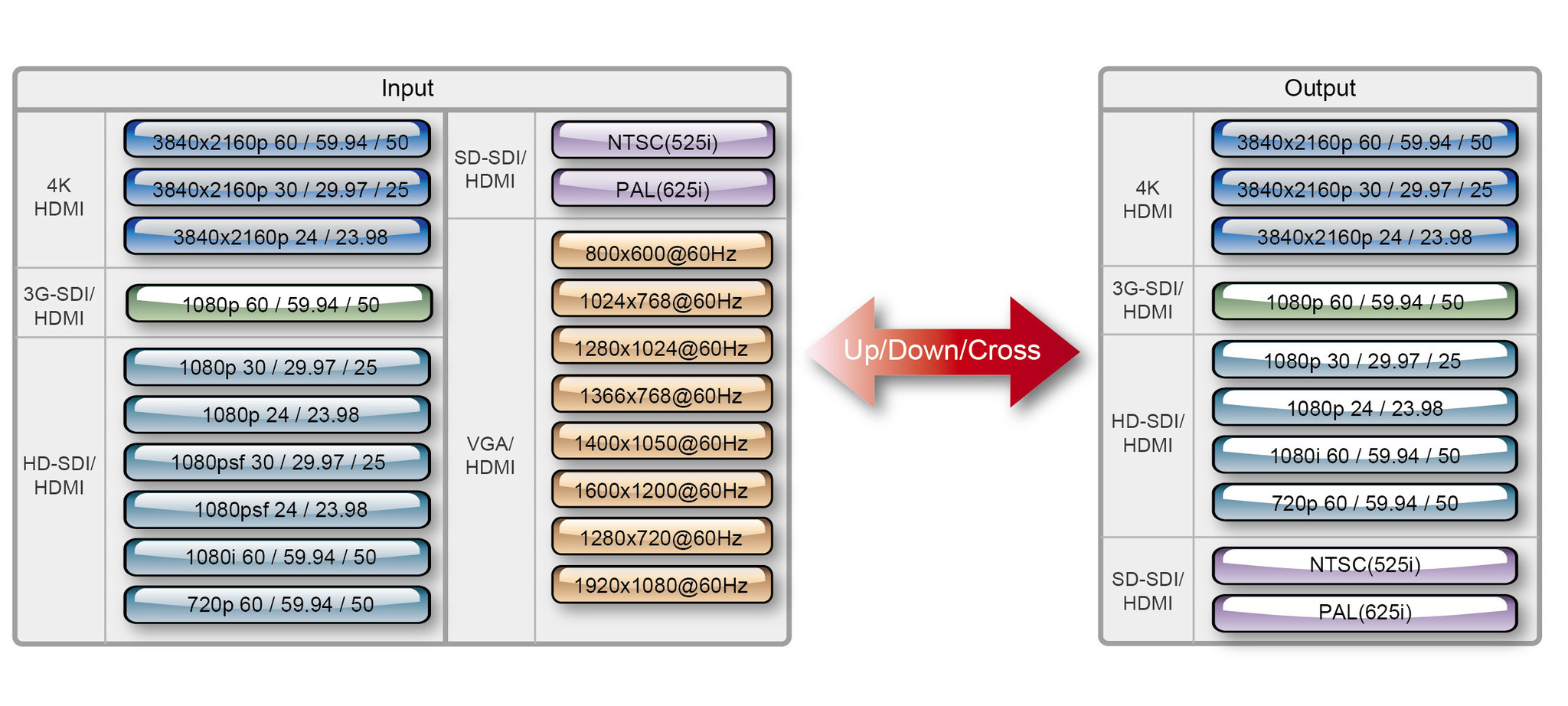

Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion.

External audio embedding

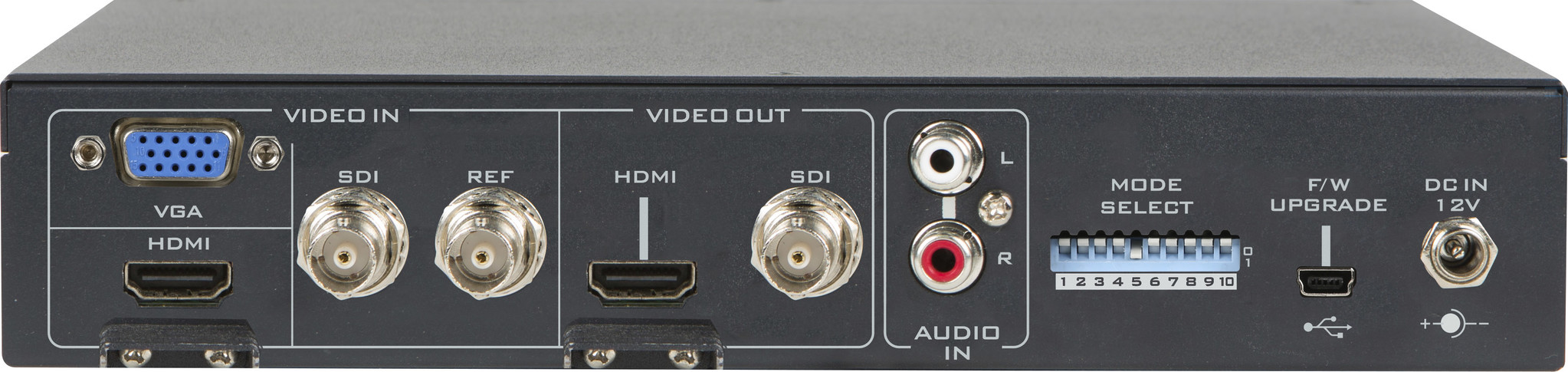

RCA inputs allow audio to be embedded to the output of the video signal.

Supports 3G-SDI Level A/B

With the 3G-SDI system, it supports both 3G-SDI Level A/B input.

Reference input (Black Burst and Tri-Level Sync.)

Supports Black Burst and Tri-Level Sync for all inputs.

Built-in De-interlacer and Interlacer (I/P conversion)

Supports I/P conversion to avoid the dense misaligned horizontal lines on the video.

Adjustment of HDMI color space

The DAC CENTER software allows adjustment of HDMI color space. Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workflow.

Easy installation on the rack

Available RMK-1 rack allows two DAC-45 to be racketed in a 19” rack.

What's in the box?

• 1 x DAC-45
• 1 x AD Switch DC 12V
