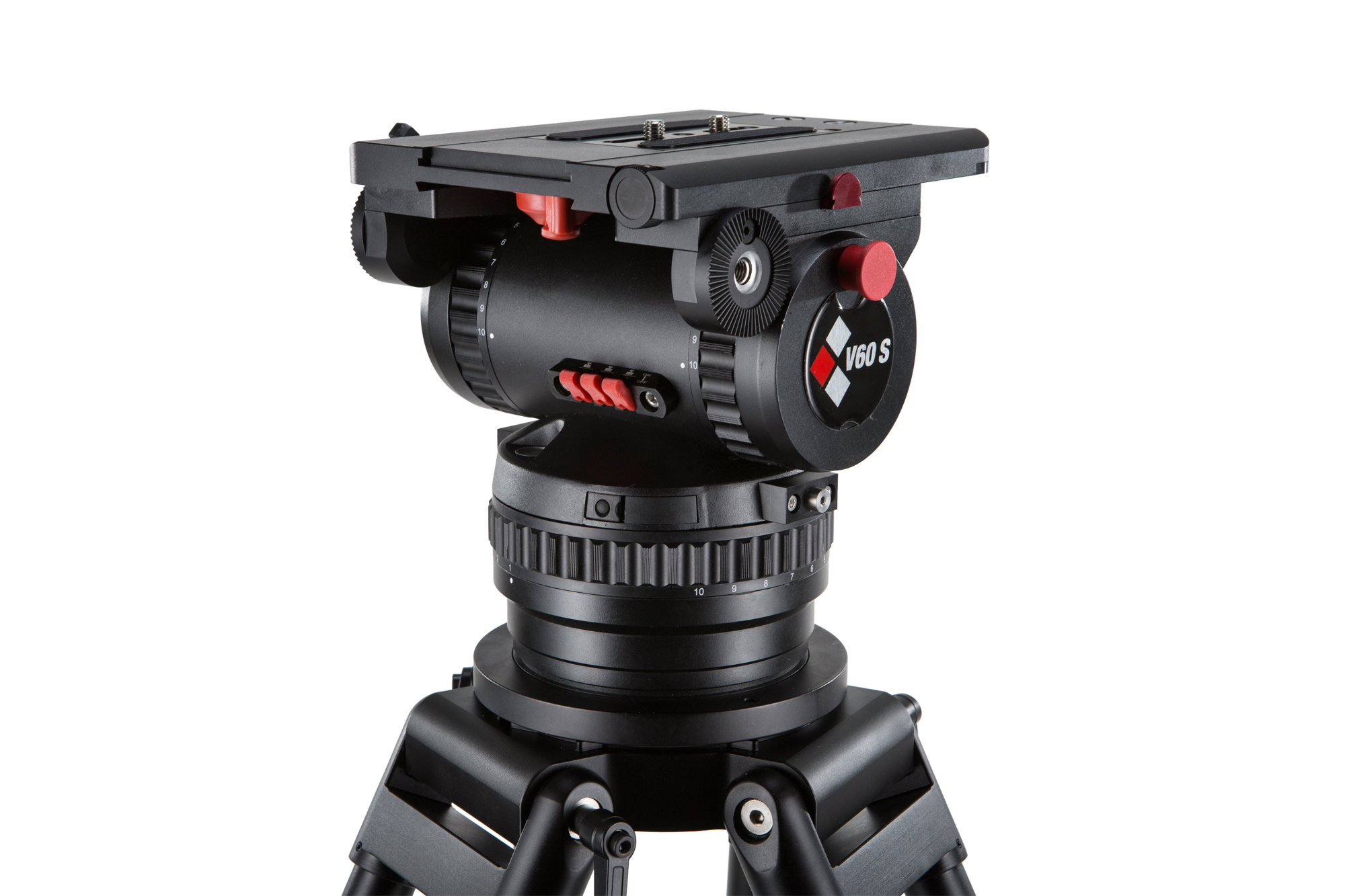

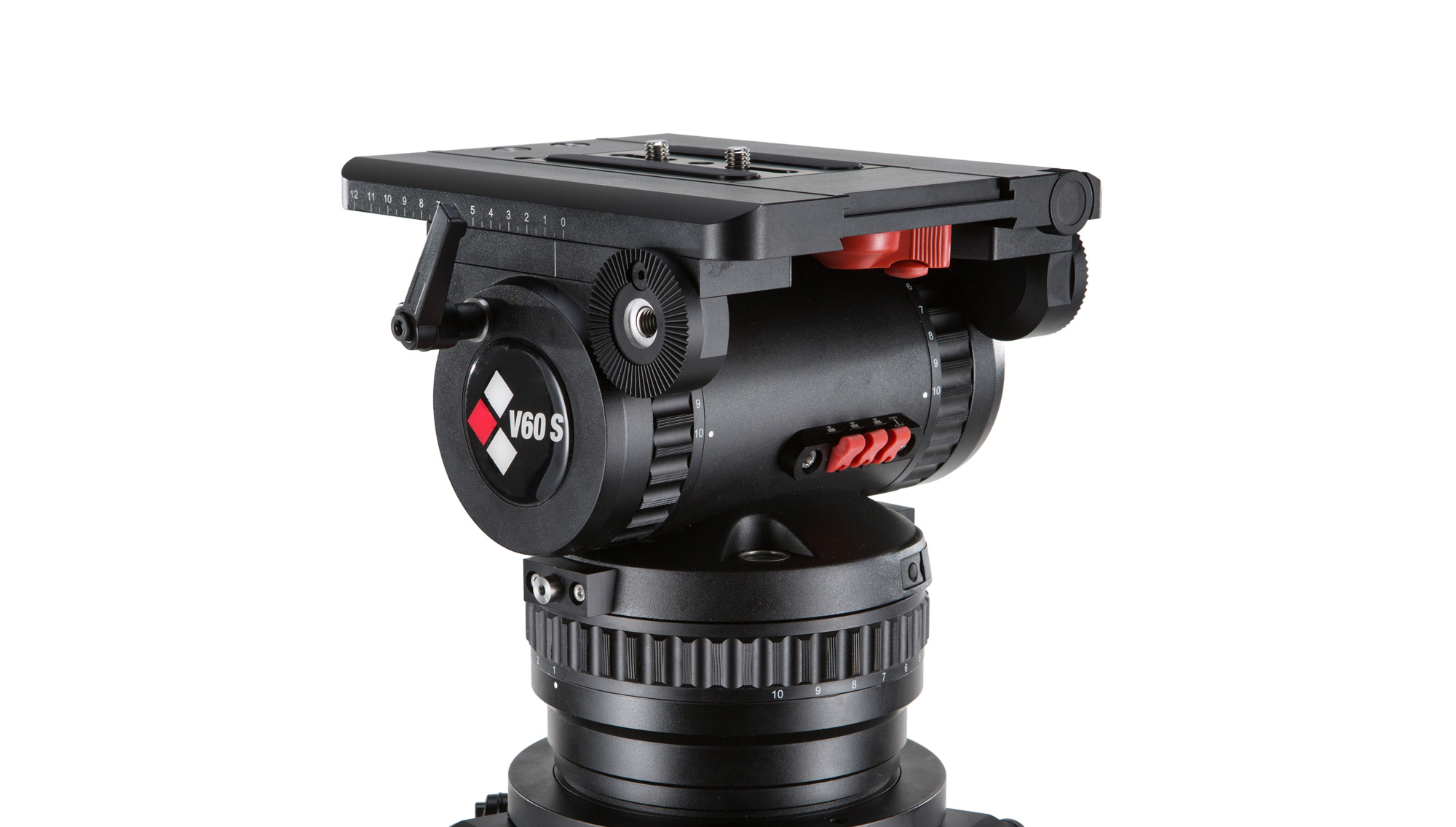

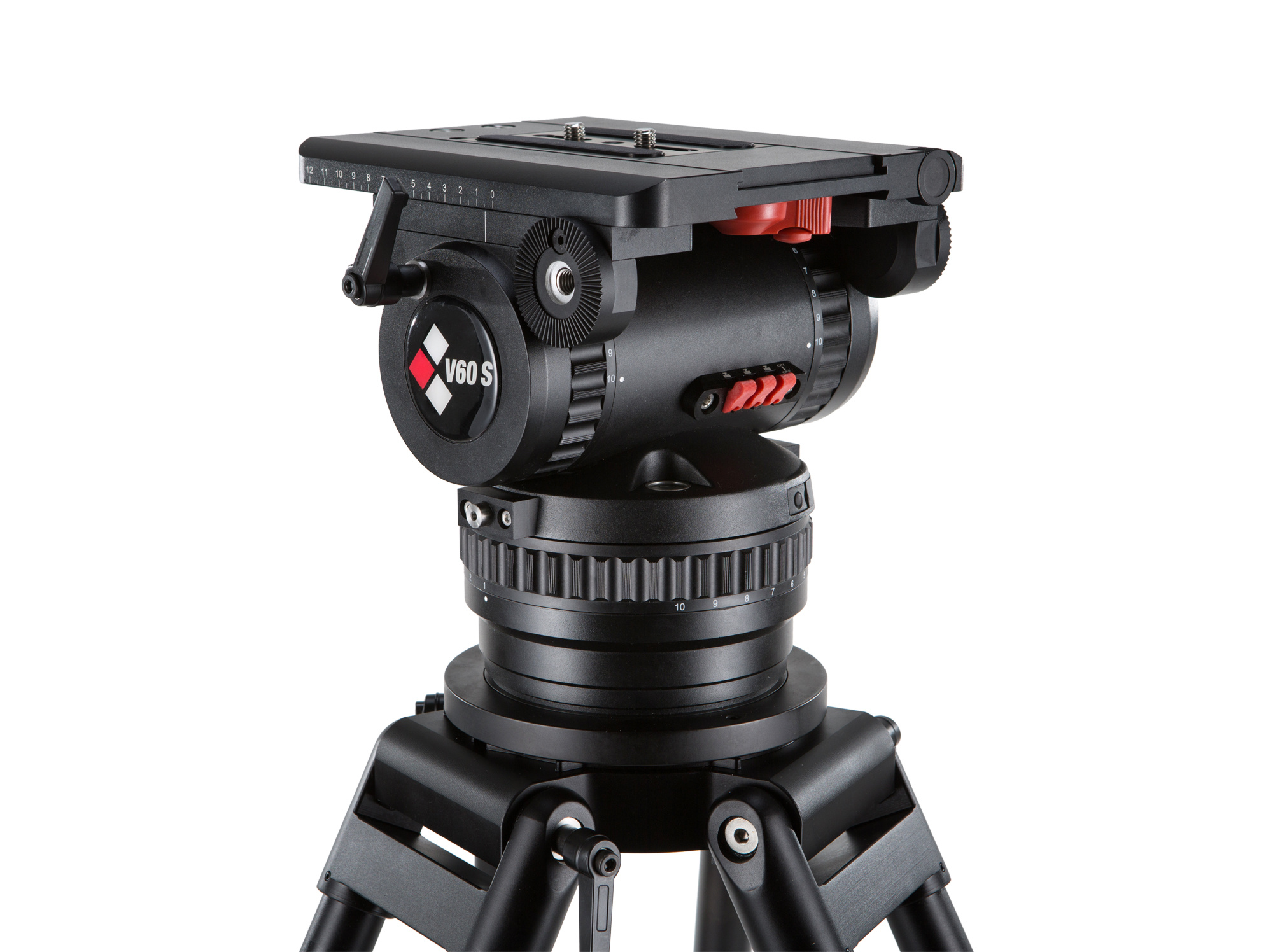

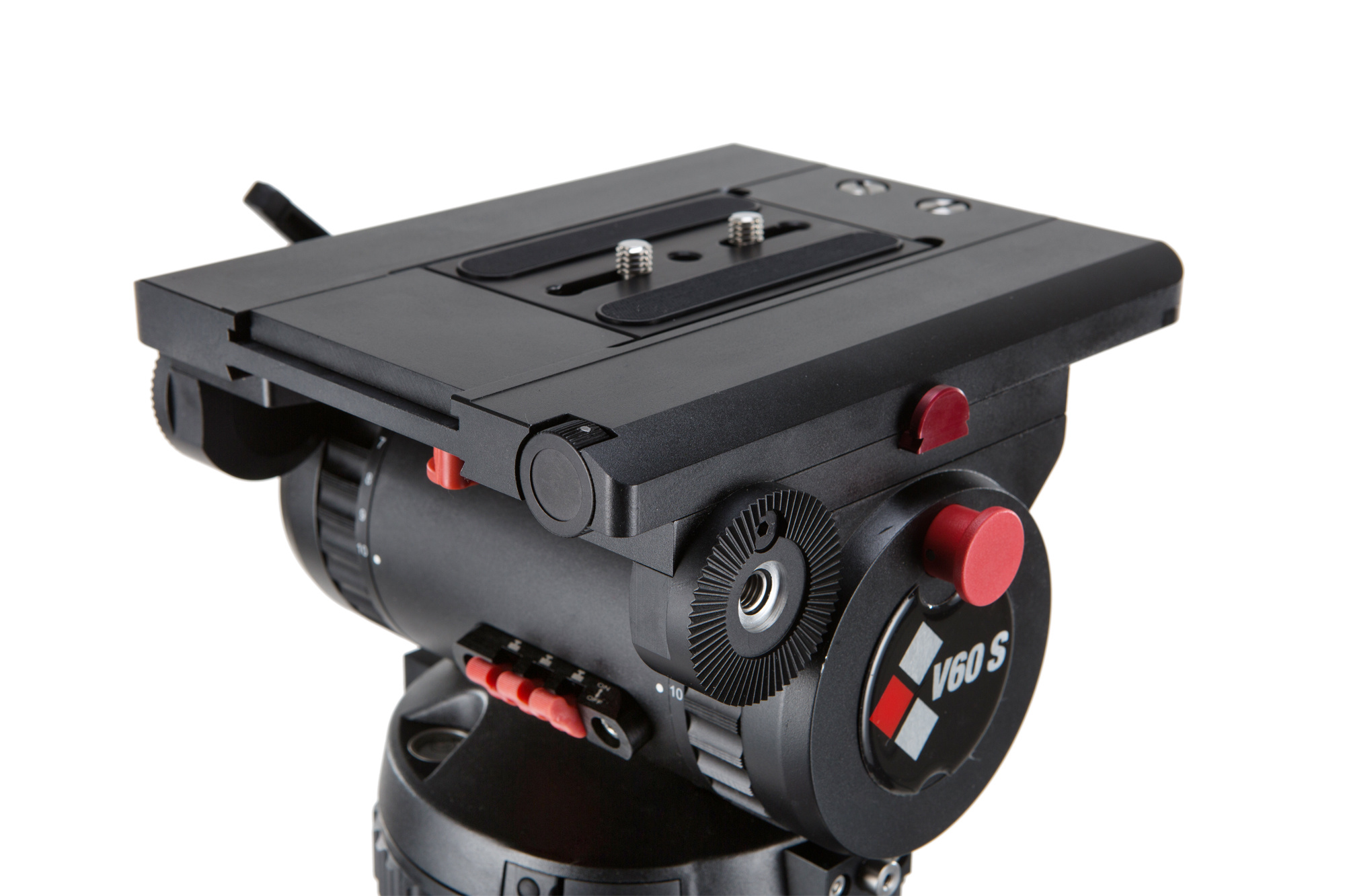

Camgear V60S EFP Fluid Head (4-Bolt Flat Base)

Informatie

4-Bolt flat base Fluid Head incl. Wedge Plate WP-6 & 2x Telescopic Pan Bar PB-3 (Left & Right) & Travelling Case V60/V90 (Mitchell Adapter and Locking Knob are not included)

• Selectable 10 positions pan & tilt drag including zero position, offer operators silky smooth movement, precise motion tracking and shake-free shot.
• Selectable 10 position counterbalance dial wheel plus center-added 3 more position, thanks to 10+3
  counterbalance position system, it can do much finer adjustment for the camera to reach the perfect counterbalance.
• Perfect solution for various heavy EFP applications.
• Equipped with Euro plate quick-release system, which enables faster set-up of camera. It also has sliding knob to allow easy adjustment of the horizontal balance of camera.
• Equipped with assembly lock mechanism, which ensures safe set-up of equipment

Specifications:

• Maximum Payload 70 kg/154.3 lbs
• Counterbalance Range 0-70 kg/0-154.3 lbs (at C.O.G 125 mm)
• Camera Platform Type Euro plate (Camgear WP-6)
• Sliding Range 120 mm/4.7 in
• Camera Plate Double 3/8” screw
• Counterbalance System 13 steps (1-10 & 3 Adjusting levers)
• Pan & Tilt Drag 10 steps (1-10)
• Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
• Temperature Range -40°C to +60°C / -40 to +140°F
• Levelling Bubble Illuminated Levelling Bubble
• Weight 12.66 kg/27.9 lbs
• Tripod Fitting 4-Bolt Flat Base
