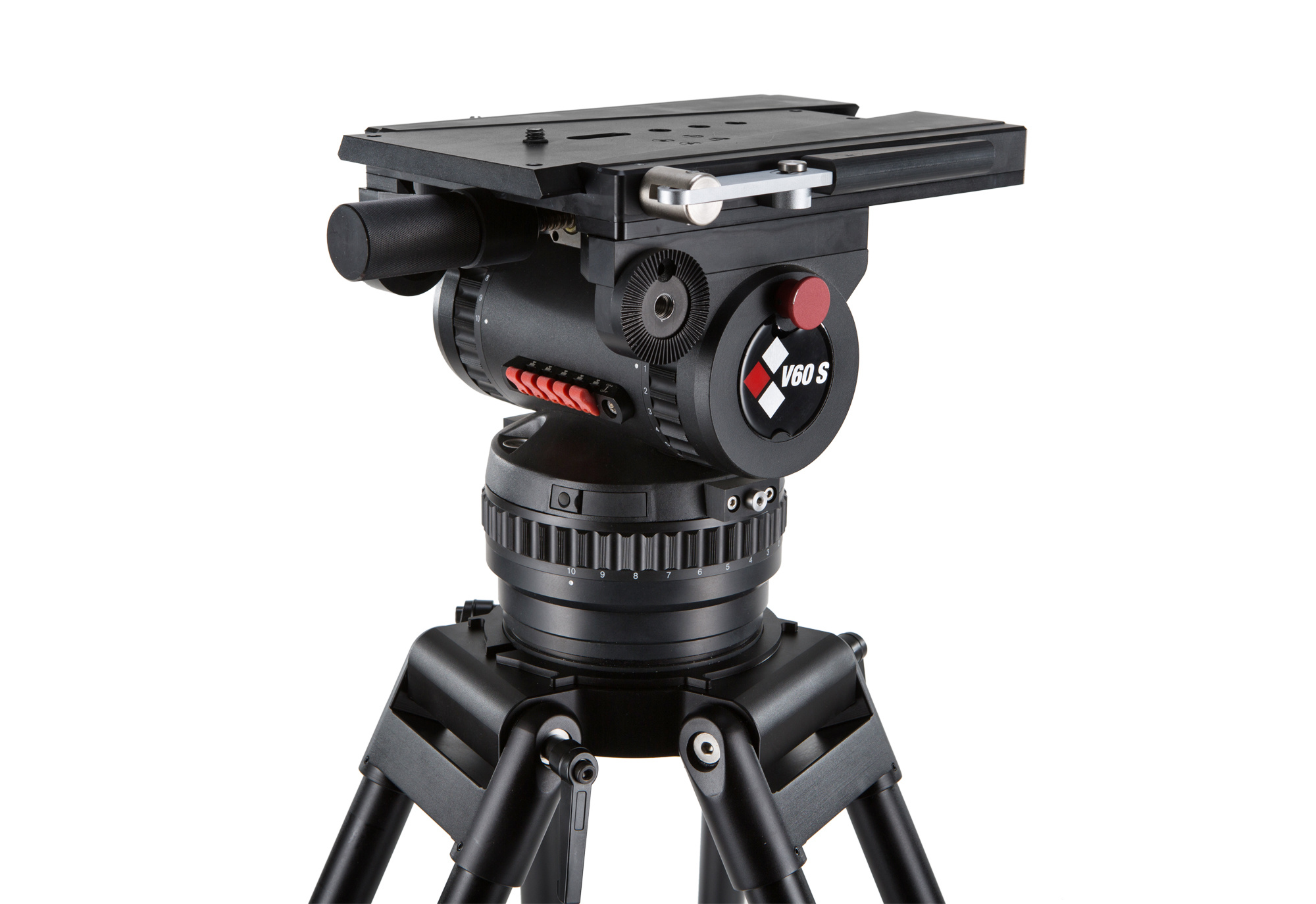

Camgear V60 Studio/OB Fluid Head (4-Bolt Flat Base)

Informatie

4-Bolt flat base Fluid Head incl. V-Plate & 2x Telescopic Pan Bar PB-3 (Left & Right) & Travelling Case V60/V90 (Mitchell Adapter and Locking Knob are not included)

Selectable 10 positions pan & tilt drag including zero position, offer operators silky smooth movement,
precise motion tracking and shake-free shot.

Selectable 10 position counterbalance dial wheel plus center-added 5 more position, thanks to 10+5
counterbalance position system, it can do much finer adjustment for the camera to reach the perfect
counterbalance.

Perfect solution for various OB and studio applications.

Its balance plate has a sliding range of up to 180 mm/7.1 in, allowing you to safely balance the camera
at any tilt angle.

It has easy-identified, direct-response and vibrationfree pan and tilt brakes.

Equipped with assembly lock mechanism, which ensures safe set-up of equipment.

Specifications:

• Maximum Payload 60 kg/132 lbs
• Camera Platform Type V-Plate
• Sliding Range 180 mm/7.1 in
• Camera Plate Double 3/8” screw
• Counterbalance System 15 steps (1-10 & 5 Adjusting levers)
• Pan & Tilt Drag 10 steps (1-10)
• Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
• Temperature Range -40°C to +60°C / -40 to +140°F
• Levelling Bubble Illuminated Levelling Bubble
• Weight 15.52 kg/34.2 lbs
• Tripod Fitting 4-Bolt Flat Base
