Specificaties
Gerelateerde producten
Informatie

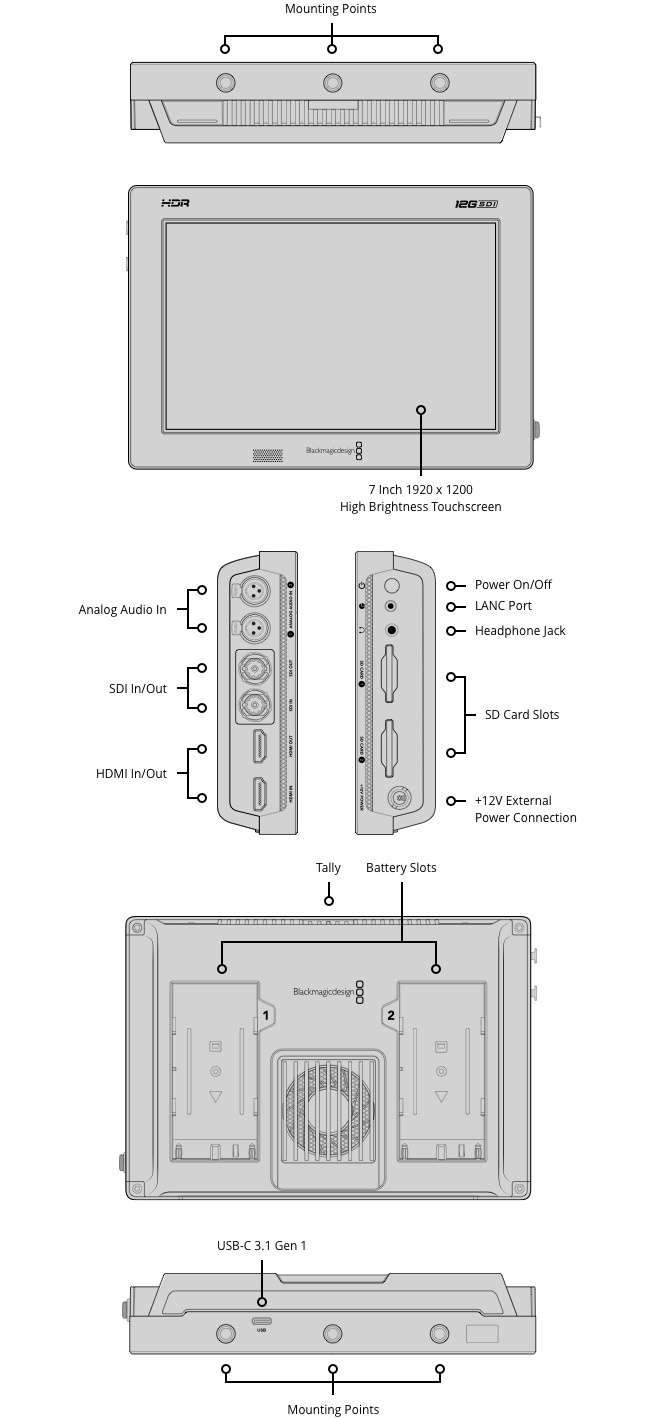

Connections
SDI Video Inputs: 1
SDI Video Outputs: 1
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs:1
HDMI 2.0a Video Outputs: 1
Analog Audio Inputs: 2 x balanced mini XLR with phantom power
Analog Audio Outputs: 1 x 3.5 mm headphone jack.
Built in Speaker: Mono
Screen Dimensions: 7 inch 1920 x 1200.
Screen Brightness: 2500nits
Screen Color: P3 wide color gamut
SDI Audio Inputs: 16 channels embedded via 12G-SDI
SDI Audio Outputs: 16 channels embedded via 12G-SDI
HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
Remote Control: 1 x 2.5mm LANC for Record Start and Stop.
SD Interface: Dual UHS-II SD slots
Storage Type
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
SDI Metadata Support
HD RP188
Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020
HDR Support
HDR10, Hybrid Log Gamma
Multiple Rate Support
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
SDI RAW
Blackmagic RAW
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
HDMI Color Precision
10-bit
HDR Support
HDR10, Hybrid Log Gamma
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
Media Type
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supported Codecs
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1,Blackmagic RAW Constant Bitrate 8:1,Blackmagic RAW Constant Bitrate 12:1,Blackmagic RAW Constant Quality Q0,Blackmagic RAW Constant Quality Q5,
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy,DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF.
Control
Recorder Control
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External Control
LANC, SDI and HDMI start/stop and timecode run.
Blackmagic RAW
Supported Cameras
Panasonic AU-EVA1, Canon EOS C300 Mark II
Software
Software Included
Blackmagic Video Assist Operating System
Scopes
Scopes
Waveform, RGB Parade, Vector, Histogram.
Viewing Modes
Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
Power Requirements
Power Supply
1 x External 12V power supply.
Compatible with Sony NP-F style batteries.
(batteries not included)

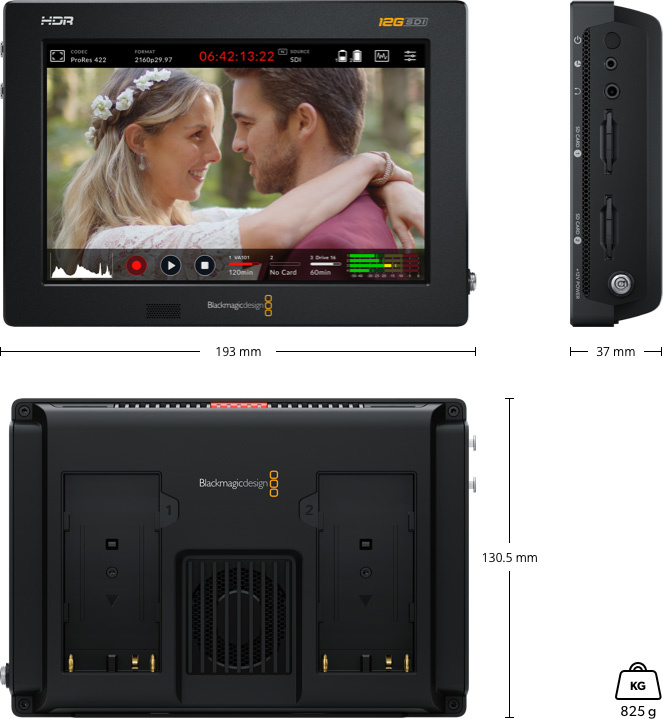

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Video Assist 7” 12G HDR
Universal power supply with locking connector and international adapters
Warranty
12 Month Limited Manufacturer’s Warranty.
