Blackmagic design DaVinci Resolve Advanced Panel

Informatie

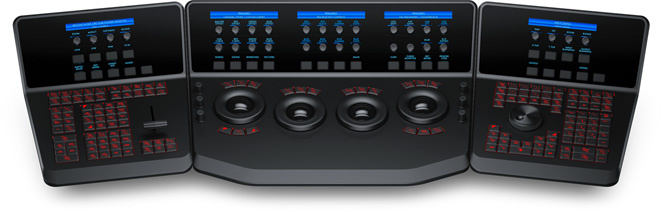

Designed with three ergonomically connected control surfaces and a pull out keyboard, DaVinci Resolve Advanced Panel gives you complete command of every color grading session! Each correction control has a separate soft key, knob, high resolution weighted trackball or ring so you can experiment quicker to create a wider range of looks!

Connections

Computer Interface

USB Type-B connector on each panel.

USB Loop Out

2 x loop out USB Type-A connectors for side panels.

USB Hub

2 x USB Type-A connectors for a mouse and other USB devices.

Software Updates

USB Type Mini-B connectors on each panel for factory software updates.

12V Power Input

Centre 3-pin 3W3 D-Sub connector on Trackball Panel.

3-pin 3W3 D-Sub connector on the Search Dial and T-bar Panels.

12V Power Output

Left and right 3-pin 3W3 D-Sub connectors on Trackball Panel.

Power Requirements

Power Supply

External 100 -240V AC 1.5A 50/60Hz with IEC C14 mains input.

Power Usage

80W max.

Operating Systems

Mac 13.0 Ventura

Mac 14.0 Sonoma or later.

Windows 10, Creators Update

Windows 11

Rocky Linux 8.6

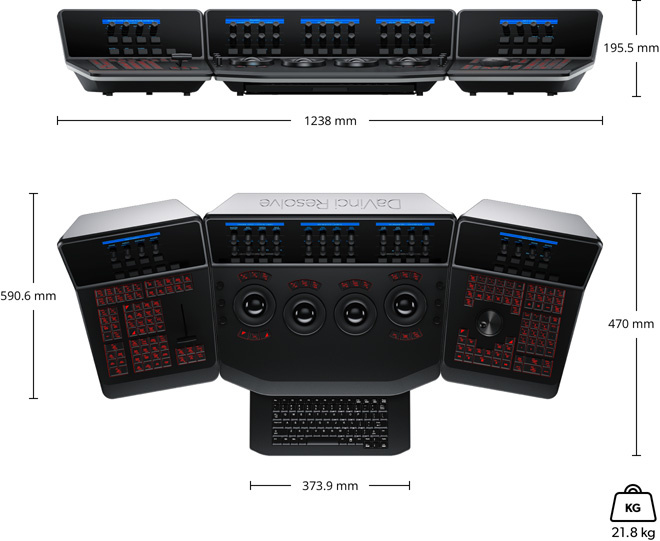

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

• DaVinci Resolve Advanced Trackball Panel
• DaVinci Resolve Advanced Search Dial Panel
• DaVinci Resolve Advanced T-bar Panel
• DaVinci Resolve Advanced Panel Dongle
• DaVinci Resolve Studio Activation Key
• 12V Power Supply with IEC C14 Mains Inlet
• 2 x 1m 3-pin Inter Panel Power Cables
• 3 x 2m USB Type-A to Type-B Cables

Warranty

1 Year Limited Manufacturer's Warranty
